Input Speed Sensor: Installation

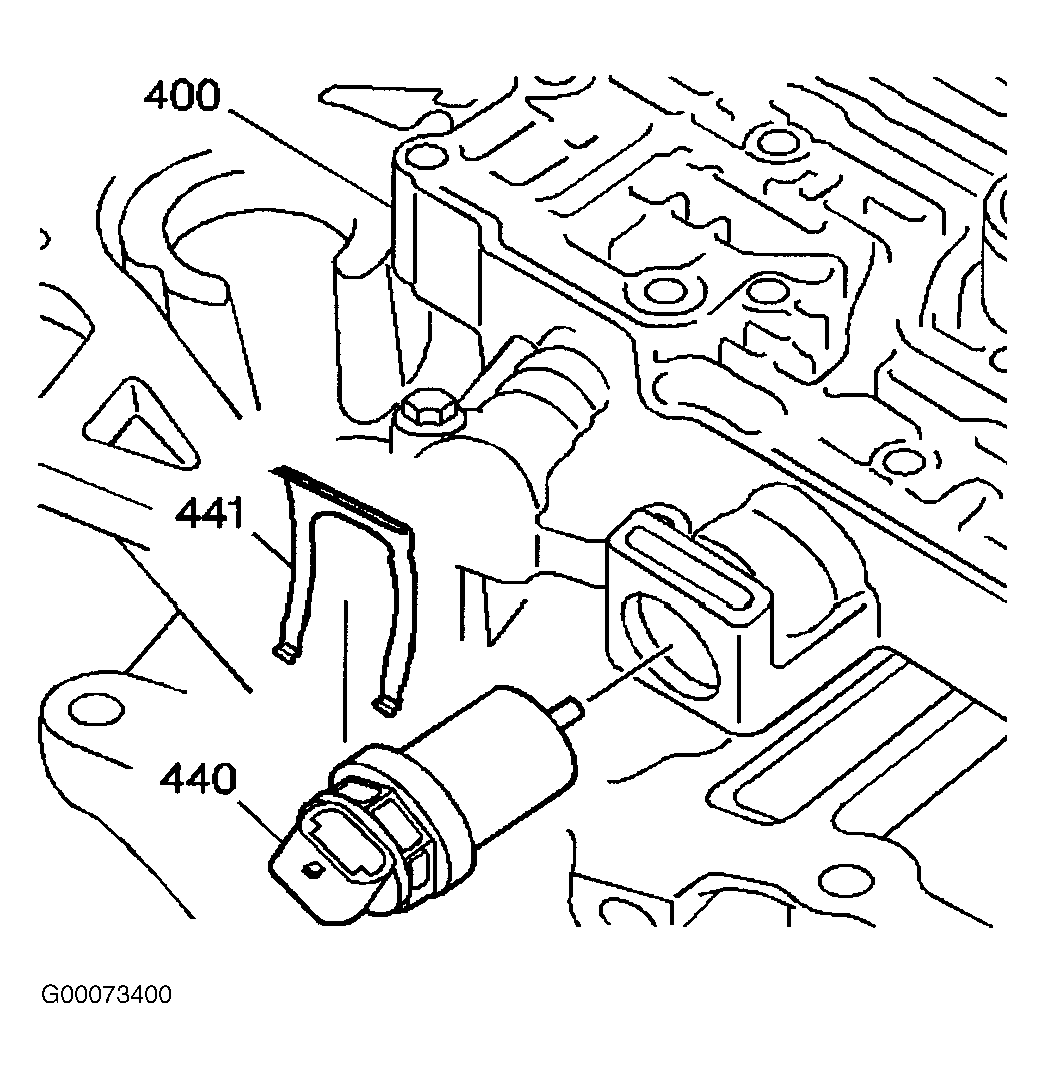

  1. Install the input speed sensor (440) into the case cover. See Figure .
  2. Install the input speed sensor clip (441) into the case cover.
  3. Connect the transaxle wiring harness.
  4. Install the case side cover. See CASE SIDE COVER  .
