Automatic Transmission Shift Lock Control Connector End Views

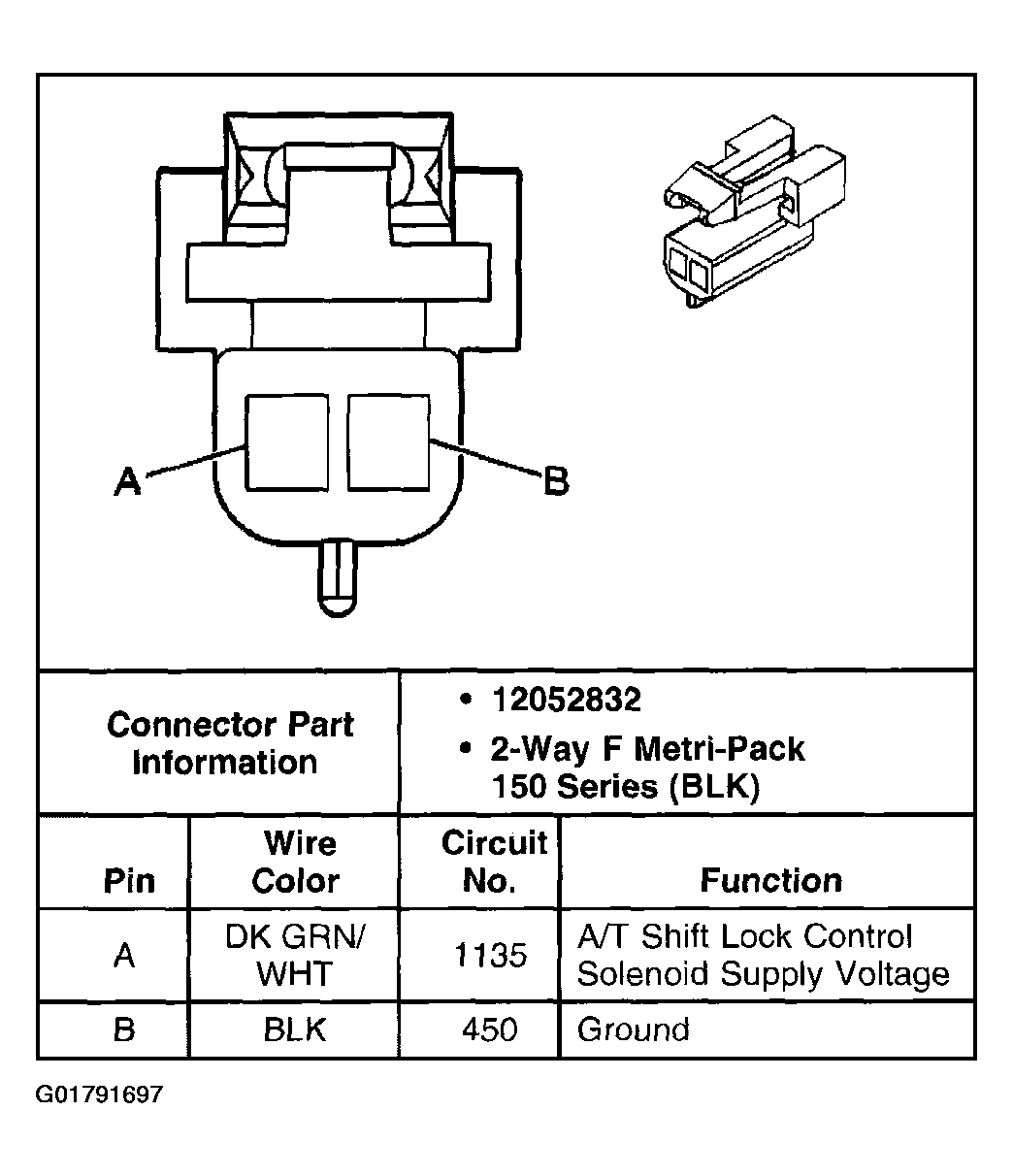

Fig 1: Identifying A/T Shift Lock Control Solenoid - Column Shift

Courtesy of GENERAL MOTORS CORP.

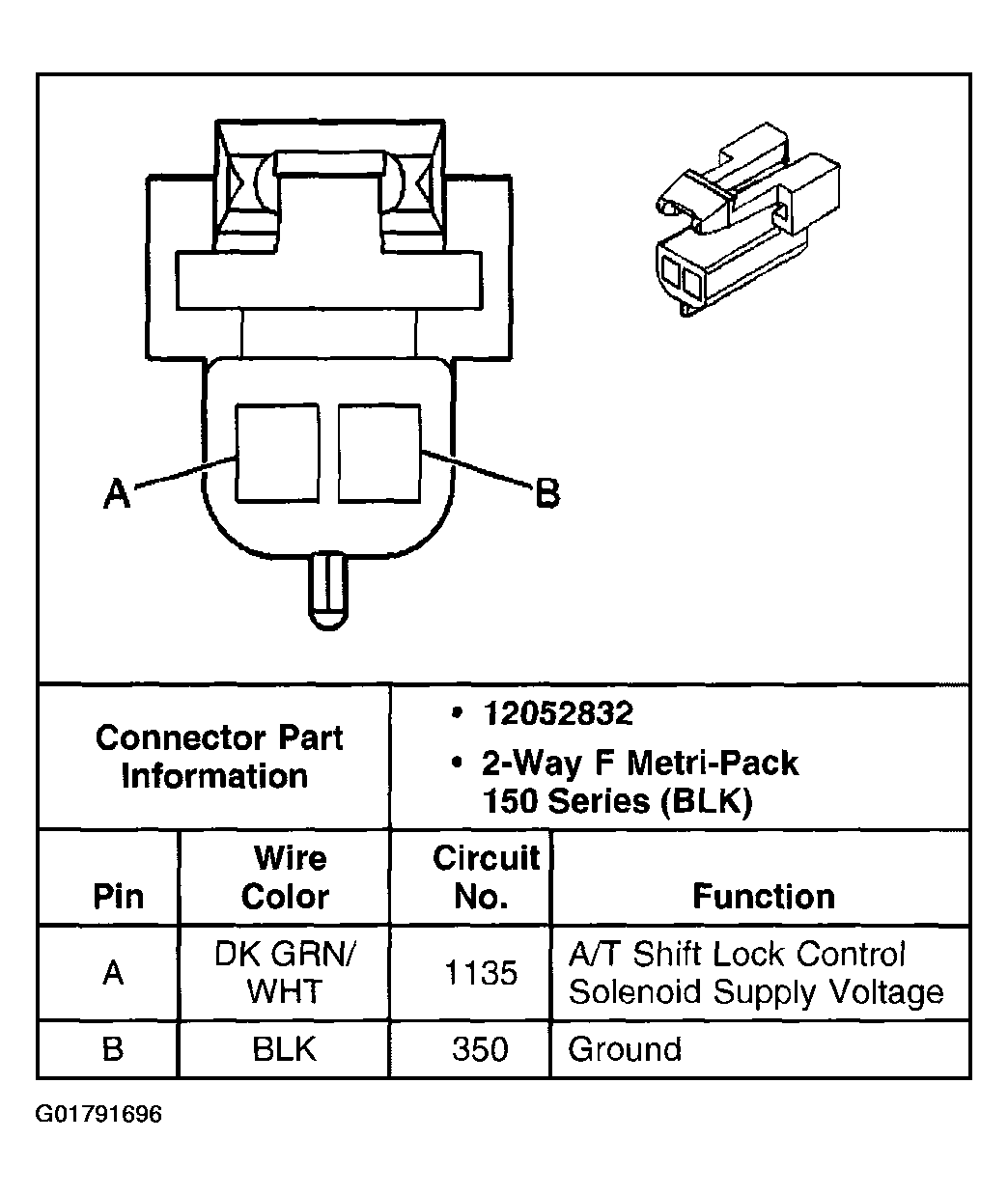

Fig 2: Identifying A/T Shift Lock Control Solenoid - Console Shift

Courtesy of GENERAL MOTORS CORP.
