Installation Procedure

  1. Install the traction control switch (1) to the front floor console accessory trim plate (2).

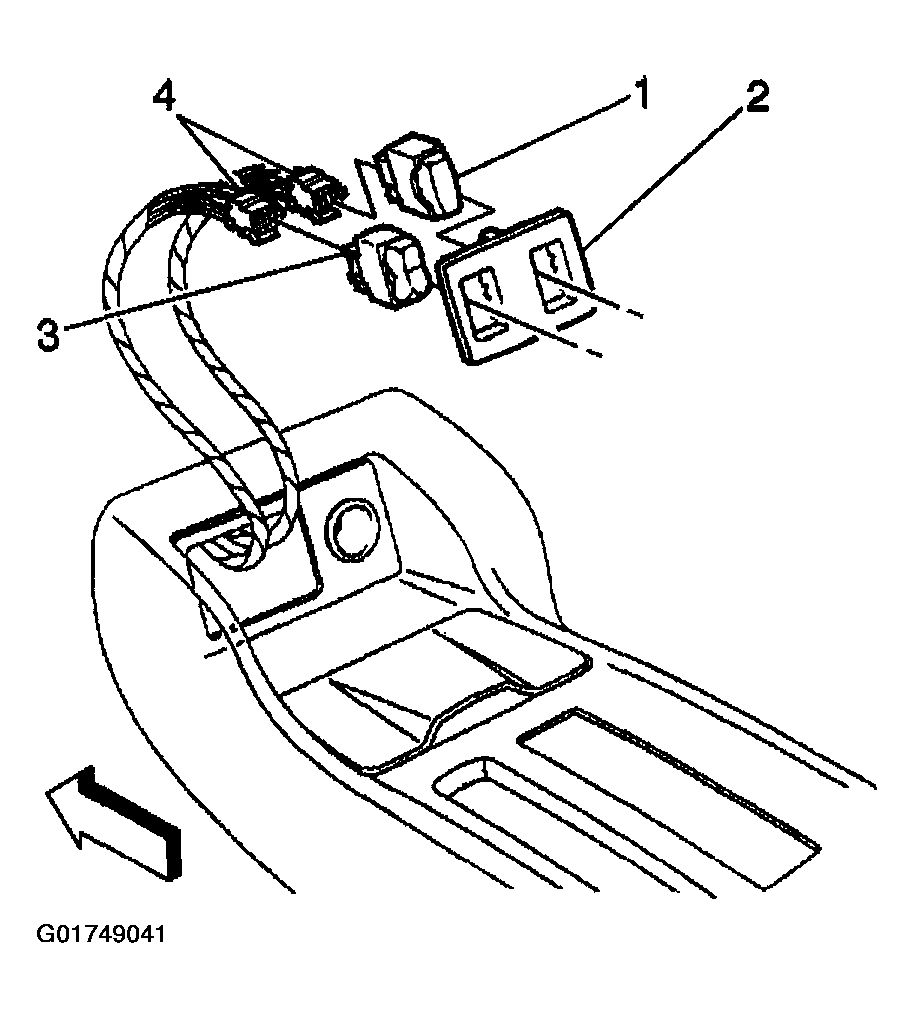

    Fig 1: Installing Traction Control Switch
    G01749041Courtesy of GENERAL MOTORS CORP.
  2. Connect the electrical connector (4) to the convertible top switch (3), if equipped.
  3. Connect the electrical connector (4) to the traction control switch (1).
  4. Install the front floor console accessory trim plate (2).
