Home >> Pontiac >> 2002 >> Firebird Formula, Automatic >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM Connector End Views >> Connector End Views >> Hazard Flasher Module Connector End View

Hazard Flasher Module Connector End View

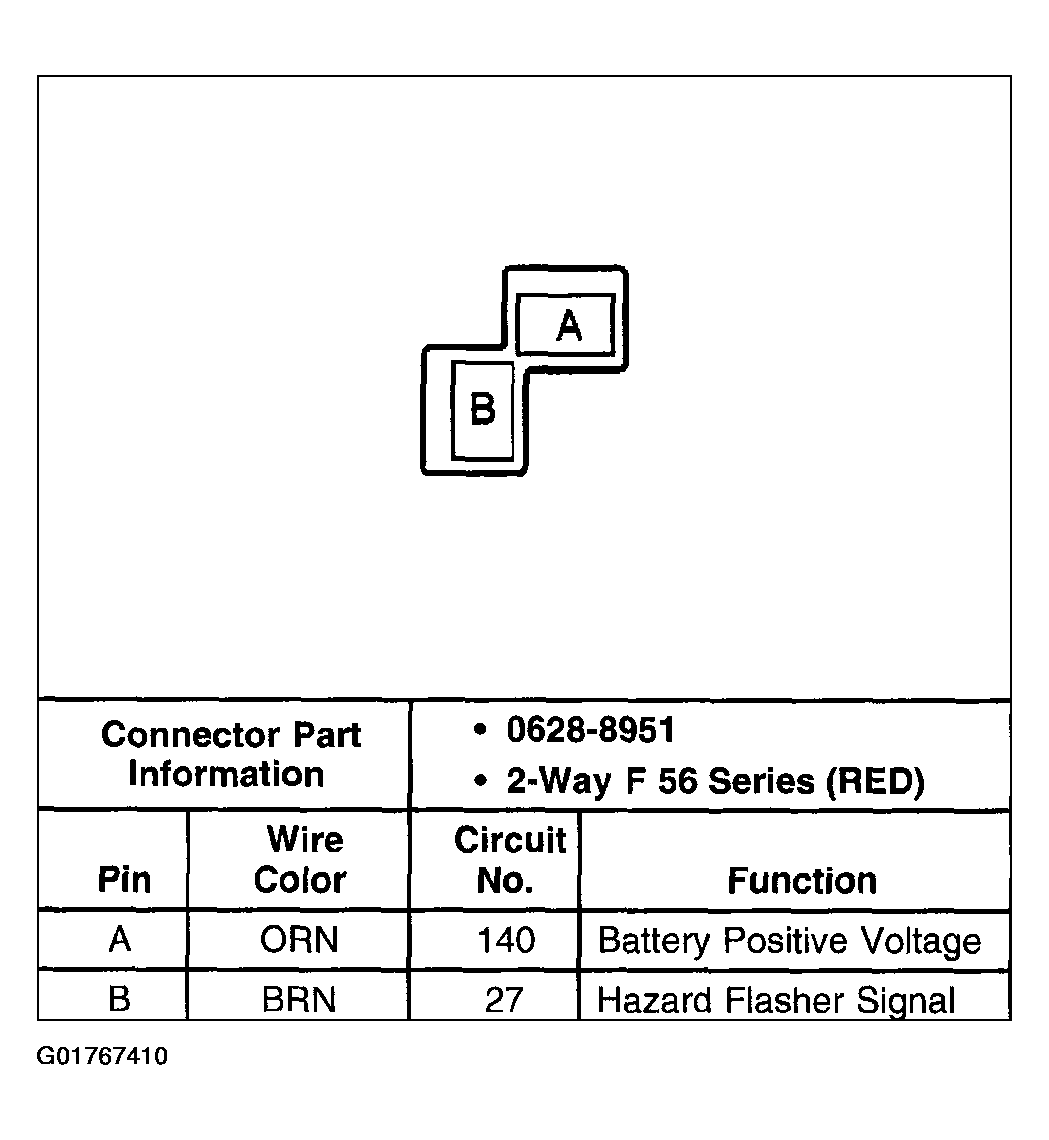

Fig 1: Hazard Flasher Module Connector End View

G01767410

Courtesy of GENERAL MOTORS CORP.
