Window Control Module Connector End View

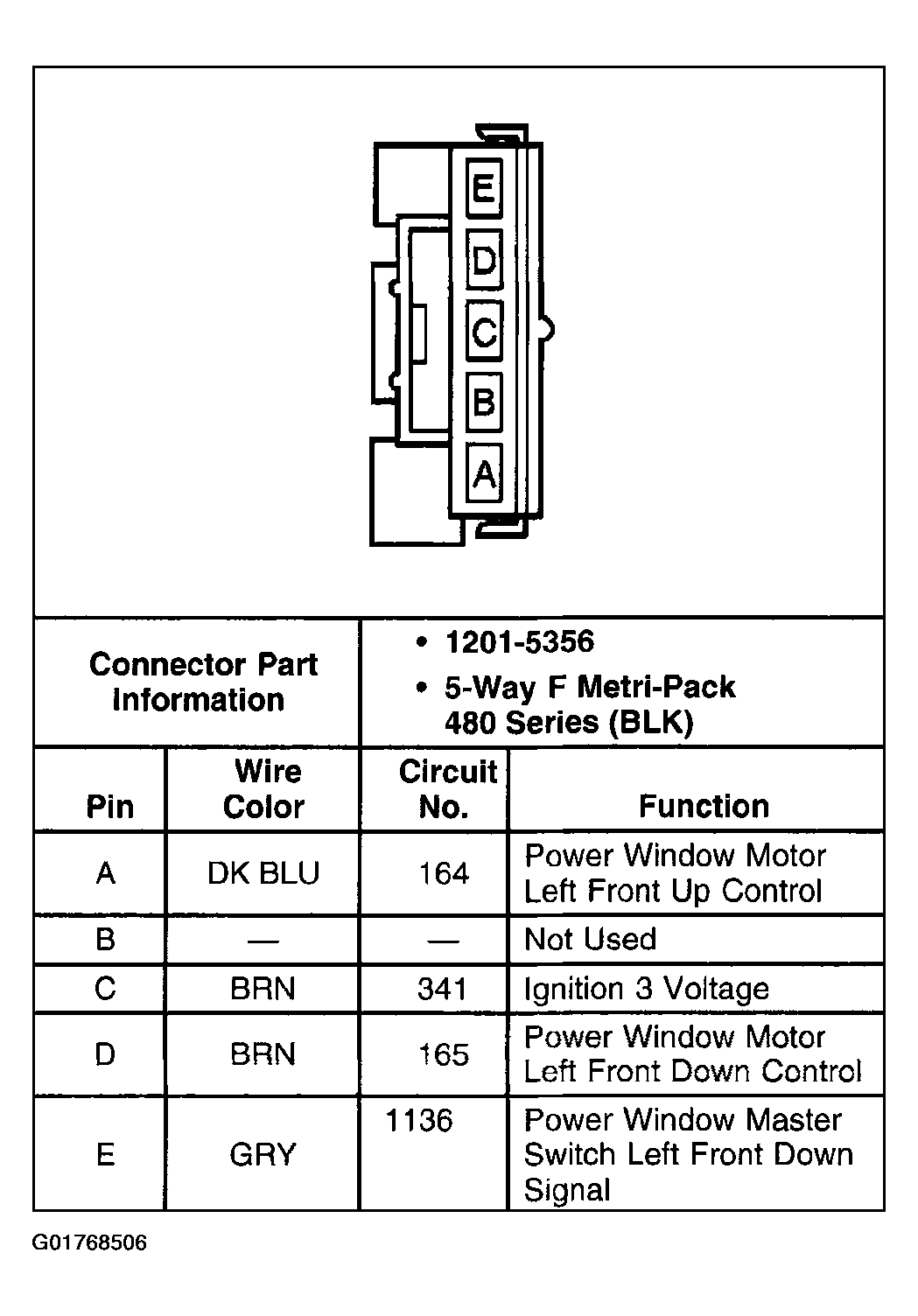

Fig 1: Window Control Module Connector End View

G01768506

Courtesy of GENERAL MOTORS CORP.
