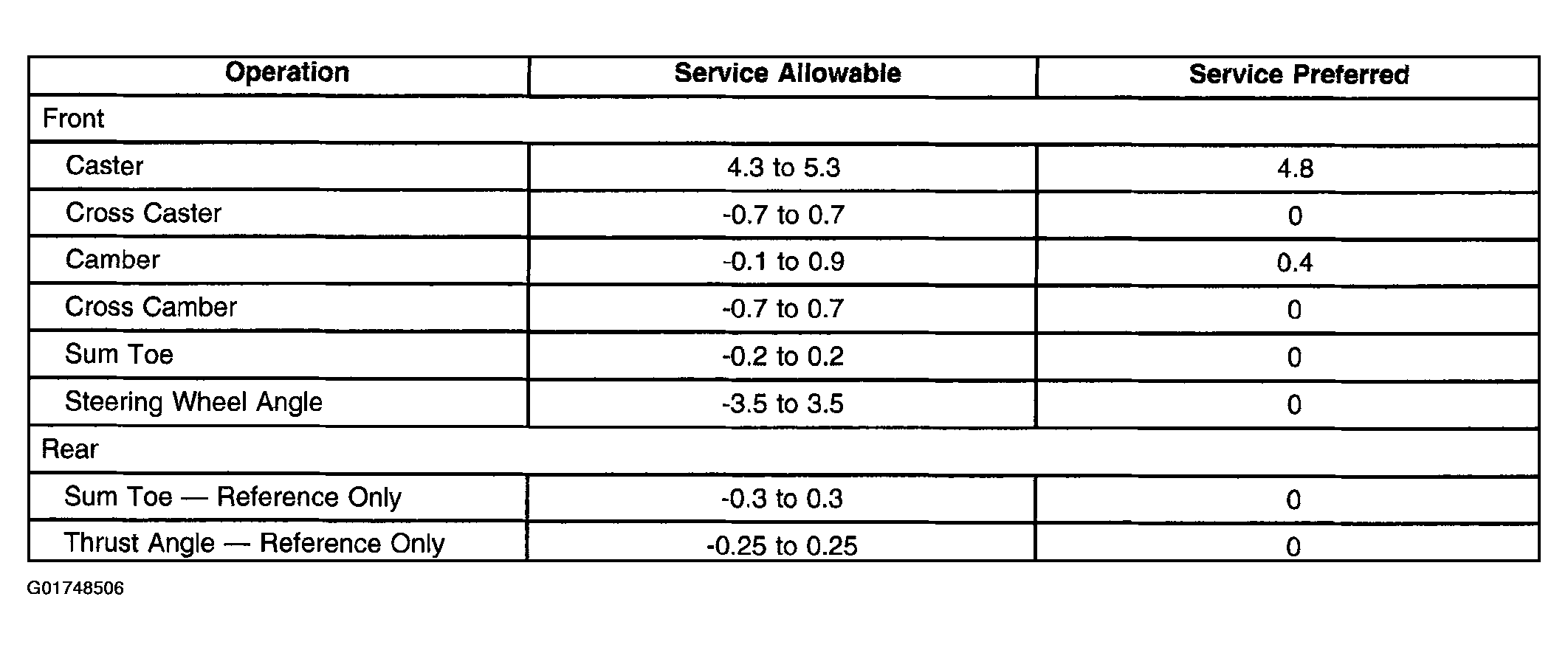

Wheel Alignment Specifications & Adjustment Procedures: Specifications
Courtesy of GENERAL MOTORS CORP. Fastener Tightening Specification
| Application |
Specification |
| Metric |
English |
| Inner Tie Rod Nut |
47 N.m |
35 lb ft |
| Lower Control Arm Nut |
100 N.m |
47 lb ft |
