Connector Identification

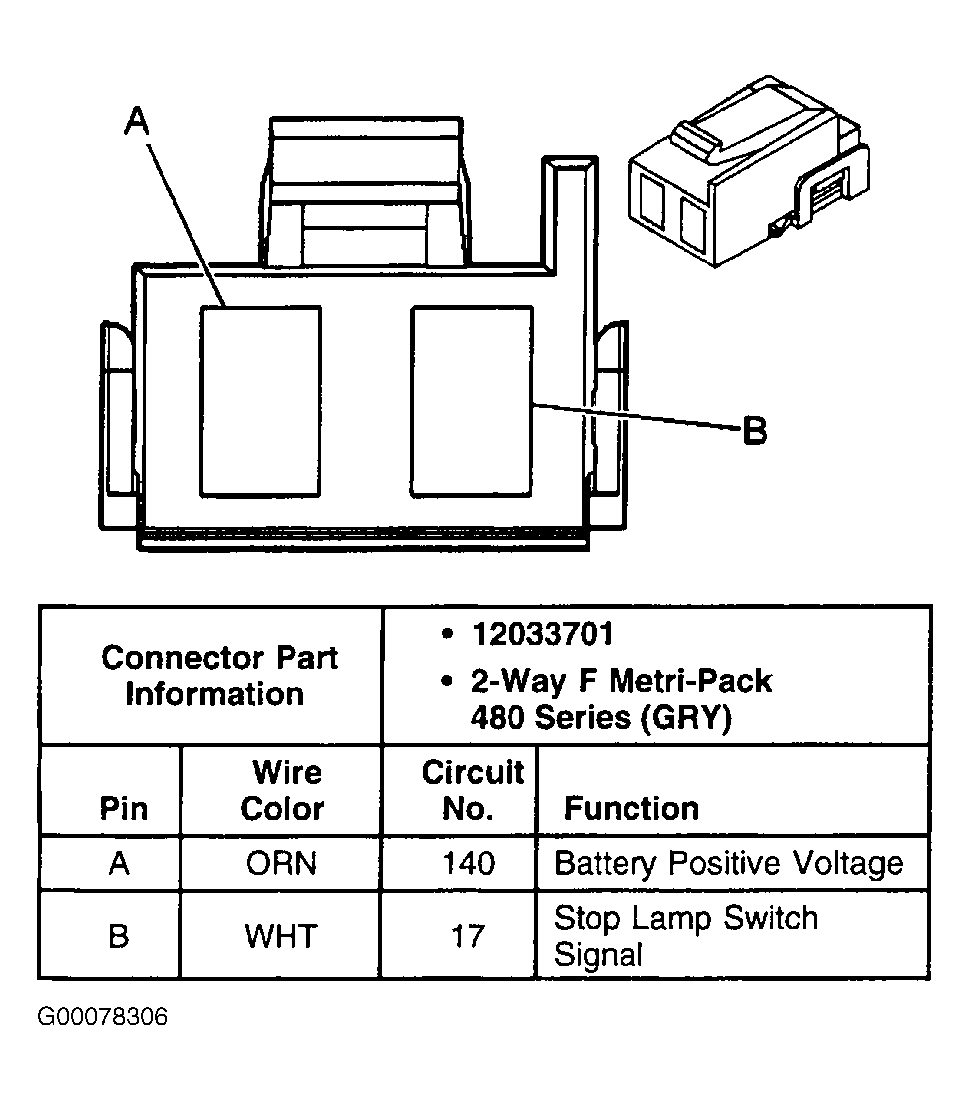

Fig 1: Identifying Stoplamp Switch Harness Connector (C1) Terminals
G00078306Courtesy of GENERAL MOTORS CORP.

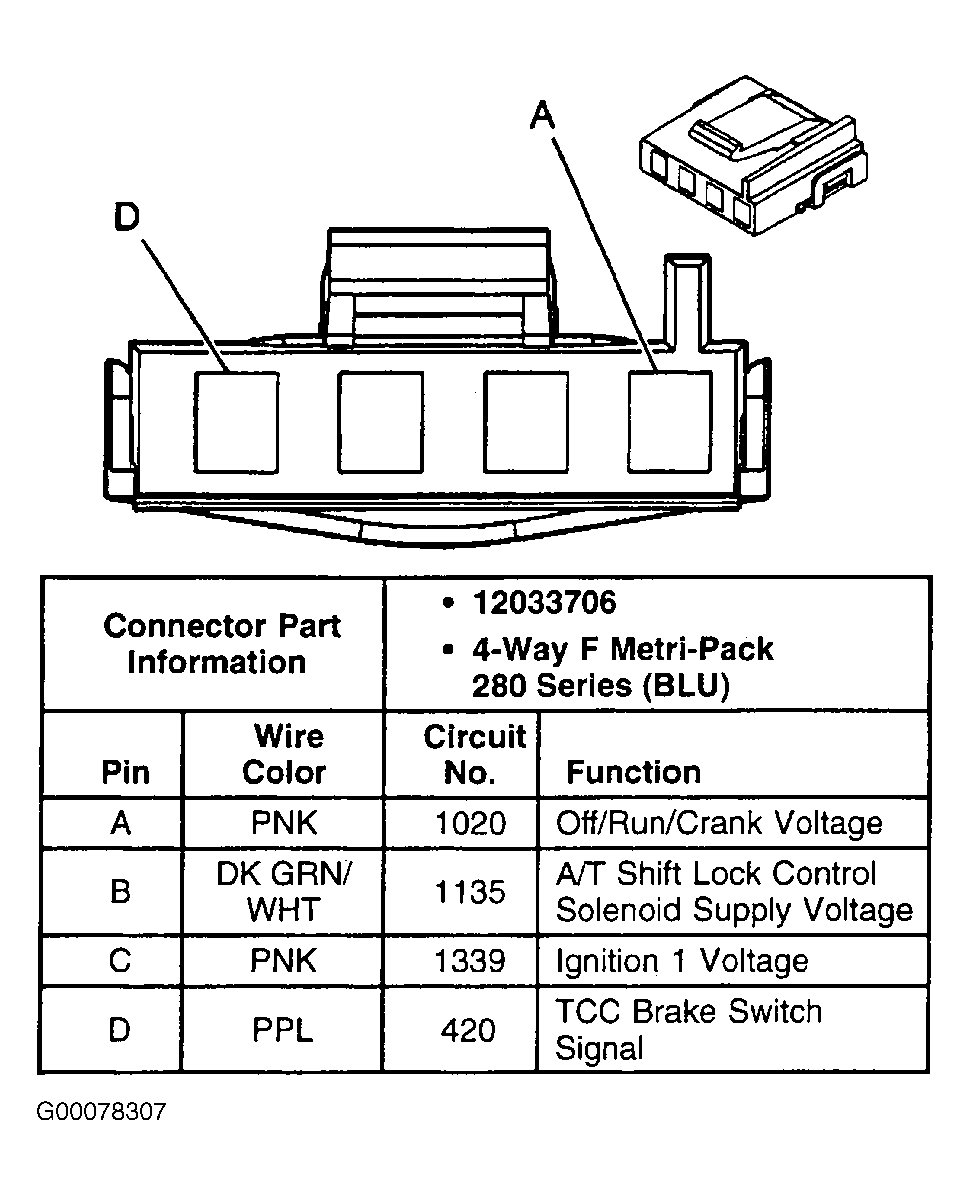

Fig 2: Identifying Stoplamp Switch Harness Connector (C2) Terminals
G00078307Courtesy of GENERAL MOTORS CORP.

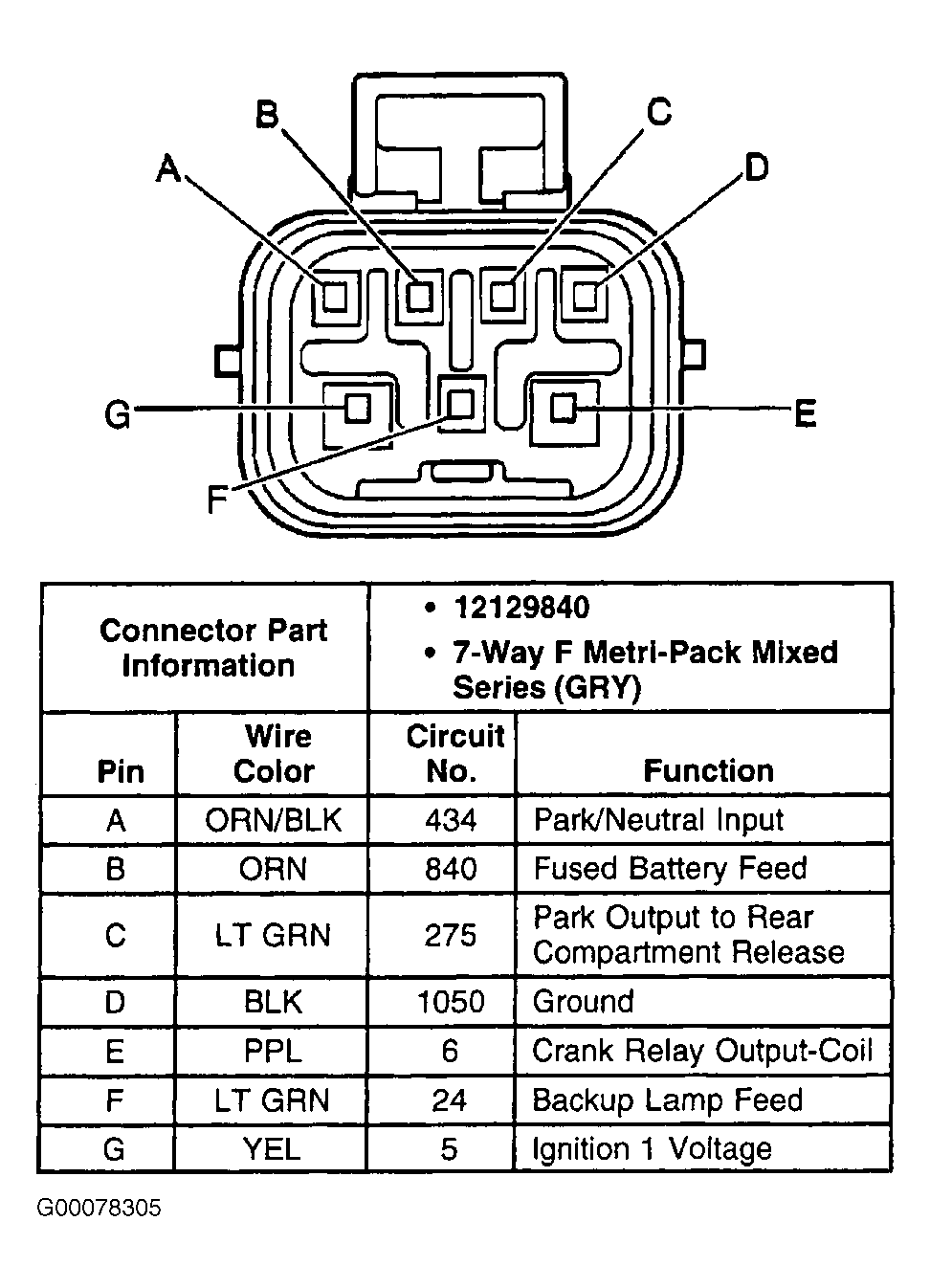

Fig 3: Identifying PNP Switch Harness Connector (C1) Terminals
G00078305Courtesy of GENERAL MOTORS CORP.

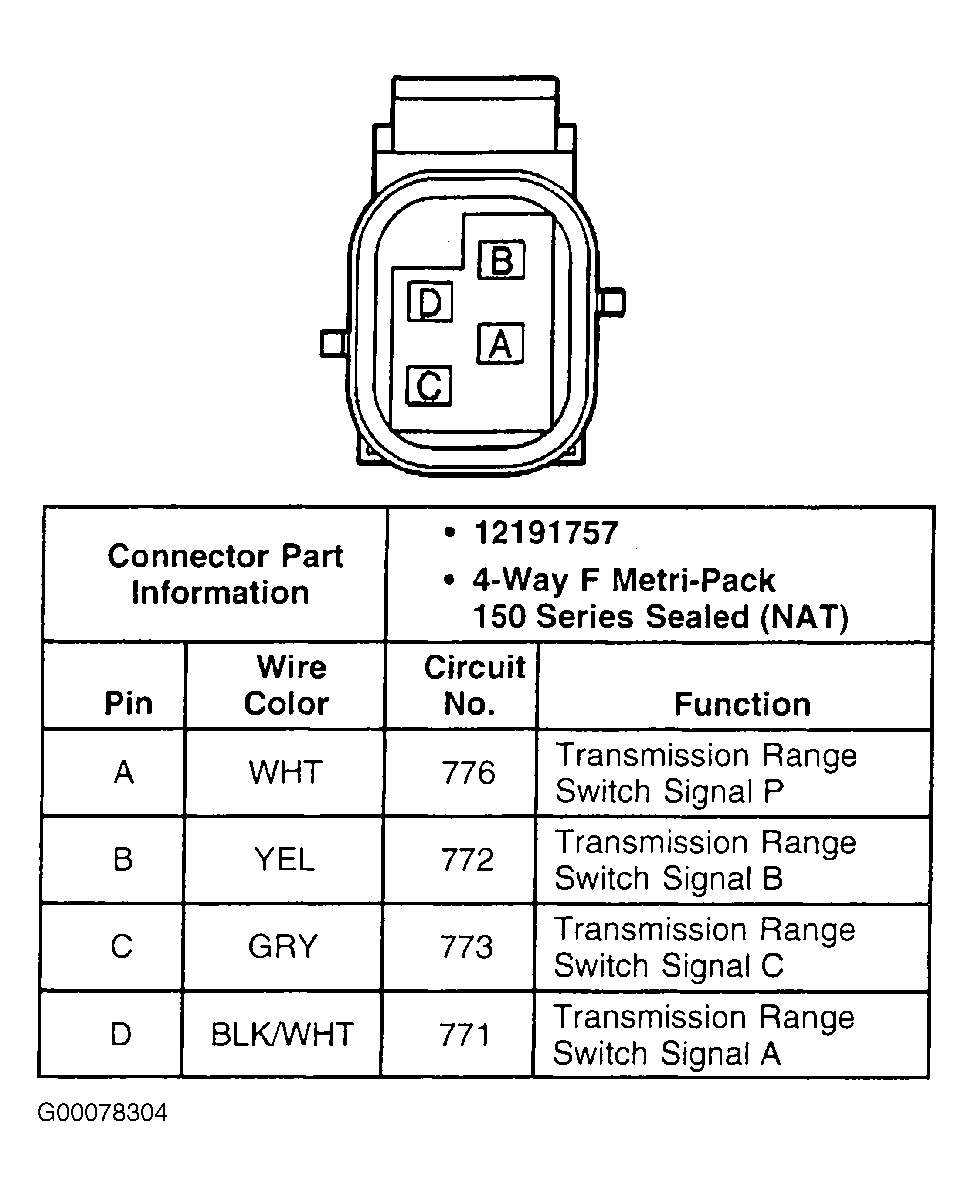

Fig 4: Identifying PNP Switch Harness Connector (C2) Terminals
G00078304Courtesy of GENERAL MOTORS CORP.

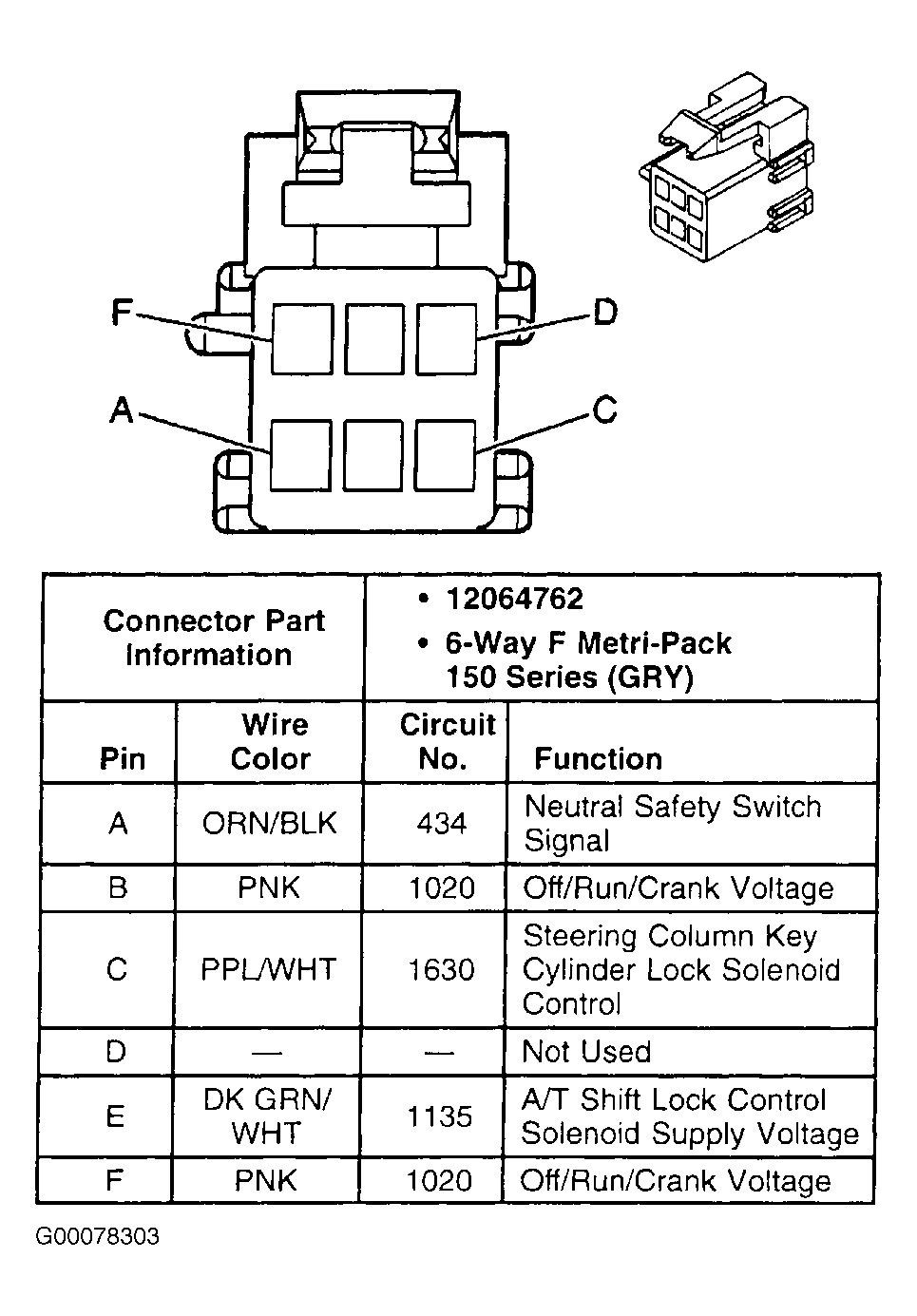

Fig 5: Identifying Shift Lock Solenoid Harness Connector Terminals
G00078303Courtesy of GENERAL MOTORS CORP.
