Engine Controls Self-Diagnostics - 2.2L
>>
Connector Identification
Connector Identification

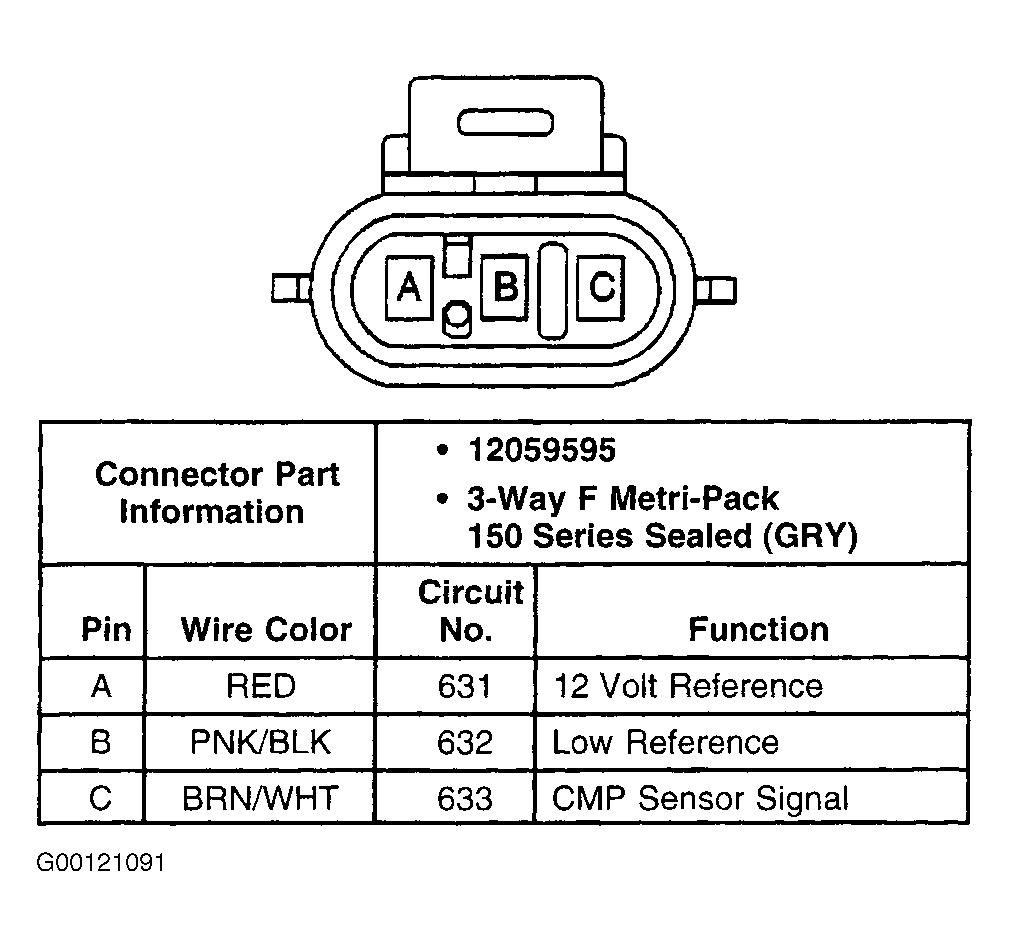

Fig 1: Identifying Camshaft Position Sensor Harness Connector Terminals (DOHC)
Courtesy of GENERAL MOTORS CORP.
Fig 2: Identifying Crankshaft Position Sensor Harness Connector Terminals (DOHC)
Courtesy of GENERAL MOTORS CORP.

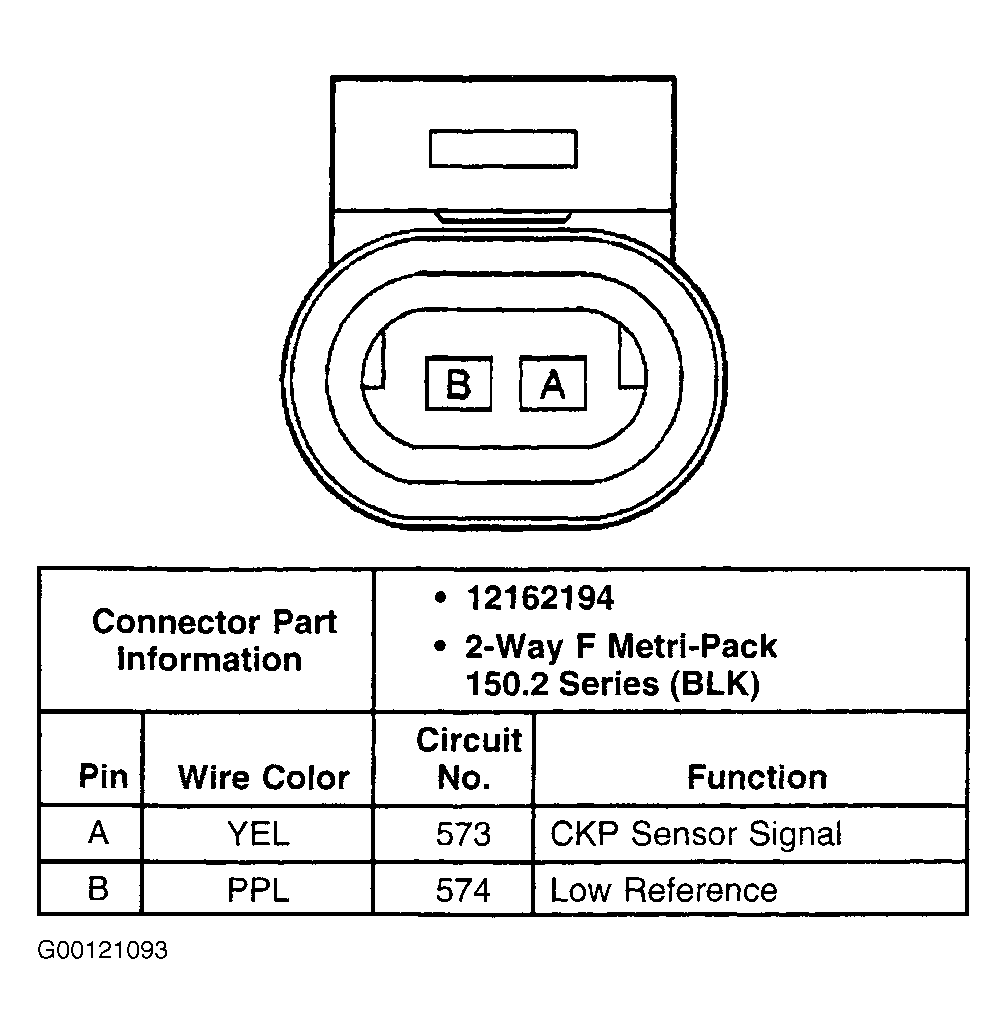

Fig 3: Identifying Crankshaft Position Sensor Harness Connector Terminals (SOHC)
Courtesy of GENERAL MOTORS CORP.
Fig 4: Identifying ECT Sensor Harness Connector Terminals (DOHC)
Courtesy of GENERAL MOTORS CORP.
Fig 5: Identifying ECT Sensor Harness Connector Terminals (SOHC)
Courtesy of GENERAL MOTORS CORP.
Fig 6: Identifying EVAP Canister Purge Solenoid Harness Connector Terminals (DOHC)
Courtesy of GENERAL MOTORS CORP.
Fig 7: Identifying EVAP Canister Purge Solenoid Harness Connector Terminals (SOHC)
Courtesy of GENERAL MOTORS CORP.
Fig 8: Identifying EVAP Canister Vent Solenoid Harness Connector Terminals (DOHC)
Courtesy of GENERAL MOTORS CORP.

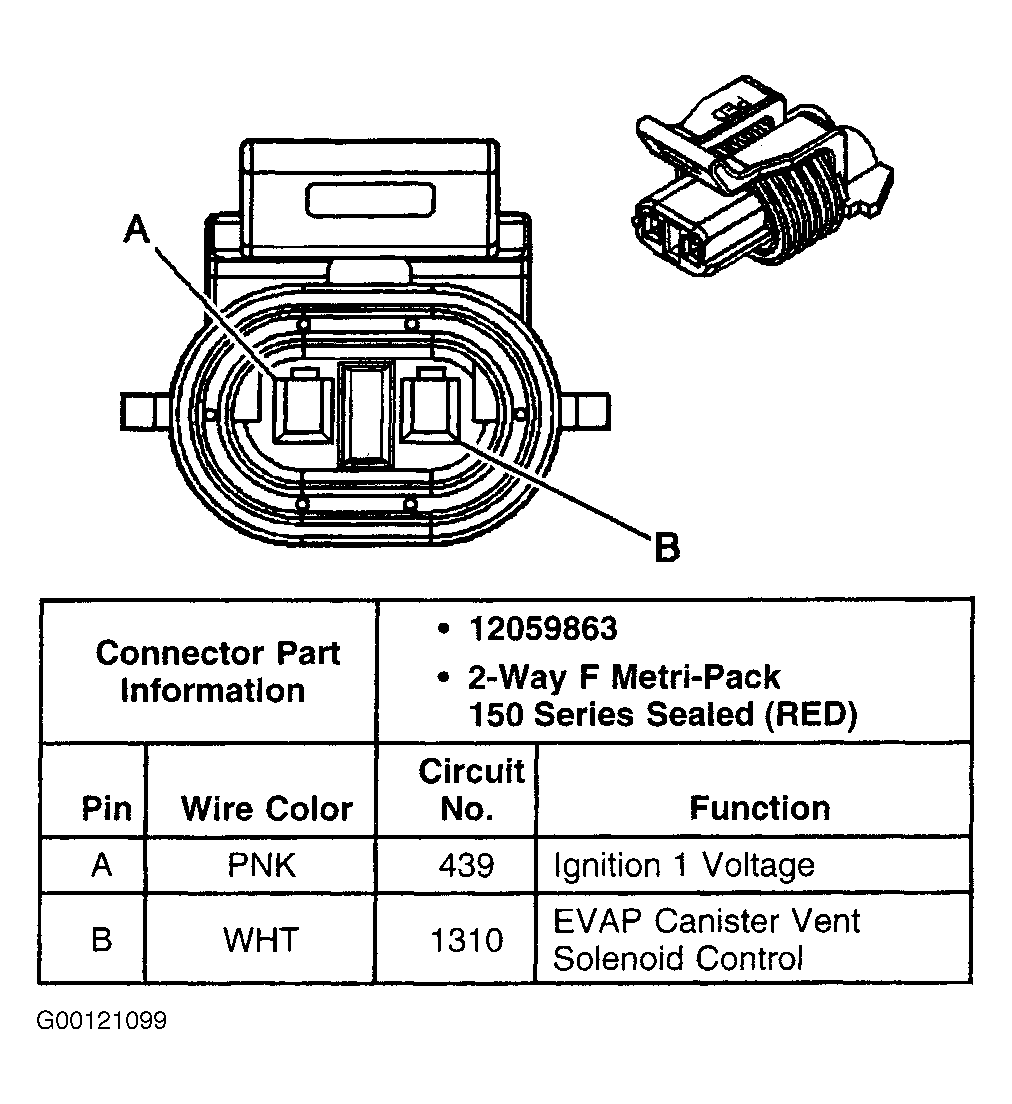

Fig 9: Identifying EVAP Canister Vent Solenoid Harness Connector Terminals (SOHC)
Courtesy of GENERAL MOTORS CORP.

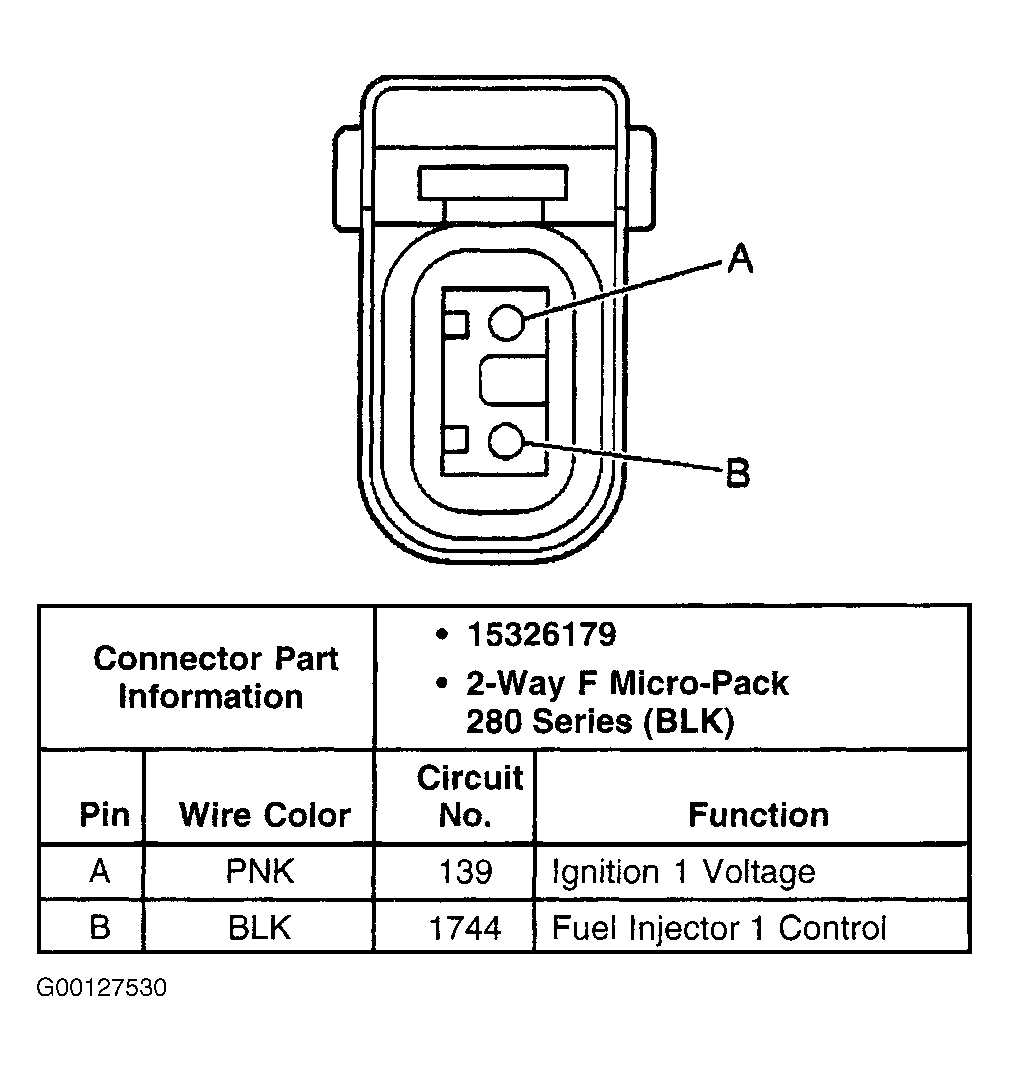

Fig 10: Identifying Fuel Injector No. 1 Harness Connector Terminals (DOHC)
Courtesy of GENERAL MOTORS CORP.
Fig 11: Identifying Fuel Injector No. 1 Harness Connector Terminals (SOHC)
Courtesy of GENERAL MOTORS CORP.
Fig 12: Identifying Fuel Injector No. 2 Harness Connector Terminals (DOHC)
Courtesy of GENERAL MOTORS CORP.

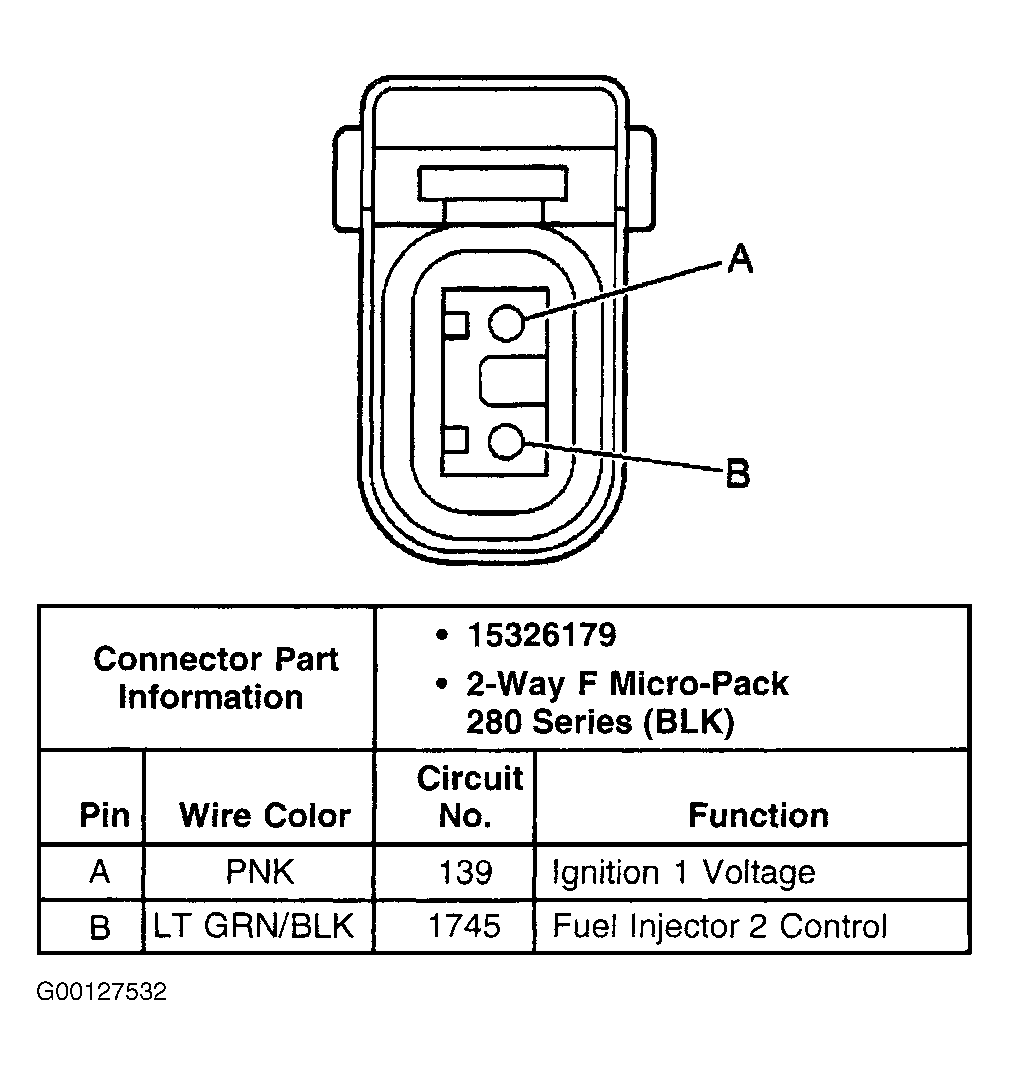

Fig 13: Identifying Fuel Injector No. 2 Harness Connector Terminals (SOHC)
Courtesy of GENERAL MOTORS CORP.
Fig 14: Identifying Fuel Injector No. 3 Harness Connector Terminals (DOHC)
Courtesy of GENERAL MOTORS CORP.

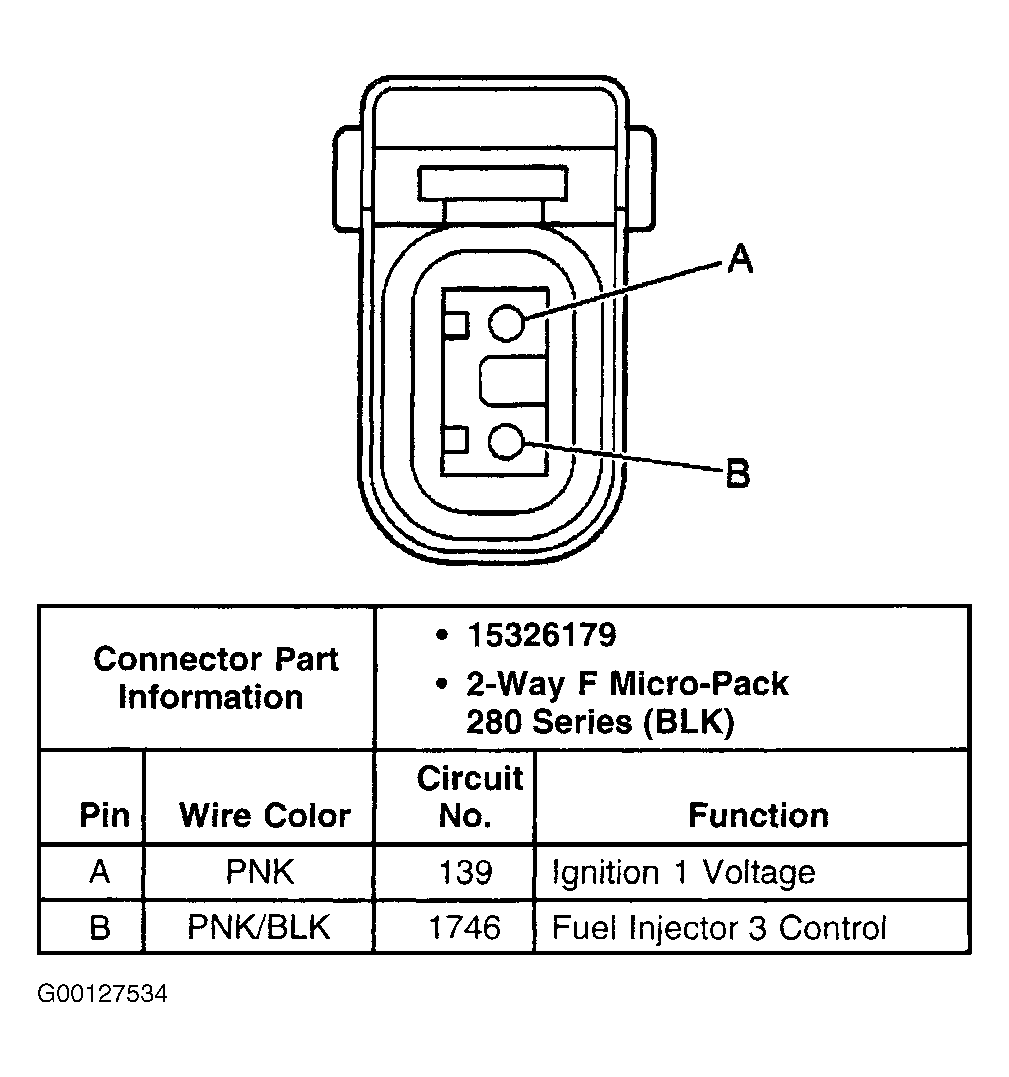

Fig 15: Identifying Fuel Injector No. 3 Harness Connector Terminals (SOHC)
Courtesy of GENERAL MOTORS CORP.

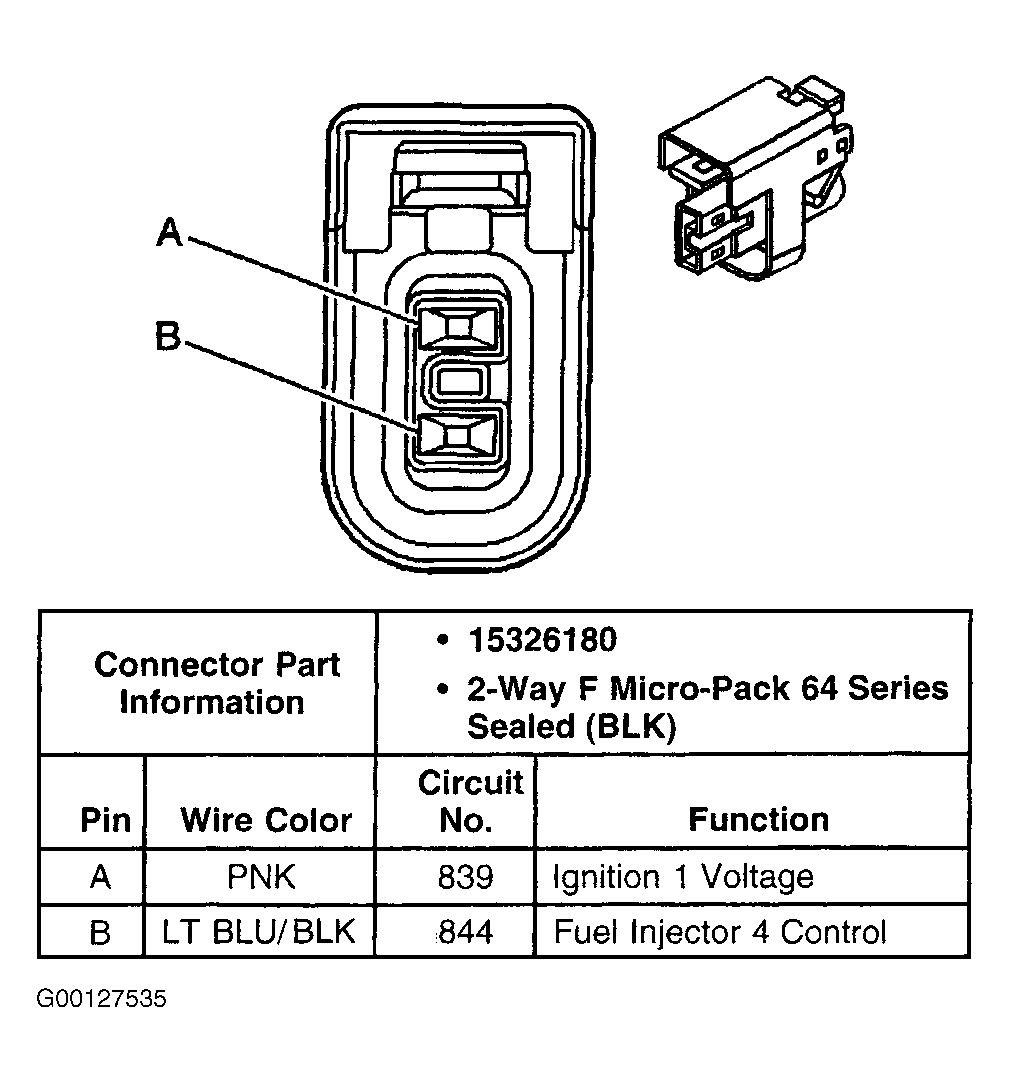

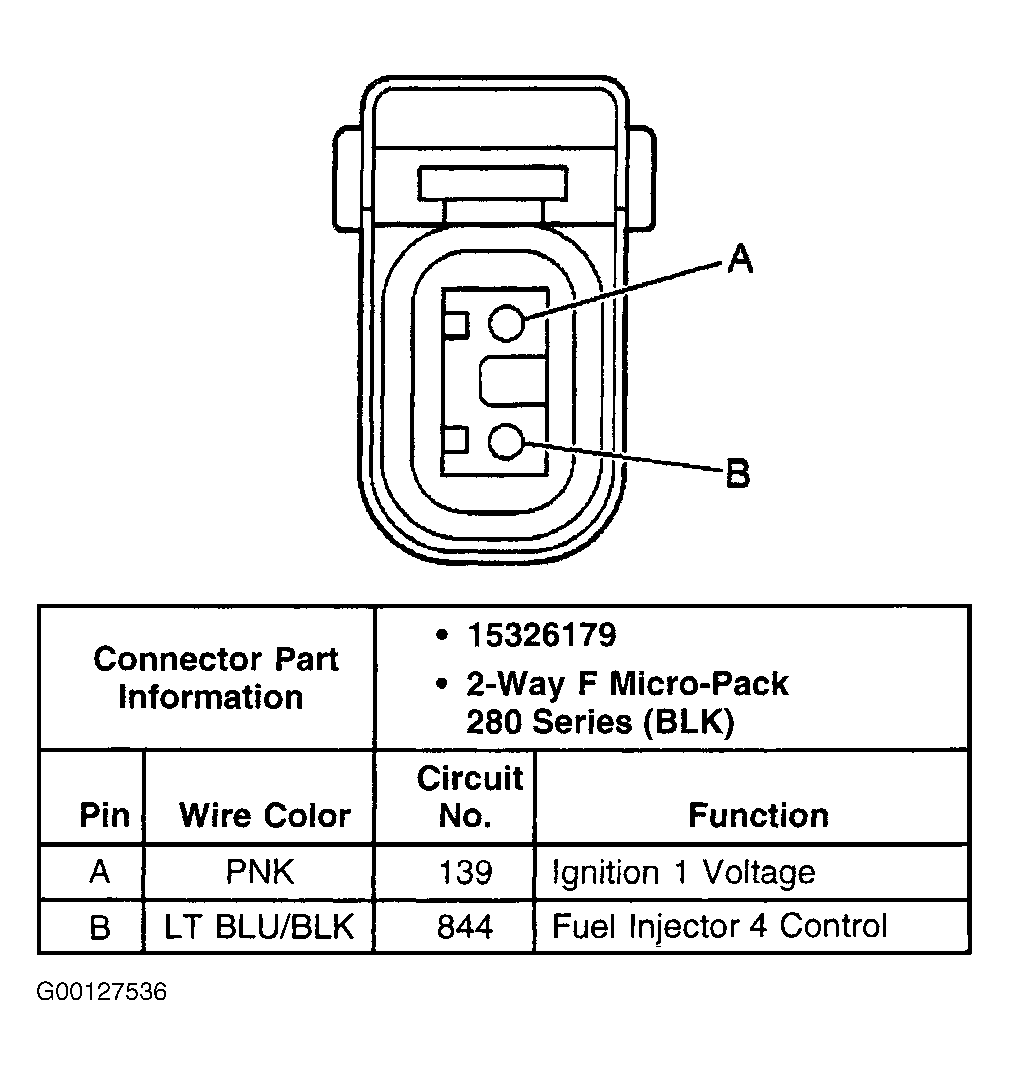

Fig 16: Identifying Fuel Injector No. 4 Harness Connector Terminals (DOHC)
Courtesy of GENERAL MOTORS CORP.
Fig 17: Identifying Fuel Injector No. 4 Harness Connector Terminals (SOHC)
Courtesy of GENERAL MOTORS CORP.
Fig 18: Identifying Fuel Pump & Sender Assembly Harness Connector Terminals (DOHC)
Courtesy of GENERAL MOTORS CORP.
Fig 19: Identifying Fuel Pump & Sender Assembly Harness Connector Terminals (SOHC)
Courtesy of GENERAL MOTORS CORP.
Fig 20: Identifying Fuel Tank Pressure Sensor Harness Connector Terminals (DOHC)
Courtesy of GENERAL MOTORS CORP.

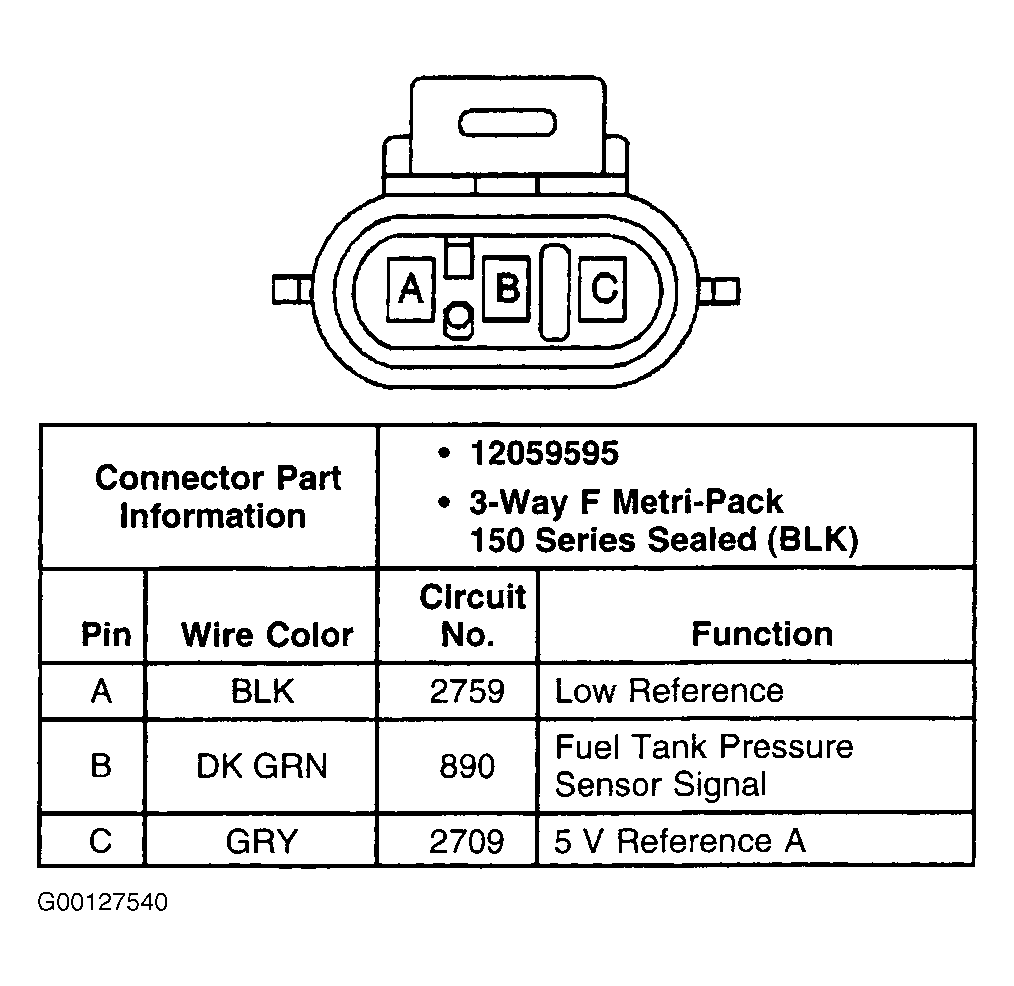

Fig 21: Identifying Fuel Tank Pressure Sensor Harness Connector Terminals (SOHC)
Courtesy of GENERAL MOTORS CORP.

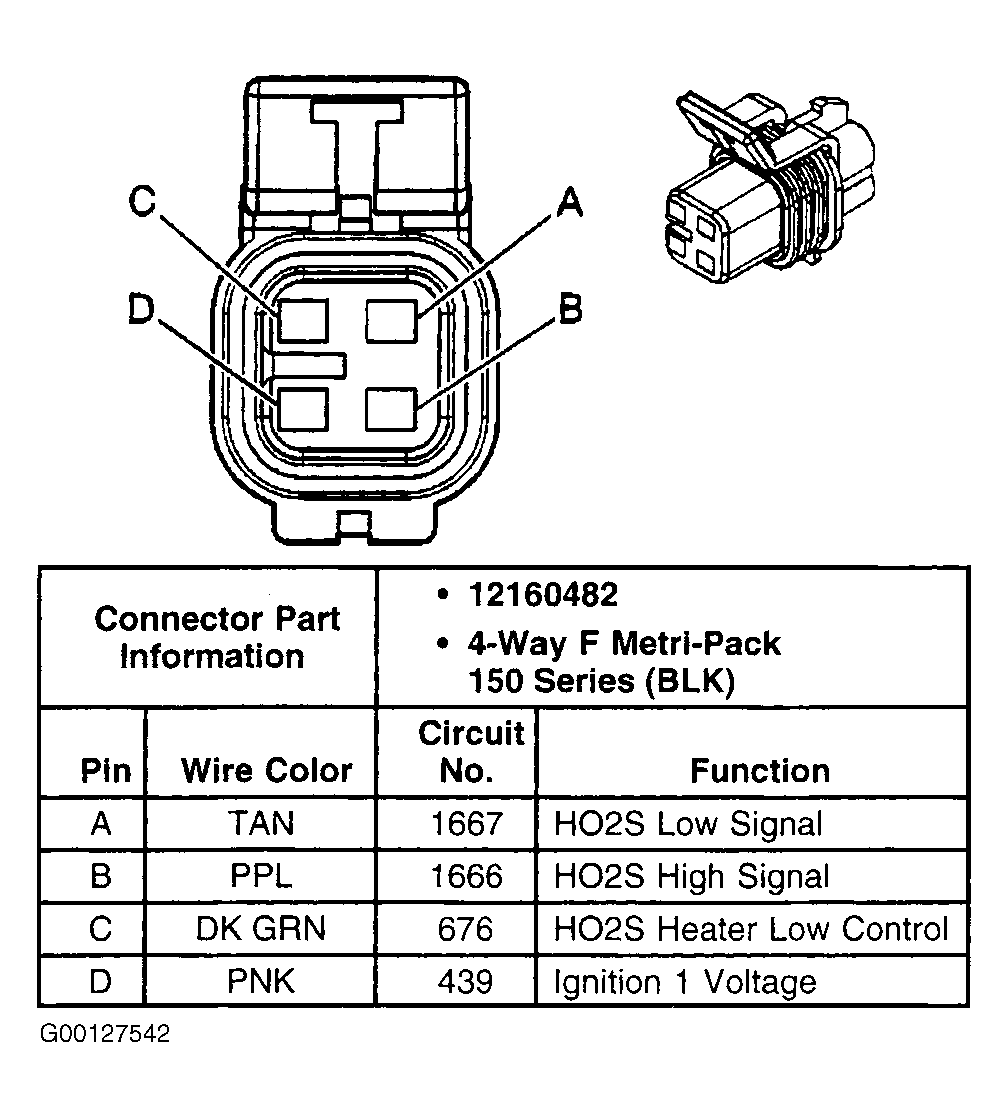

Fig 22: Identifying HO2S 1 Harness Connector Terminals (DOHC)
Courtesy of GENERAL MOTORS CORP.
Fig 23: Identifying HO2S 1 Harness Connector Terminals (SOHC)
Courtesy of GENERAL MOTORS CORP.
Fig 24: Identifying HO2S 2 Harness Connector Terminals (DOHC)
Courtesy of GENERAL MOTORS CORP.

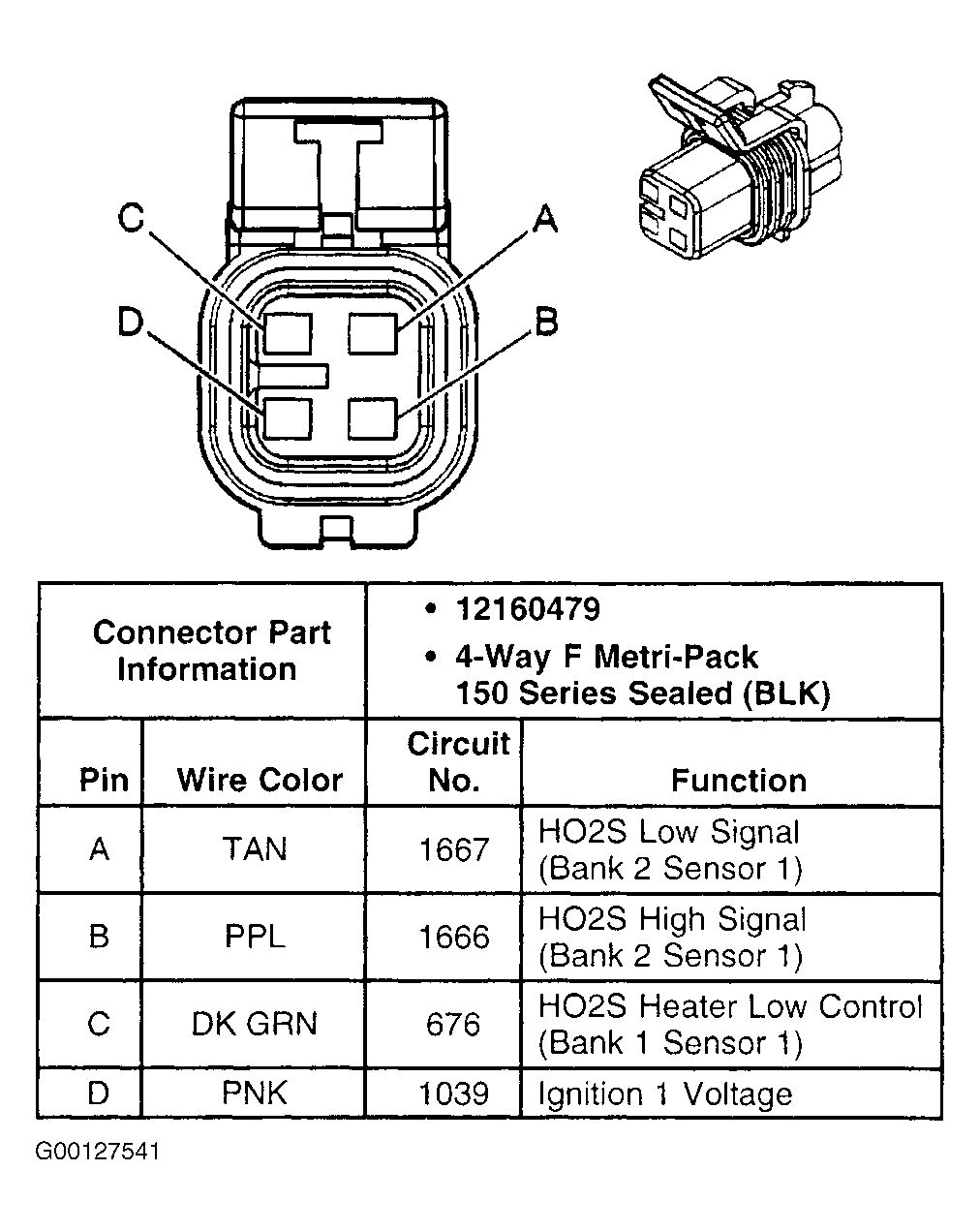

Fig 25: Identifying HO2S 2 Harness Connector Terminals (SOHC)
Courtesy of GENERAL MOTORS CORP.
Fig 26: Identifying Idle Air Control Valve Harness Connector Terminals (DOHC)
Courtesy of GENERAL MOTORS CORP.
Fig 27: Identifying Idle Air Control Valve Harness Connector Terminals (SOHC)
Courtesy of GENERAL MOTORS CORP.
Fig 28: Identifying Ignition Control Module Harness Connector Terminals (DOHC)
Courtesy of GENERAL MOTORS CORP.

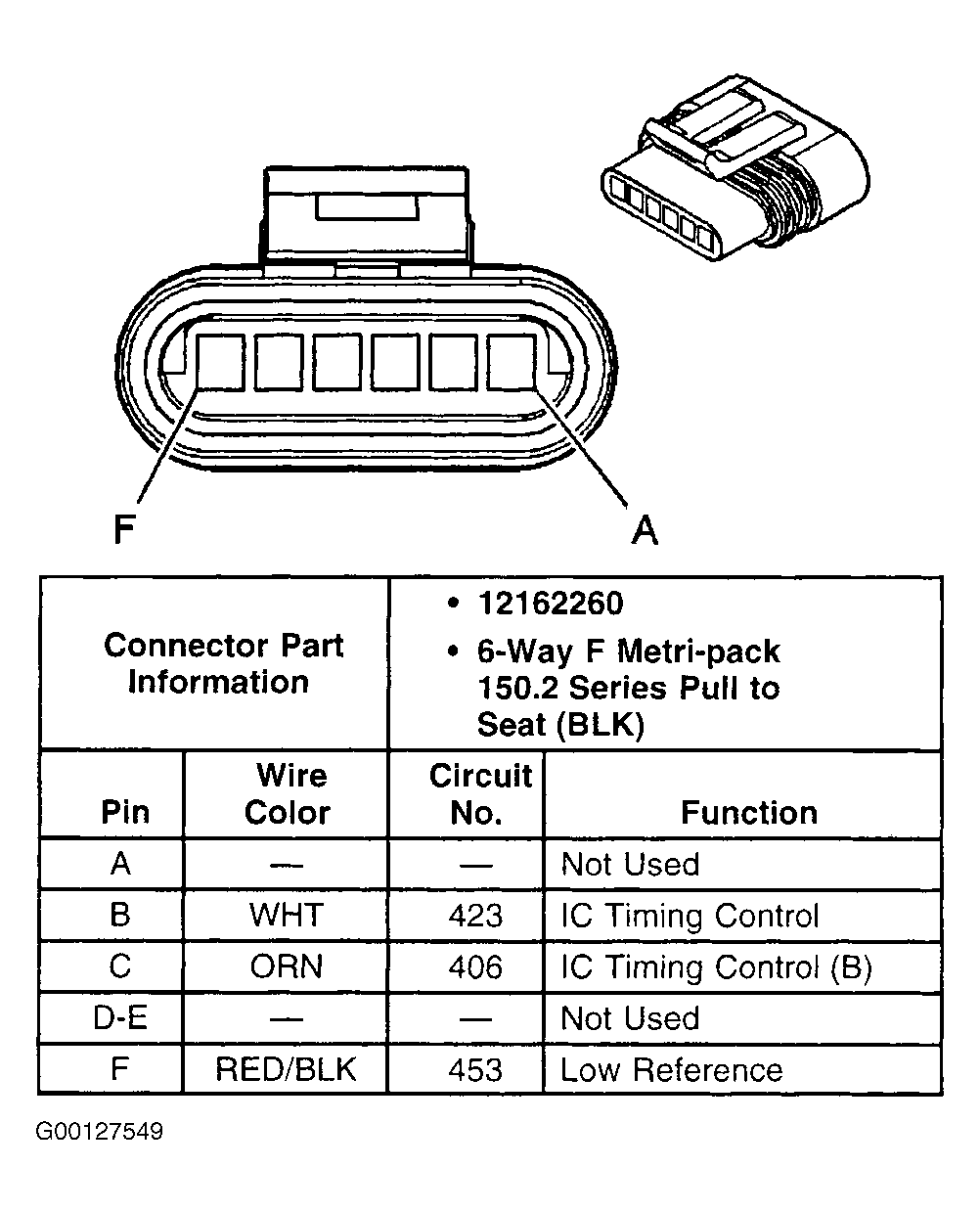

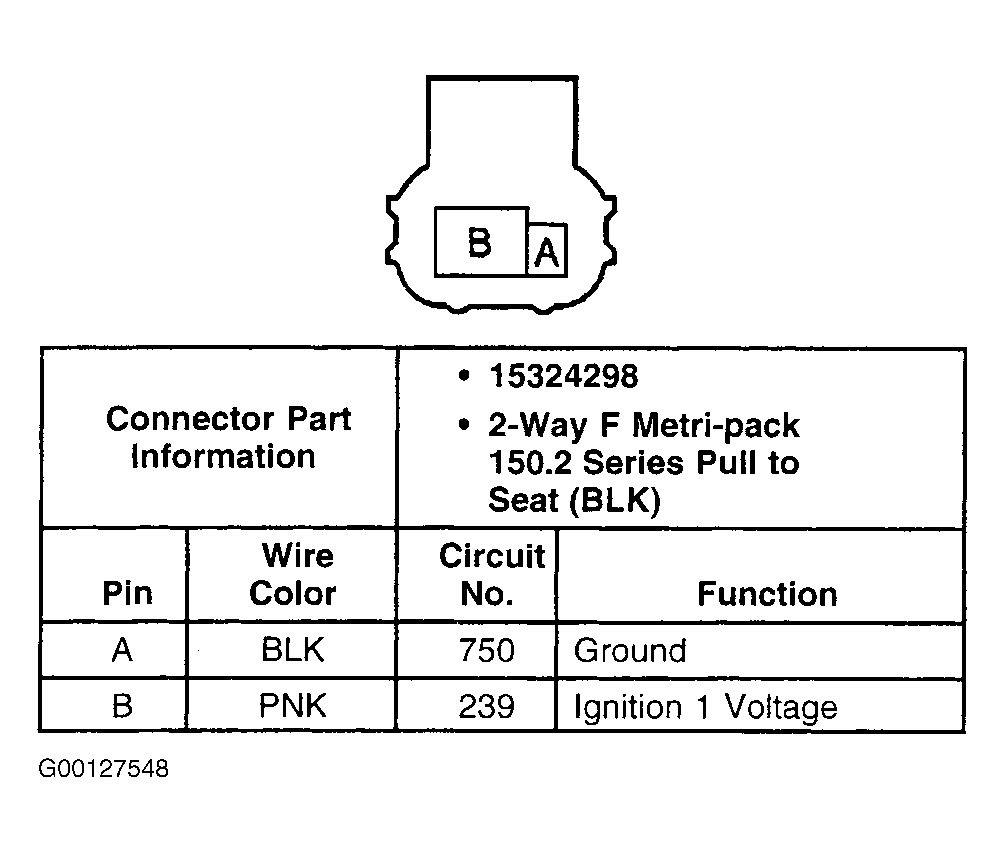

Fig 29: Identifying Ignition Control Module Harness Connector C1 Terminals (SOHC)
Courtesy of GENERAL MOTORS CORP.
Fig 30: Identifying Ignition Control Module Harness Connector C2 Terminals (SOHC)
Courtesy of GENERAL MOTORS CORP.
Fig 31: Identifying Instrument Panel Cluster Harness Connector Terminals
Courtesy of GENERAL MOTORS CORP.
Fig 32: Identifying Intake Air Temperature Sensor Harness Connector Terminals (DOHC)
Courtesy of GENERAL MOTORS CORP.
Fig 33: Identifying Intake Air Temperature Sensor Harness Connector Terminals (SOHC)
Courtesy of GENERAL MOTORS CORP.

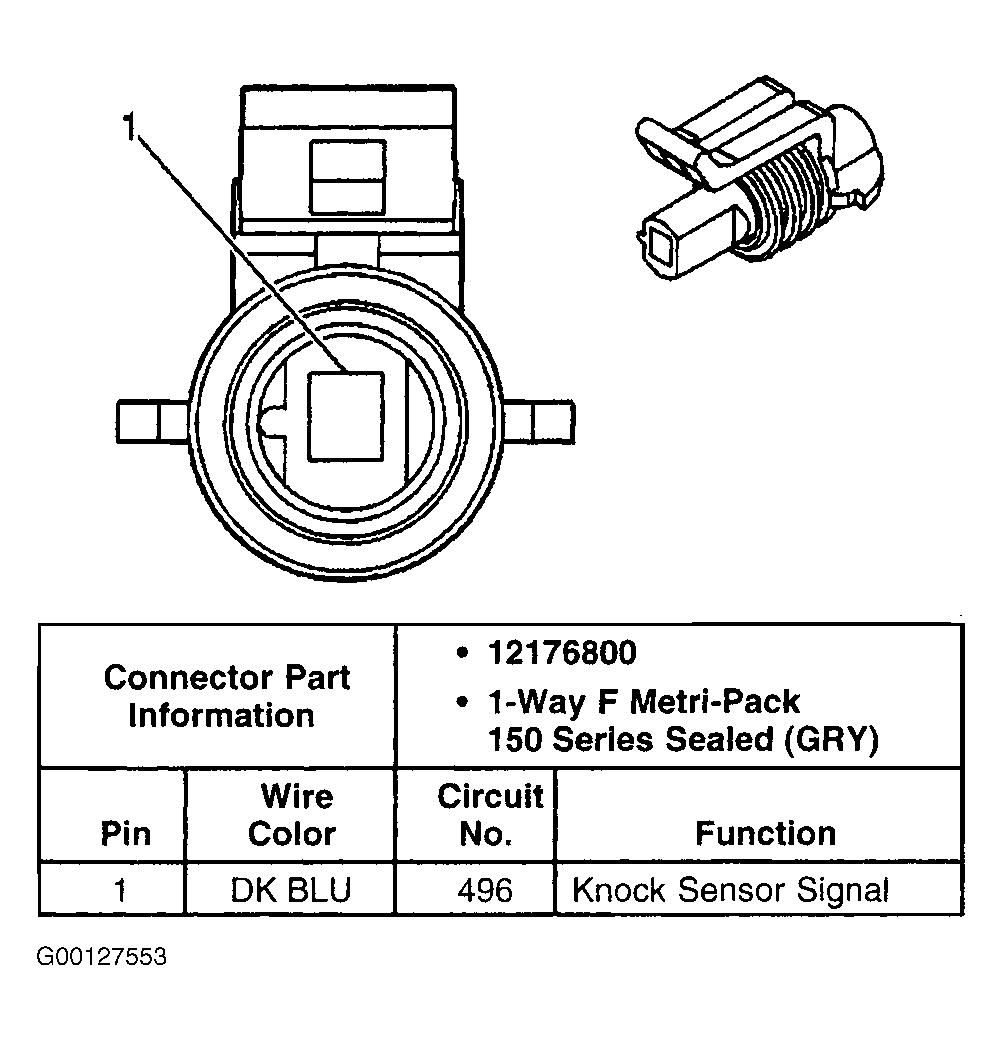

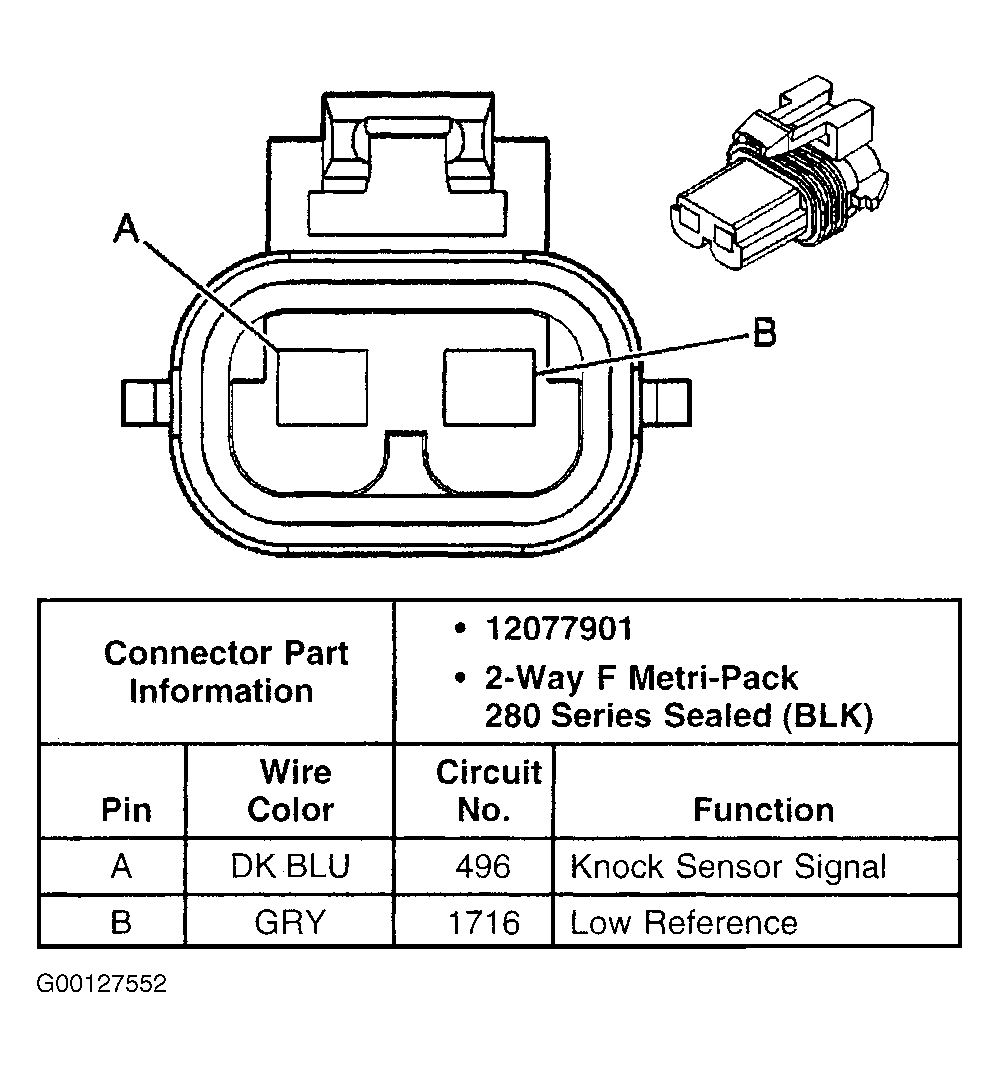

Fig 34: Identifying Knock Sensor Harness Connector Terminals (DOHC)
Courtesy of GENERAL MOTORS CORP.
Fig 35: Identifying Knock Sensor Harness Connector Terminals (SOHC)
Courtesy of GENERAL MOTORS CORP.
Fig 36: Identifying MAP Sensor Harness Connector Terminals (DOHC)
Courtesy of GENERAL MOTORS CORP.
Fig 37: Identifying MAP Sensor Harness Connector Terminals (SOHC)
Courtesy of GENERAL MOTORS CORP.

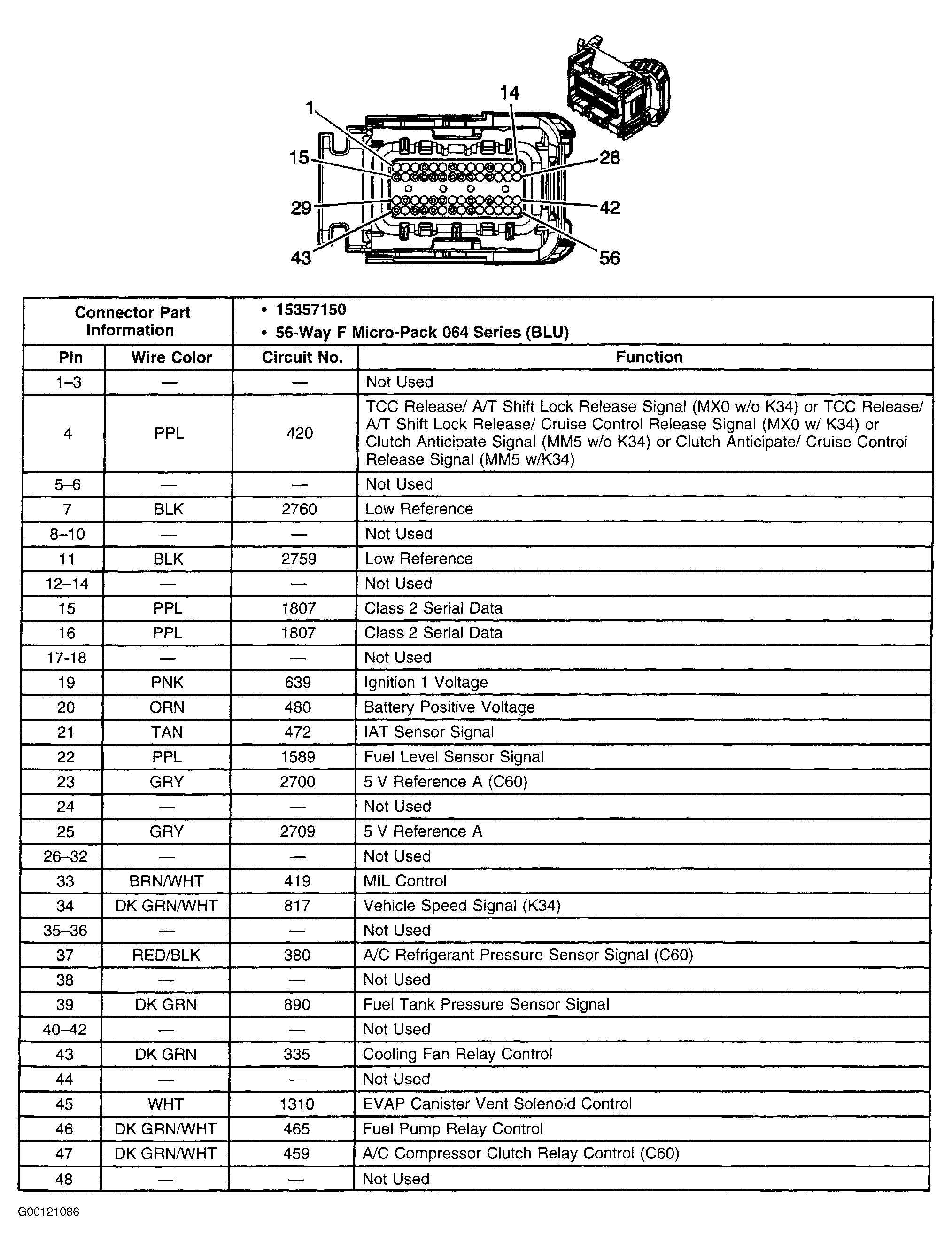

Fig 38: Identifying PCM Harness Connector C1 Terminals (DOHC - 1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 39: Identifying PCM Harness Connector C1 Terminals (DOHC - 2 Of 2)
Courtesy of GENERAL MOTORS CORP.

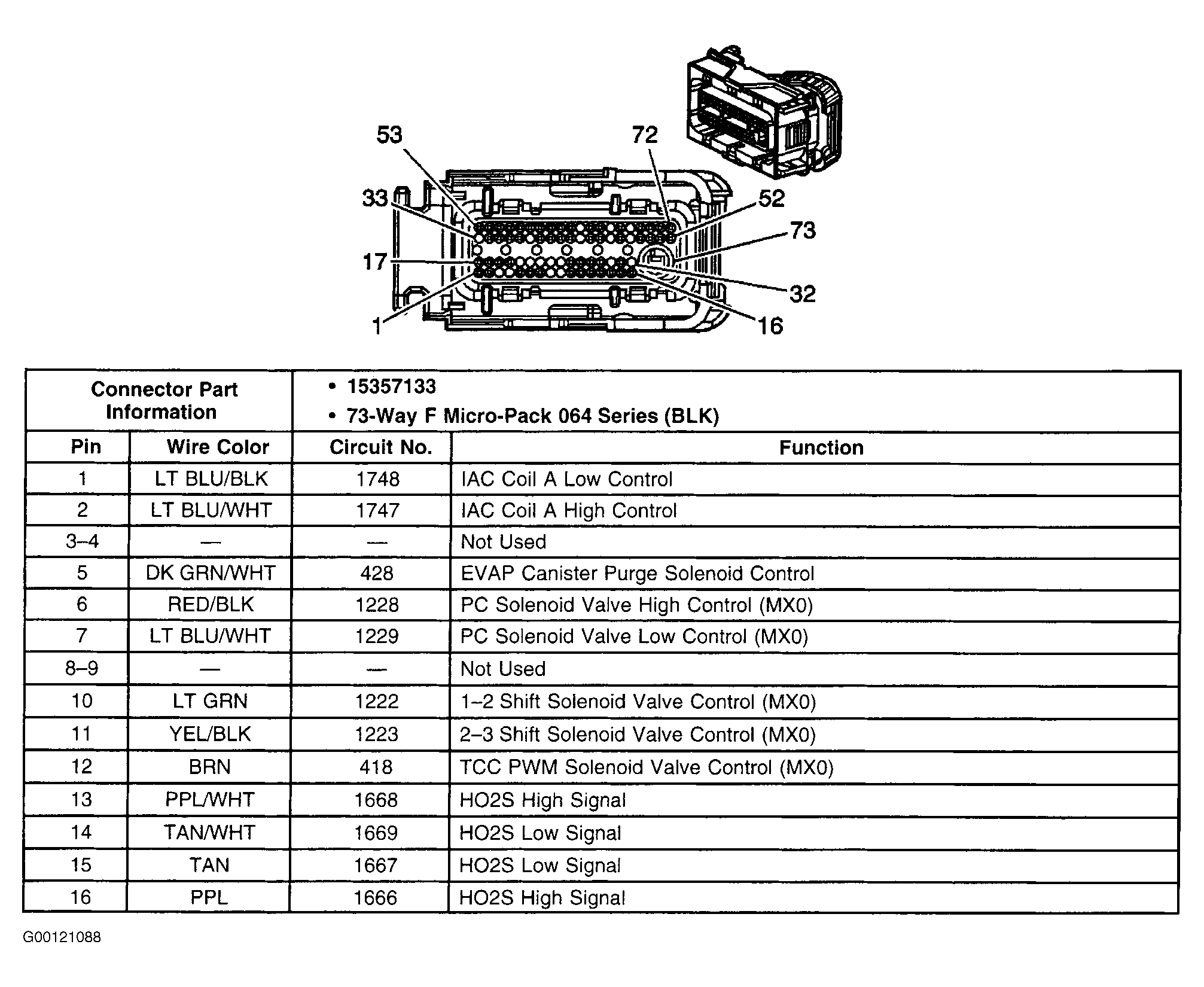

Fig 40: Identifying PCM Harness Connector C2 Terminals (DOHC - 1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 41: Identifying PCM Harness Connector C2 Terminals (DOHC - 2 Of 2)
Courtesy of GENERAL MOTORS CORP.

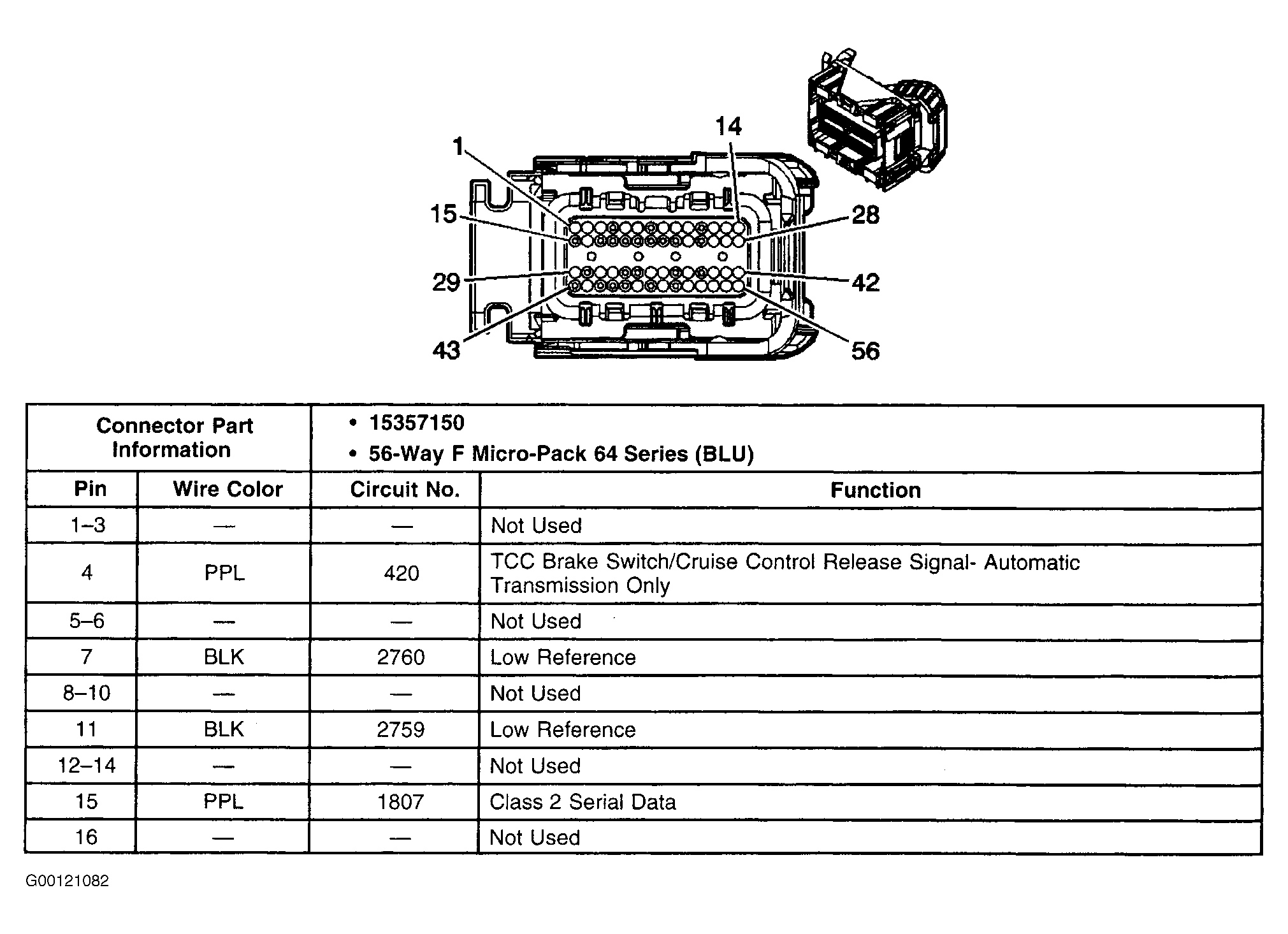

Fig 42: Identifying PCM Harness Connector C1 Terminals (SOHC - 1 Of 2)
Courtesy of GENERAL MOTORS CORP.

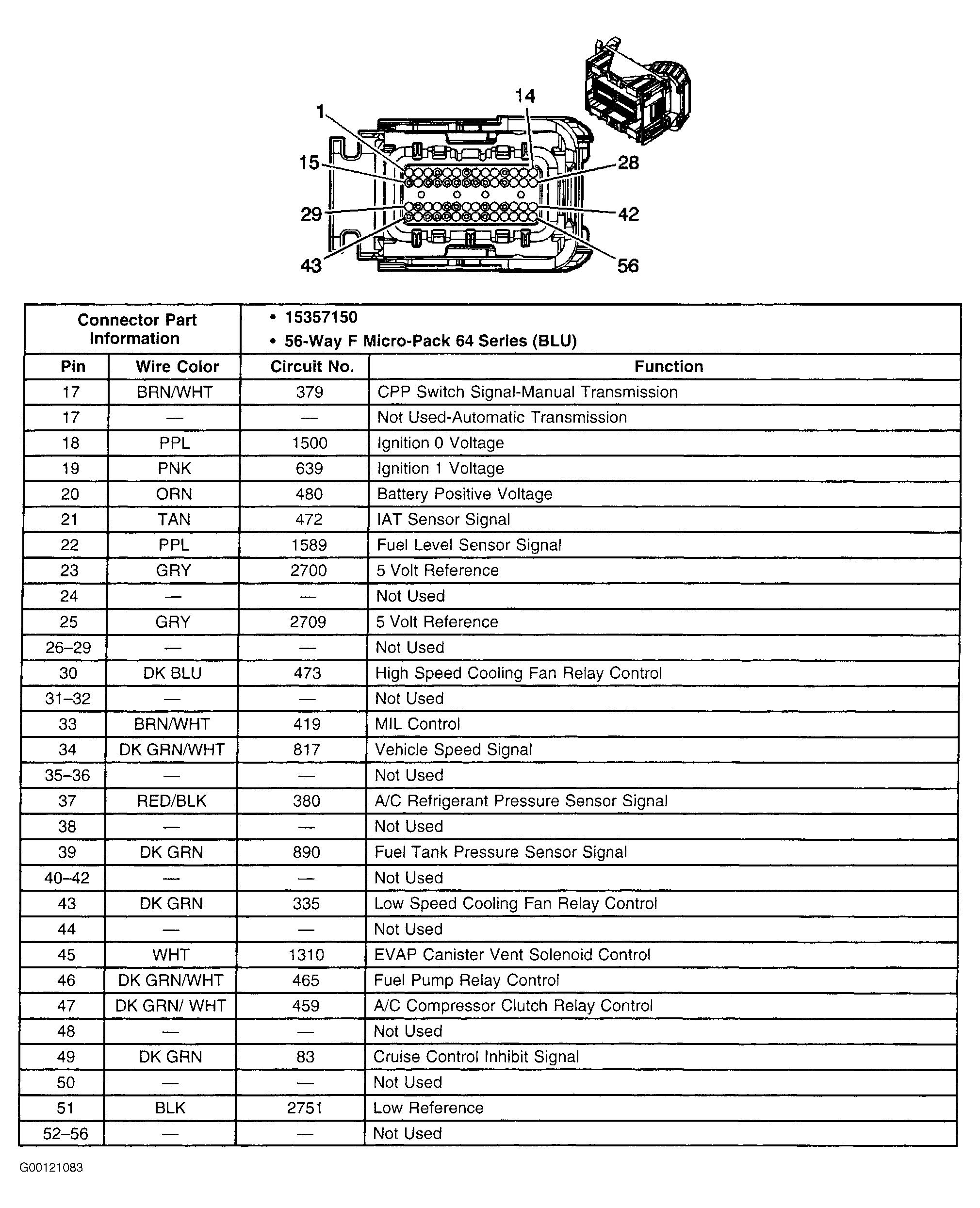

Fig 43: Identifying PCM Harness Connector C1 Terminals (SOHC - 2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 44: Identifying PCM Harness Connector C2 Terminals (SOHC - 1 Of 3)
Courtesy of GENERAL MOTORS CORP.

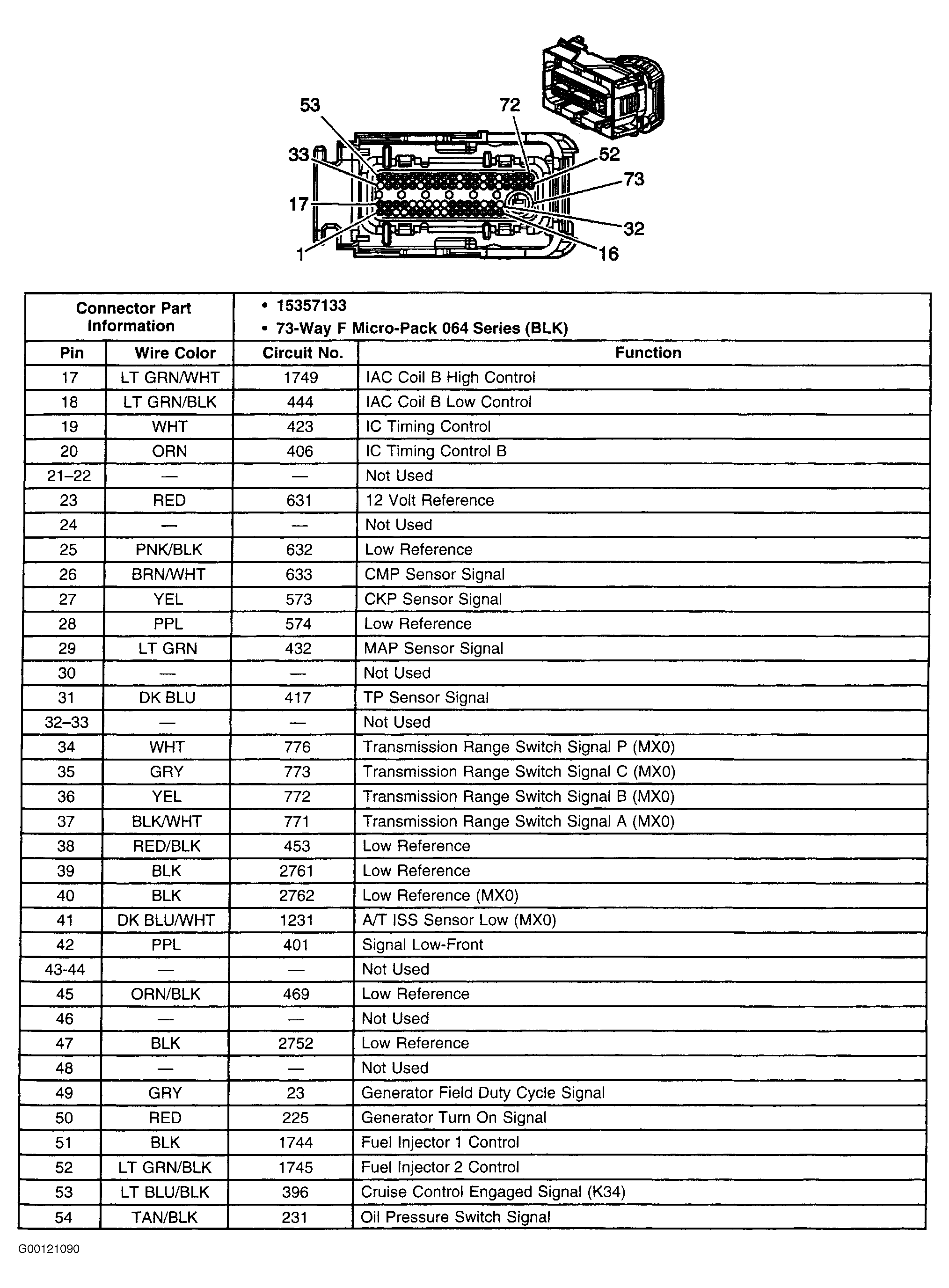

Fig 45: Identifying PCM Harness Connector C2 Terminals (SOHC - 2 Of 3)
Courtesy of GENERAL MOTORS CORP.

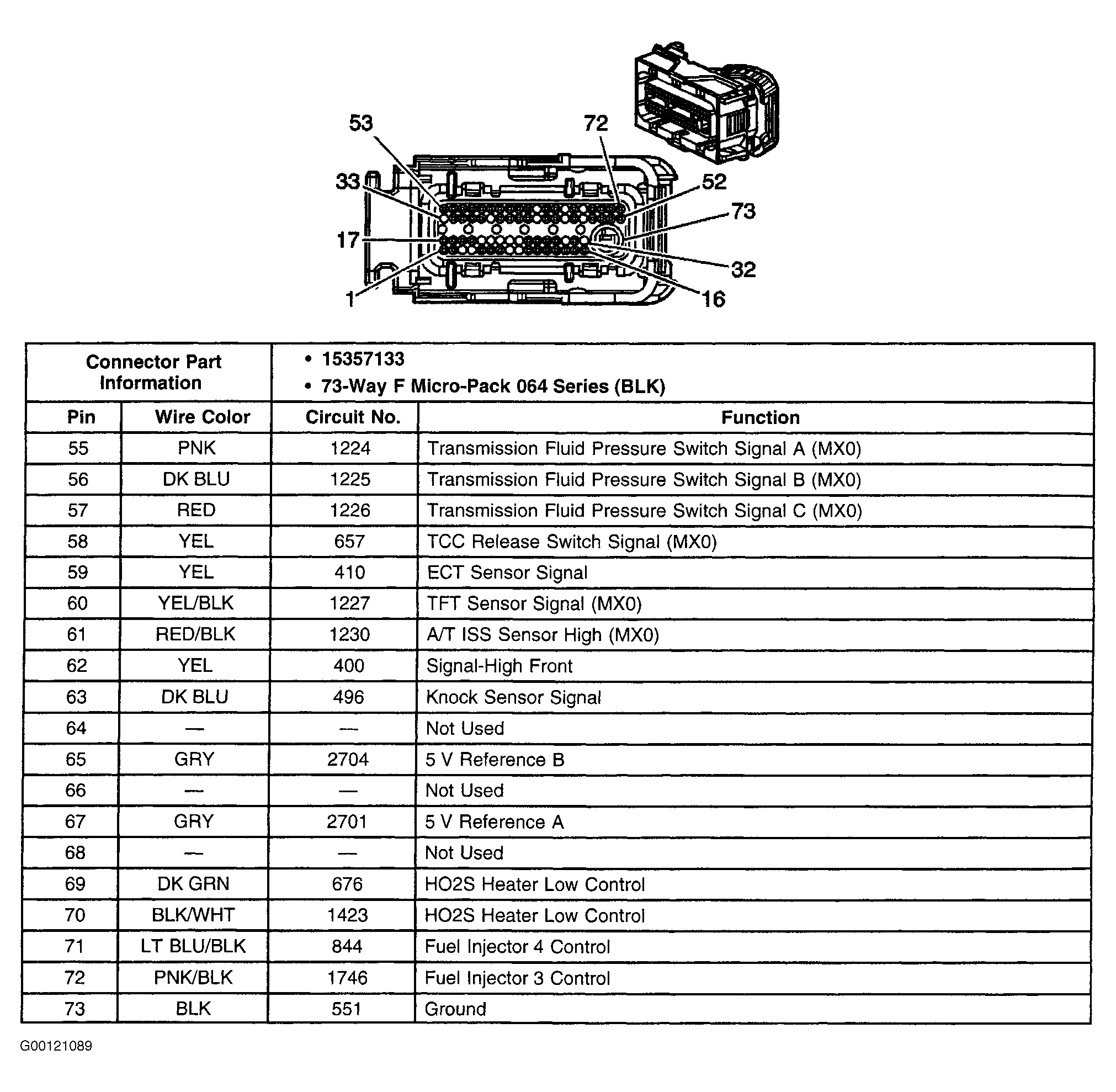

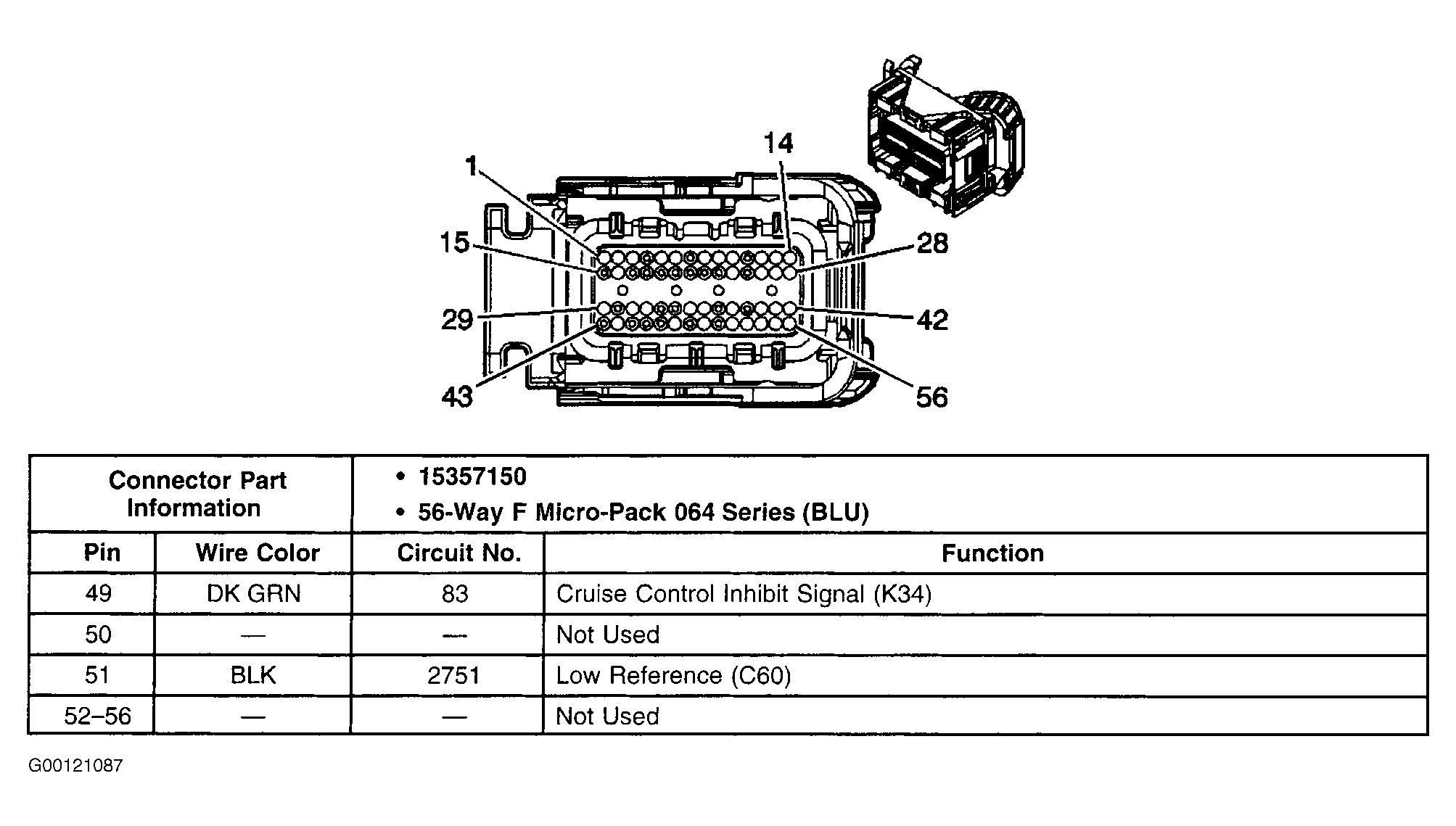

Fig 46: Identifying PCM Harness Connector C2 Terminals (SOHC - 3 Of 3)
Courtesy of GENERAL MOTORS CORP.

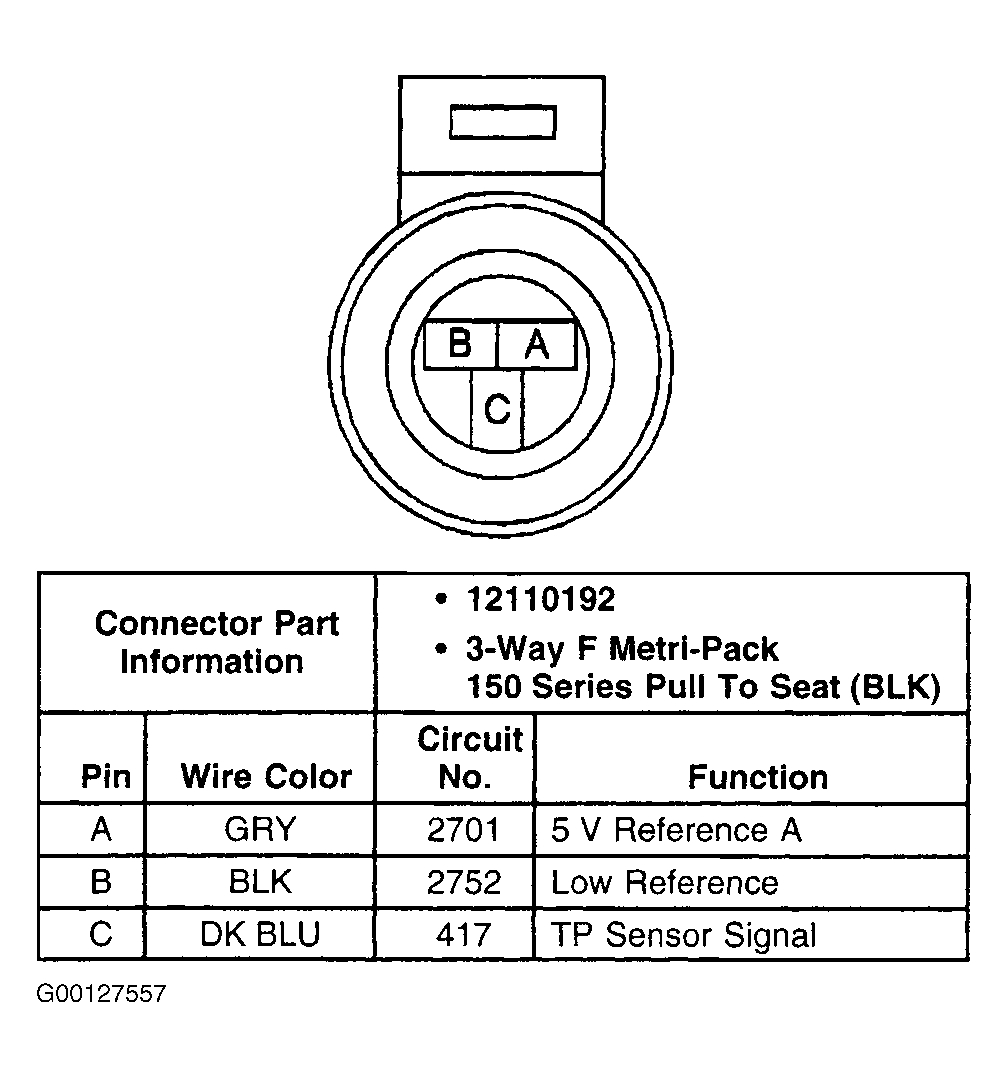

Fig 47: Identifying TP Sensor Harness Connector Terminals (DOHC)
Courtesy of GENERAL MOTORS CORP.
Fig 48: Identifying TP Sensor Harness Connector Terminals (SOHC)
Courtesy of GENERAL MOTORS CORP.
