Sunfire GT, 2.4 T, Automatic
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Engine Controls Self-Diagnostics - 2.4L
>>
Connector Identification
Connector Identification

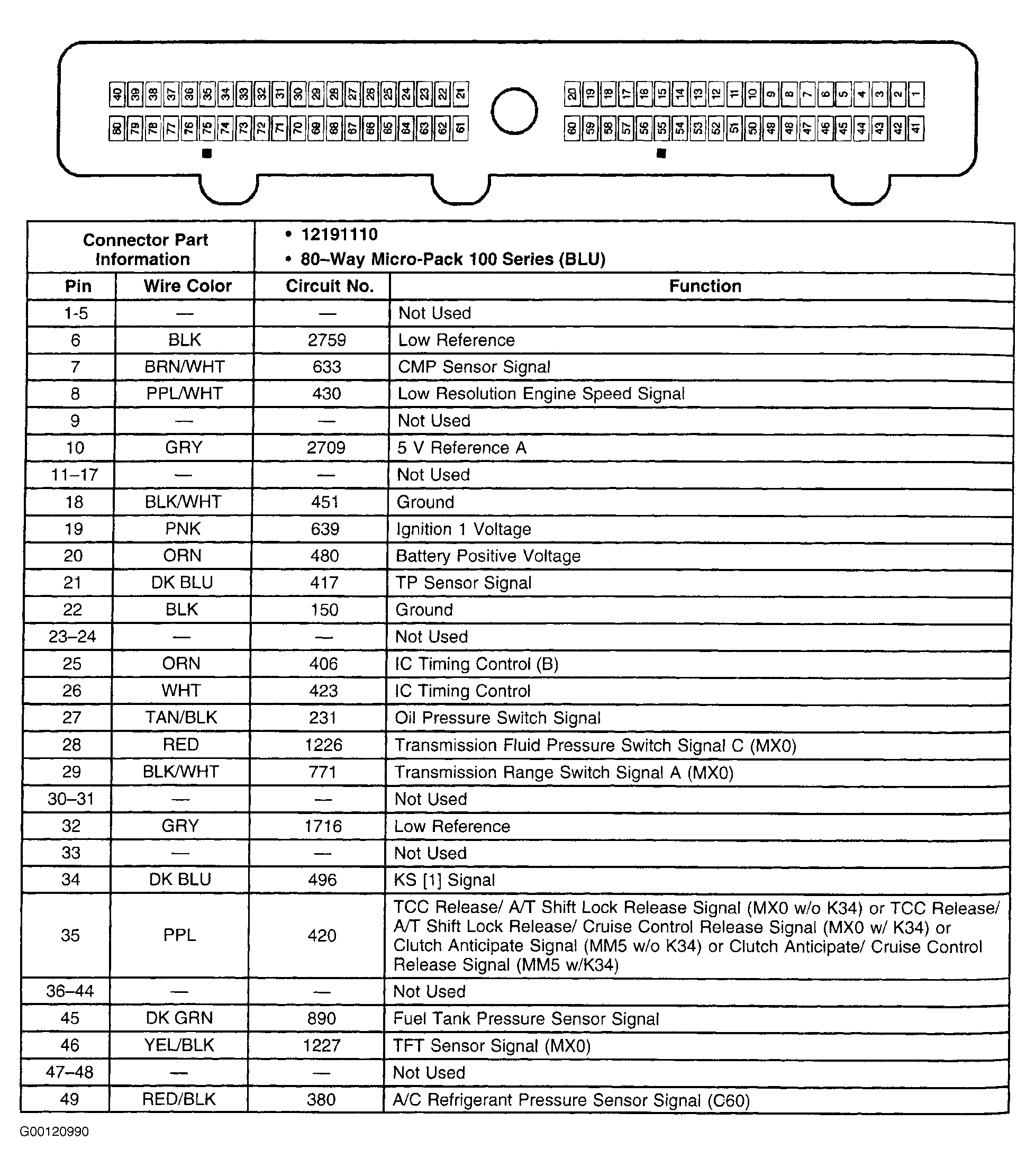

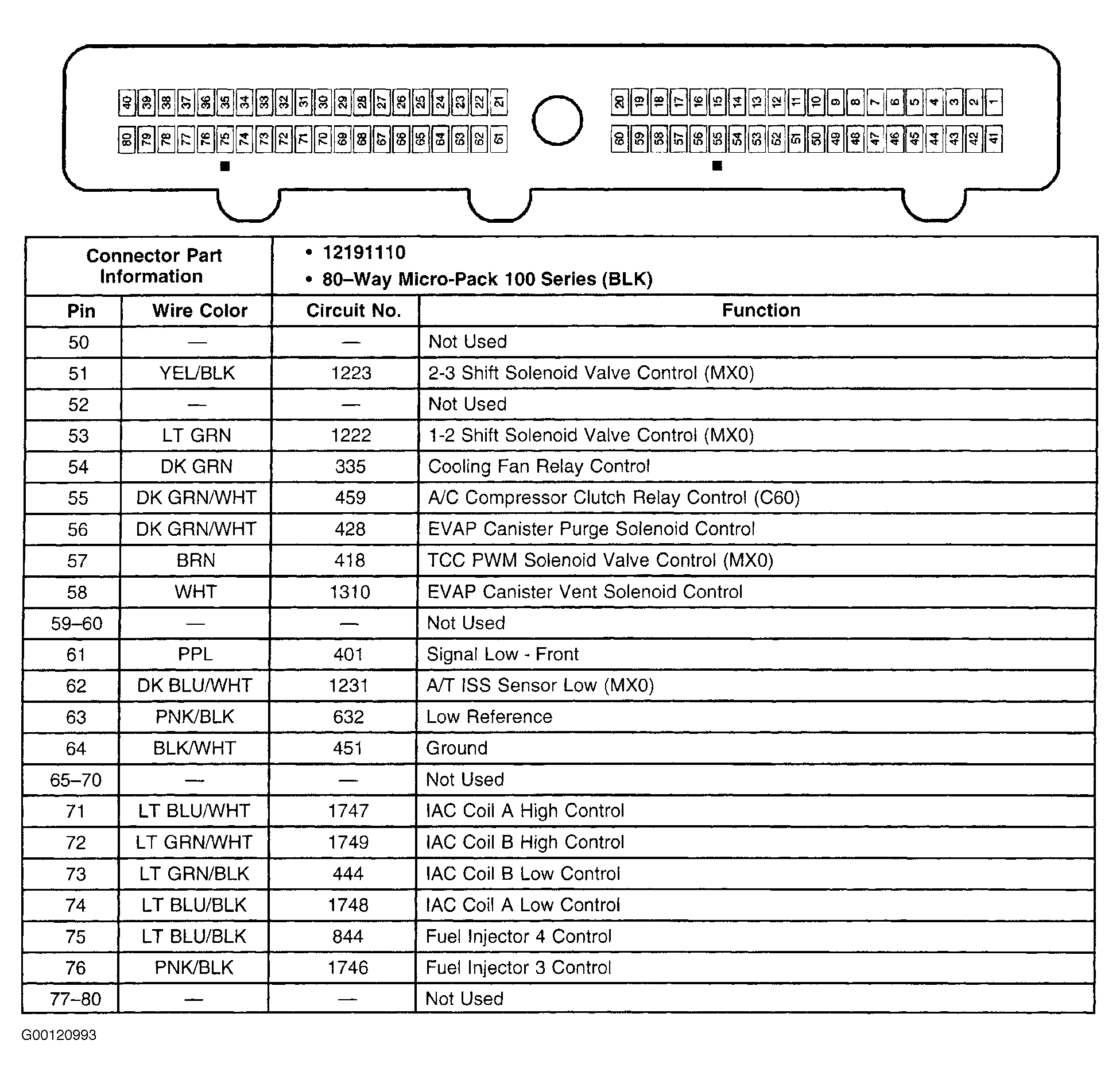

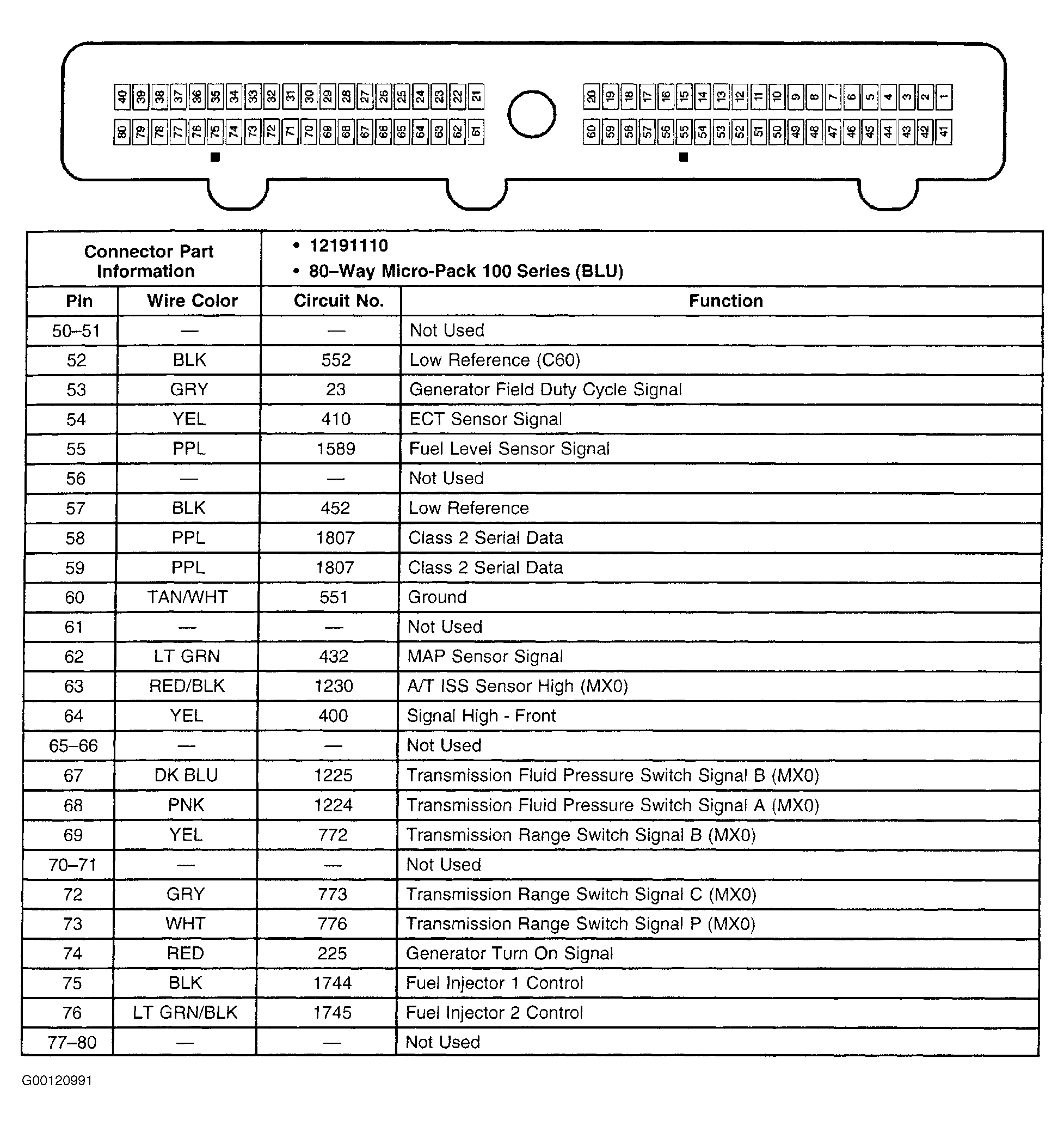

Fig 1: Identifying PCM Harness Connector C1 Terminals (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 2: Identifying PCM Harness Connector C1 Terminals (2 Of 2)
Courtesy of GENERAL MOTORS CORP.

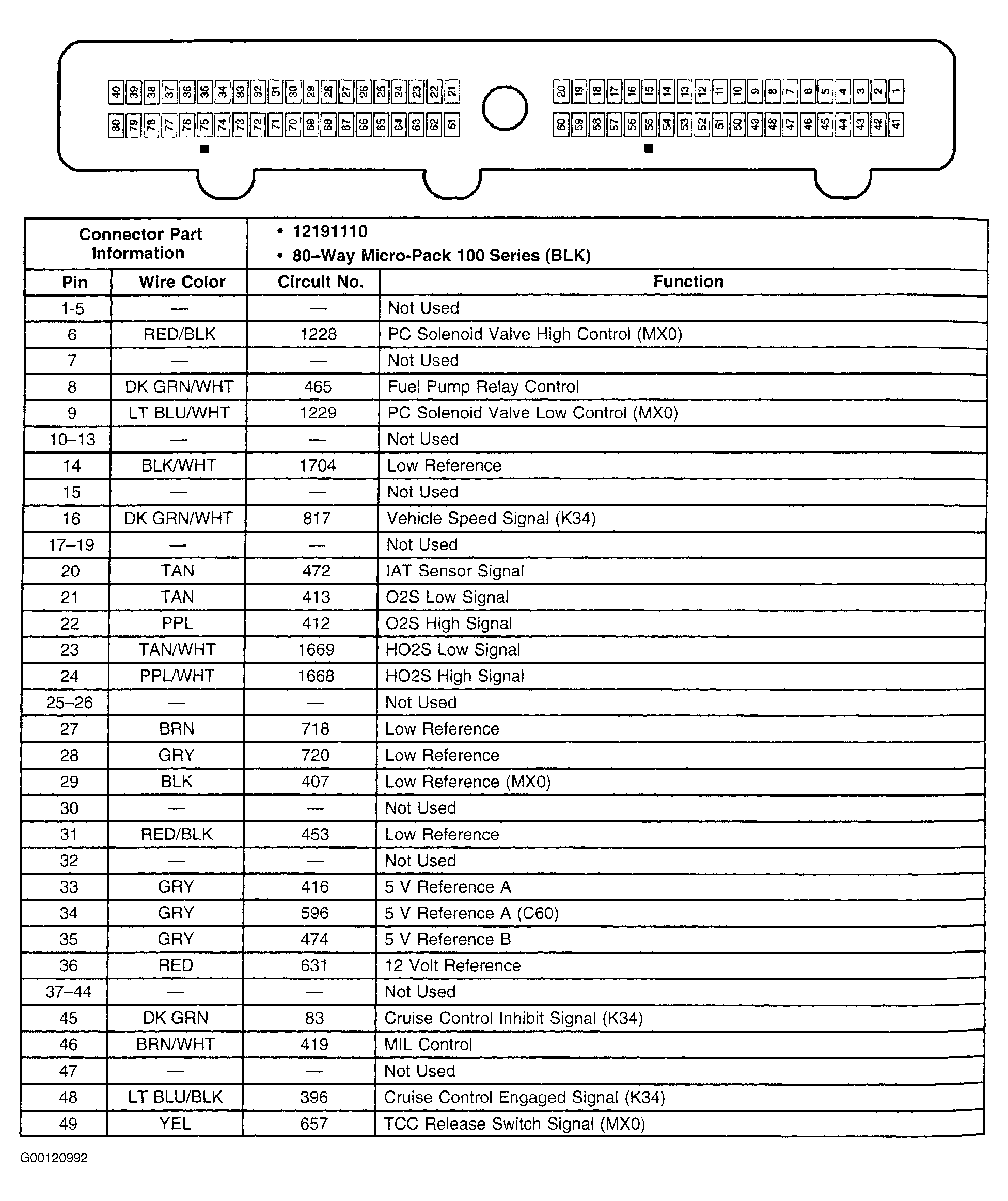

Fig 3: Identifying PCM Harness Connector C2 Terminals (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 4: Identifying PCM Harness Connector Terminals ( 2 Of 2)
Courtesy of GENERAL MOTORS CORP.

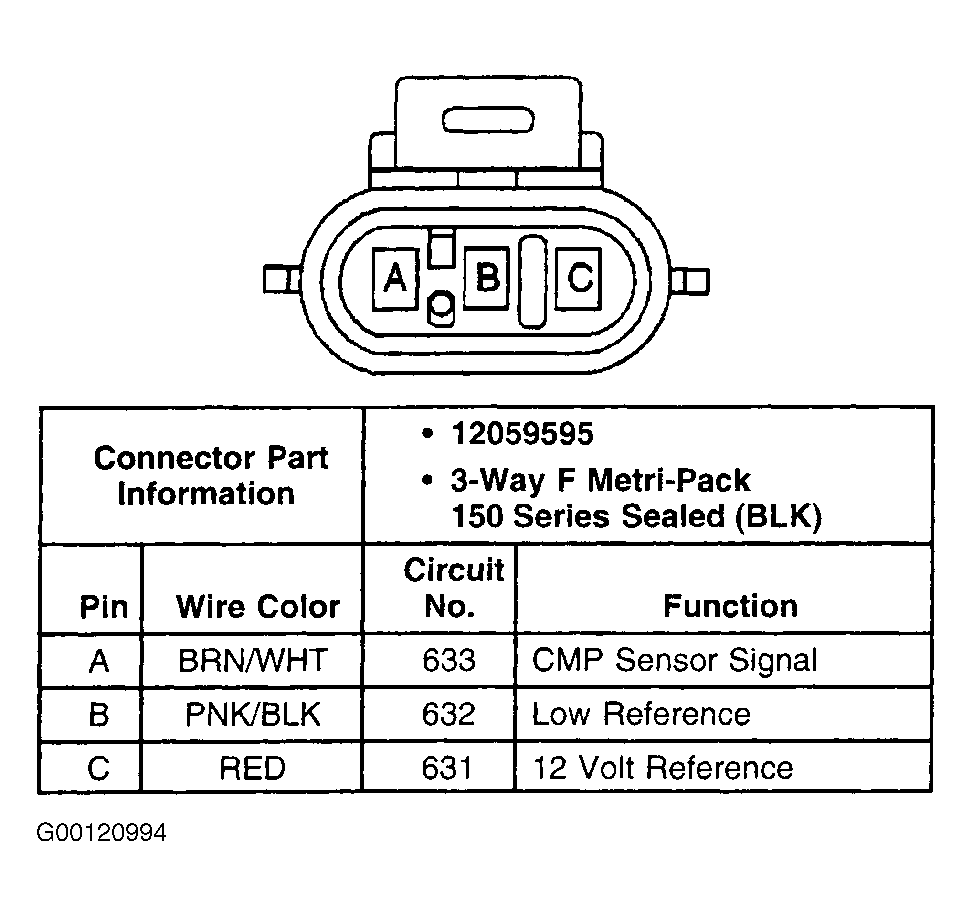

Fig 5: Identifying Camshaft Position Sensor Harness Connector Terminals
Courtesy of GENERAL MOTORS CORP.

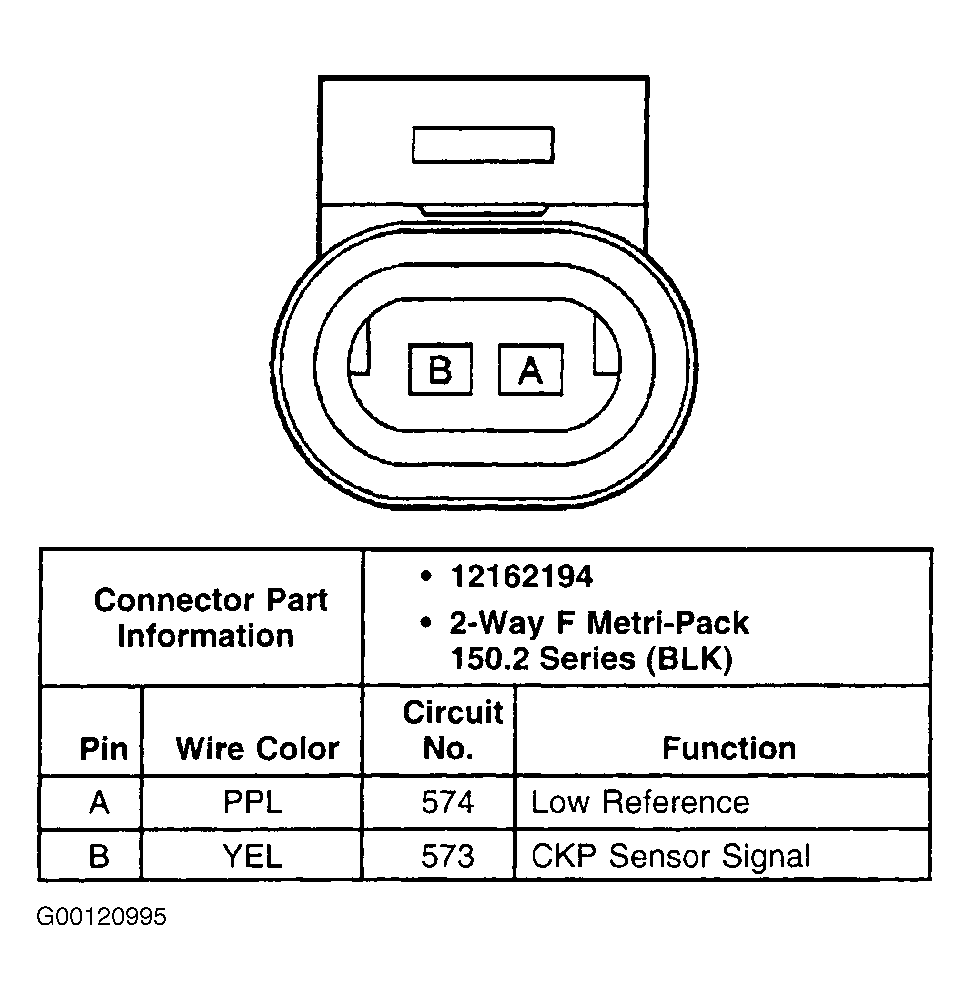

Fig 6: Identifying Crankshaft Position Sensor Harness Connector Terminals
Courtesy of GENERAL MOTORS CORP.

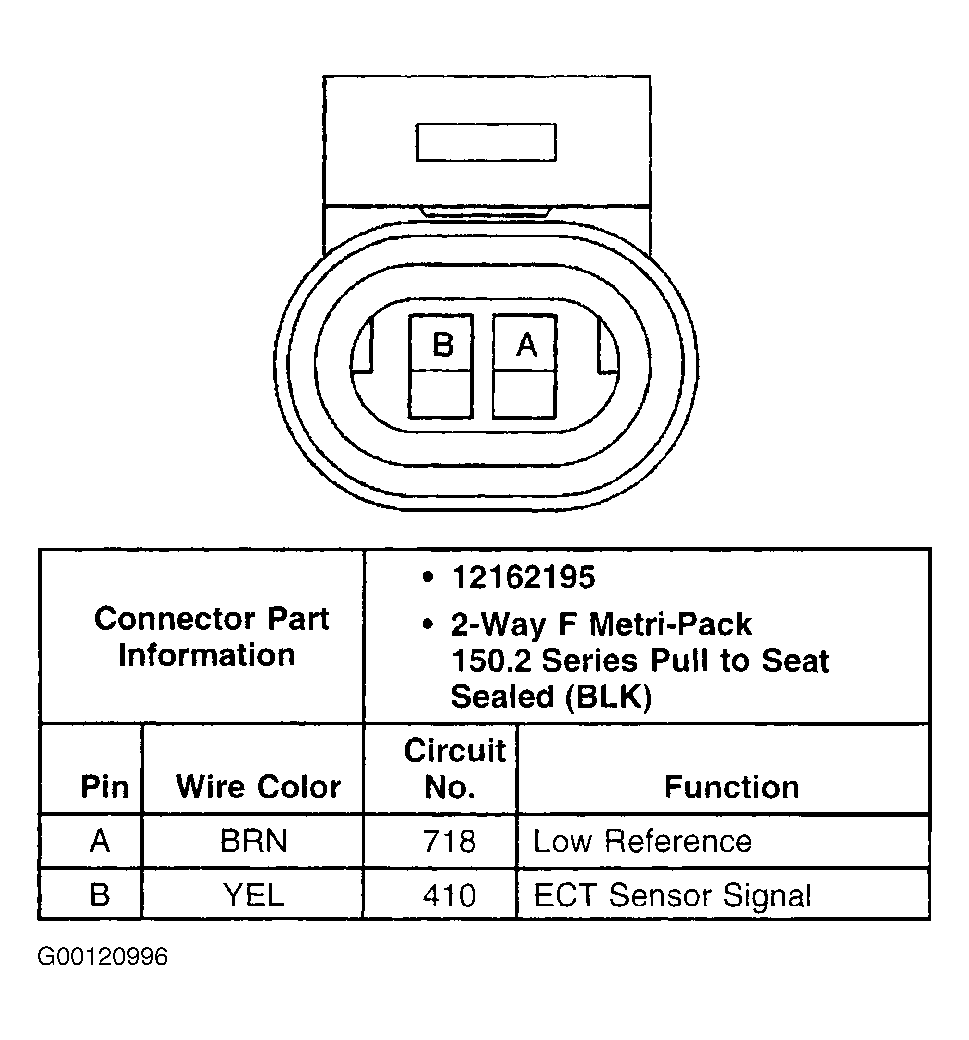

Fig 7: Identifying Engine Coolant Temperature Sensor Harness Connector Terminals
Courtesy of GENERAL MOTORS CORP.

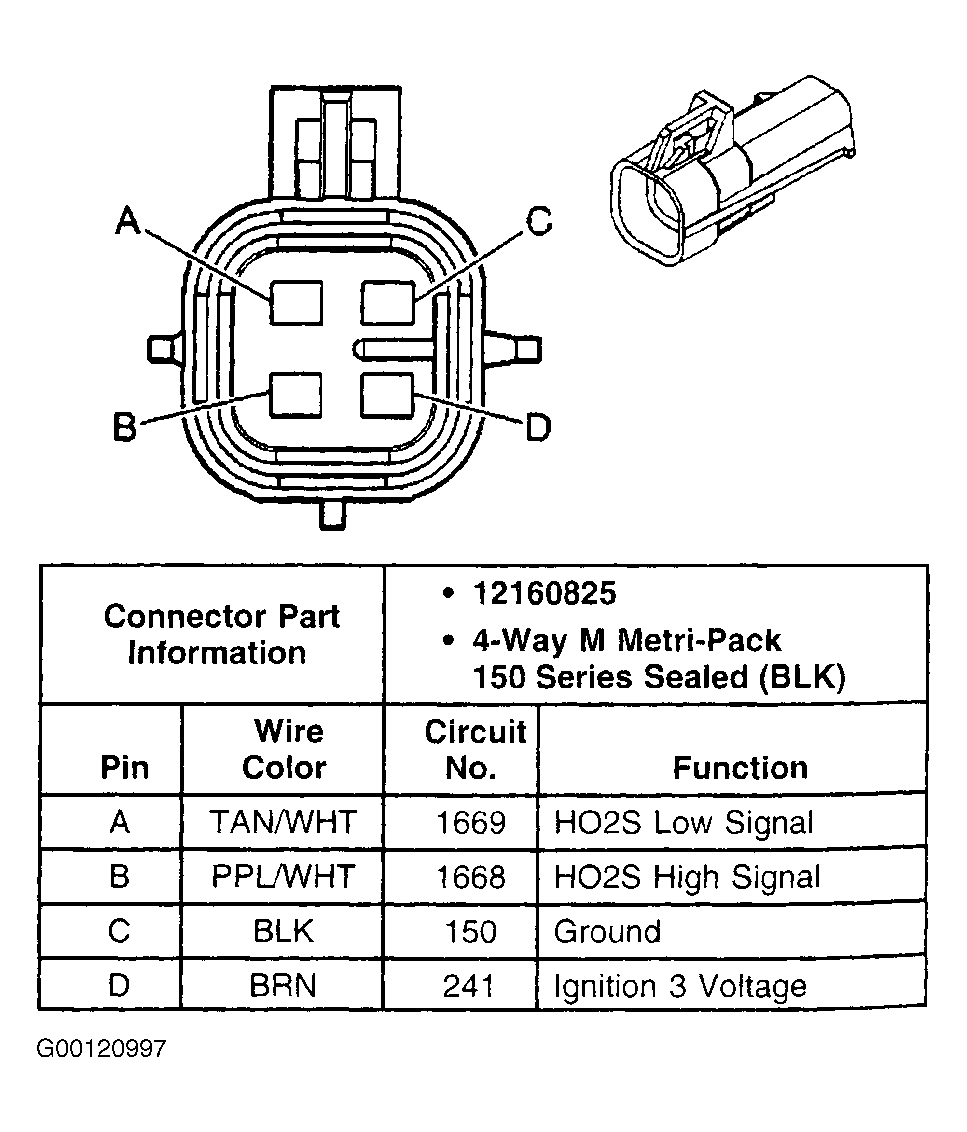

Fig 8: Identifying HO2S No. 2 Harness Connector Terminals
Courtesy of GENERAL MOTORS CORP.

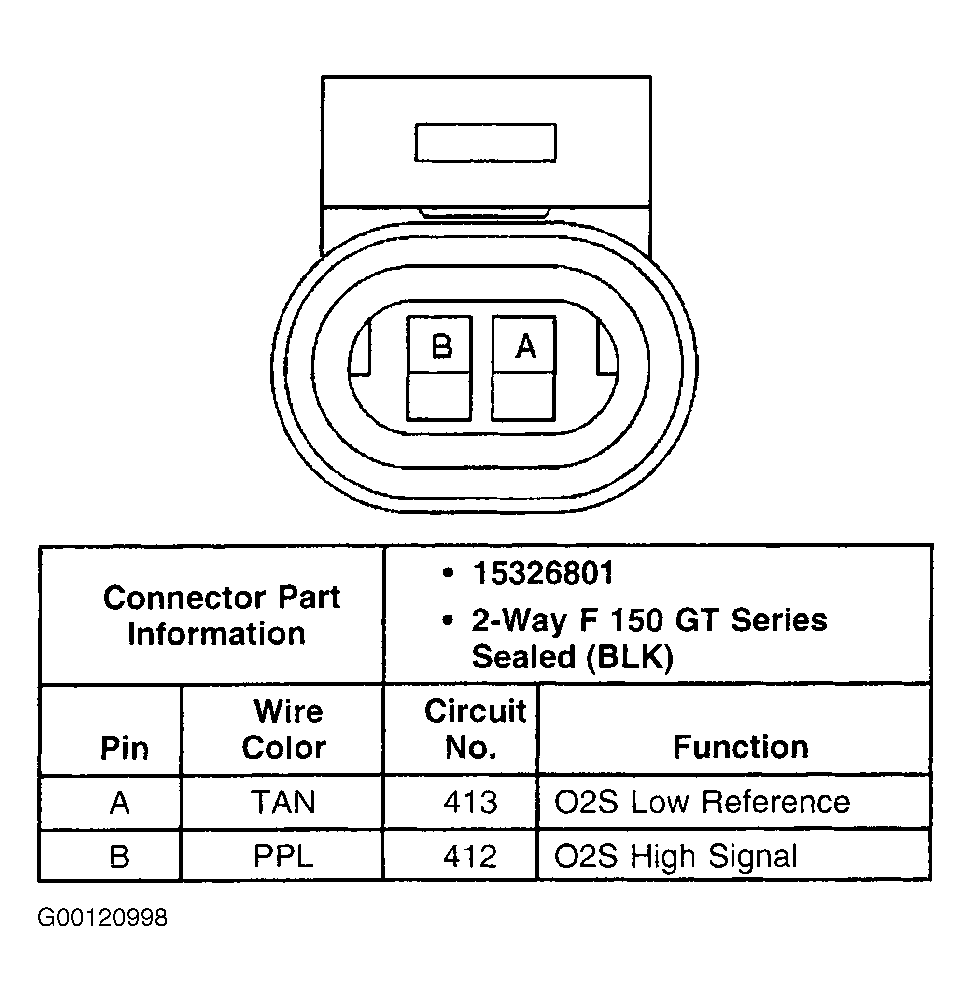

Fig 9: Identifying O2S No. 1 Harness Connector Terminals
Courtesy of GENERAL MOTORS CORP.

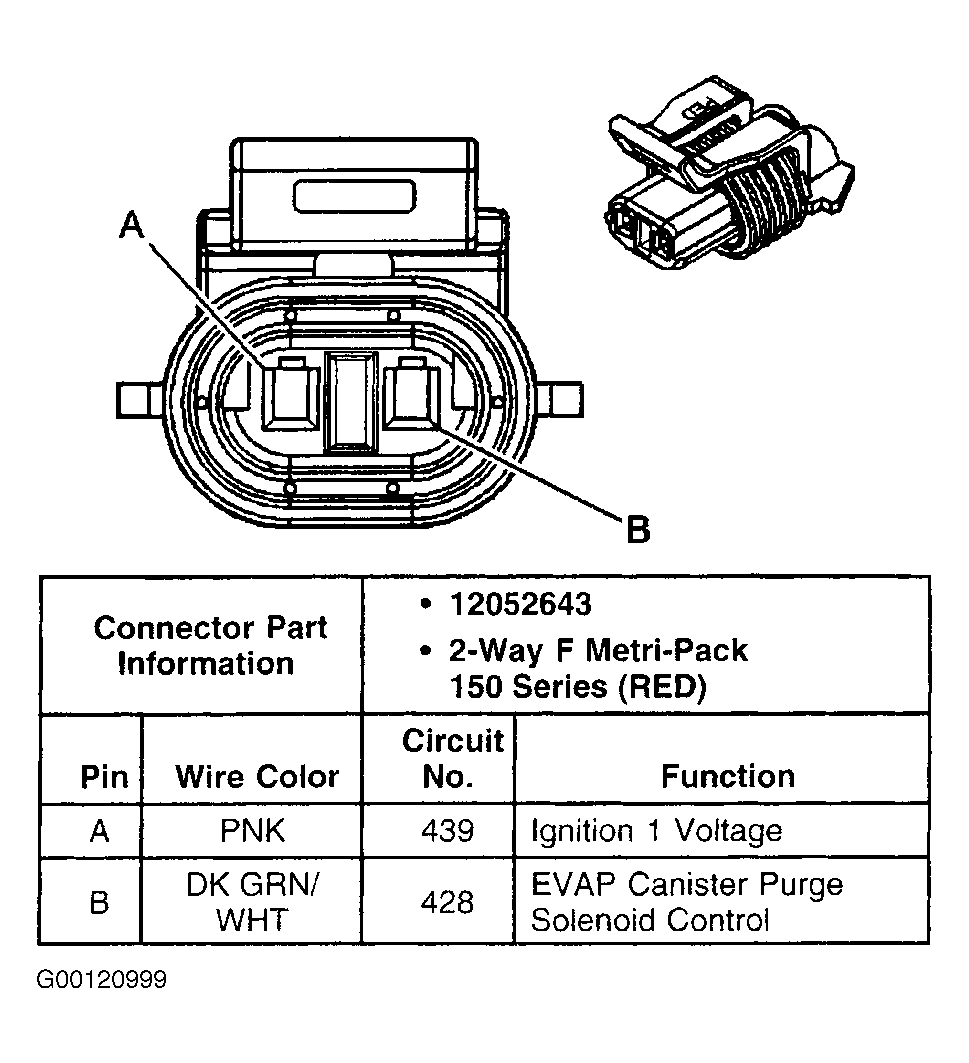

Fig 10: Identifying EVAP Canister Purge Solenoid Harness Connector Terminals
Courtesy of GENERAL MOTORS CORP.

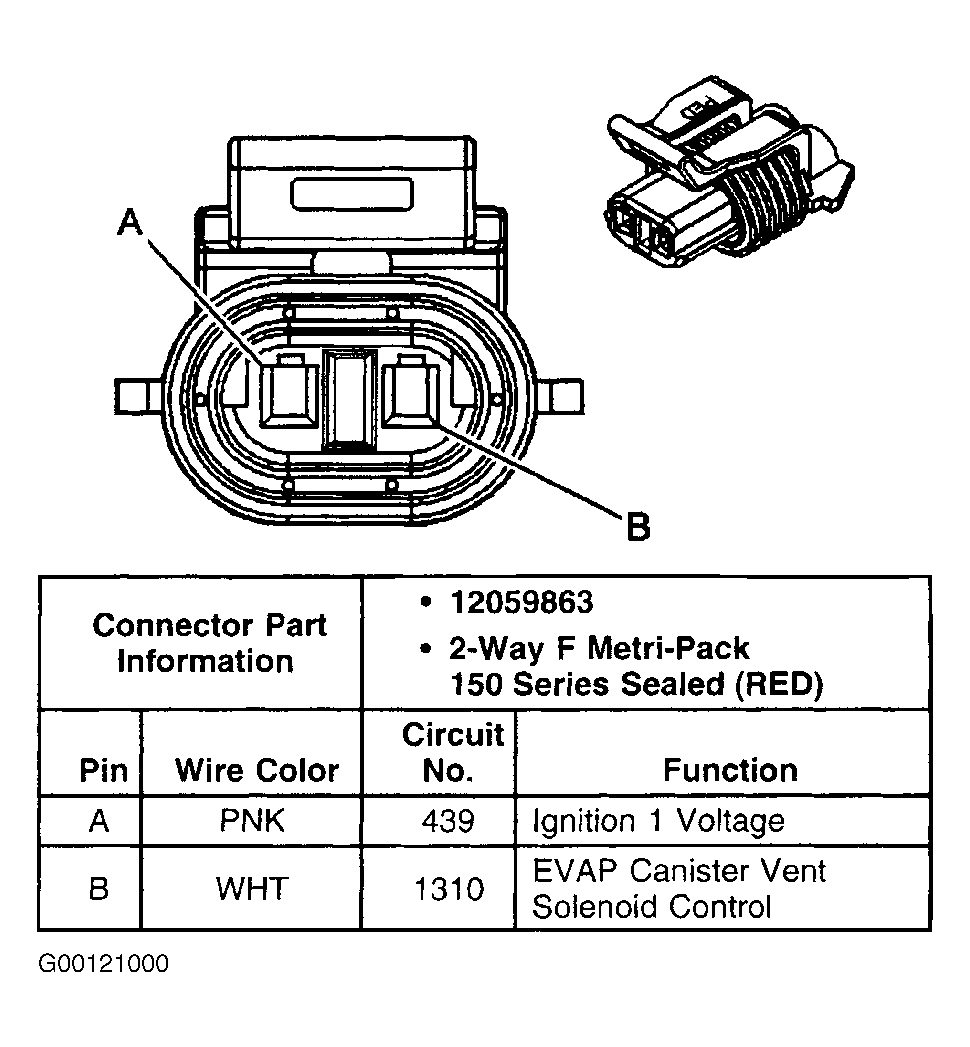

Fig 11: Identifying EVAP Canister Vent Solenoid Harness Connector Terminals
Courtesy of GENERAL MOTORS CORP.

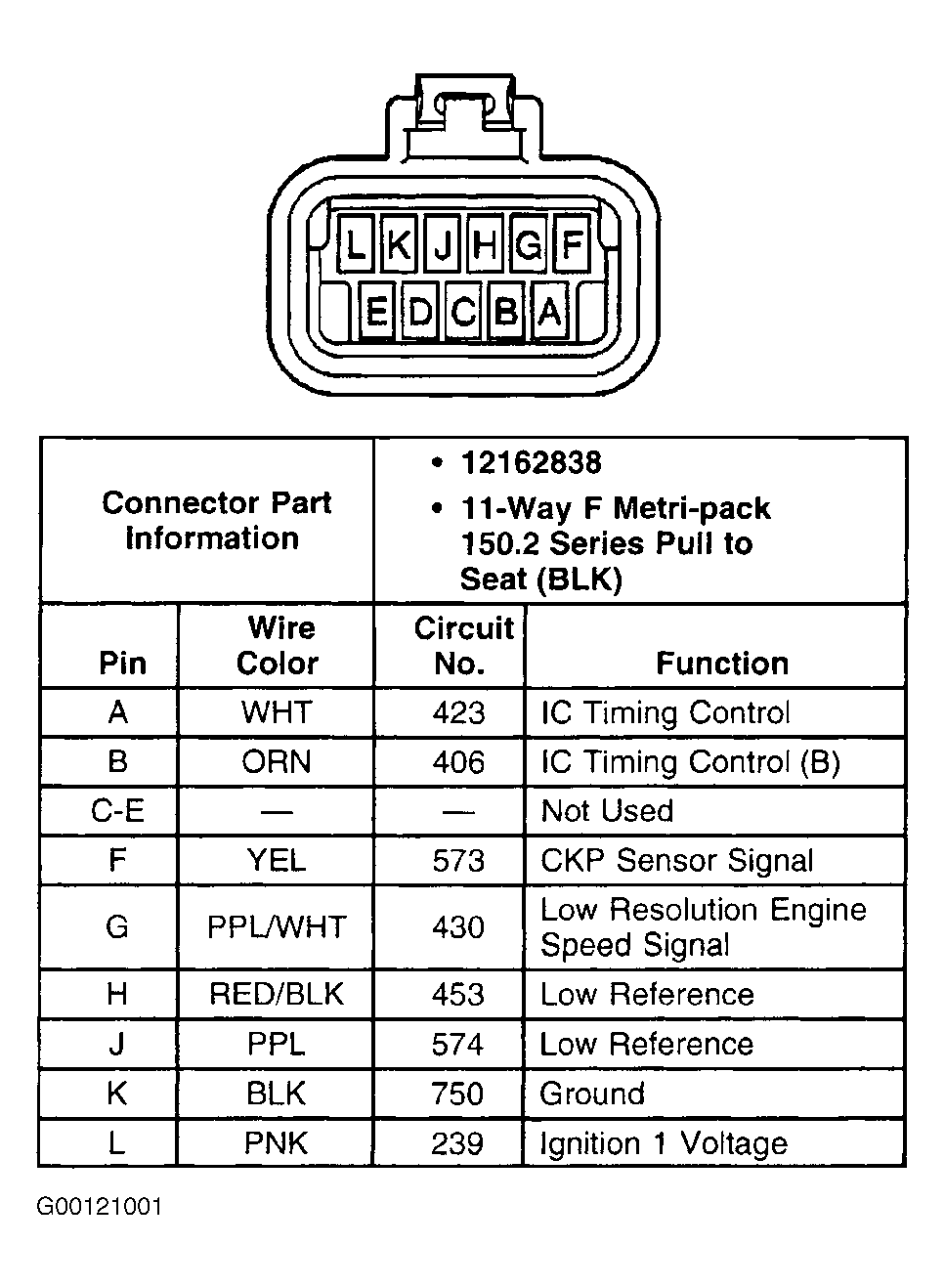

Fig 12: Identifying Ignition Control Module Harness Connector Terminals
Courtesy of GENERAL MOTORS CORP.

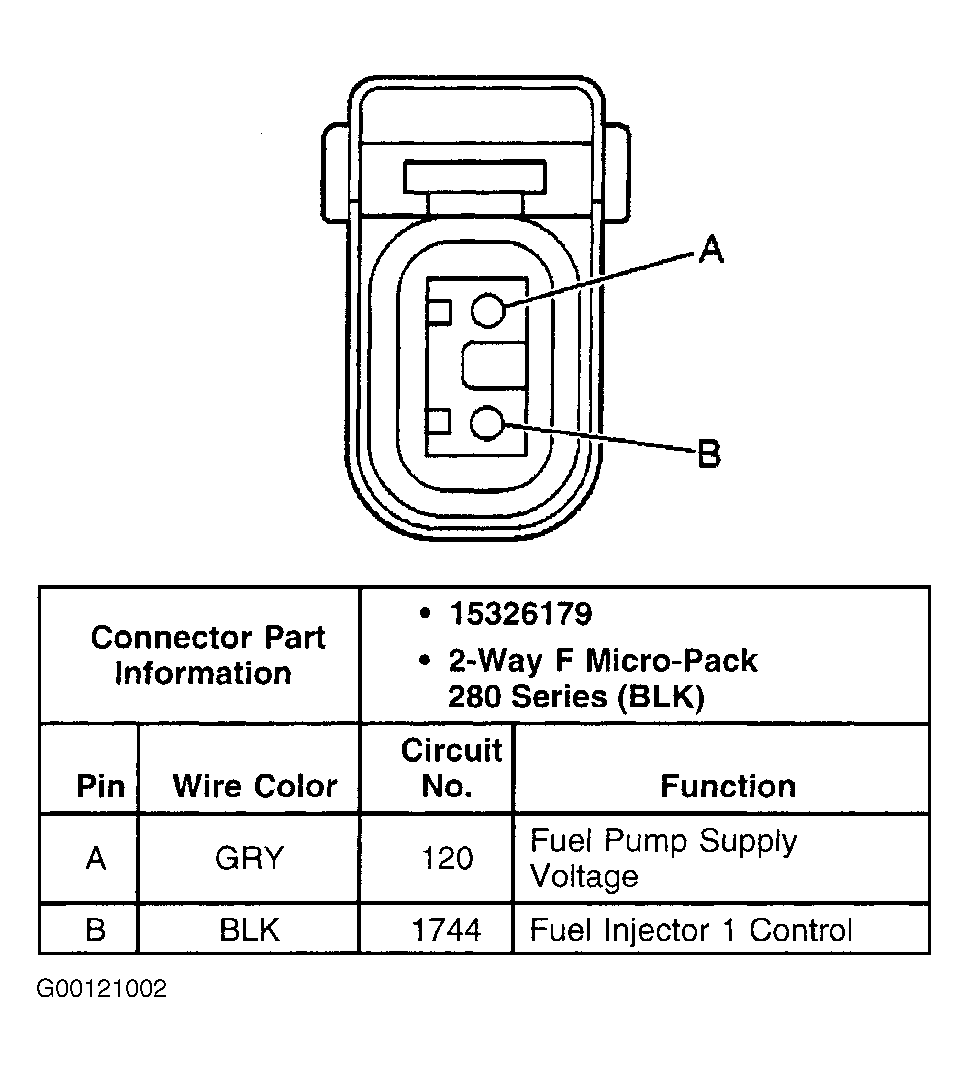

Fig 13: Identifying Fuel Injector No. 1 Harness Connector Terminals
Courtesy of GENERAL MOTORS CORP.

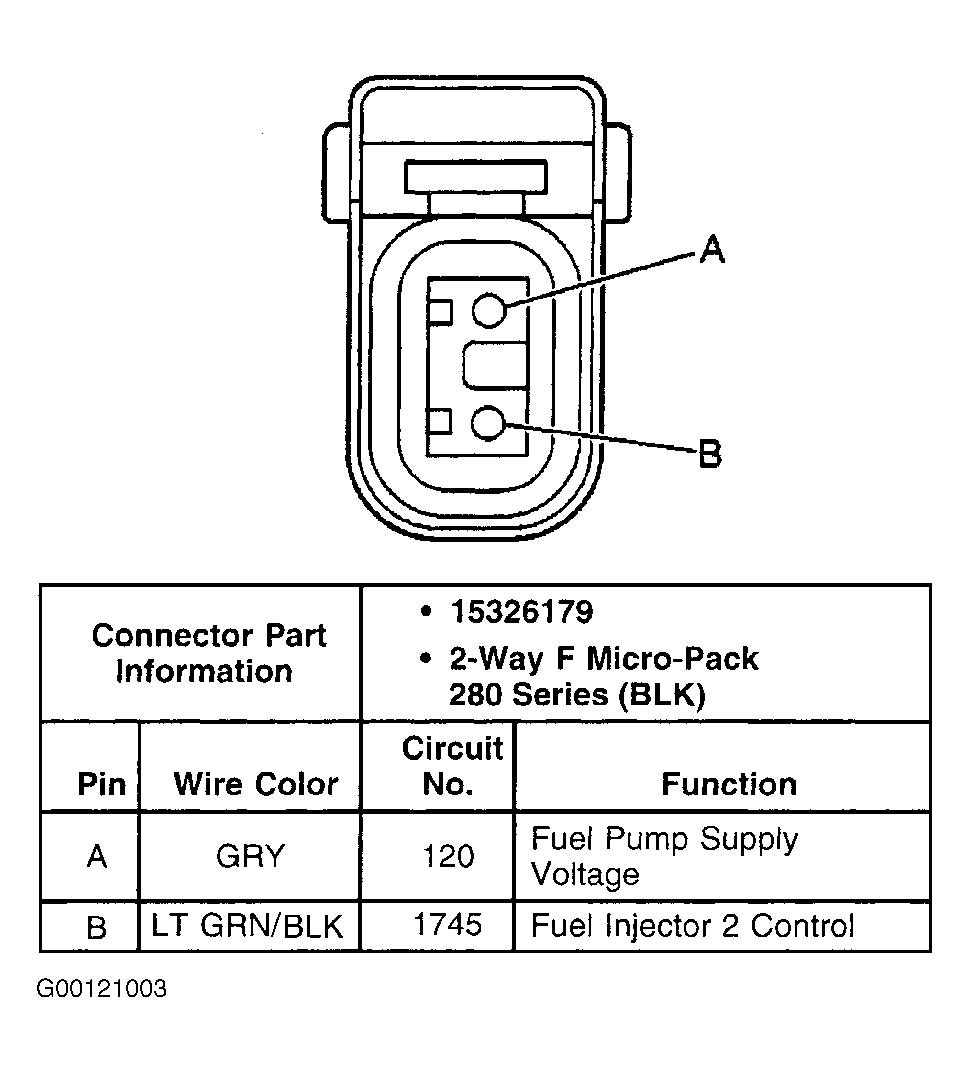

Fig 14: Identifying Fuel Injector No. 2 Harness Connector Terminals
Courtesy of GENERAL MOTORS CORP.

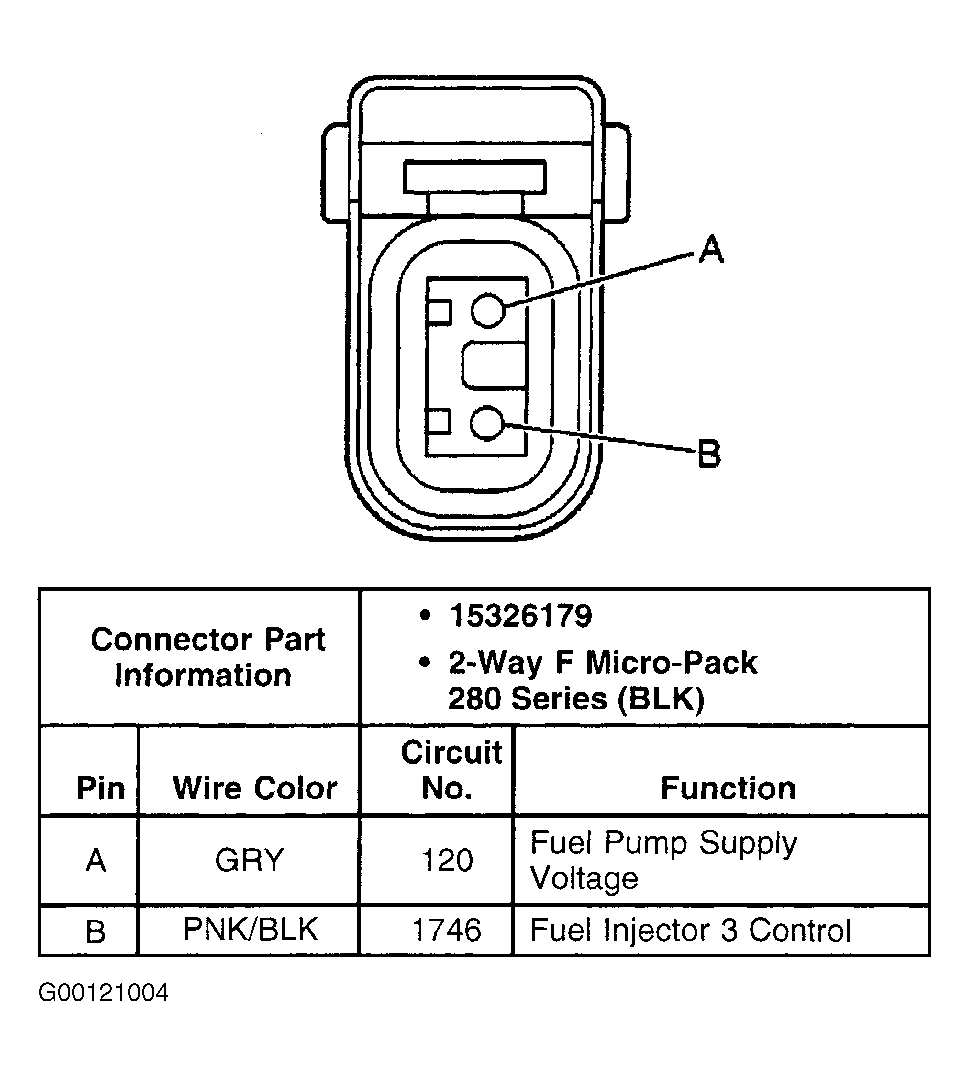

Fig 15: Identifying Fuel Injector No. 3 Harness Connector Terminals
Courtesy of GENERAL MOTORS CORP.
Fig 16: Identifying Fuel Injector No. 4 Harness Connector Terminals
Courtesy of GENERAL MOTORS CORP.

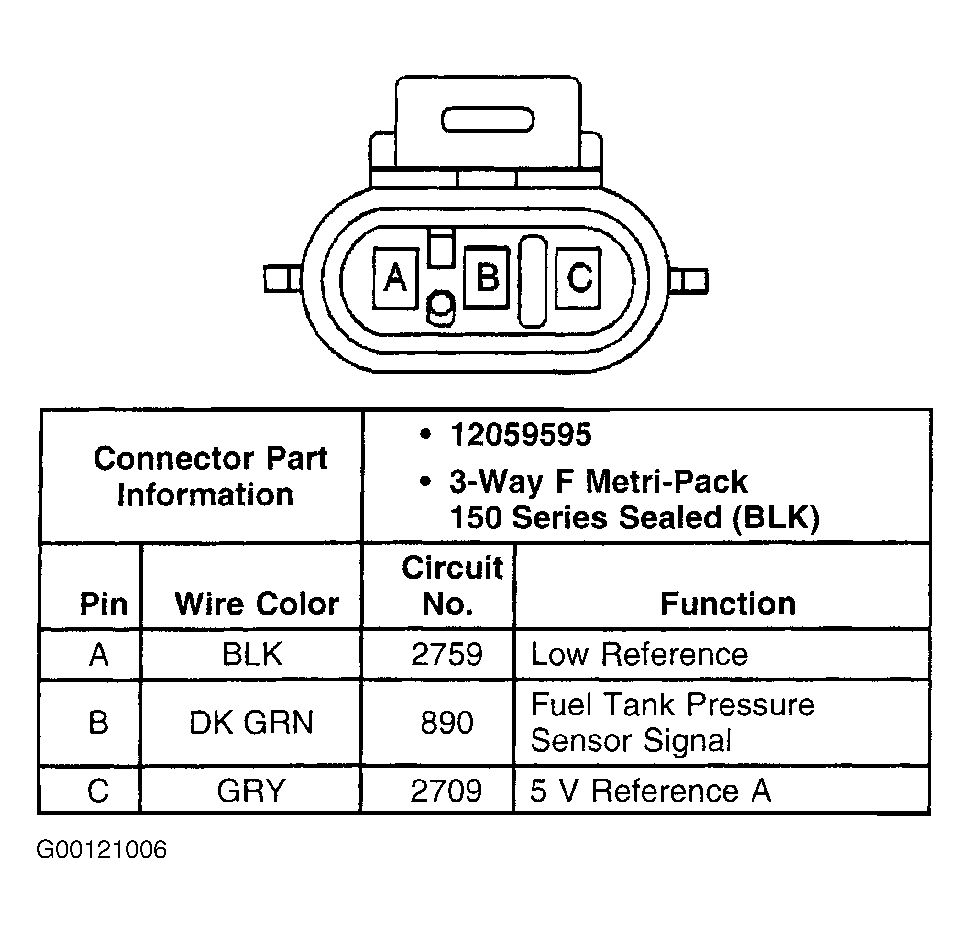

Fig 17: Identifying Fuel Tank Pressure Harness Connector Terminals
Courtesy of GENERAL MOTORS CORP.

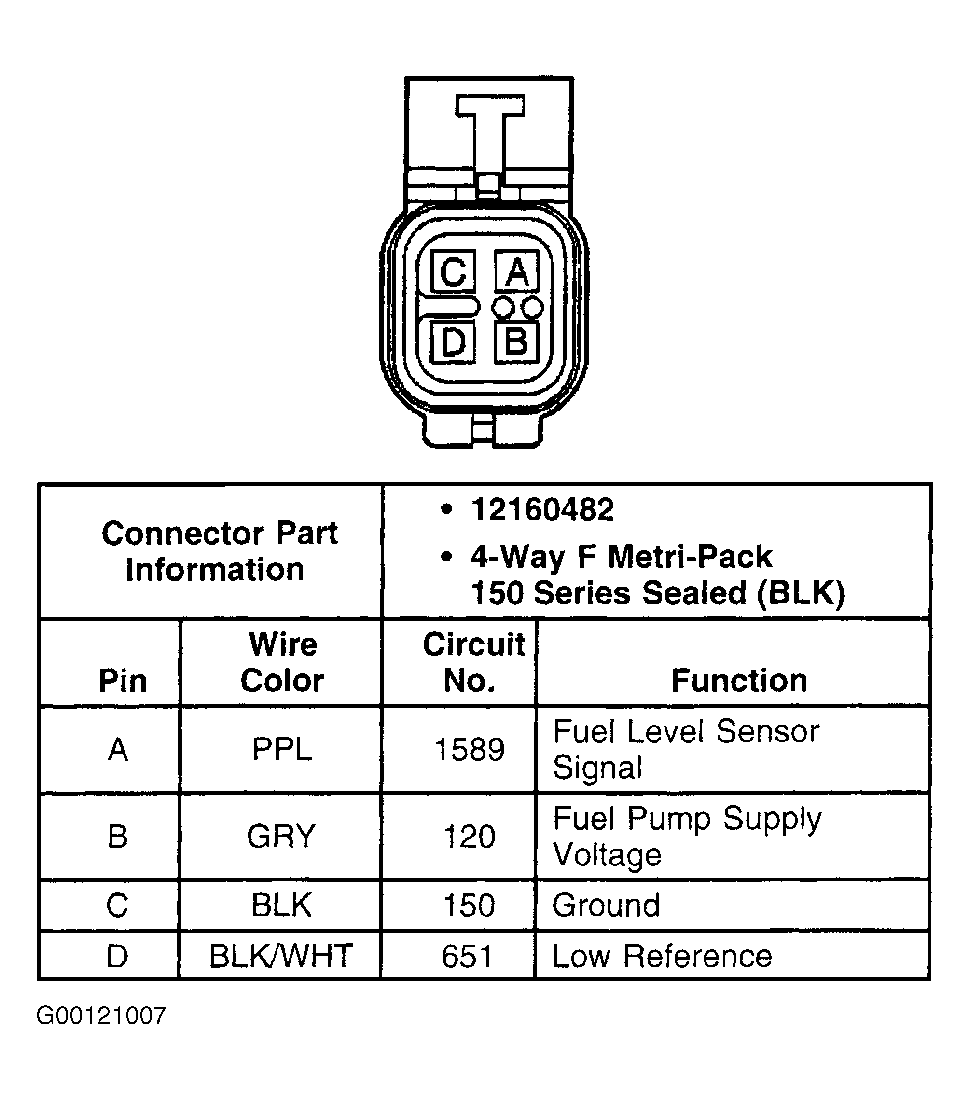

Fig 18: Identifying Fuel Pump & Sender Assembly Harness Connector Terminals
Courtesy of GENERAL MOTORS CORP.

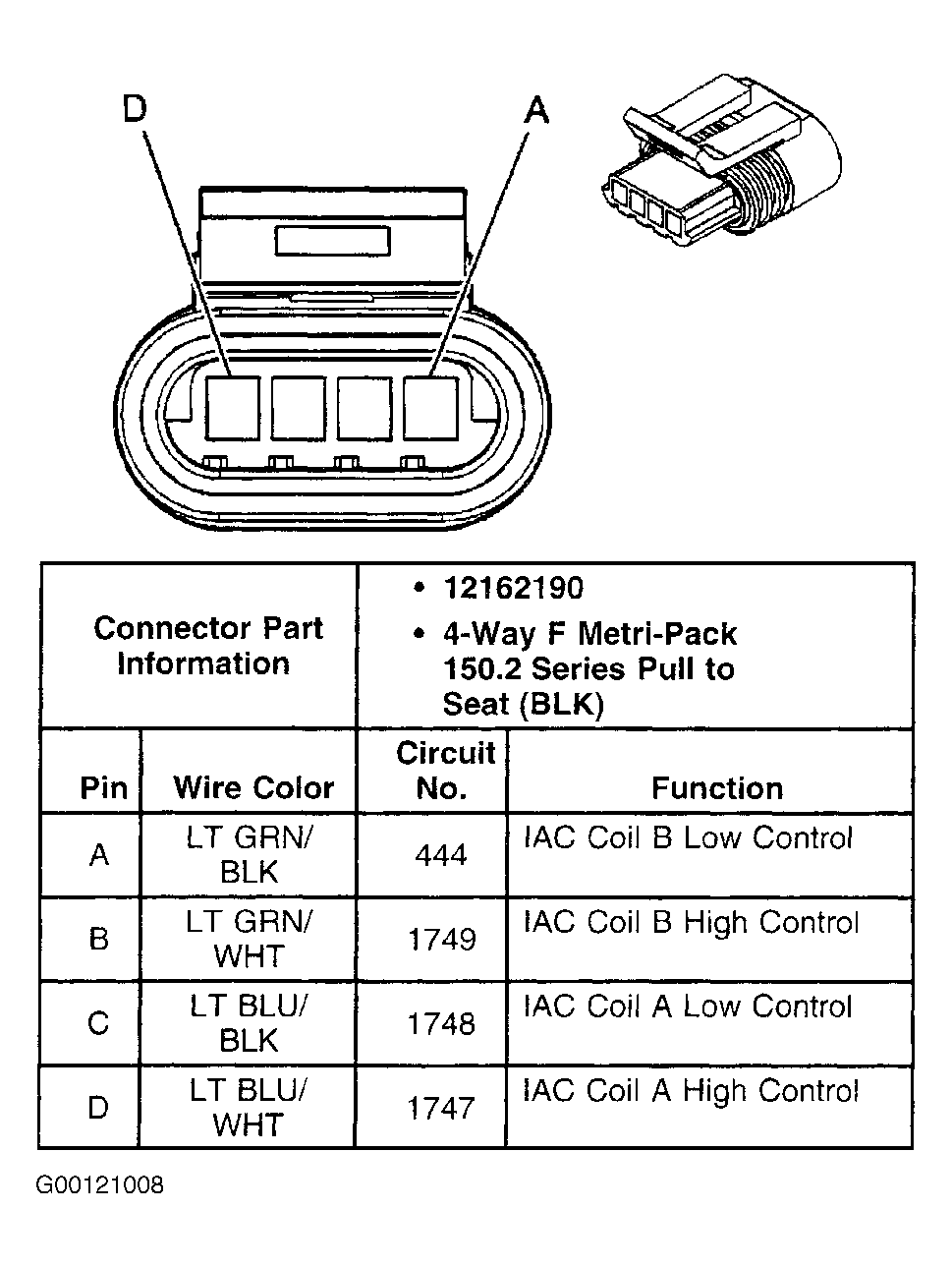

Fig 19: Identifying Idle Air Control Valve Harness Connector Terminals
Courtesy of GENERAL MOTORS CORP.

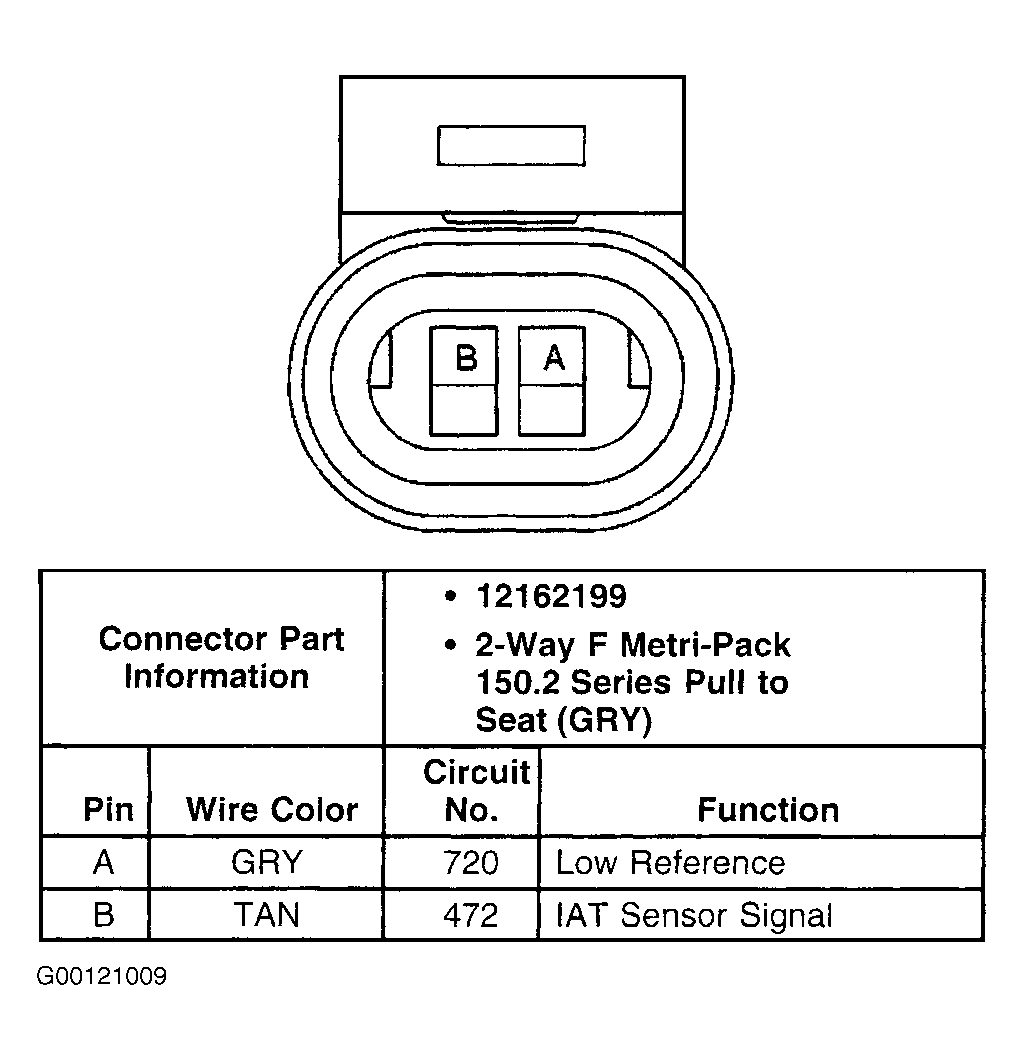

Fig 20: Identifying Intake Air Temperature Sensor Harness Connector Terminals
Courtesy of GENERAL MOTORS CORP.

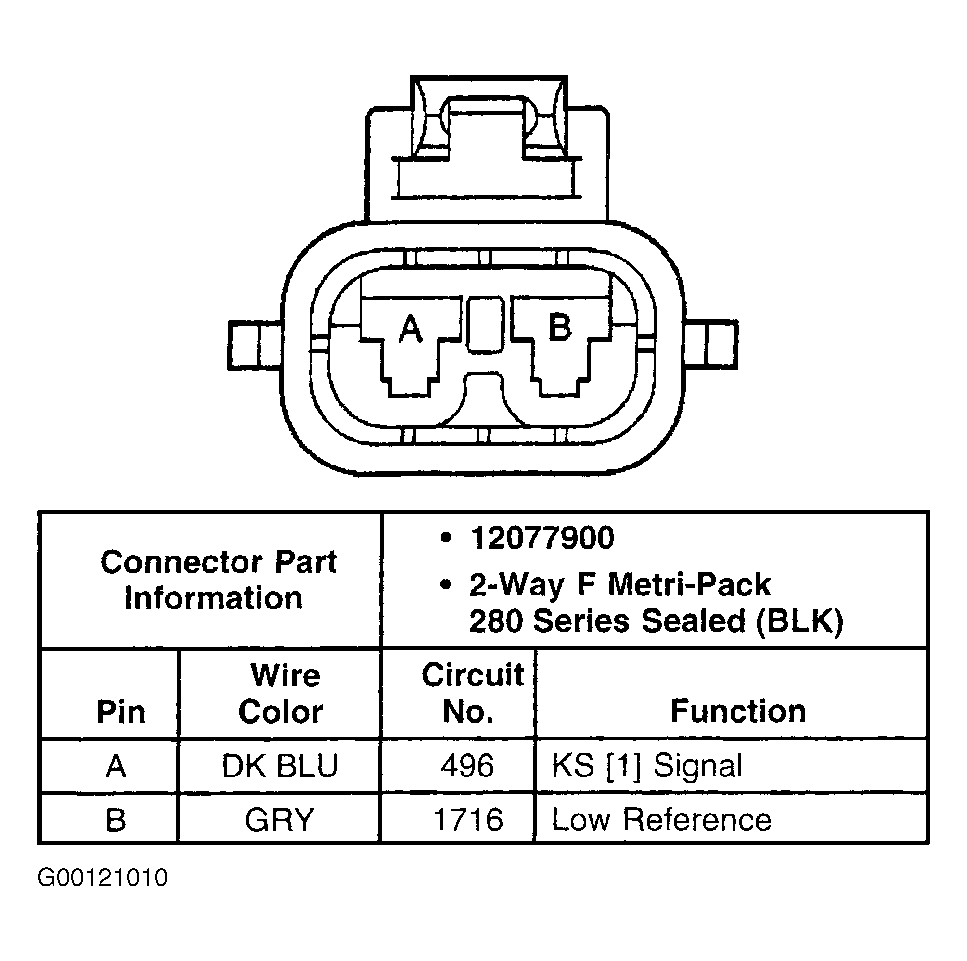

Fig 21: Identifying Knock Sensor Harness Connector Terminals
Courtesy of GENERAL MOTORS CORP.

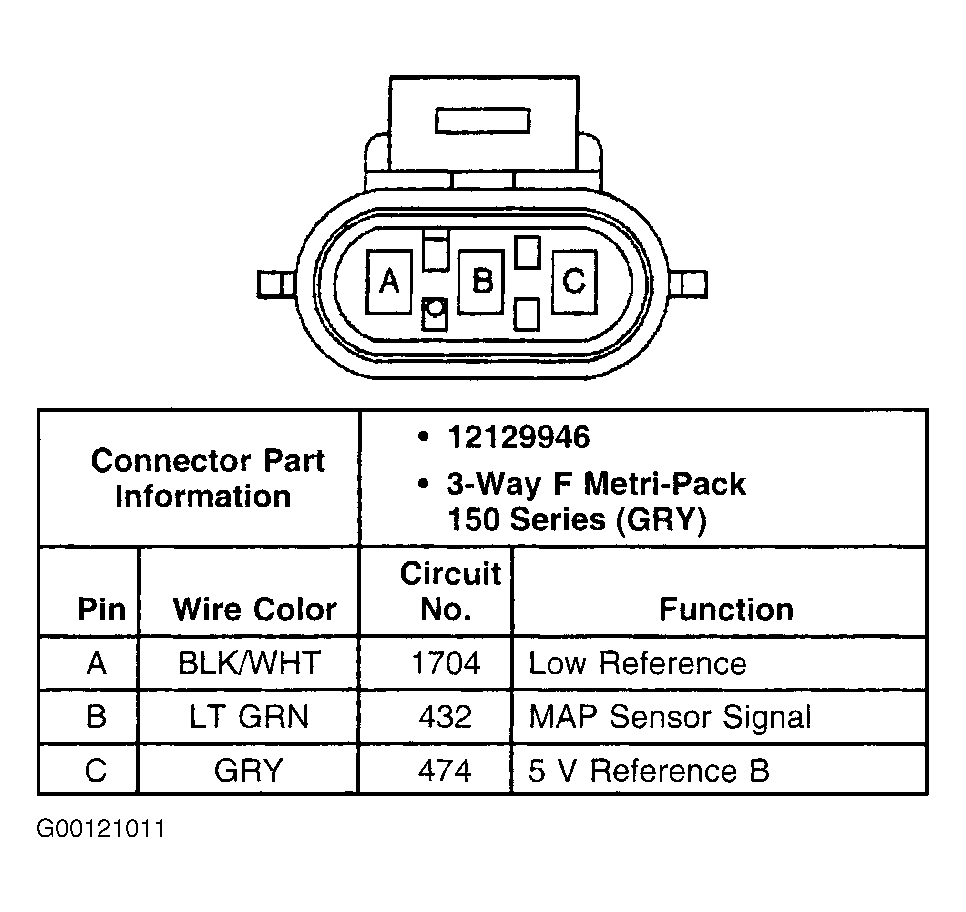

Fig 22: Identifying Manifold Absolute Pressure Sensor Harness Connector Terminals
Courtesy of GENERAL MOTORS CORP.

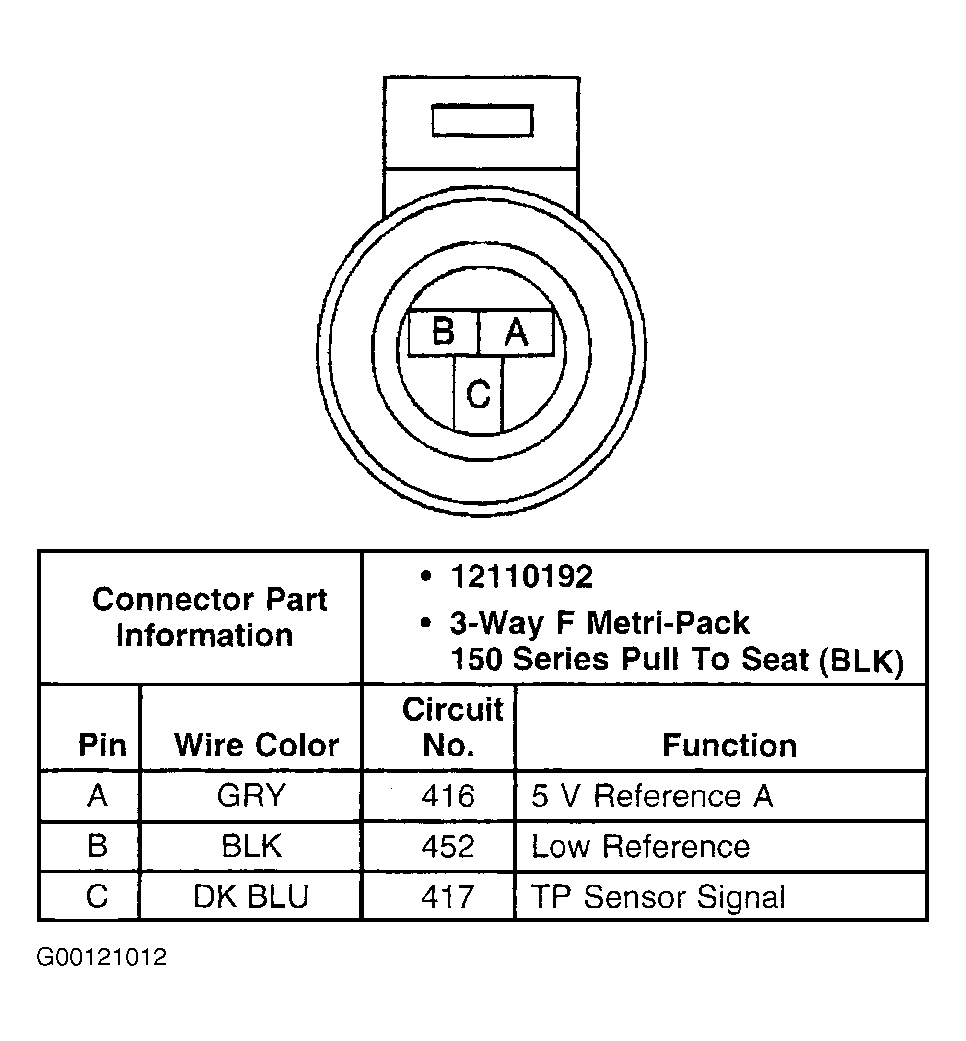

Fig 23: Identifying Throttle Position Sensor Harness Connector Terminals
Courtesy of GENERAL MOTORS CORP.
