Installation Procedure

  1. Push the theft deterrent module (2), onto the lock cylinder housing (1).
  2. Install the theft deterrent wiring harness to the steering column harness.
  3. Connect the electrical connector.
  4. Replace the steering column trim covers. Refer to STEERING COLUMN TRIM COVERS REPLACEMENT .
  5. Enable the SIR system. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM .
  6. Program the new theft control module. Refer to PROGRAMMING THEFT DETERRENT SYSTEM COMPONENTS

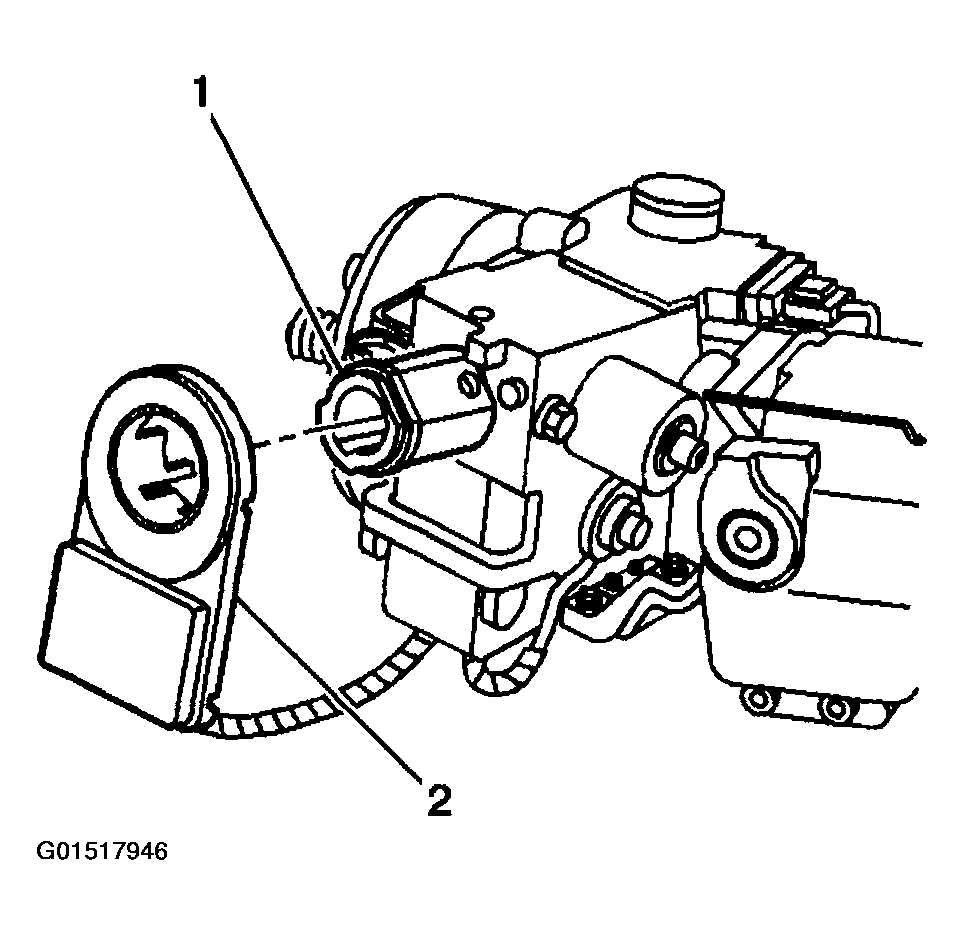

    Fig 1: Installing Theft Deterrent Module Onto Lock Cylinder Housing
    G01517946Courtesy of GENERAL MOTORS CORP.
