Removal Procedure

  1. Disable the SIR. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM .
  2. Remove the trim covers. Refer to STEERING COLUMN TRIM COVERS REPLACEMENT .
  3. Remove the theft deterrent module wiring harness from the steering column harness.
  4. Disconnect the electrical connector.
  5. Pull the theft deterrent module (2) away from the lock cylinder housing (1).

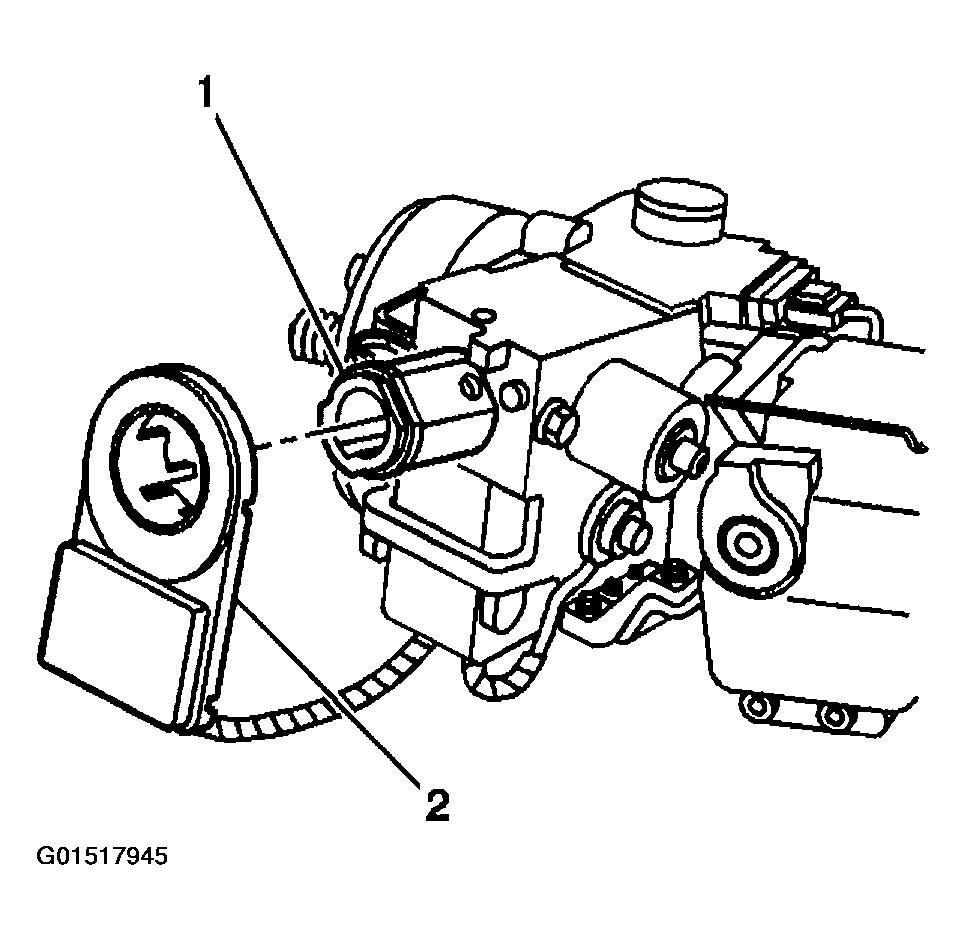

    Fig 1: Removing Theft Deterrent Module From Lock Cylinder Housing
    G01517945Courtesy of GENERAL MOTORS CORP.
