Stationary Windows Connector End Views

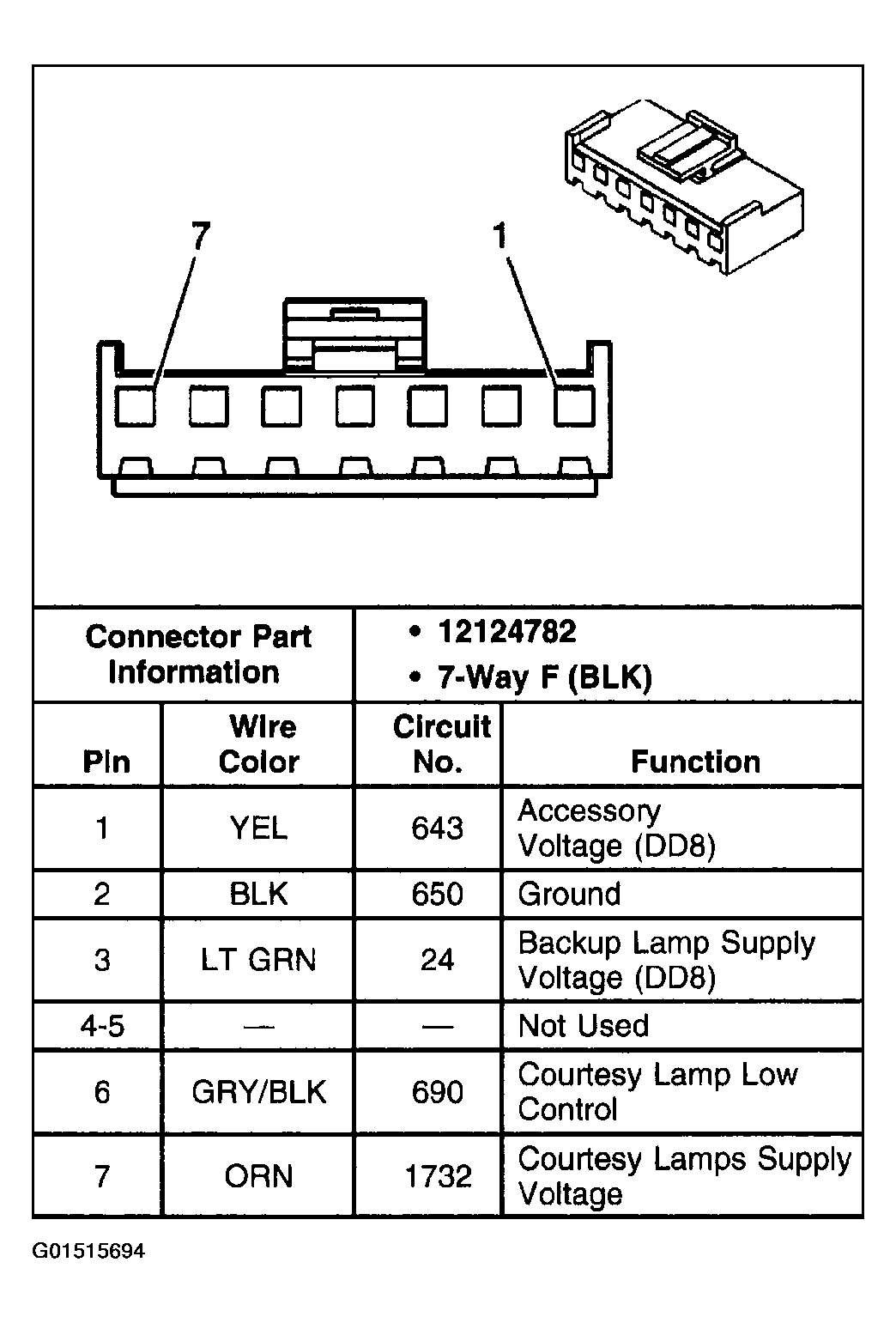

Fig 1: Identifying Inside Rearview Mirror Connector Terminals
G01515694Courtesy of GENERAL MOTORS CORP.

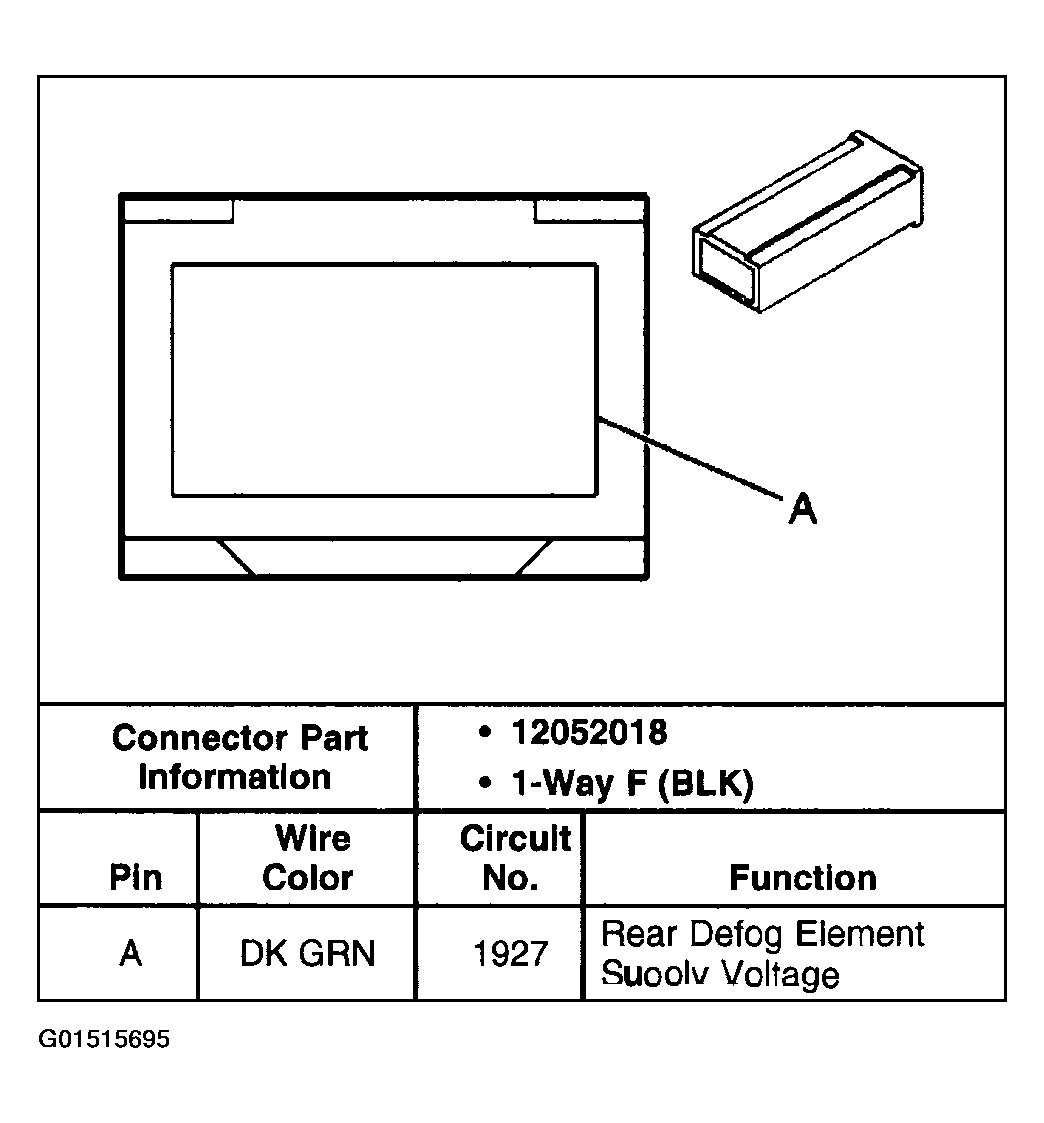

Fig 2: Identifying Rear Window Defogger Terminals
G01515695Courtesy of GENERAL MOTORS CORP.
