In-Line Connector End View C310
In-Line Connector End View C310

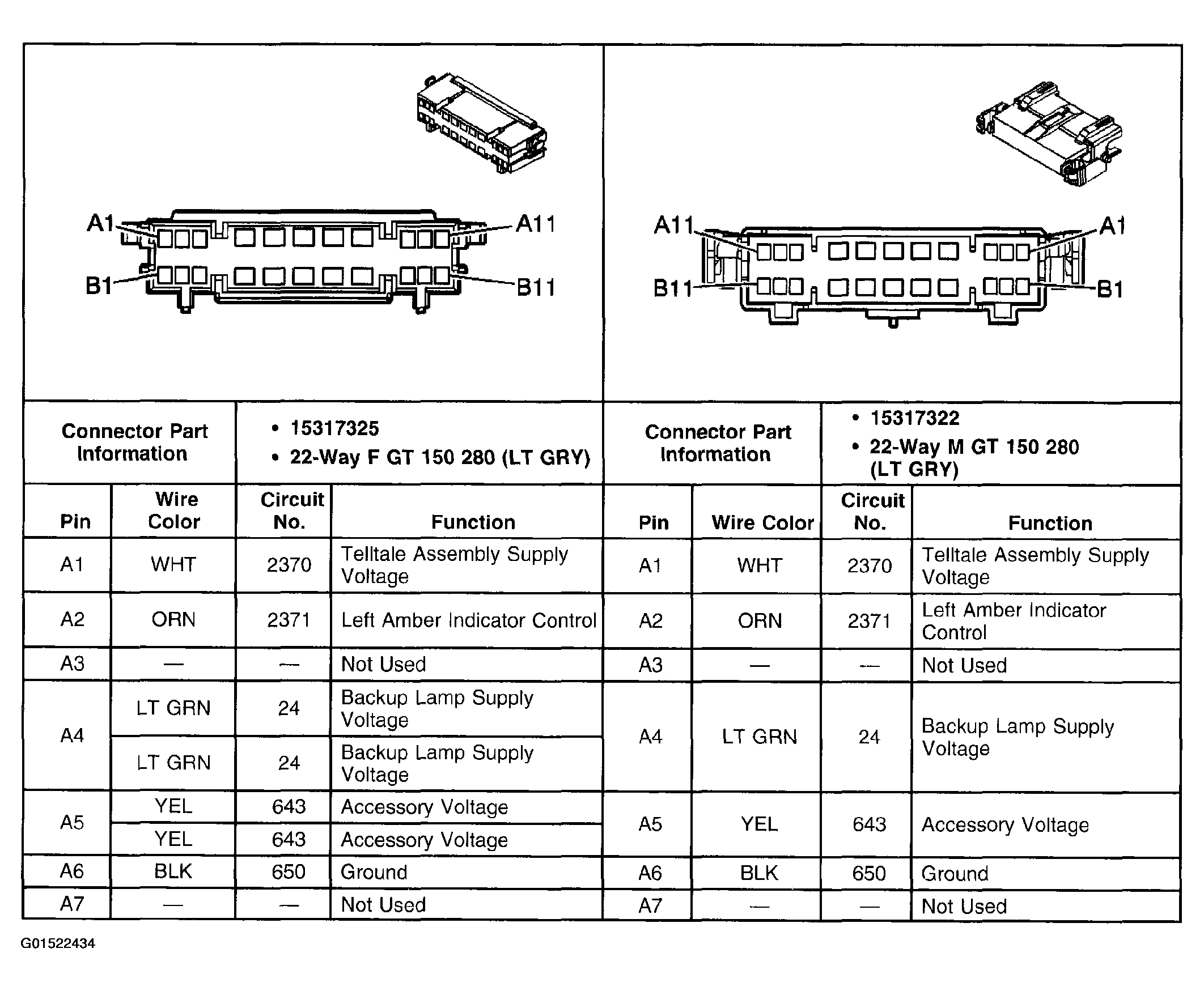

Fig 1: In-Line Connector C310
Courtesy of GENERAL MOTORS CORP.

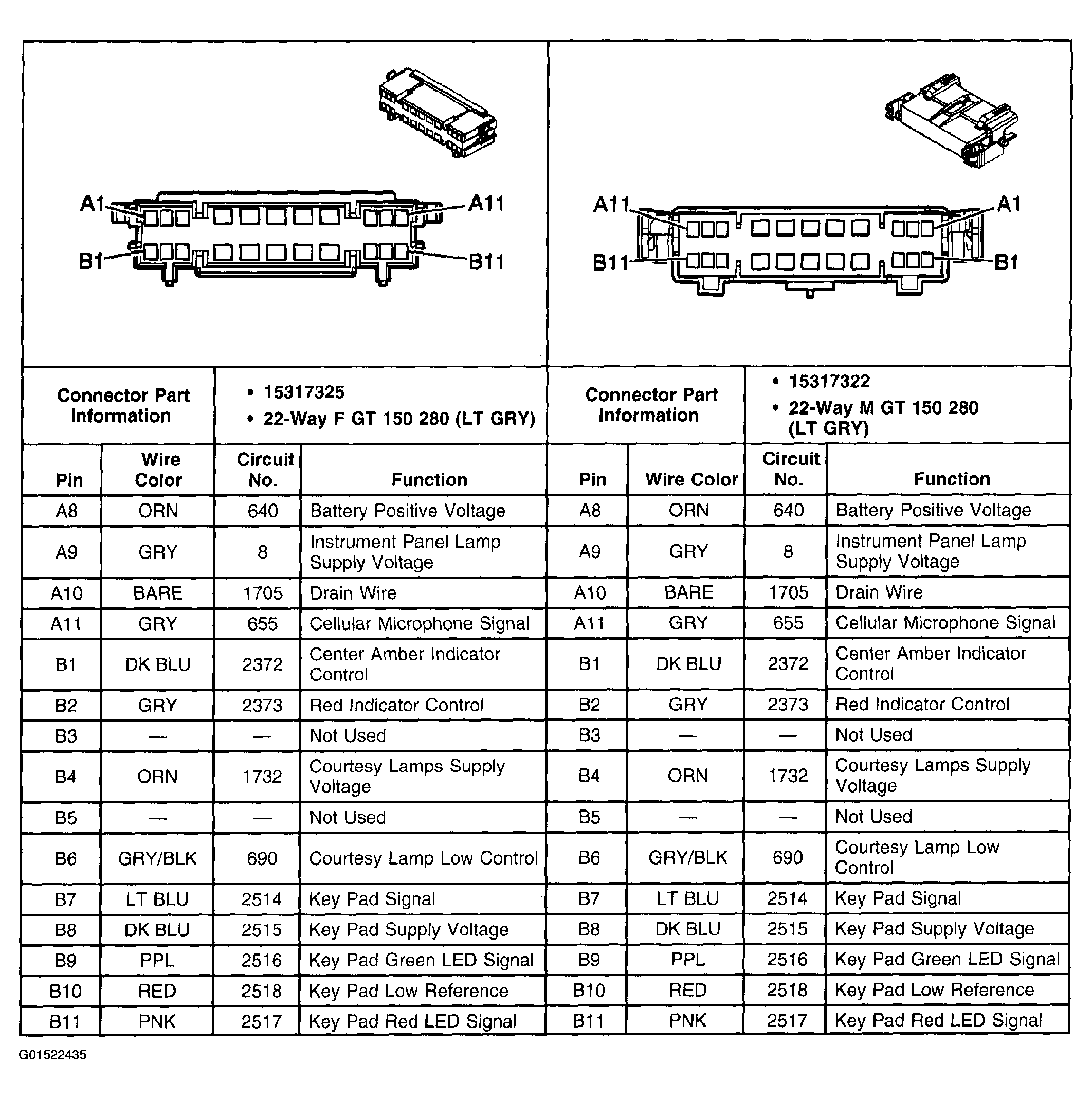

Fig 1: In-Line Connector C310
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
