Home >> Pontiac >> 2003 >> Aztek FWD >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM Connector End Views >> Connector End Views >> Sunroof Module Connector End View C1

Sunroof Module Connector End View C1

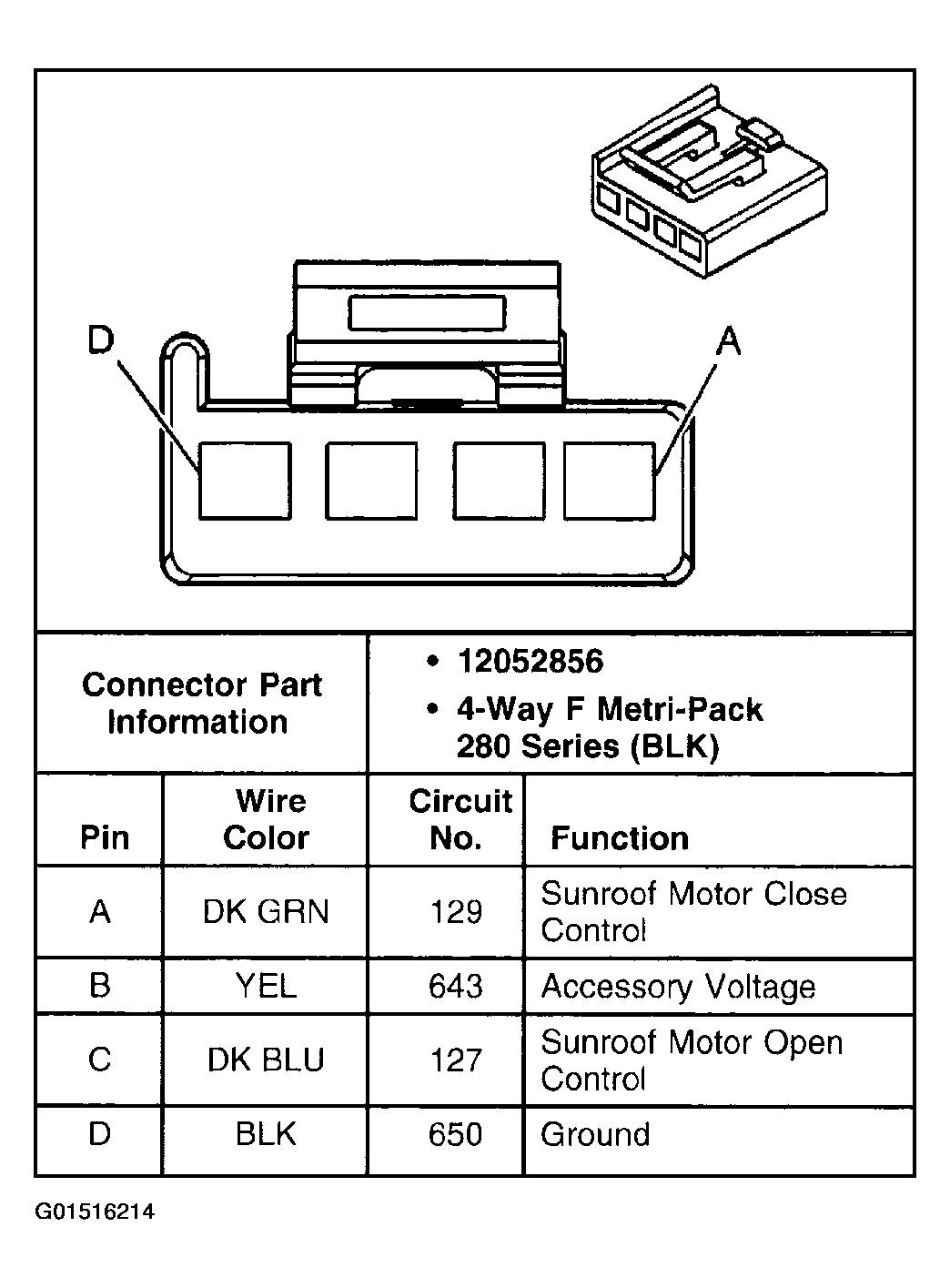

Fig 1: Sunroof Module C1

G01516214

Courtesy of GENERAL MOTORS CORP.
