Installation Procedure

  1. Install the generator bracket.
  2. Install the generator bracket bolts.

    Tighten

    Tighten the generator bracket bolts in the sequence shown to 50 N.m (37 lb ft).

  3. Install the drive belt tensioner. Refer to DRIVE BELT TENSIONER REPLACEMENT .
  4. Install the generator. Refer to GENERATOR REPLACEMENT  .

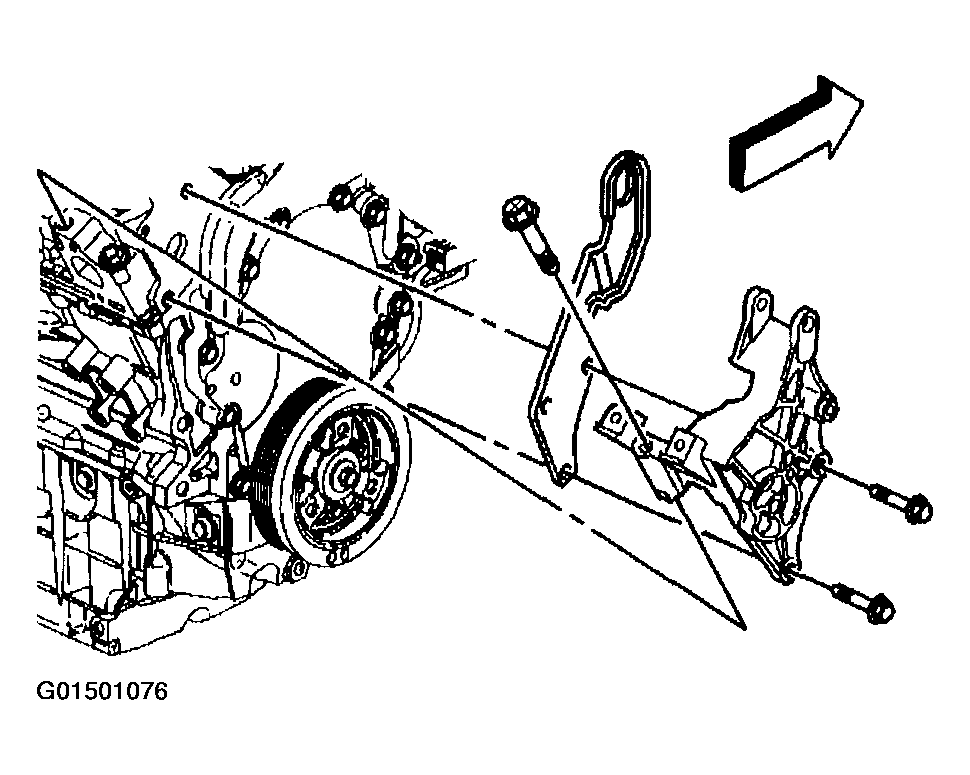

    Fig 1: Installing Generator Bracket Bolts And Generator Bracket
    G01501076Courtesy of GENERAL MOTORS CORP.
