Pontiac
>>
2003
>>
Aztek FWD
>>
Repair and Diagnosis
>>
Electrical
>>
Component Locations
>>
Wiring Systems (General Information)
>>
Component Locator
>>
Electrical Center Identification Views
Electrical Center Identification Views

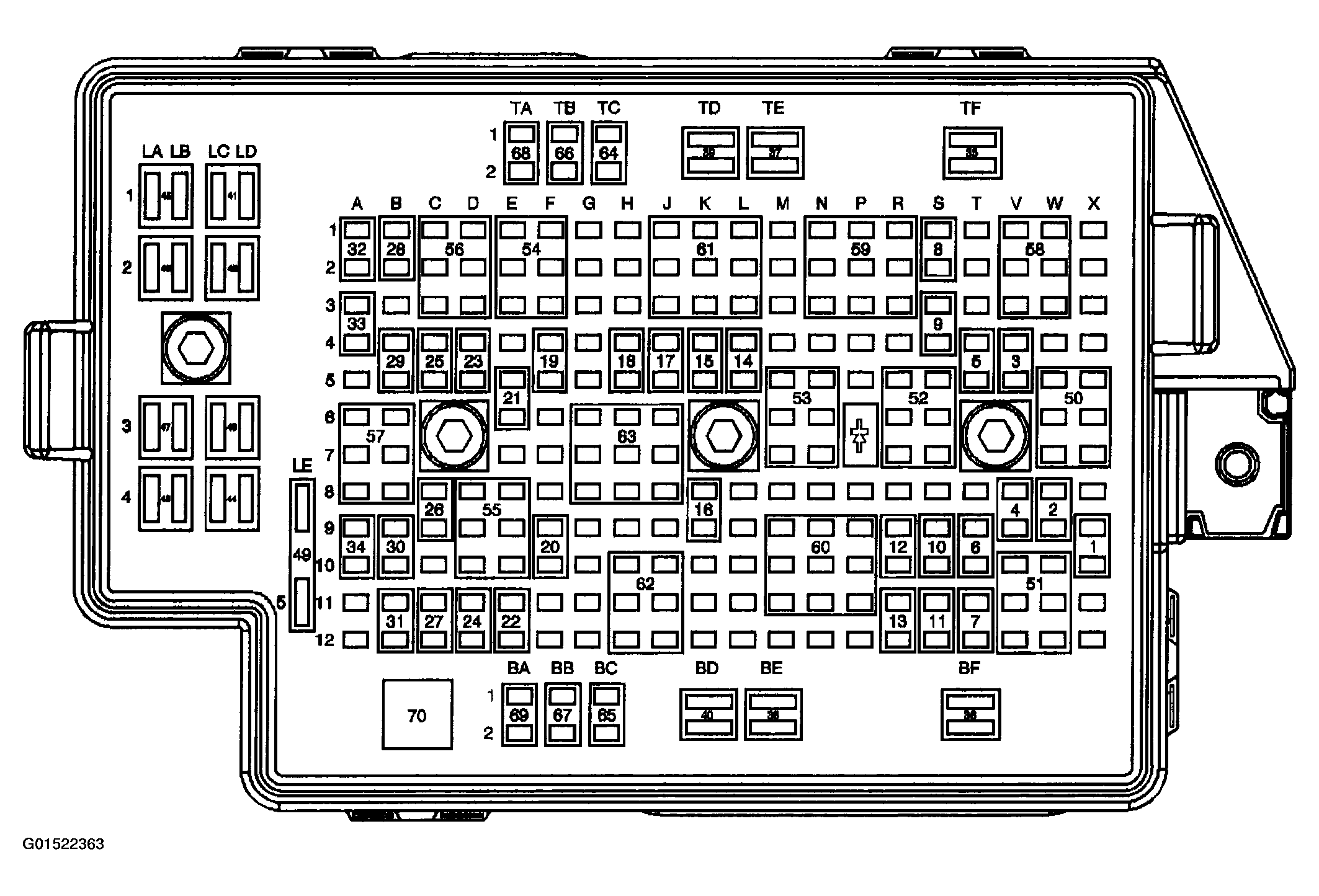

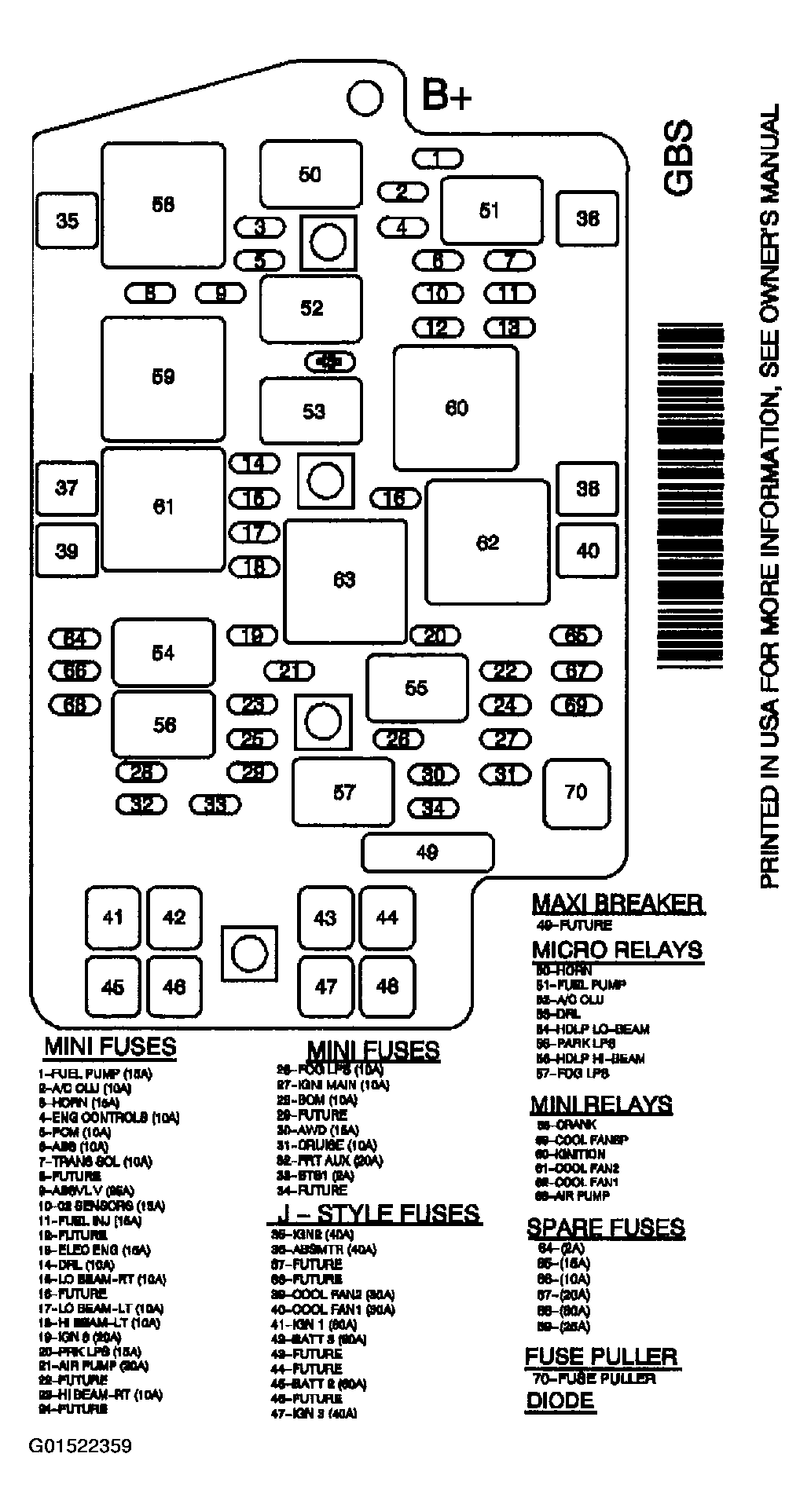

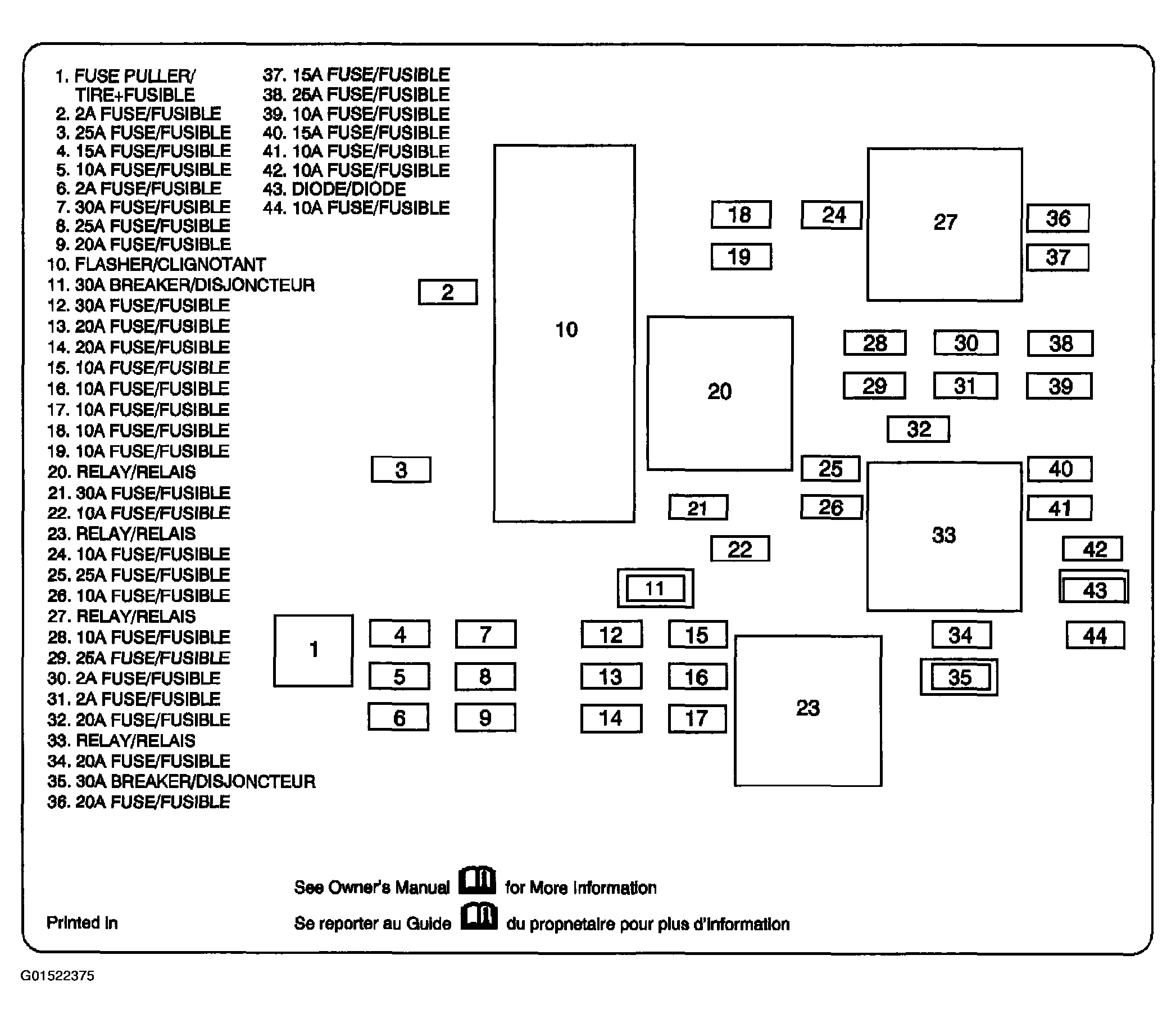

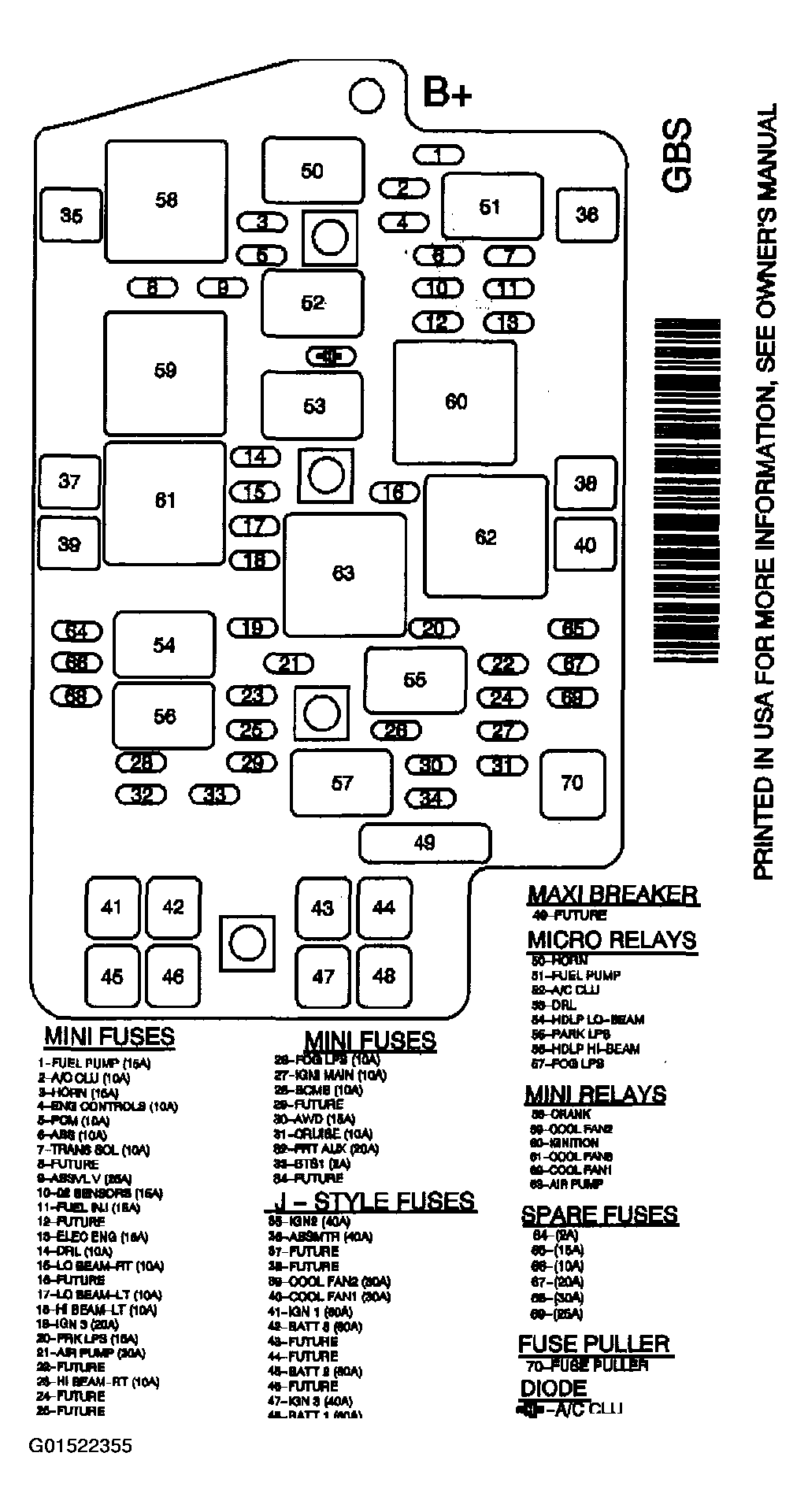

Fig 1: Identifying Underhood Fuse Block Label - Pontiac
Courtesy of GENERAL MOTORS CORP.

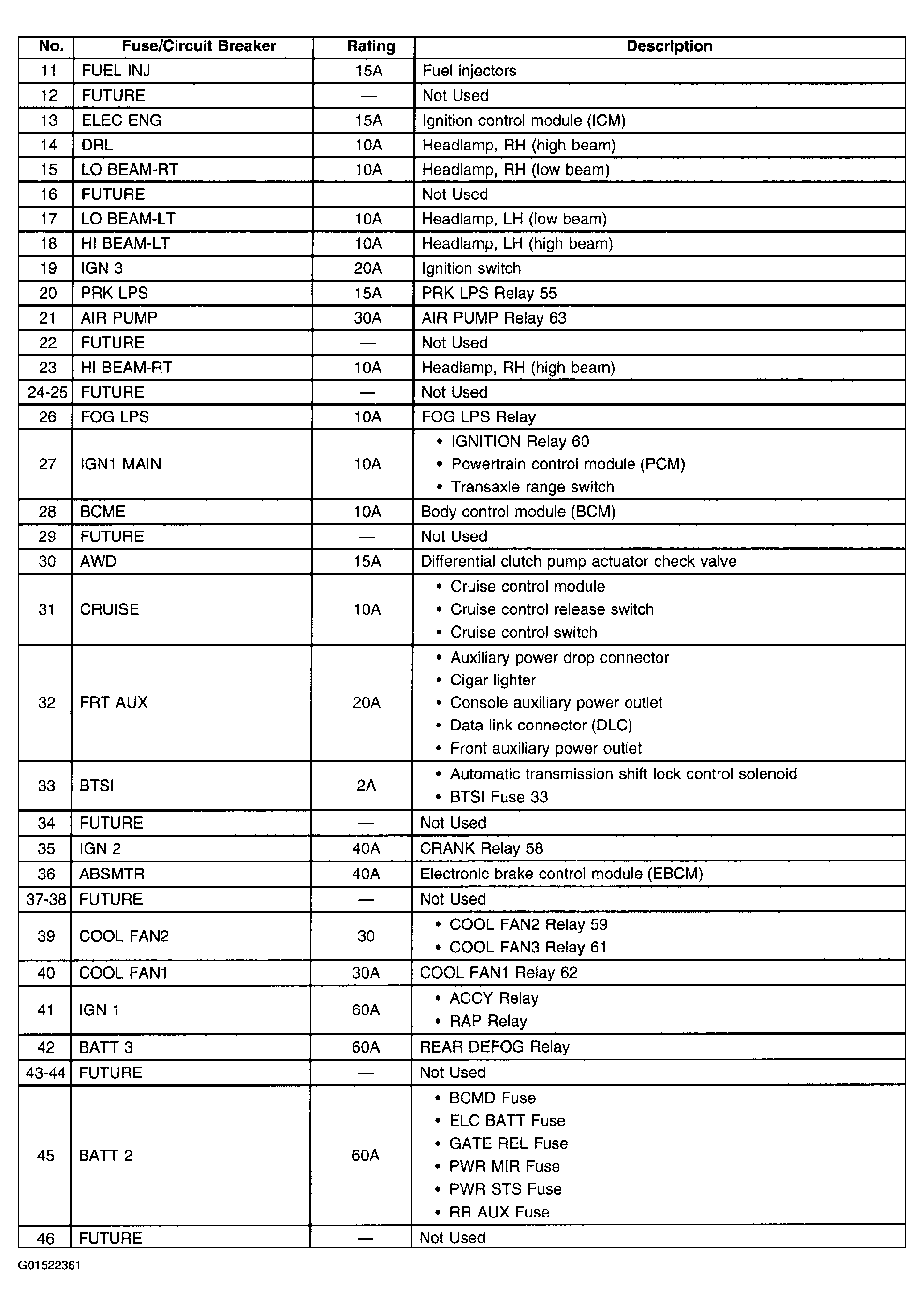

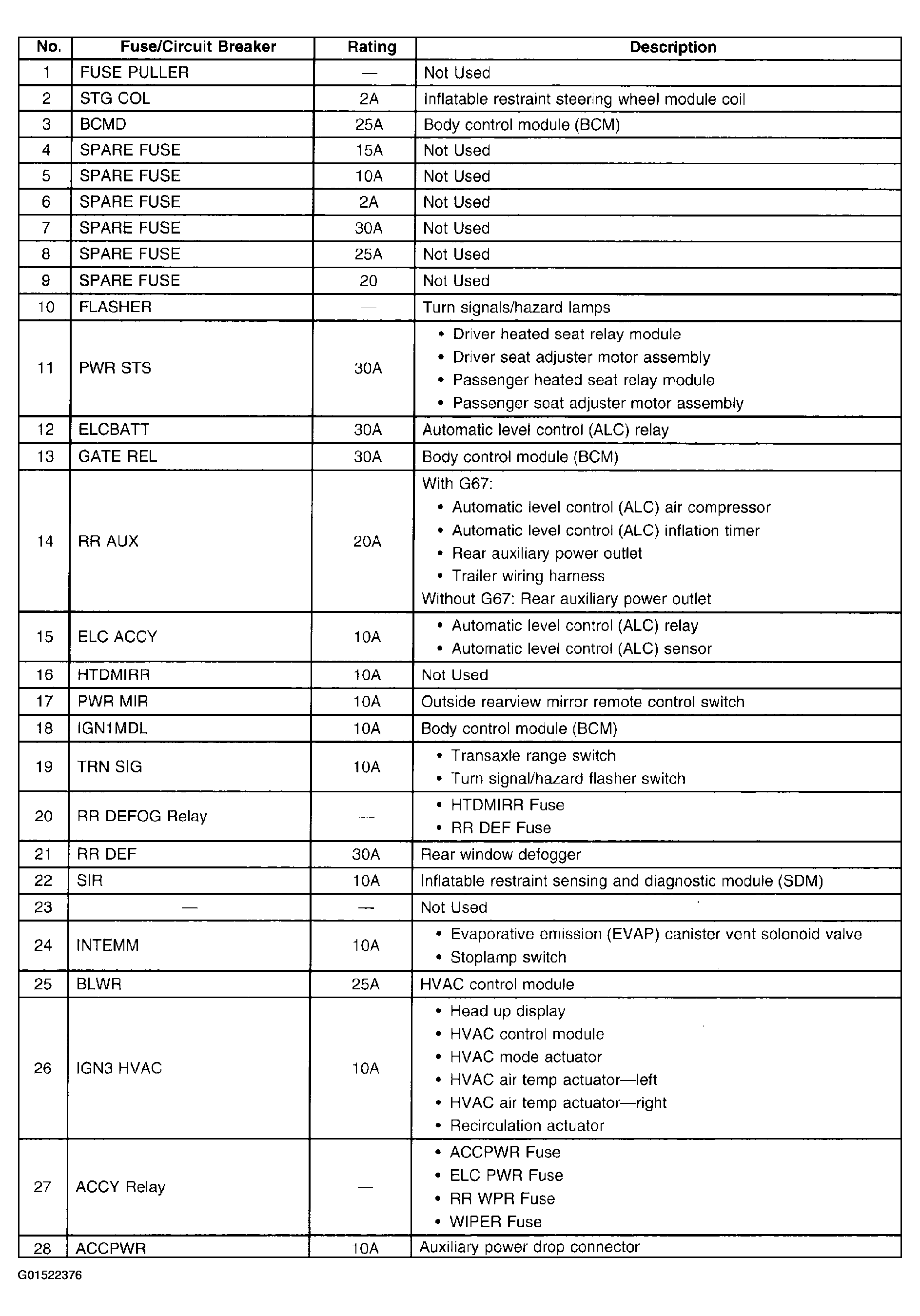

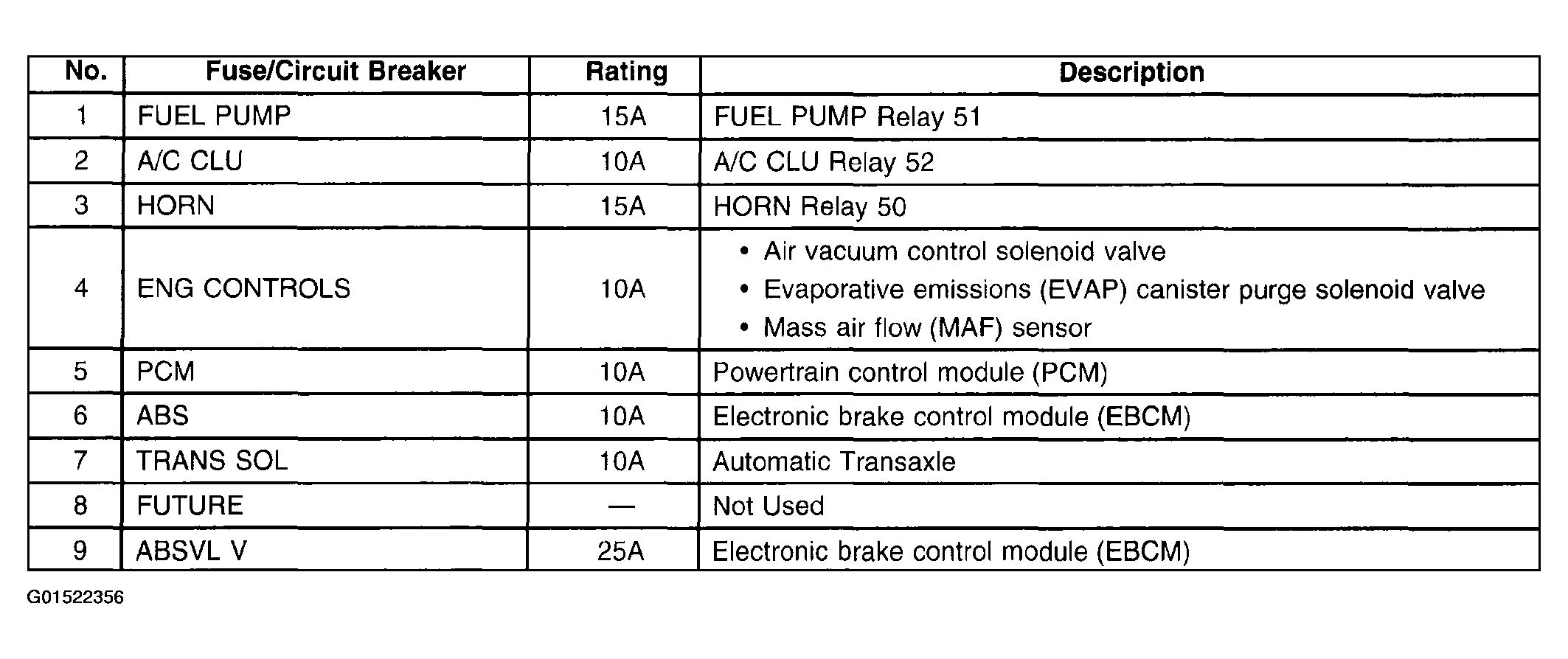

Fig 2: Fuse Rating Description Chart - Pontiac (1 Of 3)
Courtesy of GENERAL MOTORS CORP.

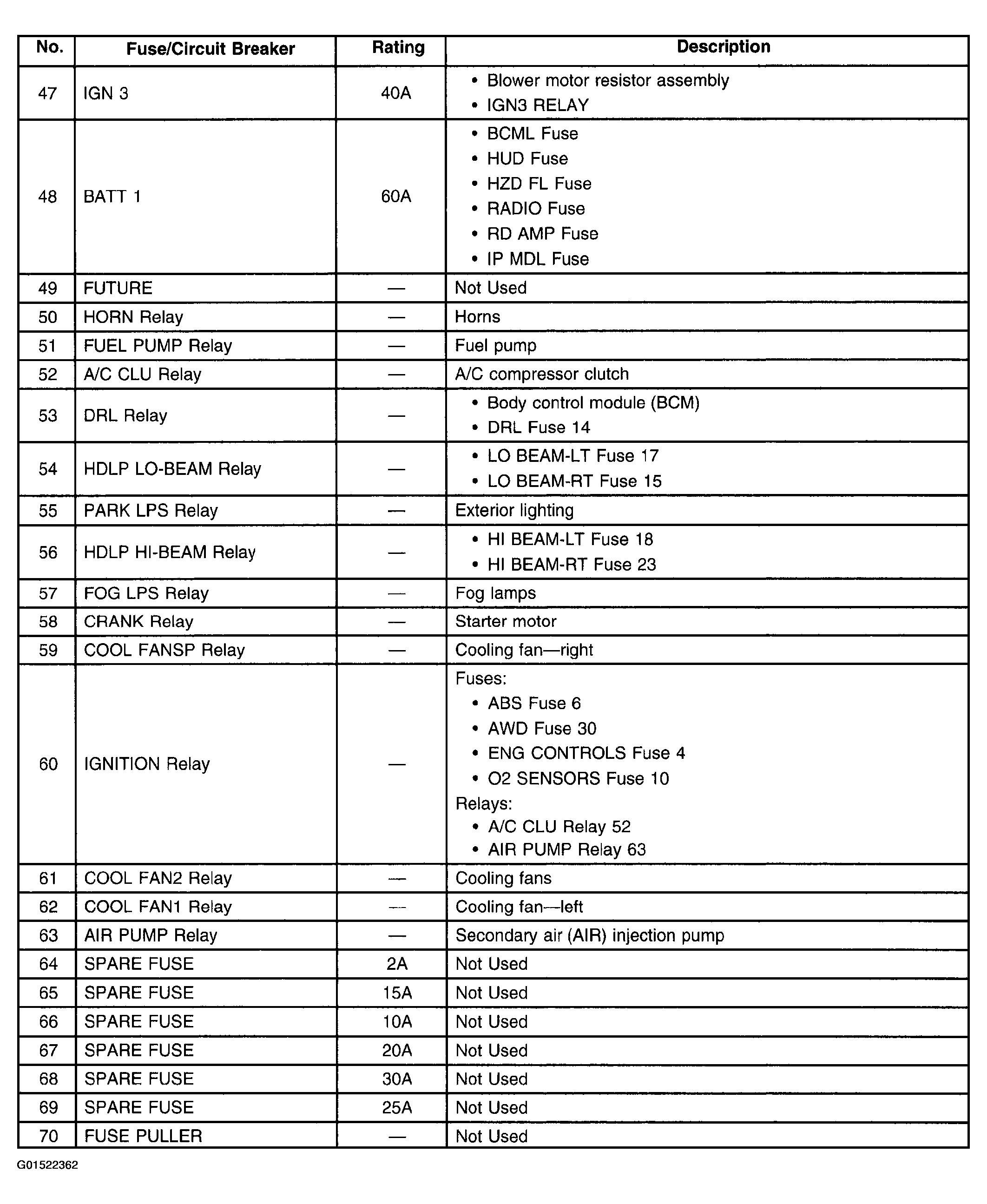

Fig 3: Fuse Rating Description Chart - Pontiac (2 Of 3)
Courtesy of GENERAL MOTORS CORP.

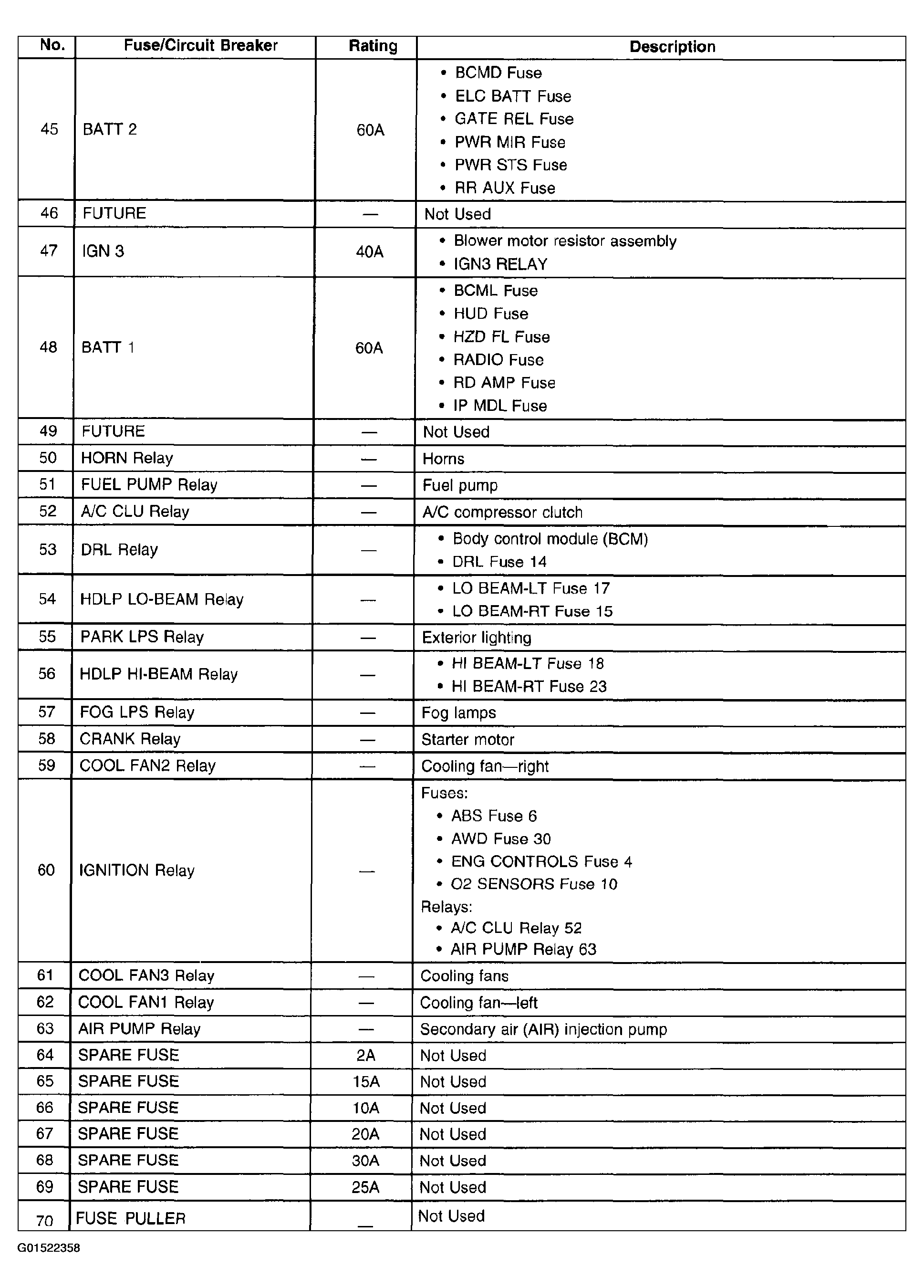

Fig 4: Fuse Rating Description Chart - Pontiac (3 Of 3)
Courtesy of GENERAL MOTORS CORP.
Fig 5: Identifying Underhood Fuse Block Label - Buick
Courtesy of GENERAL MOTORS CORP.

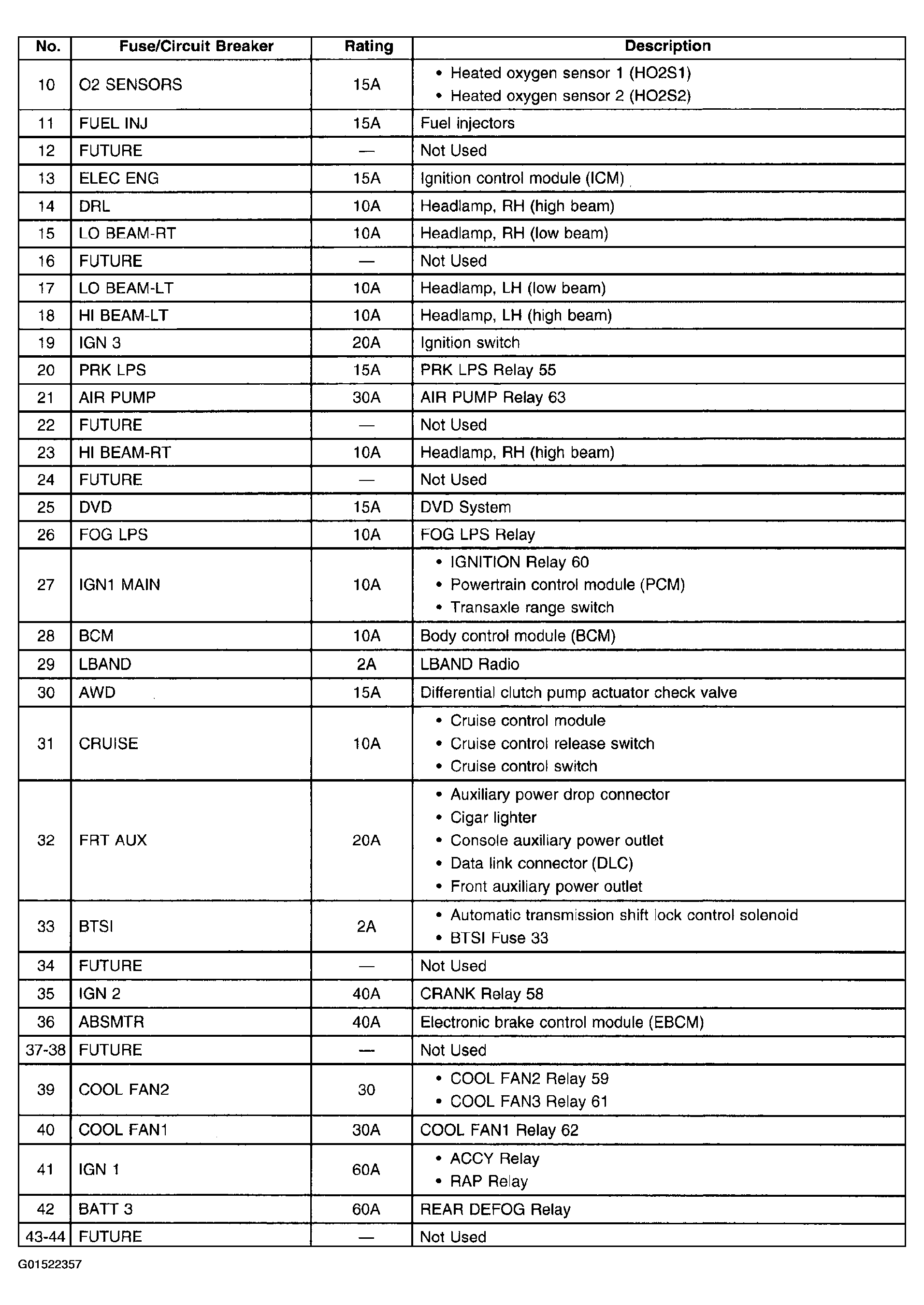

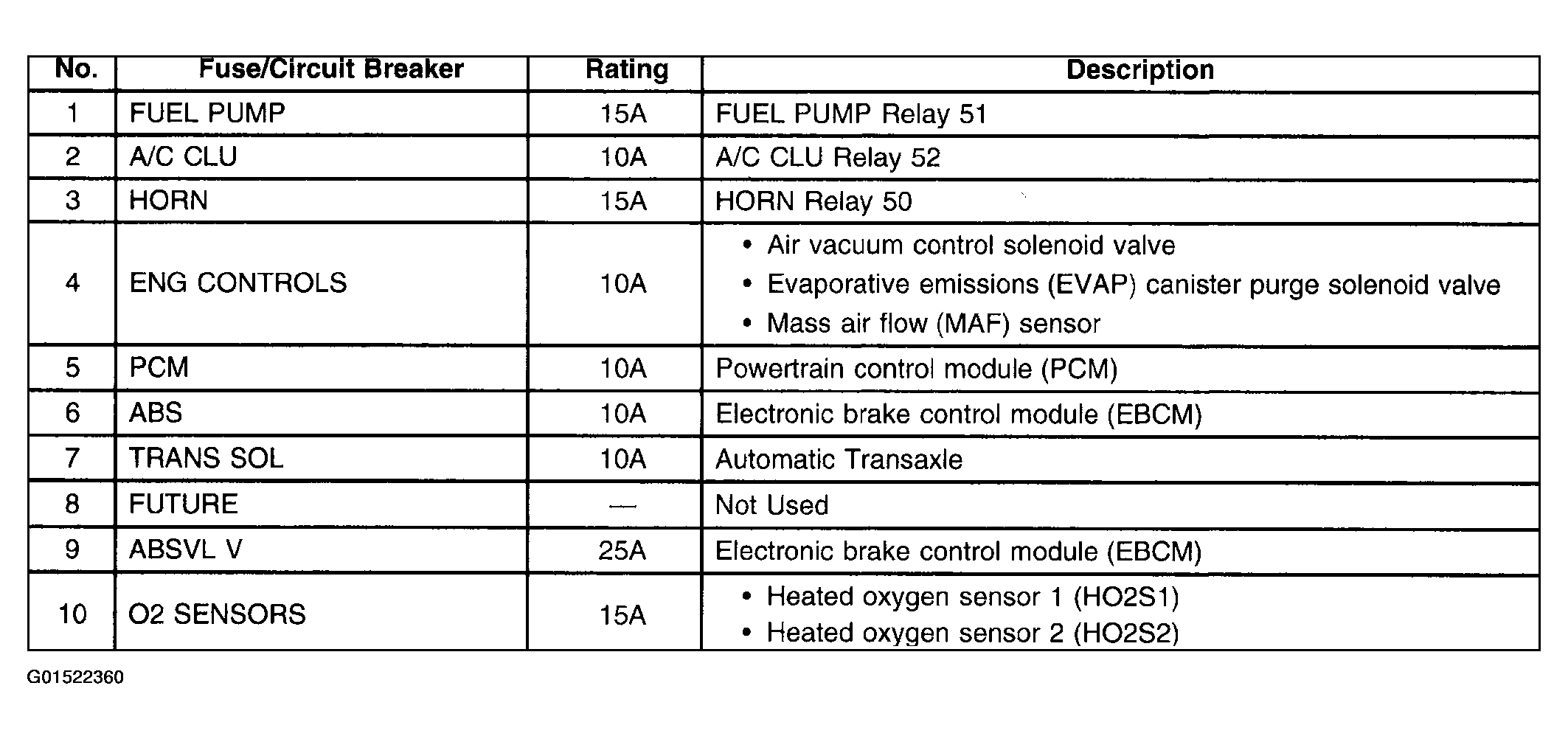

Fig 6: Fuse Rating Description Chart - Buick (1 Of 3)
Courtesy of GENERAL MOTORS CORP.
Fig 7: Fuse Rating Description Chart - Buick (2 Of 3)
Courtesy of GENERAL MOTORS CORP.
Fig 8: Fuse Rating Description Chart - Buick (3 Of 3)
Courtesy of GENERAL MOTORS CORP.

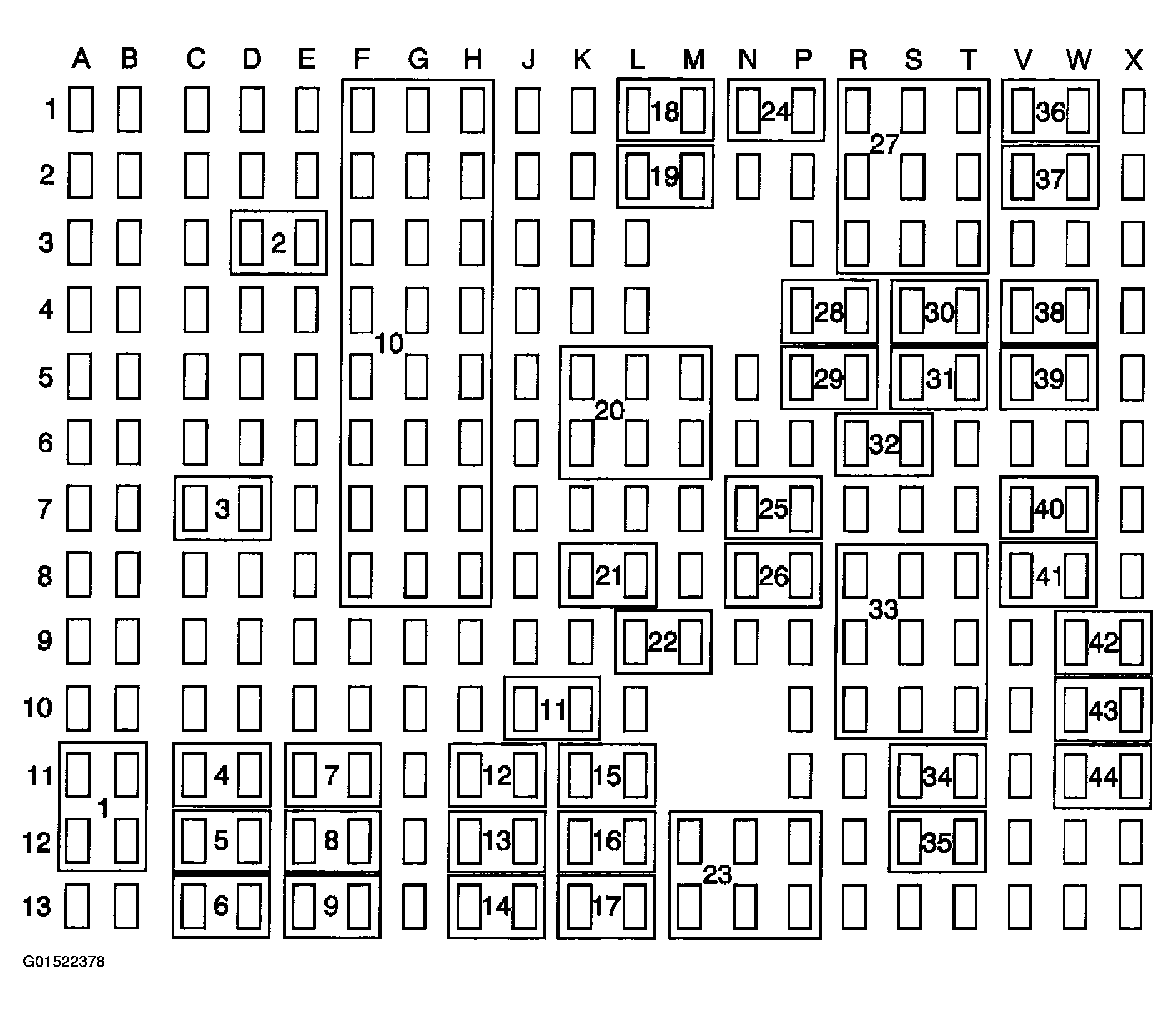

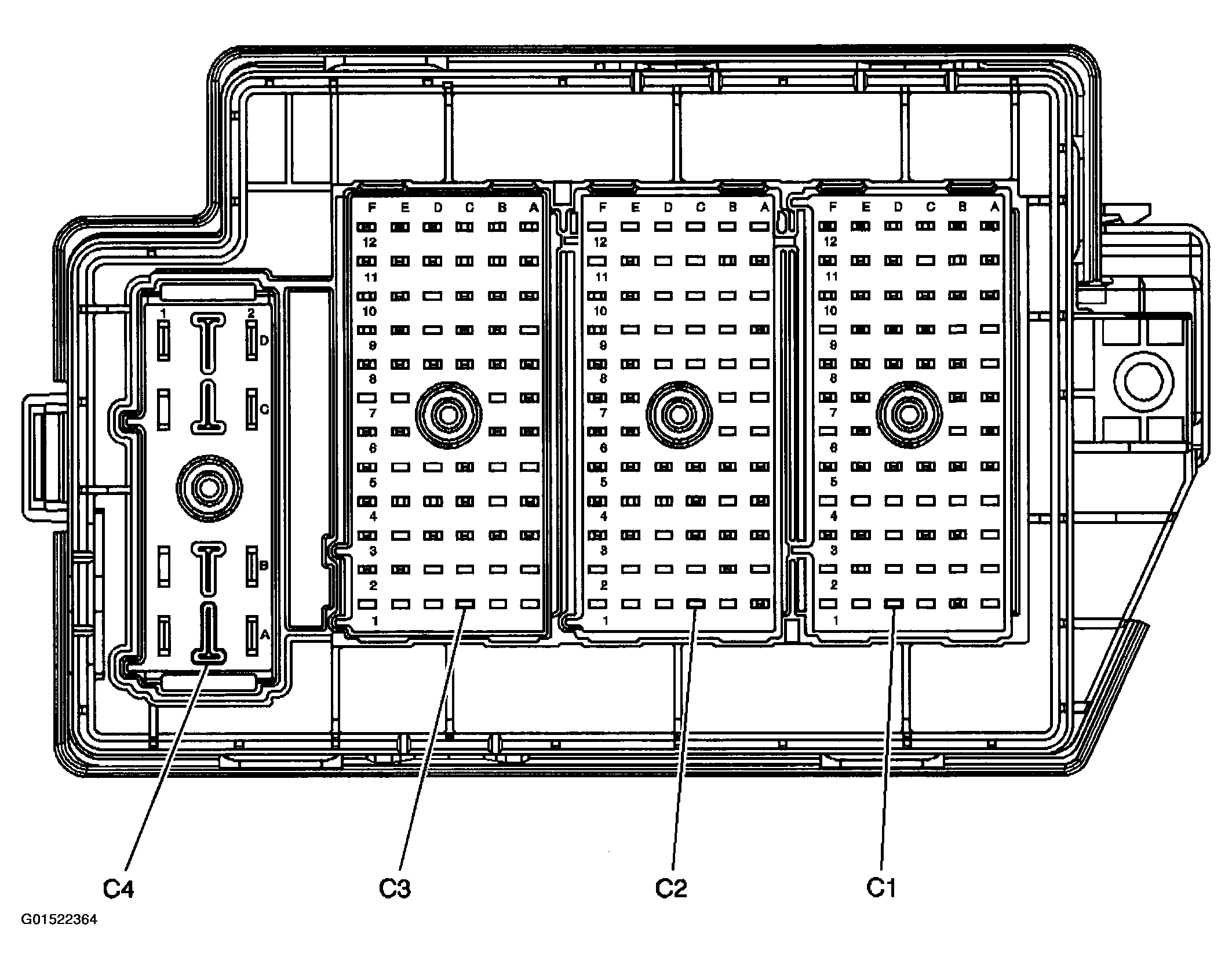

Fig 9: Identifying Underhood Fuse Block (Top View) - Buick
Courtesy of GENERAL MOTORS CORP.
Fig 10: Identifying Underhood Fuse Block (Bottom View) - Buick
Courtesy of GENERAL MOTORS CORP.

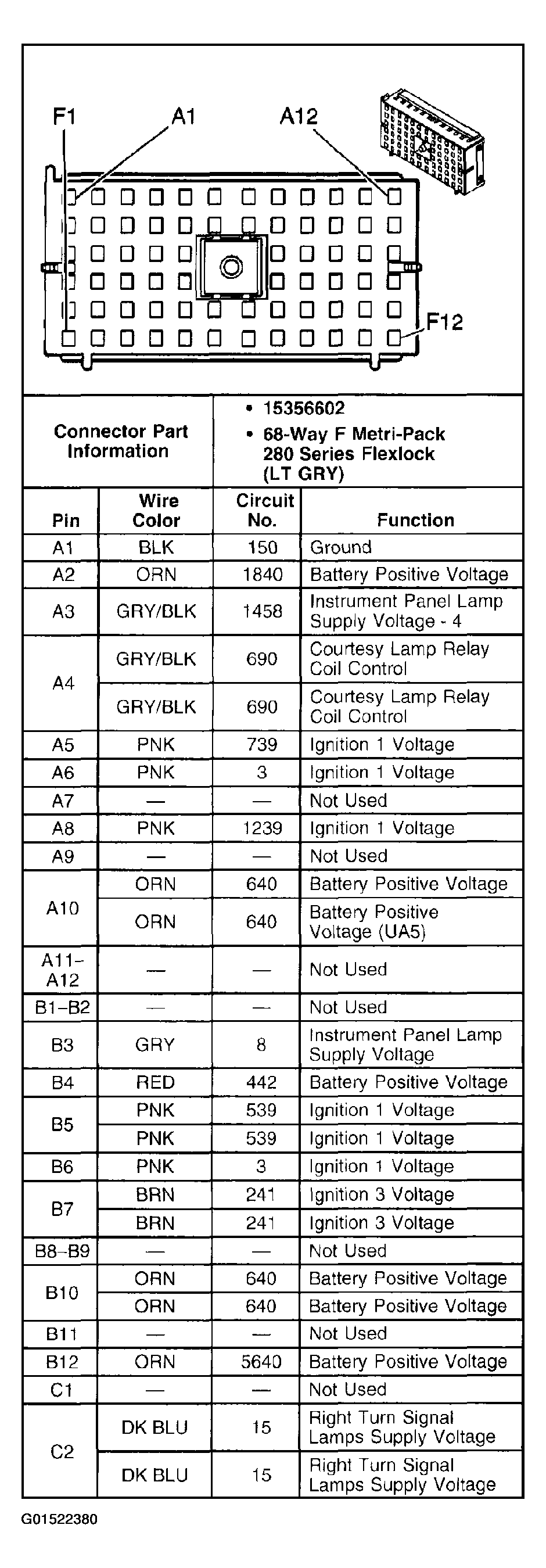

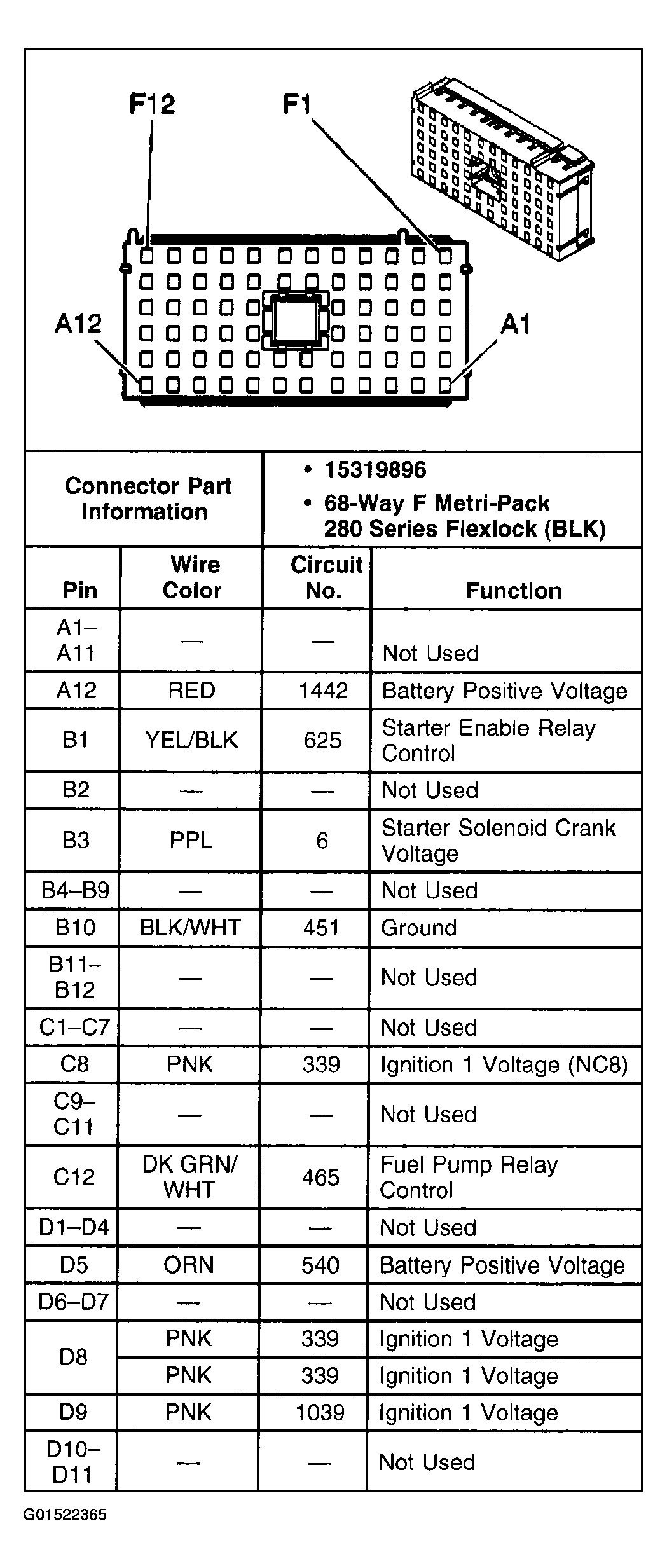

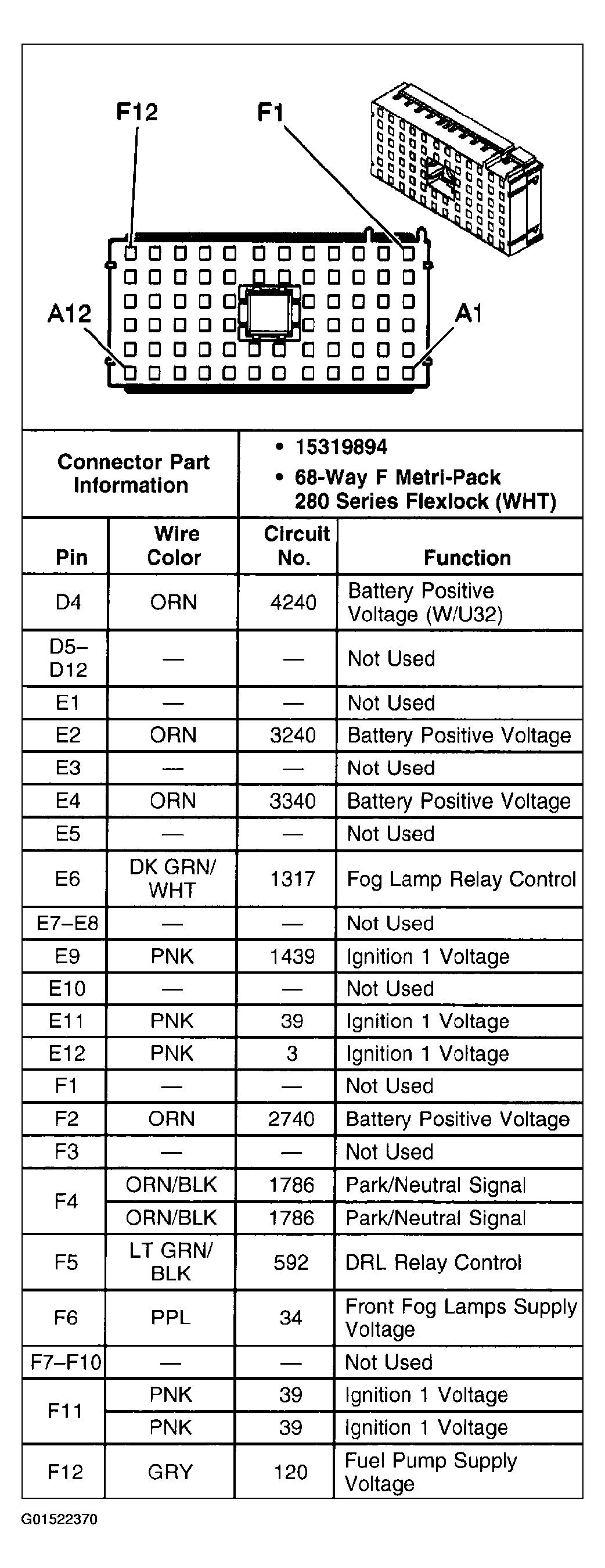

Fig 11: Identifying Underhood Fuse Block C1 Connector - Buick (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

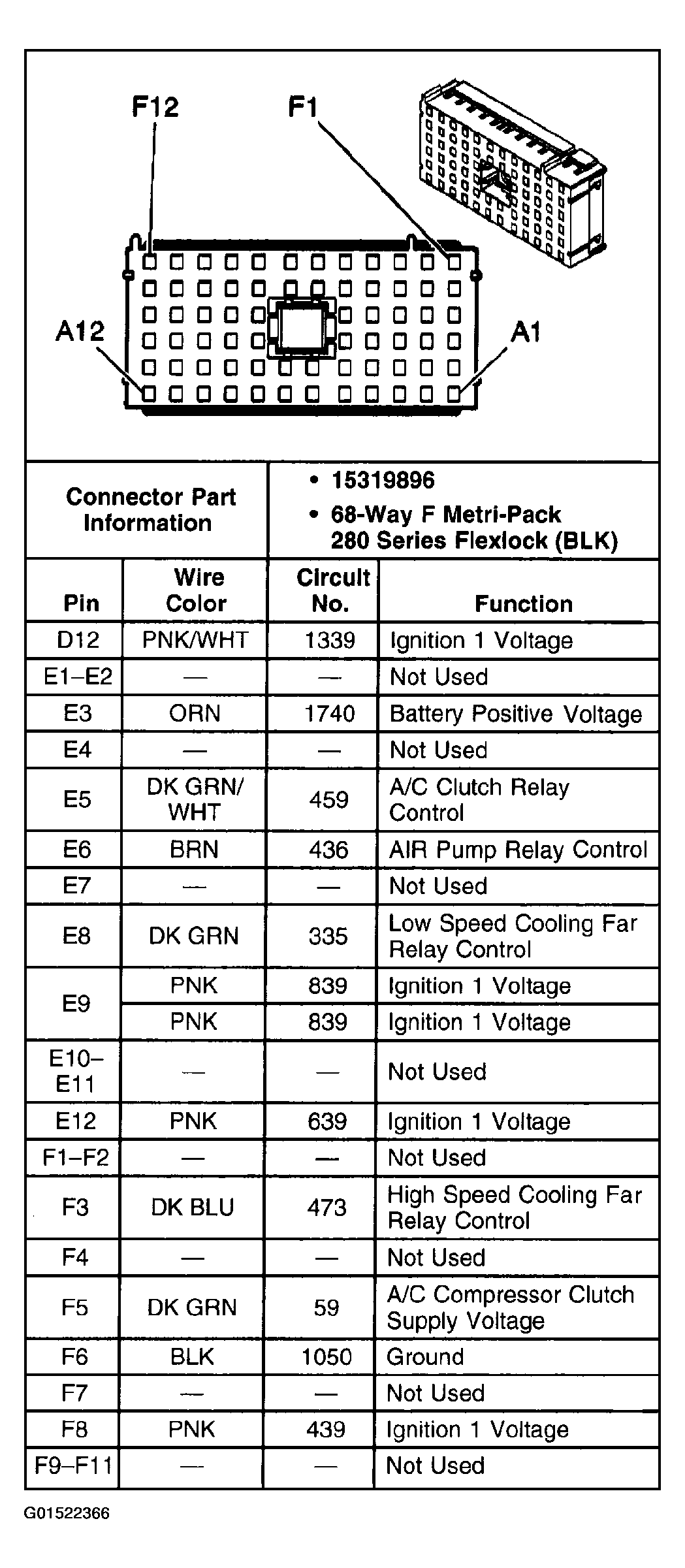

Fig 12: Identifying Underhood Fuse Block C1 Connector - Buick (2 Of 2)
Courtesy of GENERAL MOTORS CORP.

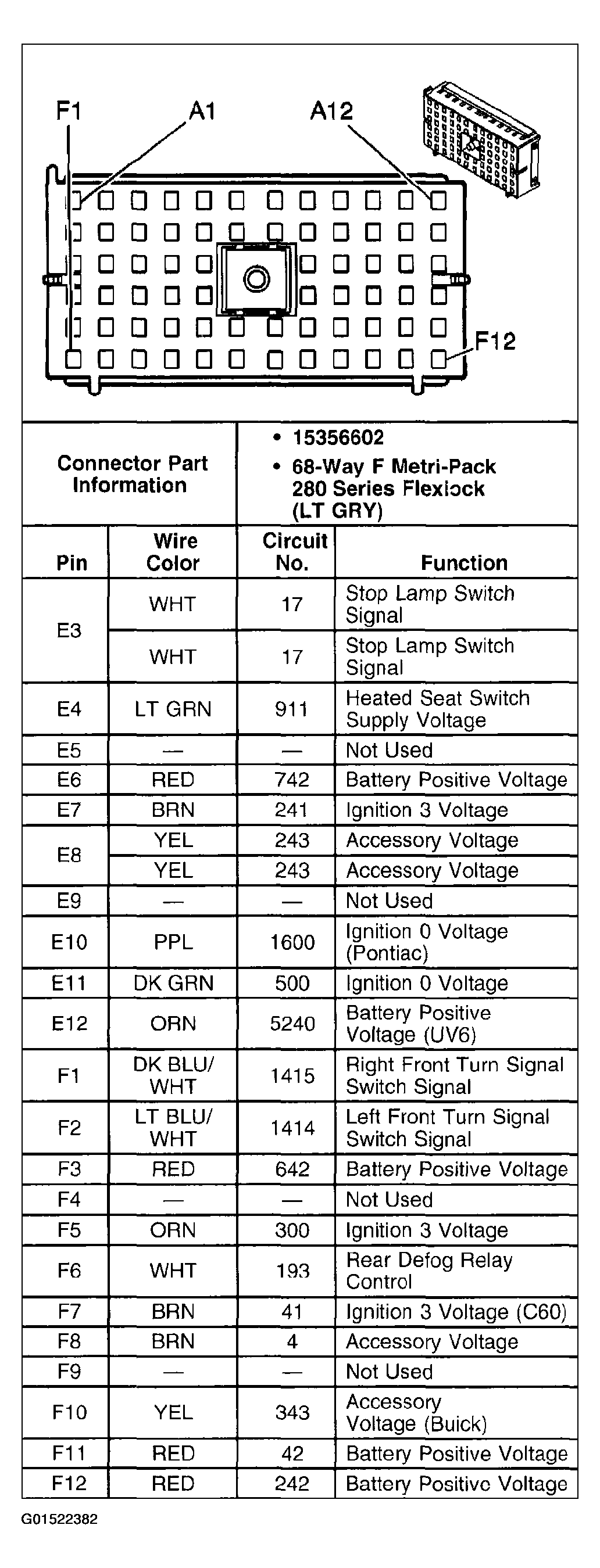

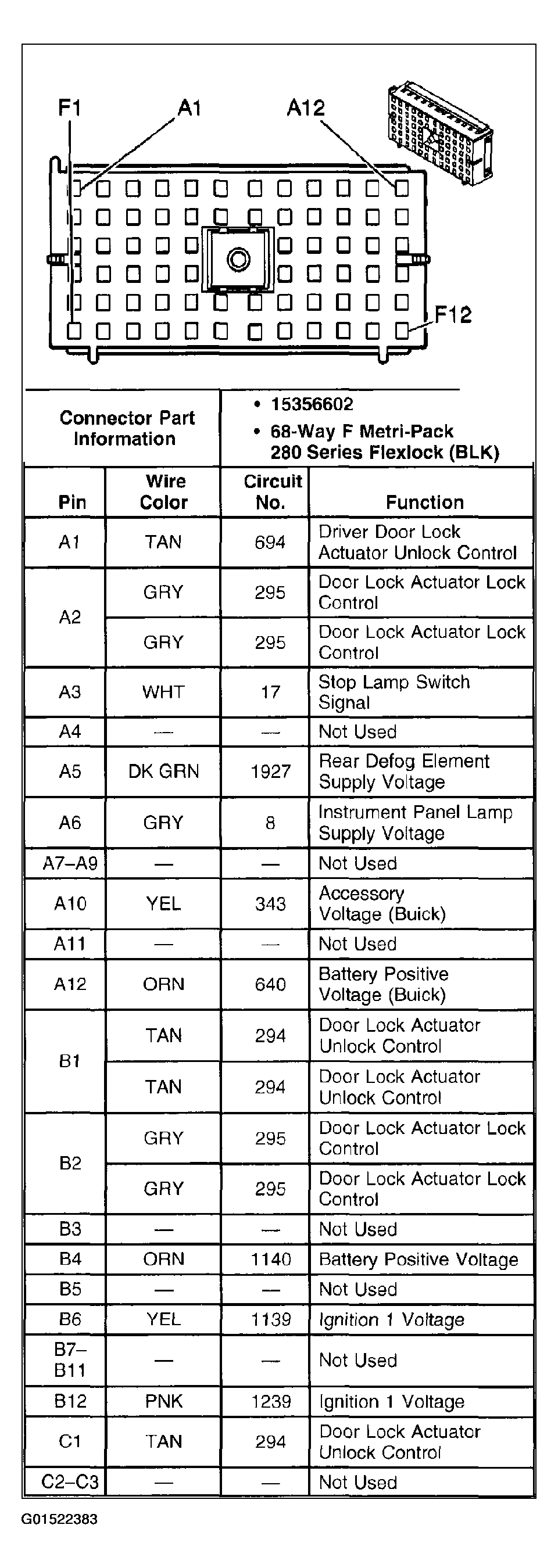

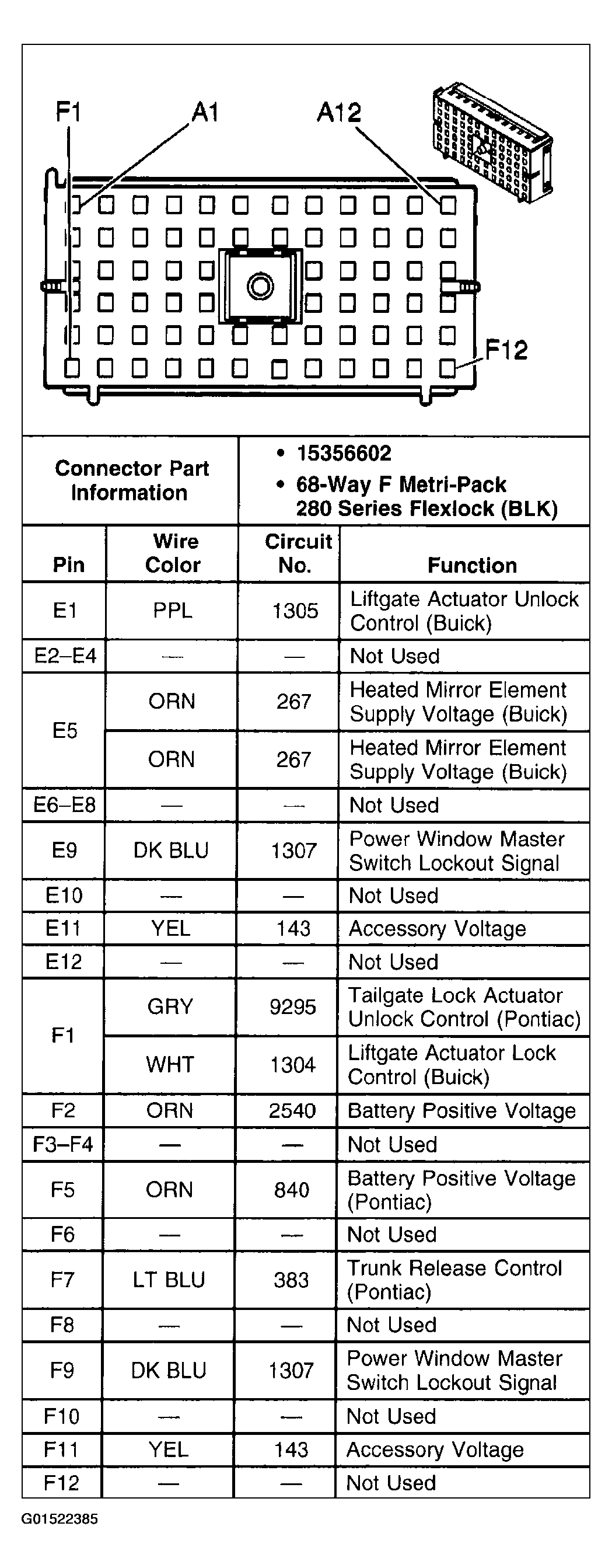

Fig 13: Identifying Underhood Fuse Block C2 Connector - Buick (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

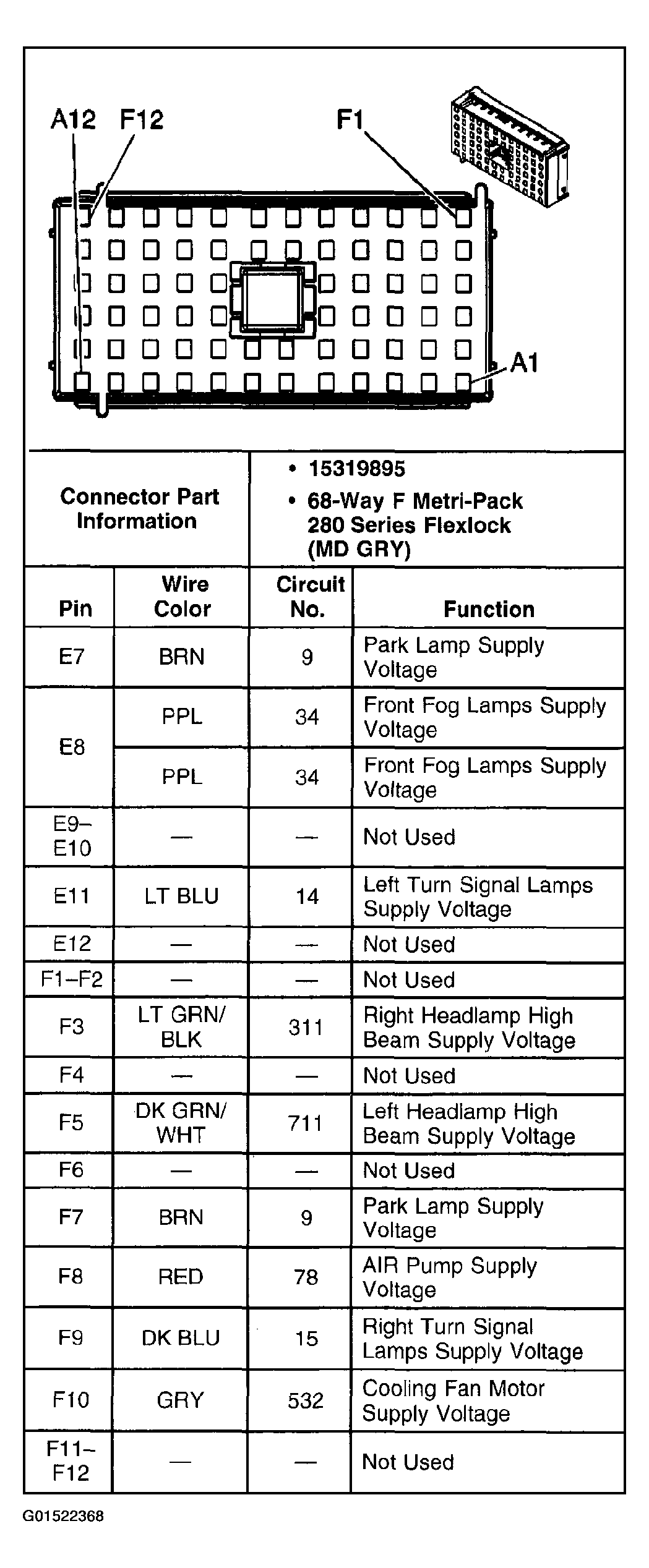

Fig 14: Identifying Underhood Fuse Block C2 Connector - Buick (2 Of 2)
Courtesy of GENERAL MOTORS CORP.

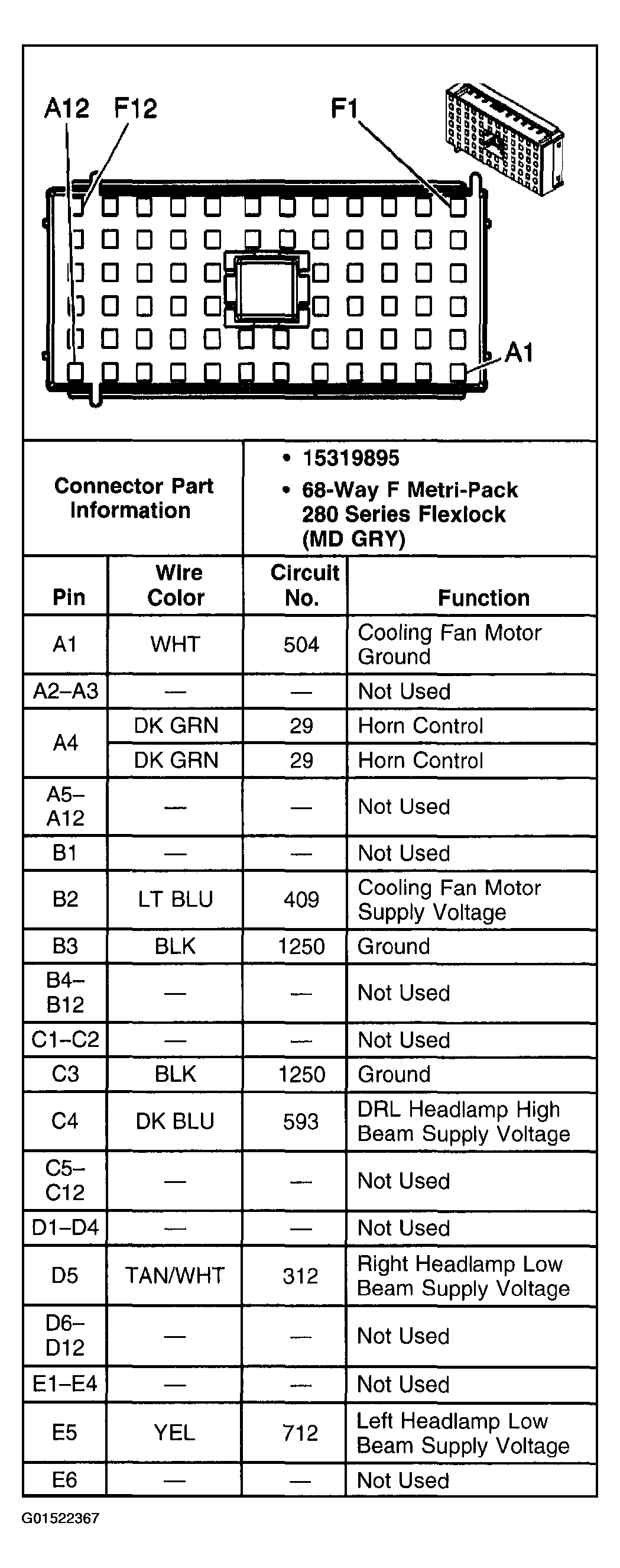

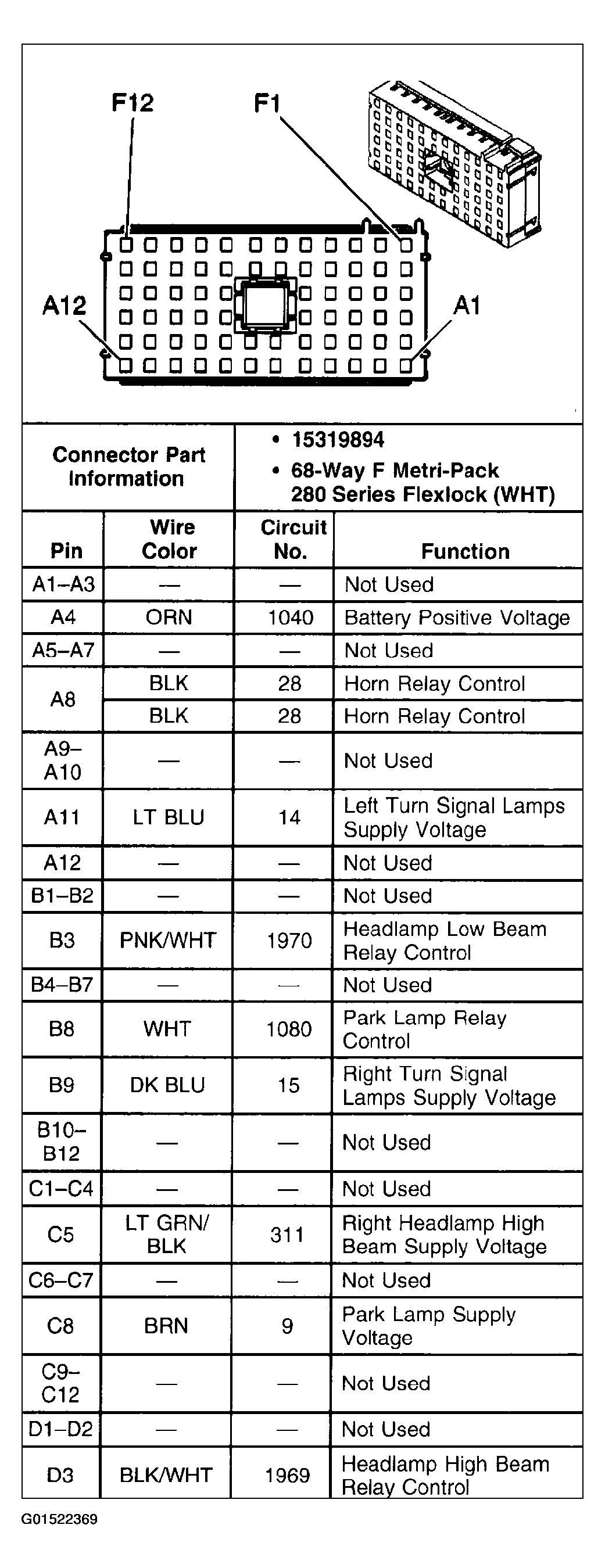

Fig 15: Identifying Underhood Fuse Block C3 Connector - Buick (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 16: Identifying Underhood Fuse Block C3 Connector - Buick (2 Of 2)
Courtesy of GENERAL MOTORS CORP.

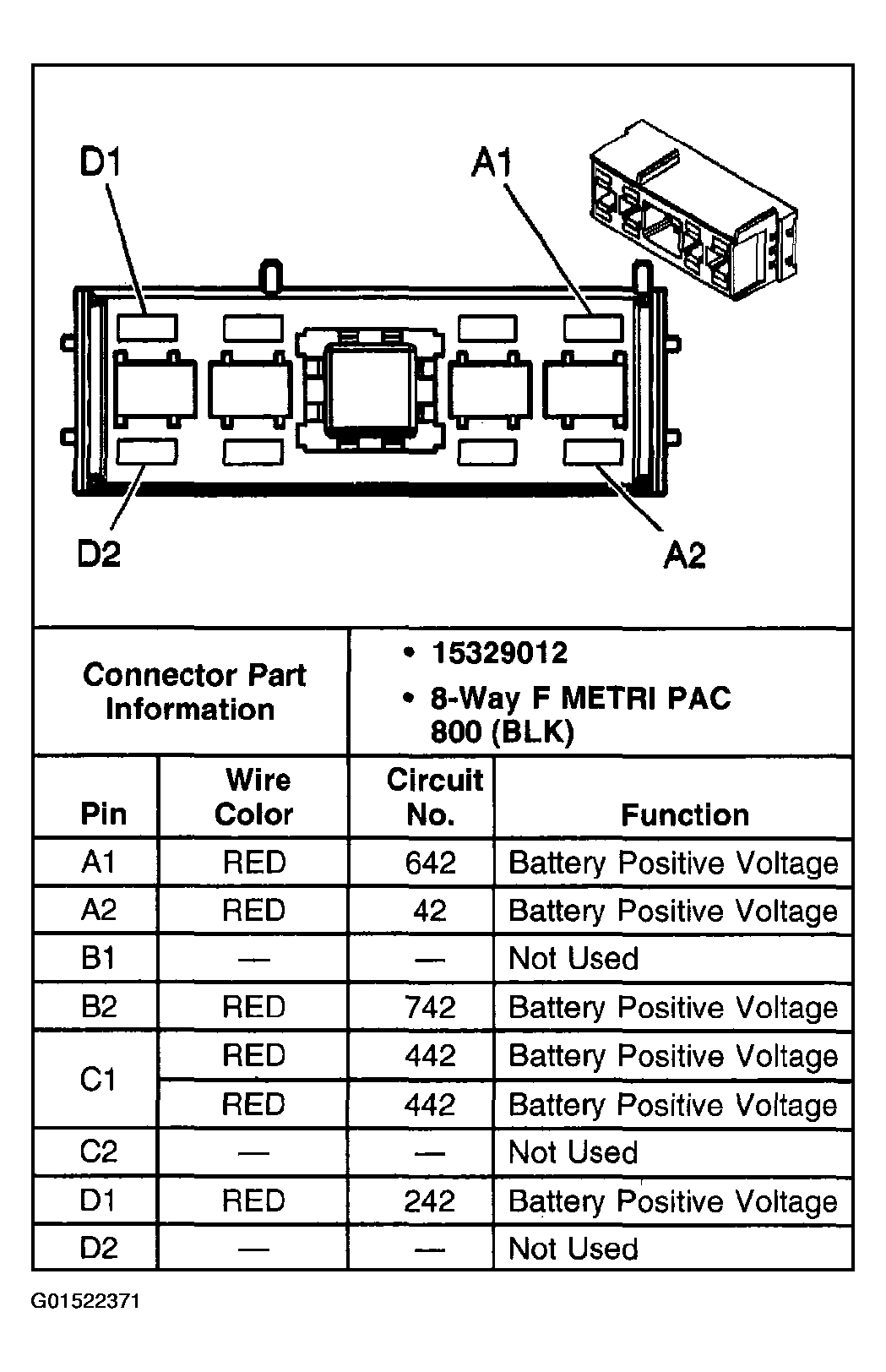

Fig 17: Identifying Underhood Fuse Block C4 Connector - Buick
Courtesy of GENERAL MOTORS CORP.

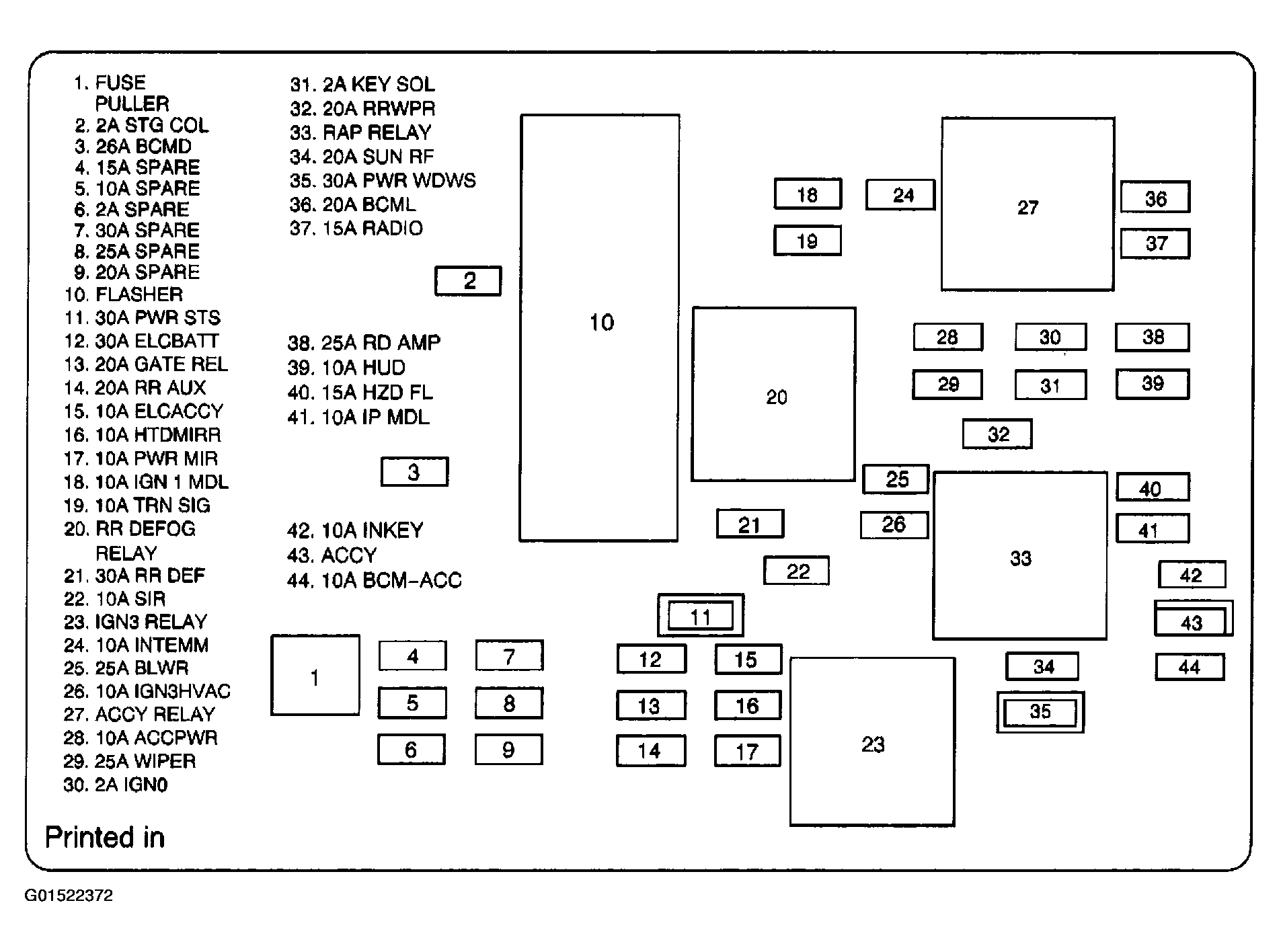

Fig 18: Identifying Center Console Fuse Block Label - Pontiac (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 19: Center Console Fuse Rating Description/Rating Chart - Pontiac (2 Of 2)
Courtesy of GENERAL MOTORS CORP.

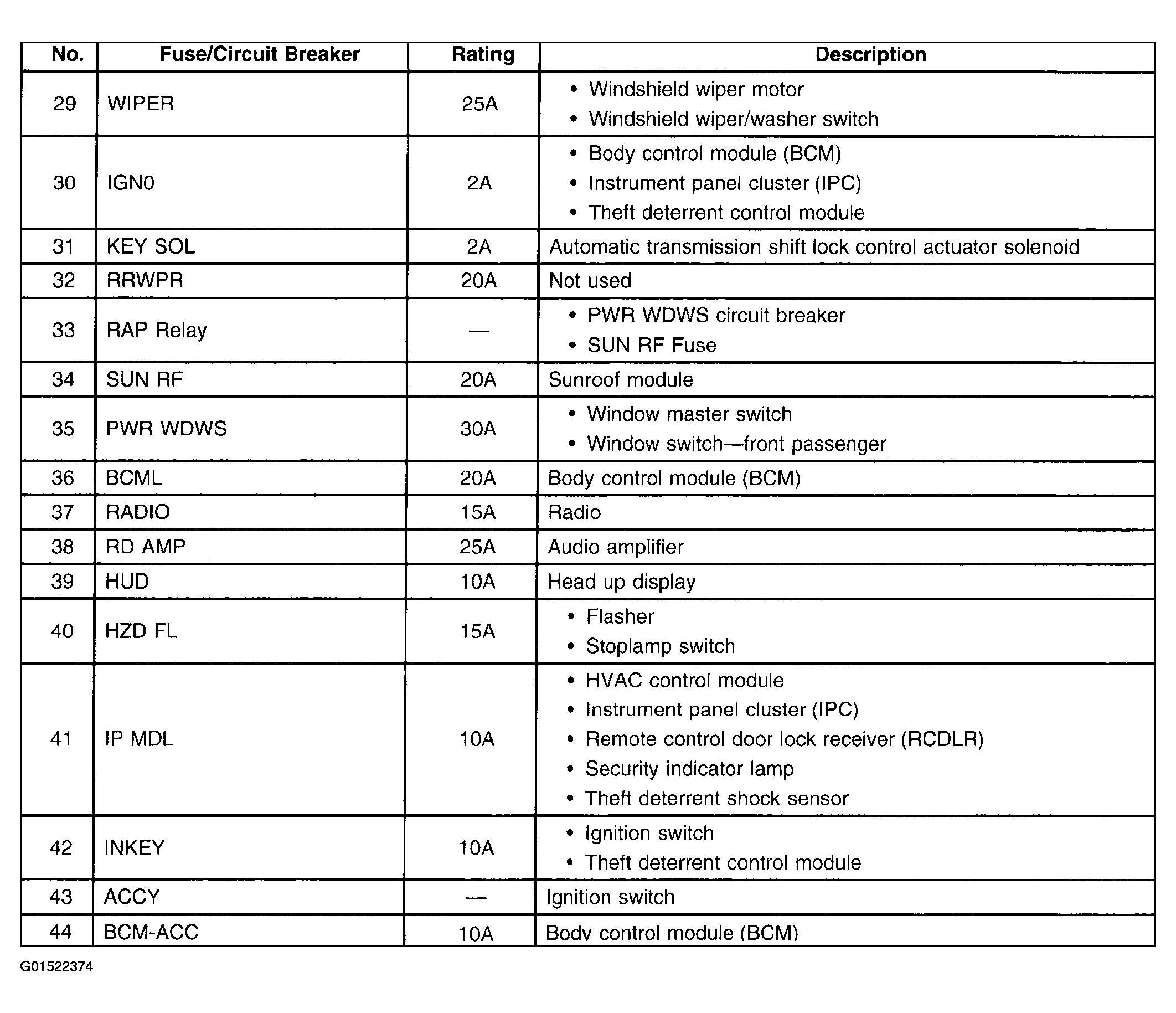

Fig 20: Center Console Fuse Rating Description/Rating Chart - Pontiac
Courtesy of GENERAL MOTORS CORP.
Fig 21: Identifying Center Console Fuse Block Label - Buick
Courtesy of GENERAL MOTORS CORP.

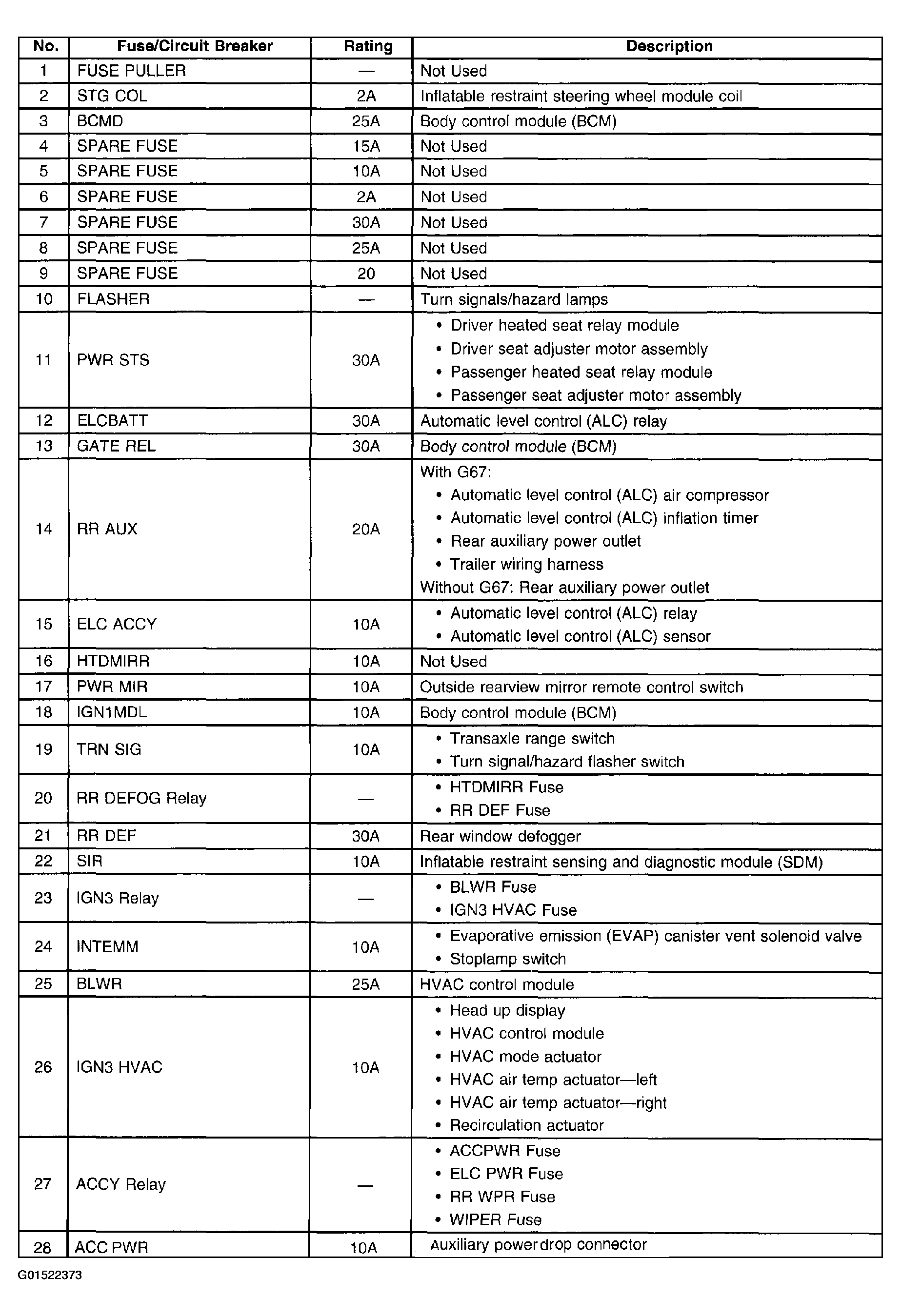

Fig 22: Center Console Fuse Rating Description/Rating Chart - Buick (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

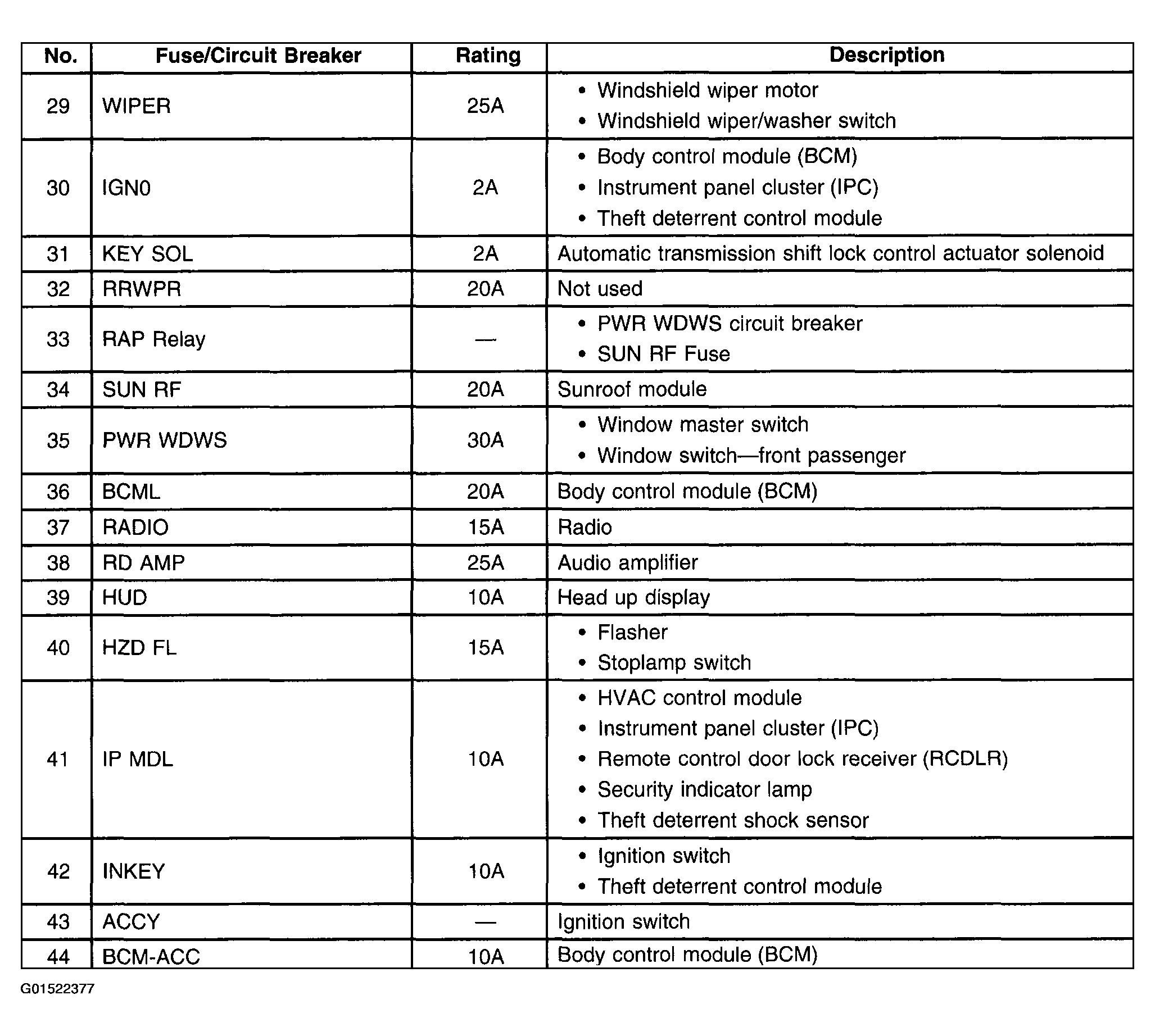

Fig 23: Center Console Fuse Rating Description/Rating Chart - Buick (2 Of 2)
Courtesy of GENERAL MOTORS CORP.

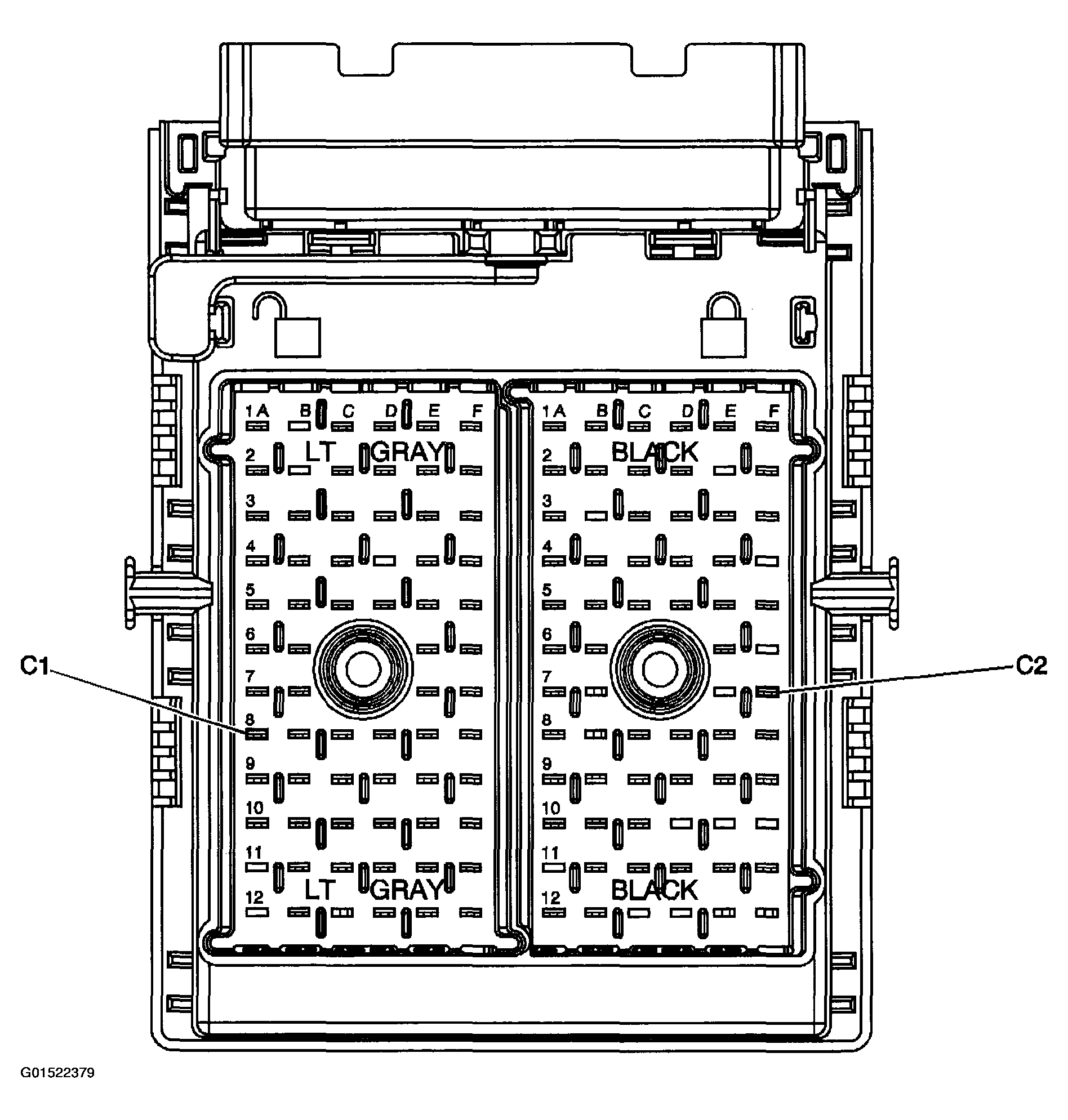

Fig 24: Identifying Center Console Fuse Block (Top View) - Buick
Courtesy of GENERAL MOTORS CORP.
Fig 25: Identifying Center Console Fuse Block (Bottom View) - Buick
Courtesy of GENERAL MOTORS CORP.
Fig 26: Identifying Center Console Fuse Block C1 Connector - Buick (1 Of 3)
Courtesy of GENERAL MOTORS CORP.

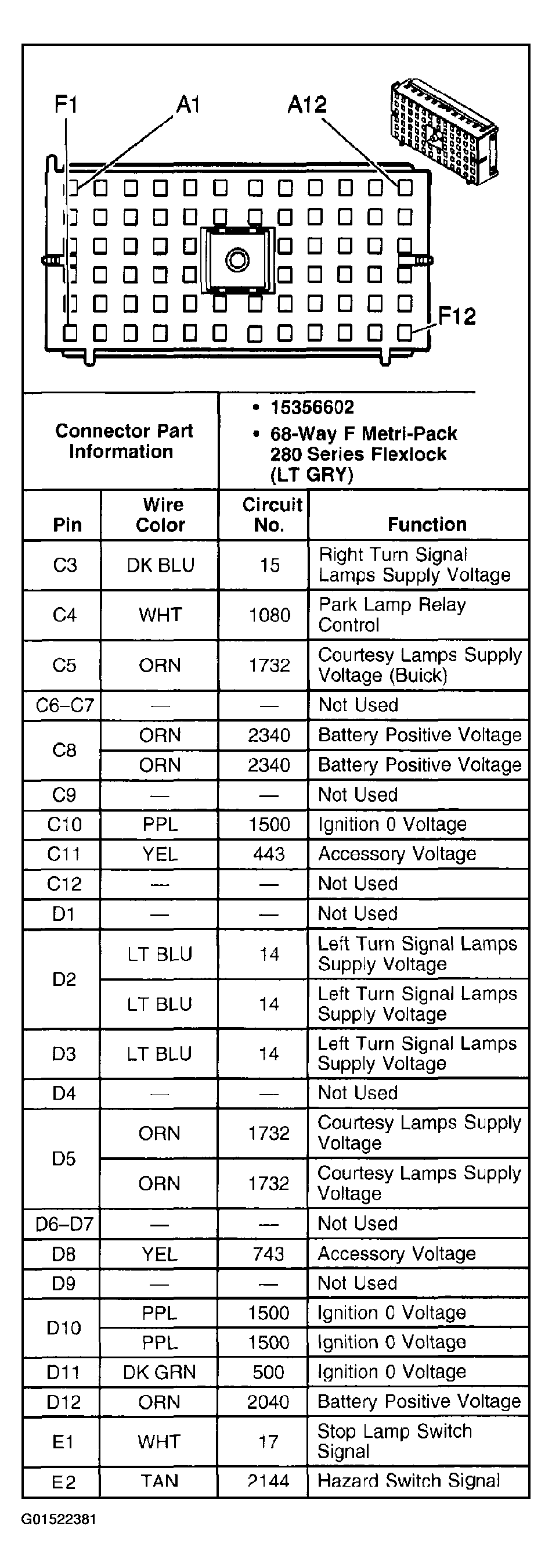

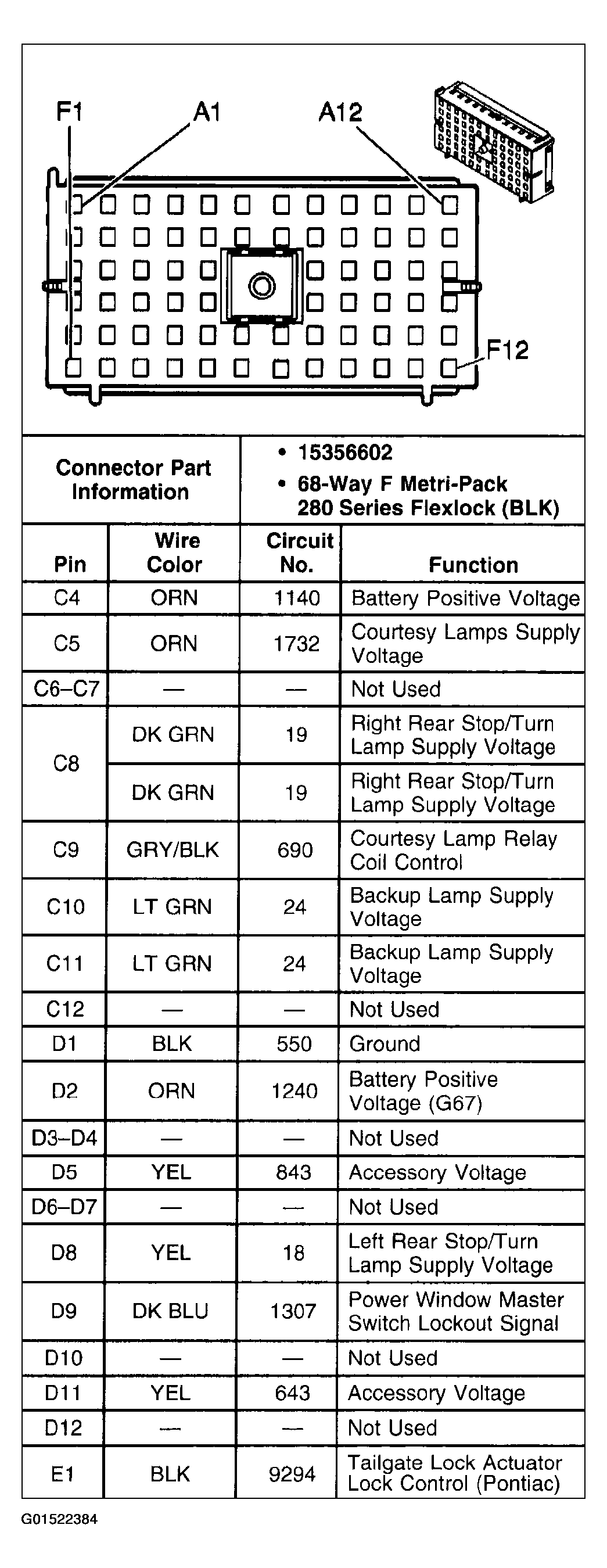

Fig 27: Identifying Center Console Fuse Block C1 Connector - Buick (2 Of 3)
Courtesy of GENERAL MOTORS CORP.
Fig 28: Identifying Center Console Fuse Block C1 Connector - Buick (3 Of 3)
Courtesy of GENERAL MOTORS CORP.
Fig 29: Identifying Center Console Fuse Block C2 Connector - Buick (1 Of 3)
Courtesy of GENERAL MOTORS CORP.
Fig 30: Identifying Center Console Fuse Block C2 Connector - Buick (2 Of 3)
Courtesy of GENERAL MOTORS CORP.
Fig 31: Identifying Center Console Fuse Block C2 Connector - Buick (3 Of 3)
Courtesy of GENERAL MOTORS CORP.
