Accelerator Controls Cable Bracket: Installation

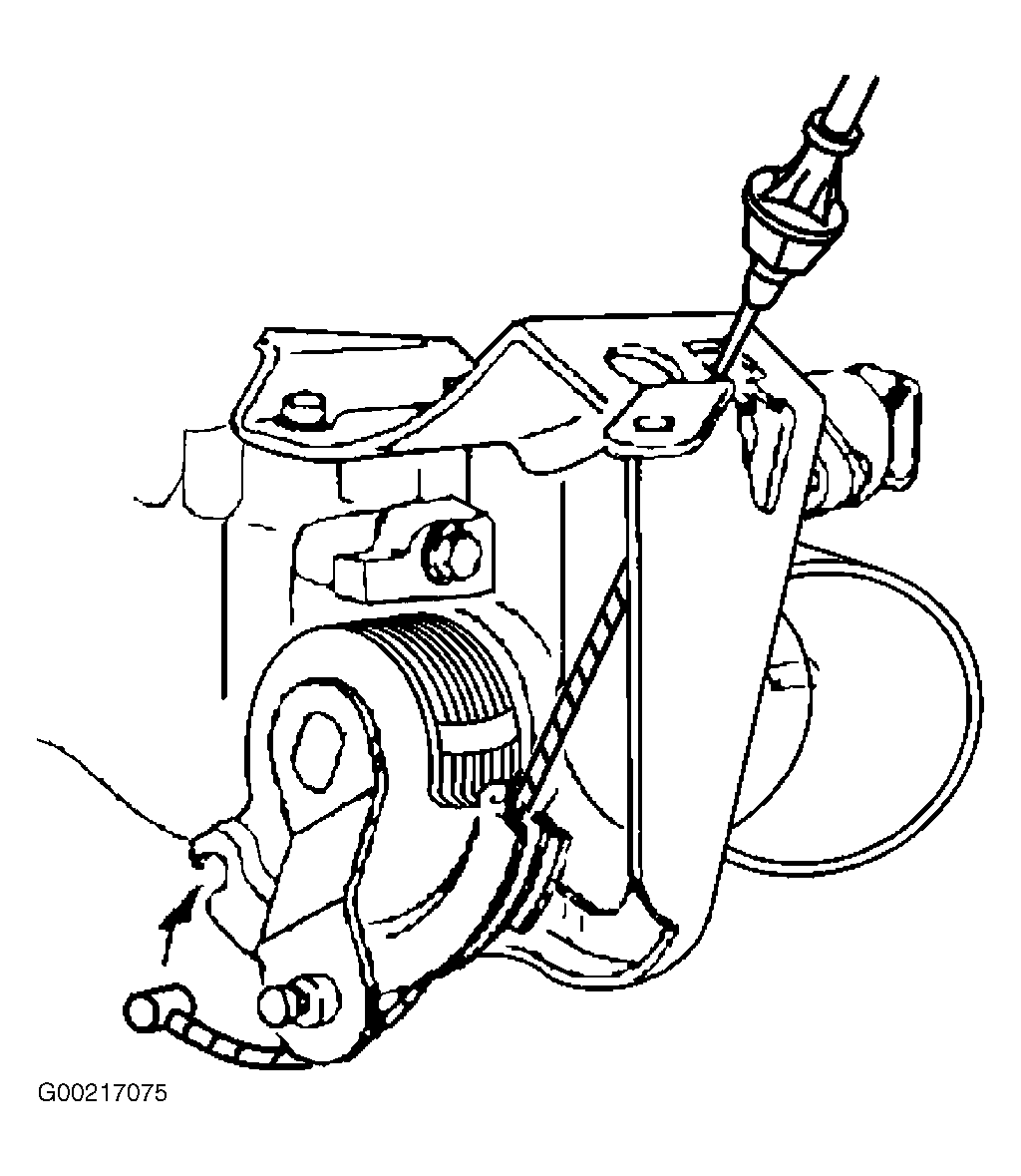

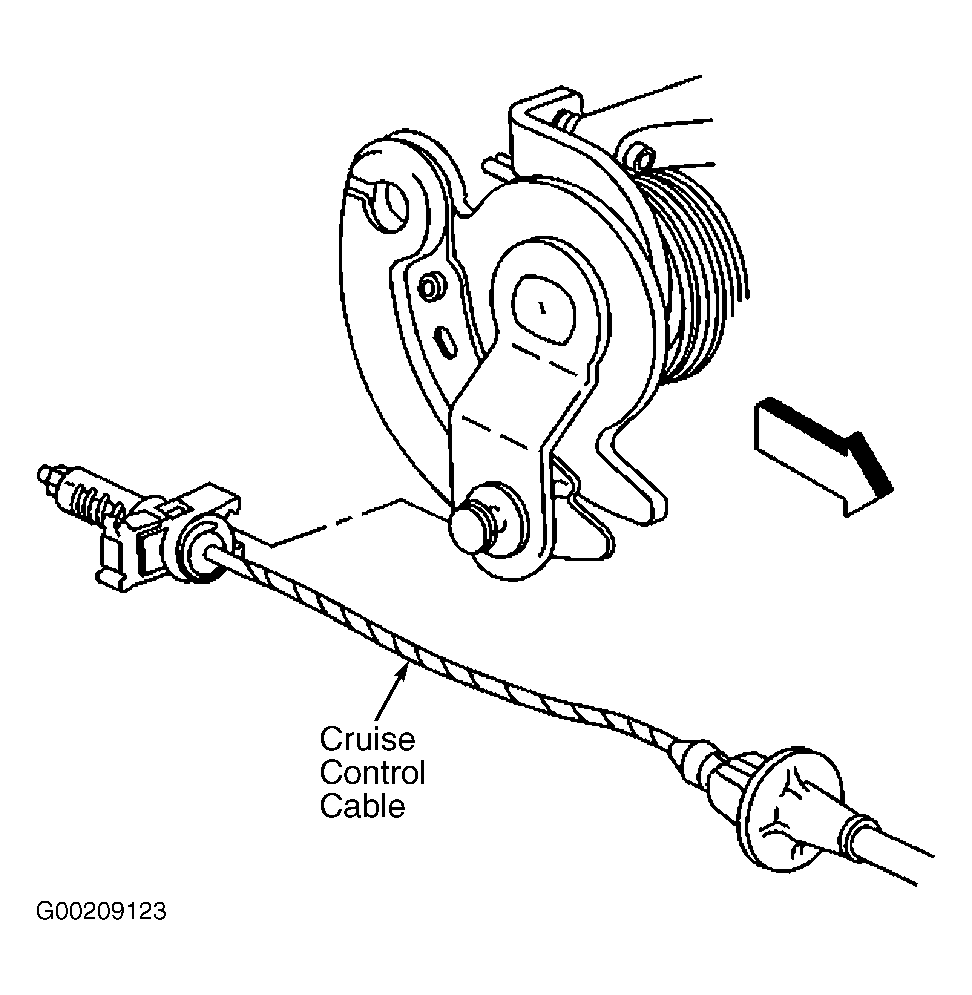

Position the accelerator cable bracket on the throttle body. Install the accelerator cable bracket nut and bolts. Tighten the bolts/nut in sequence to specification. See Fig 3 . See TORQUE SPECIFICATIONS . Install the wire harness into the retainer. Install the air cleaner intake duct. Connect the accelerator controls cable to the accelerator cable bracket. Connect the accelerator controls cable cross slug to the throttle body lever. Connect the cruise control cable to the throttle lever and accelerator bracket, if applicable.
