Accelerator Controls Cable: Installation
WARNING:
Do not route flexible components (hoses, wires, conduits, etc.) within 2" (50 mm) of moving parts unless flexible components can be securely fastened. This is necessary in order to prevent possible interference and damage to the component.

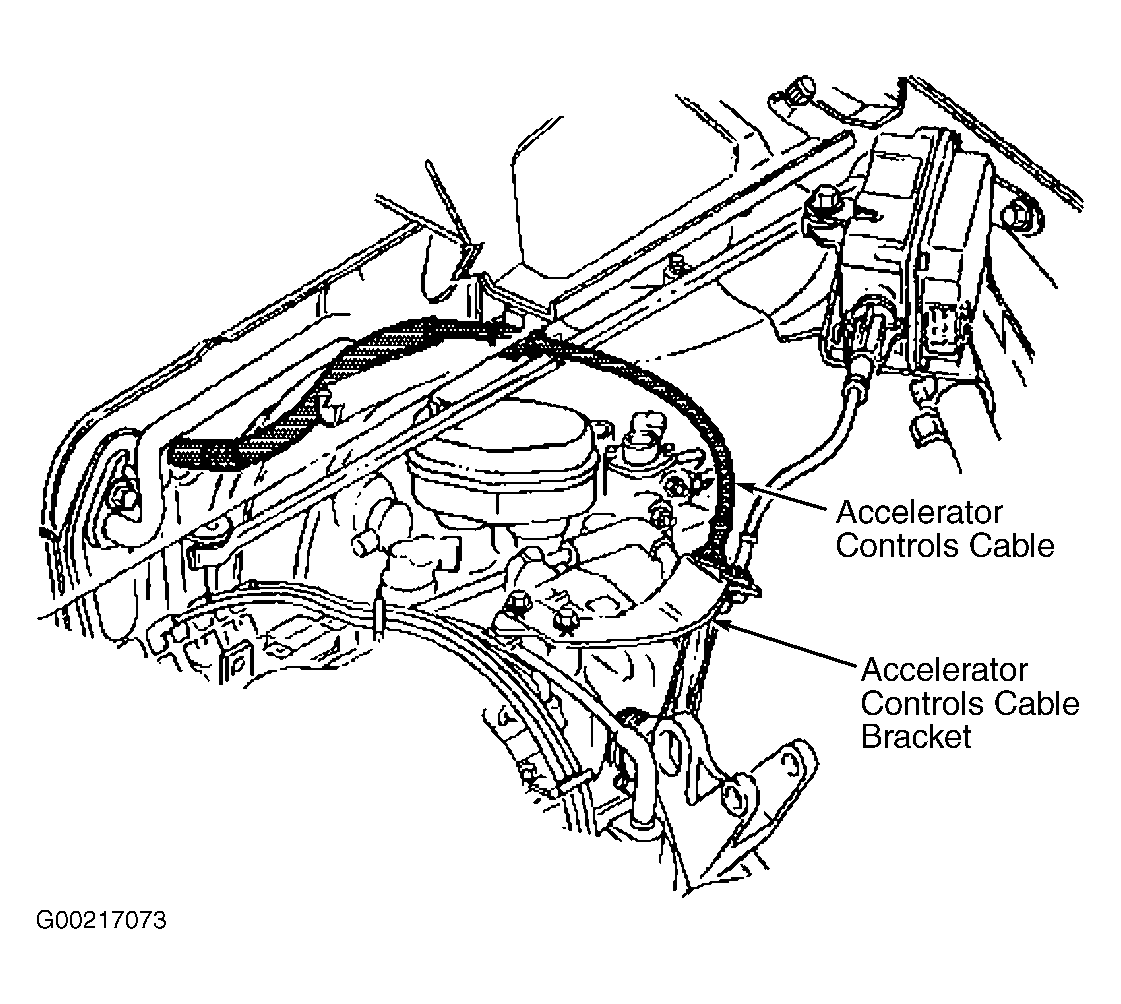

- Install the accelerator cable into the vehicle using the routing noted during removal. Install the snap retainer through the bulkhead. Connect the accelerator cable through the slot in the accelerator pedal lever. Seat the snap retainer in the accelerator pedal lever.
- Connect the accelerator cable to the throttle body lever. Connect the accelerator cable to the accelerator cable bracket. Reinstall the accelerator cable shield, if equipped.
- Inspect and check for complete throttle opening and closing positions by operating the accelerator pedal. Also check for poor carpet fit under the accelerator pedal. Reinstall the left IP insulator.
