Schematic and Routing Diagrams
Schematic and Routing Diagrams

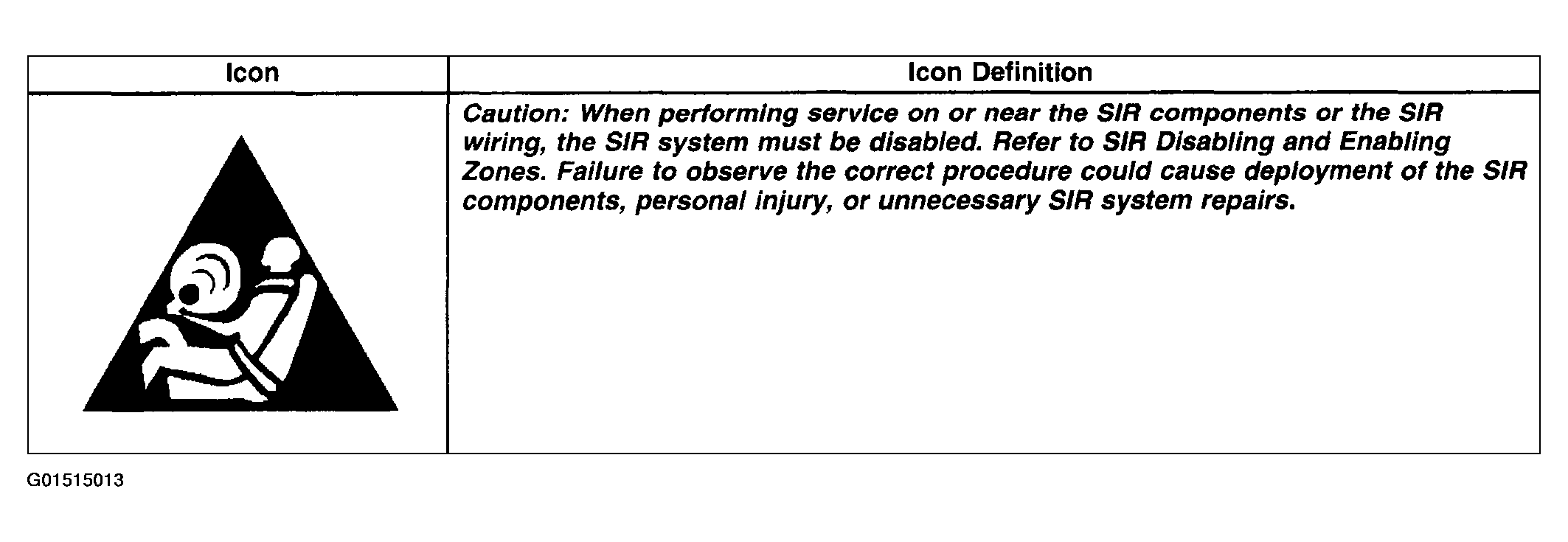

Fig 1: Seat Belt Schematic Icon Definition
Courtesy of GENERAL MOTORS CORP.

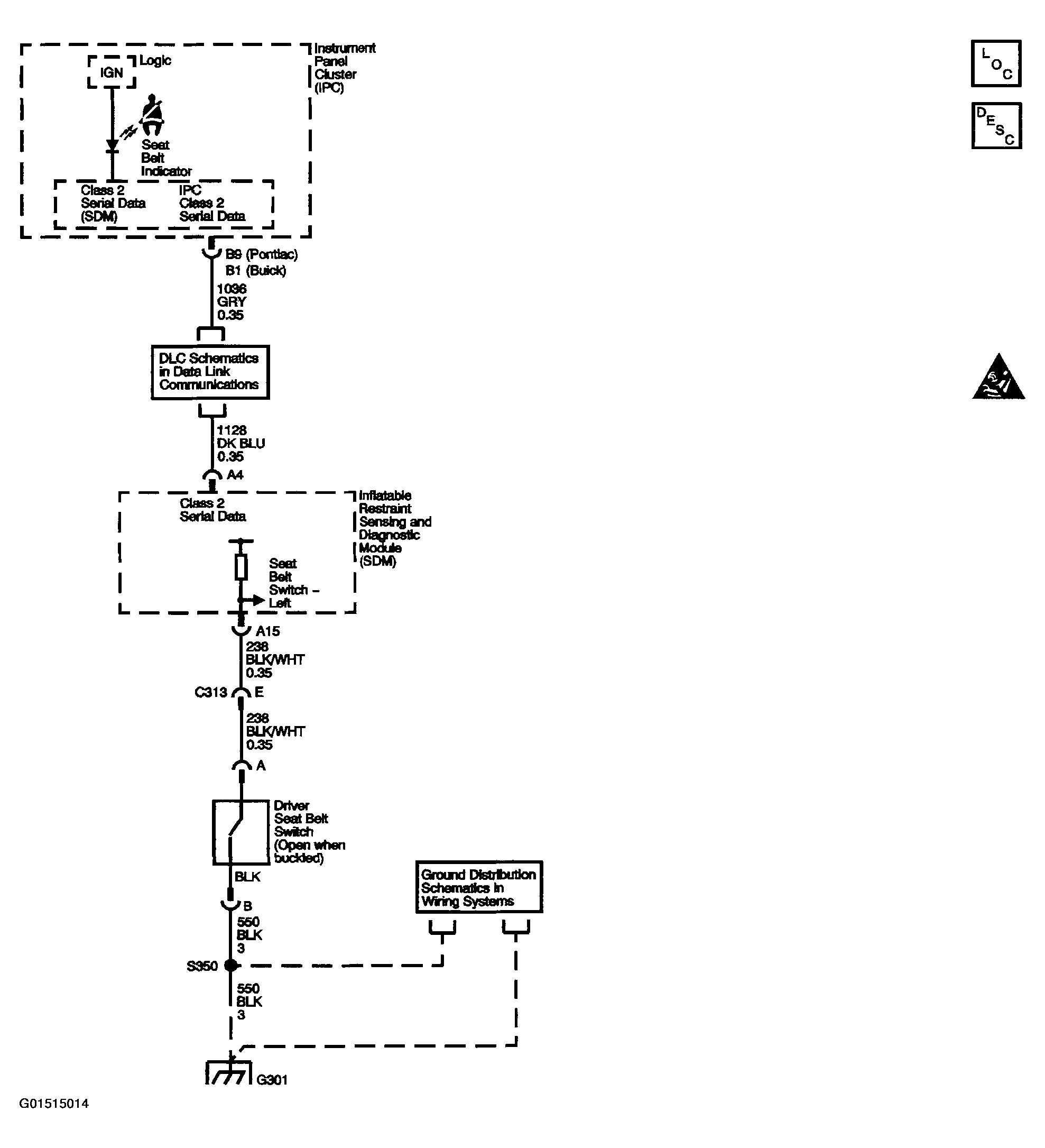

Fig 2: Seat Belt Schematic
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
