Installation Procedure

Important:  If the lock cylinder does not rotate to off/lock position, adjust the linear shift park lock cable.

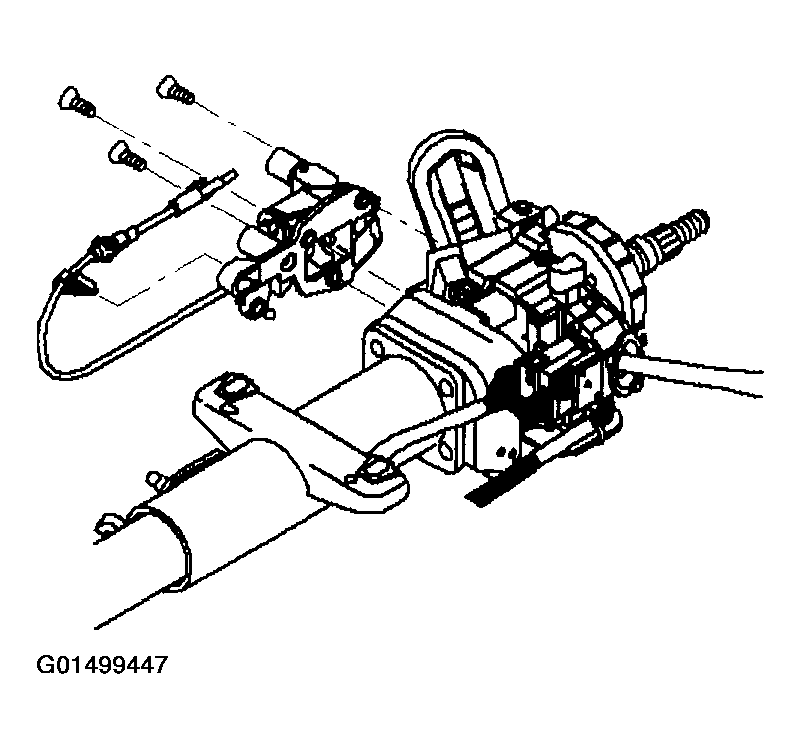

1. Install the linear shift assembly.
   Fig 1: Installing Linear Shift Assembly

   Courtesy of GENERAL MOTORS CORP.

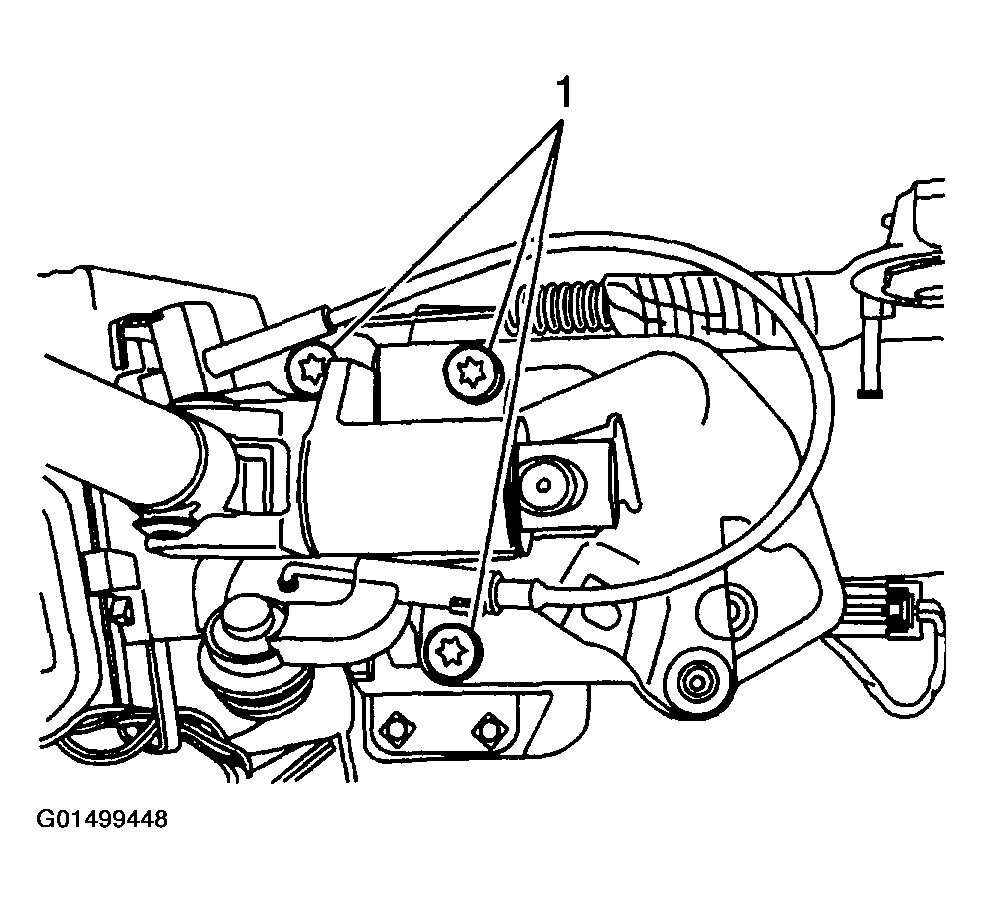

2. Install the retaining screws (1).

   Tighten  Tighten the screws to 13 N.m (10 lb ft).

   Fig 2: Installing Retaining Screws

   Courtesy of GENERAL MOTORS CORP.

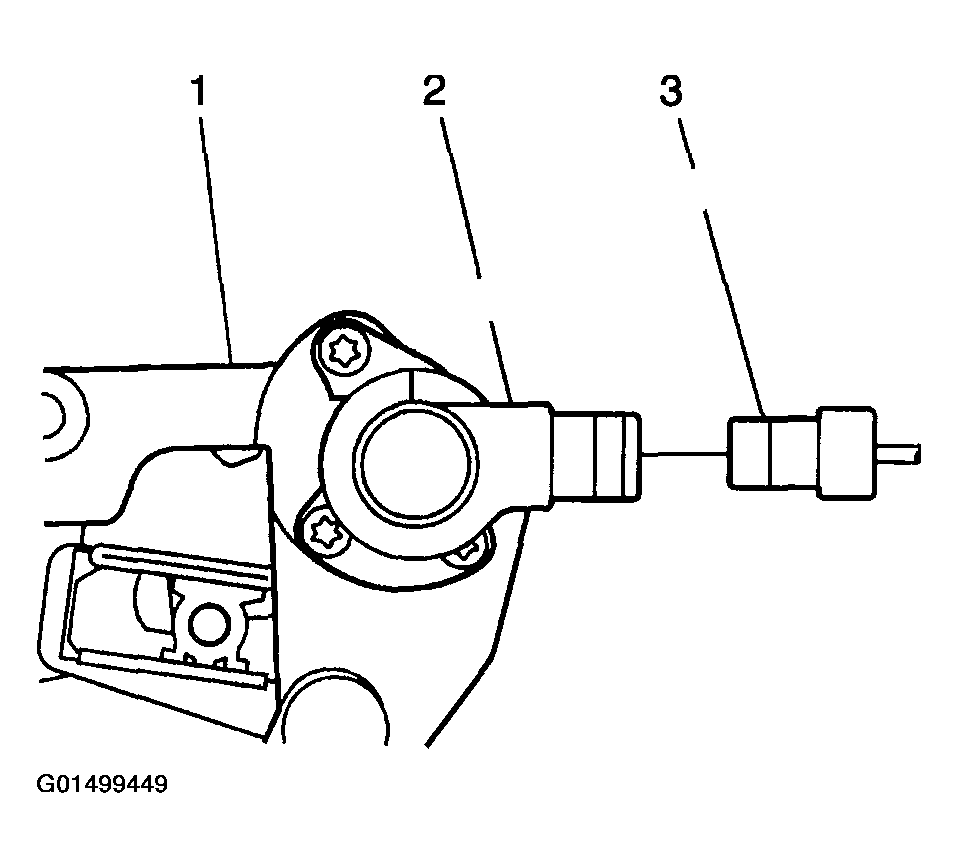

3. Connect the electrical connector (3).
   Fig 3: Connecting Electrical Connector

   Courtesy of GENERAL MOTORS CORP.

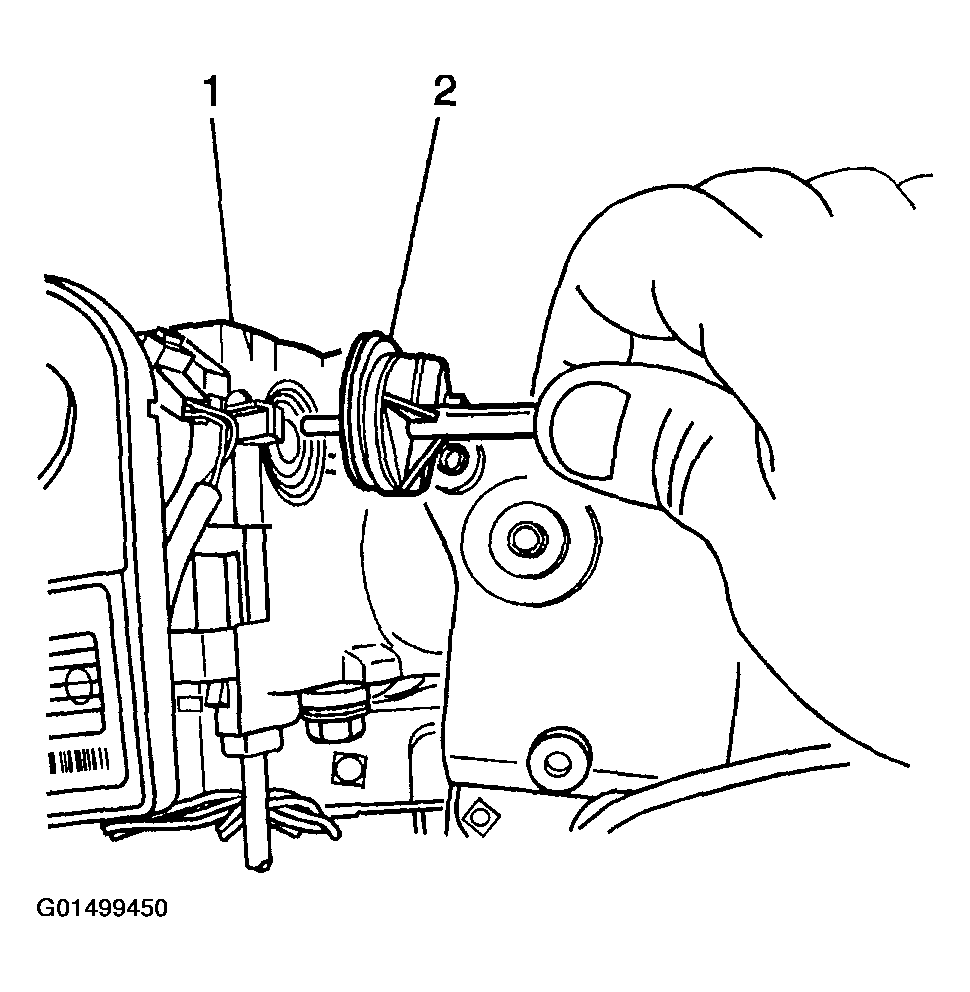

4. Twist the linear shift park lock cable to install the cable (2) into the lock housing (1).
5. Install the shift lever. Refer to SHIFT LEVER REPLACEMENT  .
   Fig 4: Twisting Linear Shift Park Lock Cable

   Courtesy of GENERAL MOTORS CORP.

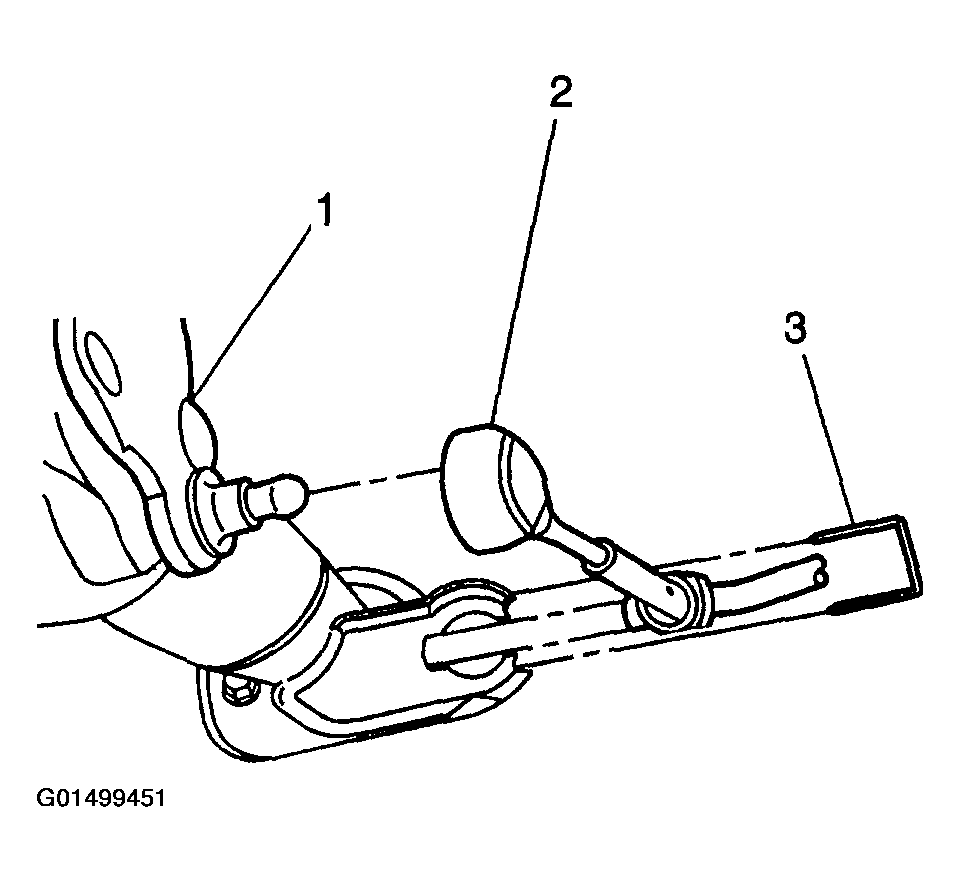

6. Install the automatic transaxle selector cable (2) and retainer (3) to the steering column control lever (1).
7. Install the steering column trim covers. Refer to STEERING COLUMN TRIM COVERS REPLACEMENT  .
8. Enable the SIR system. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM .
   Fig 5: Installing Automatic Transaxle Selector Cable

   Courtesy of GENERAL MOTORS CORP.
