Installation Procedure

  1. Tie the string to the ignition switch end of the new cable.
  2. Use the string to guide the new cable to the original routing position.
  3. Remove the string.
  4. Install the cable to the ignition switch.
  5. Position the ignition switch in the I/P.
  6. Install the ignition switch bolts.
  7. Install the I/P accessory trim plate. Refer to TRIM PLATE REPLACEMENT - INSTRUMENT PANEL (I/P) ACCESSORY (PONTIAC) or TRIM PLATE REPLACEMENT - INSTRUMENT PANEL (I/P) ACCESSORY (OLDSMOBILE) in Instrument Panel, Gages, and Console.

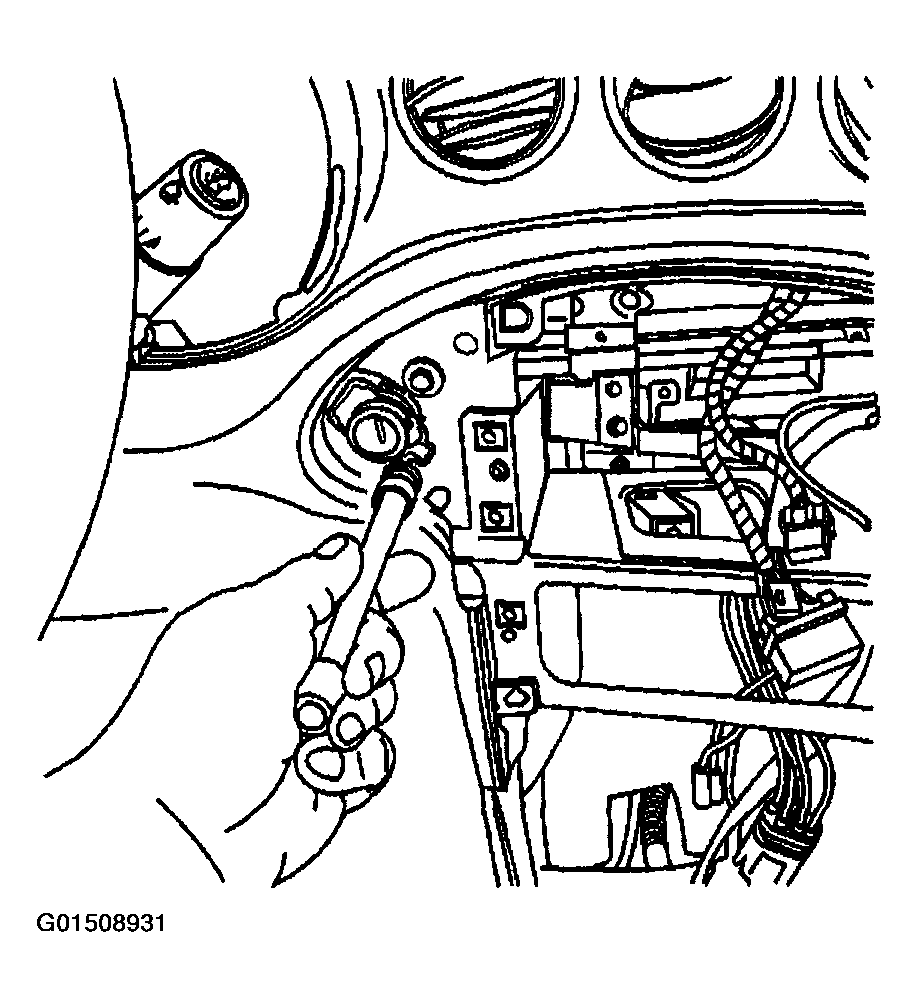

    Fig 1: Installing Ignition Switch Bolts
    G01508931Courtesy of GENERAL MOTORS CORP.
  8. Install the instrument panel cluster. Refer to INSTRUMENT PANEL CLUSTER (IPC) REPLACEMENT in Instrument Panel, Gages, and Console.
  9. Install the reverse lockout cable to the shifter bracket.
  10. Connect the reverse lockout cable to the shifter.
  11. Install the console trim plate. Refer to TRIM PLATE REPLACEMENT - FRONT FLOOR CONSOLE (PONTIAC) or TRIM PLATE REPLACEMENT - FRONT FLOOR CONSOLE (OLDSMOBILE) in Instrument Panel, Gages, and Console.
  12. Connect the negative battery cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE .

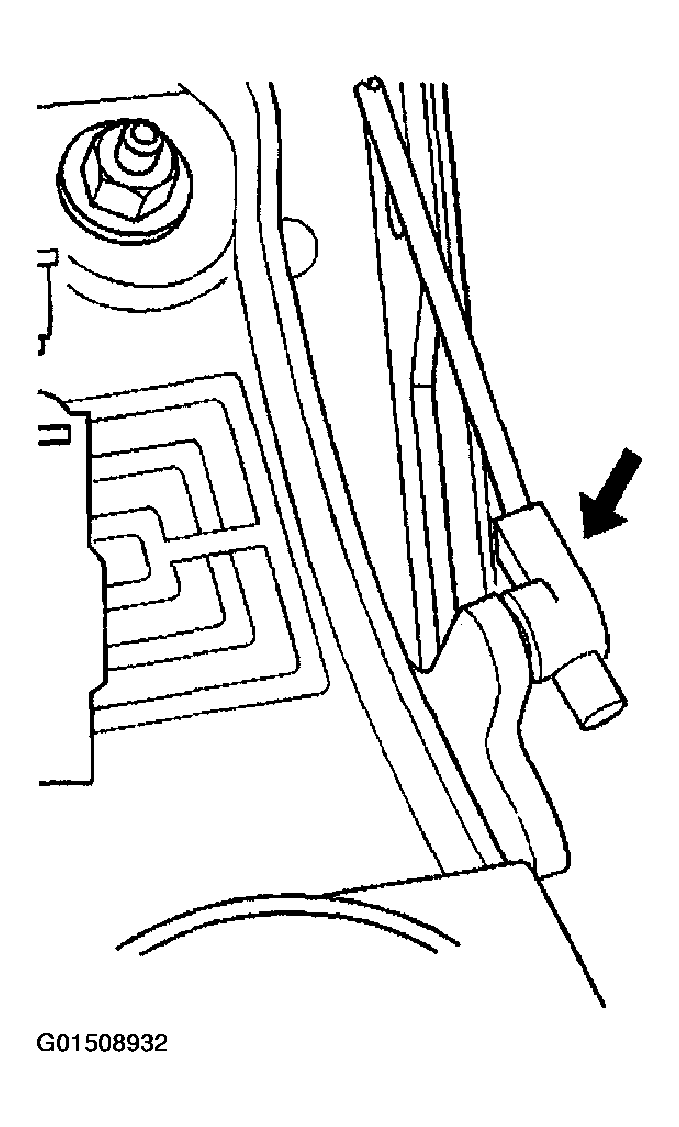

    Fig 2: Connecting Reverse Lockout Cable To Shifter
    G01508932Courtesy of GENERAL MOTORS CORP.
