ABS Component Views

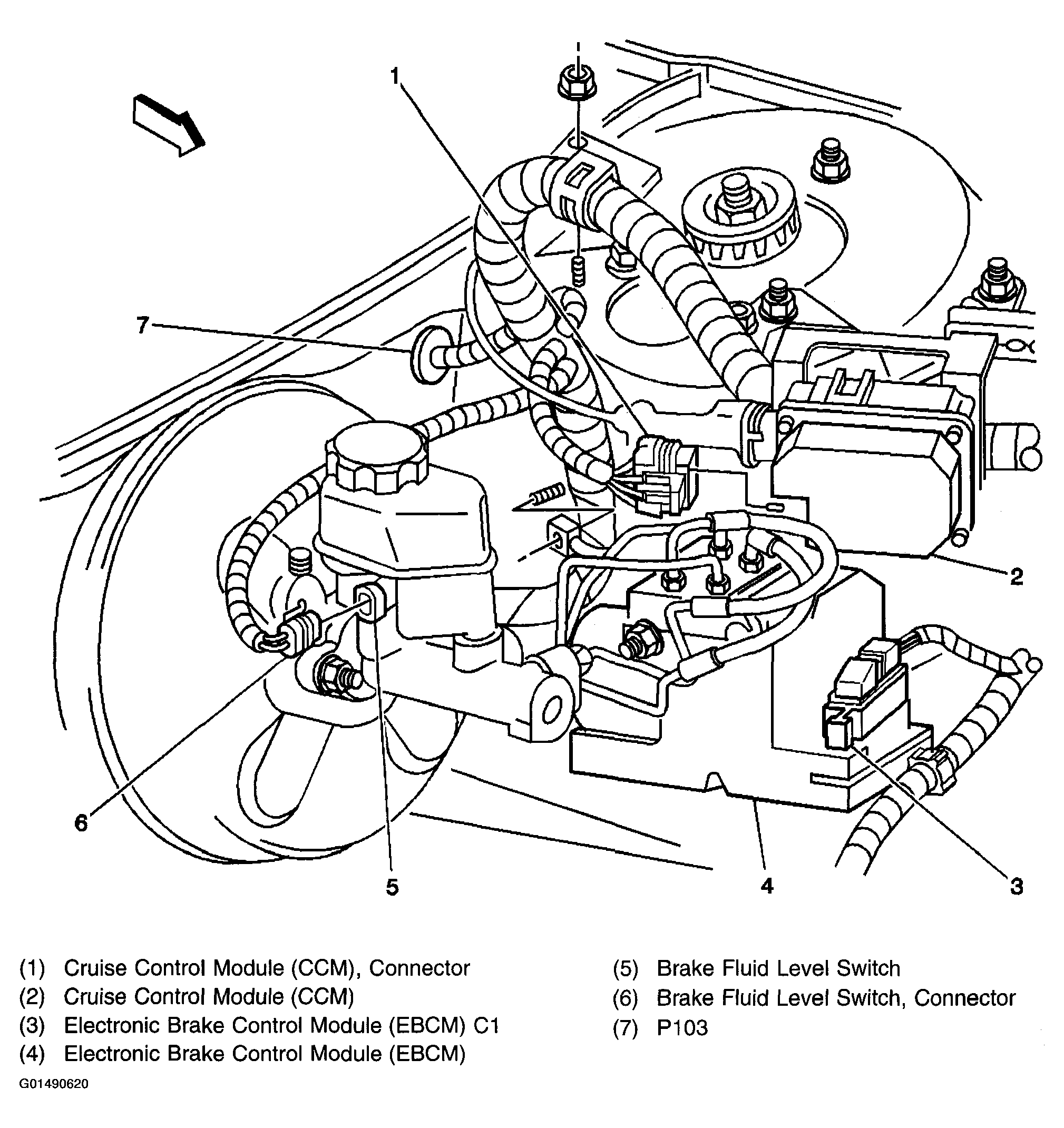

Fig 1: Upper Left Side Of Engine Compartment Bulkhead
G01490620Courtesy of GENERAL MOTORS CORP.

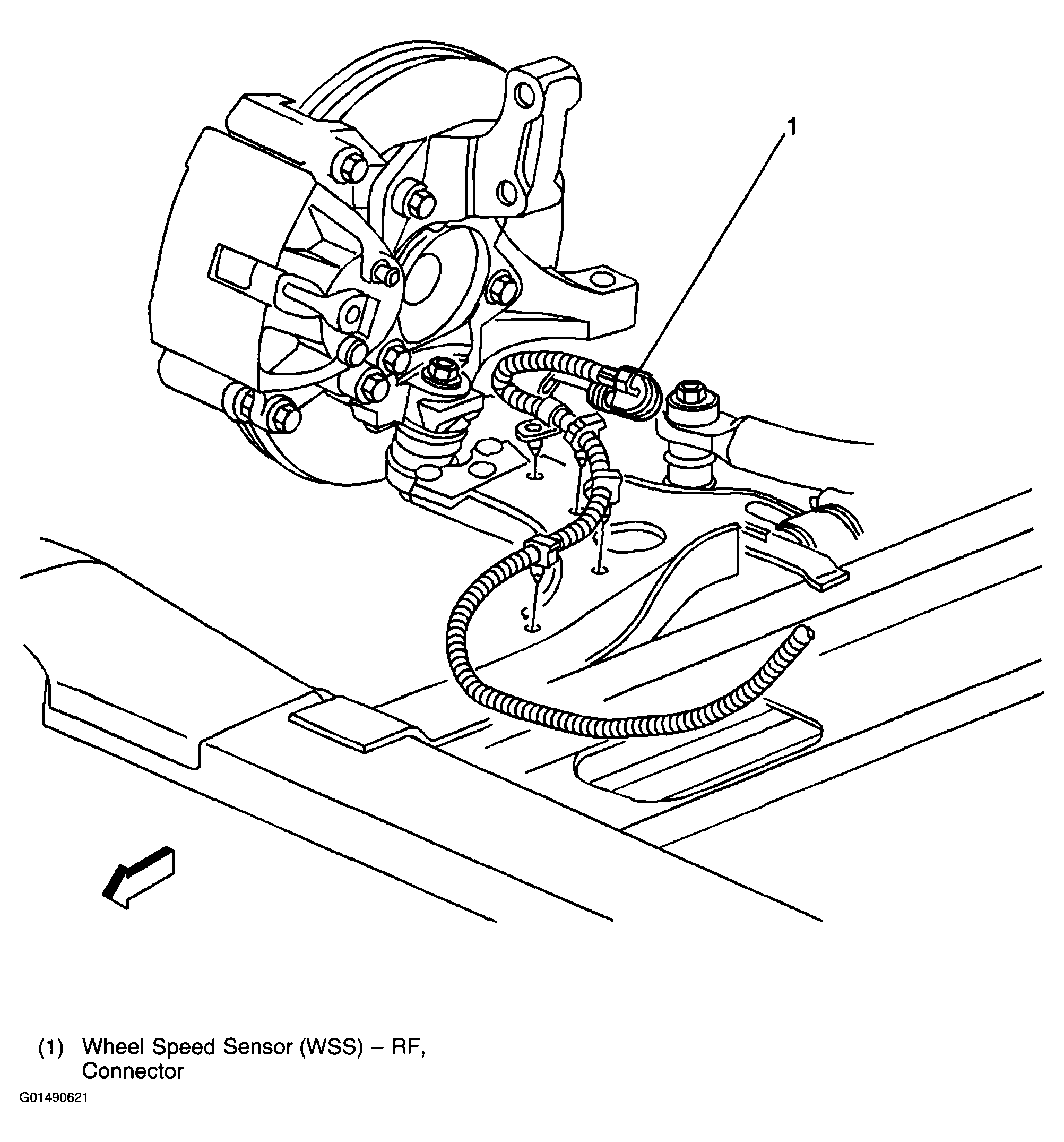

Fig 2: Right Front Wheel, Left Front Wheel Similar
G01490621Courtesy of GENERAL MOTORS CORP.

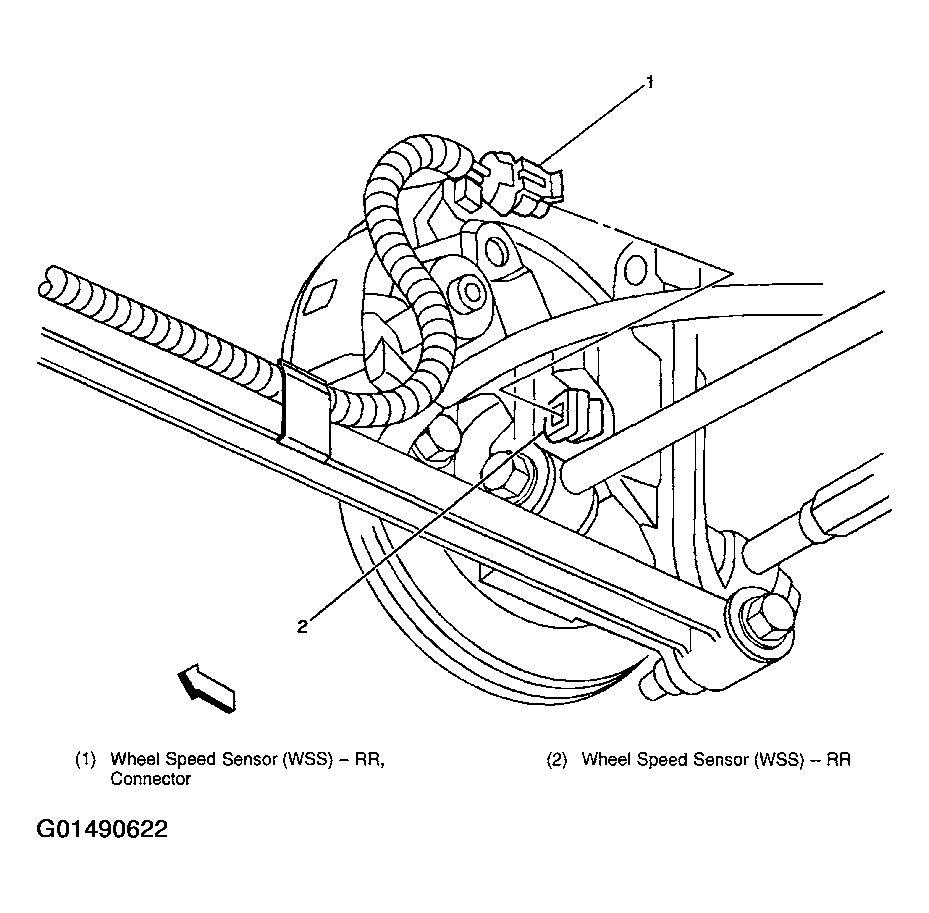

Fig 3: Right Rear Wheel (Left Similar)
G01490622Courtesy of GENERAL MOTORS CORP.
