Engine Electrical Component Views

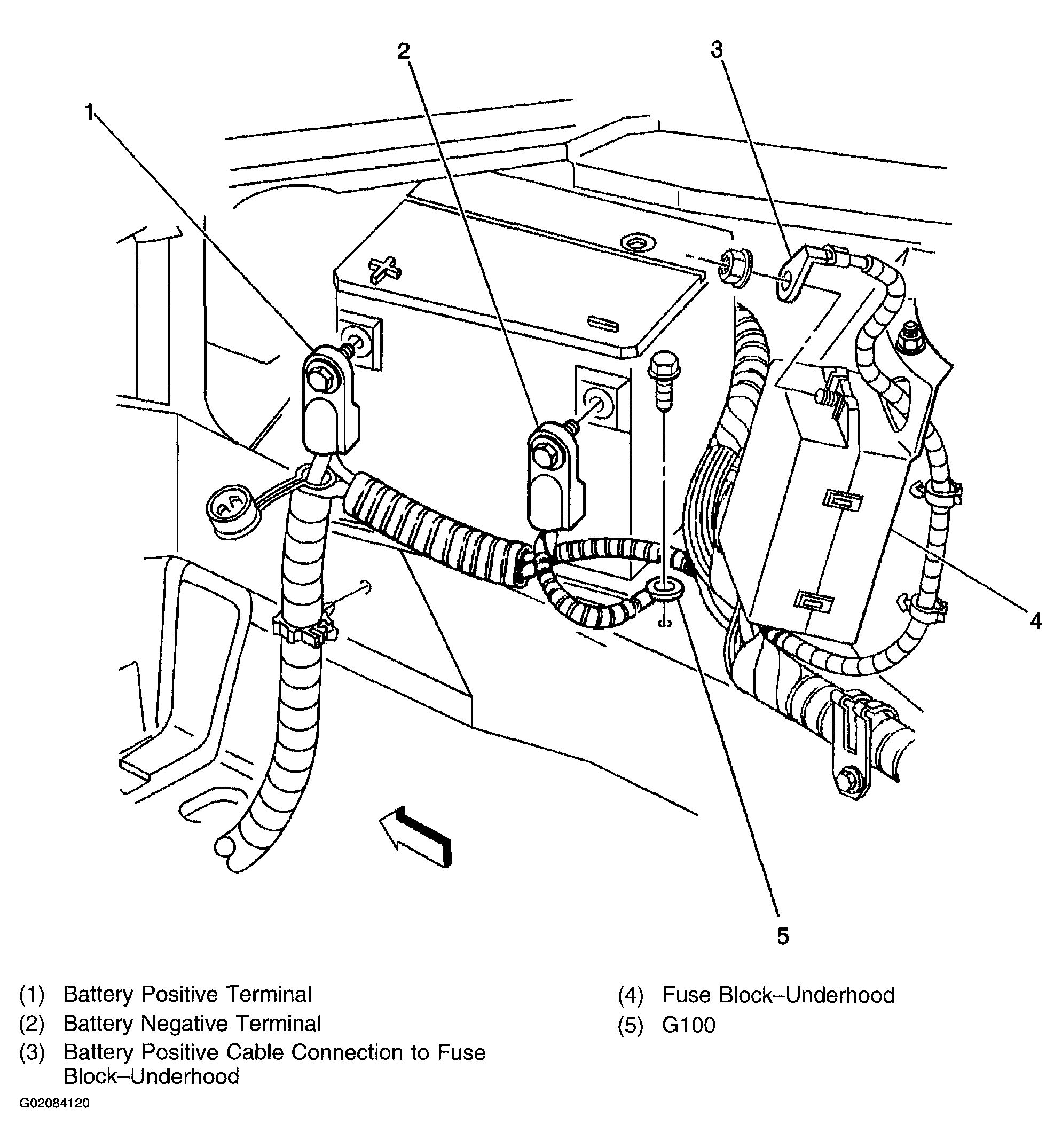

Fig 1: Right Front of Engine Compartment Component View
G02084120Courtesy of GENERAL MOTORS CORP.

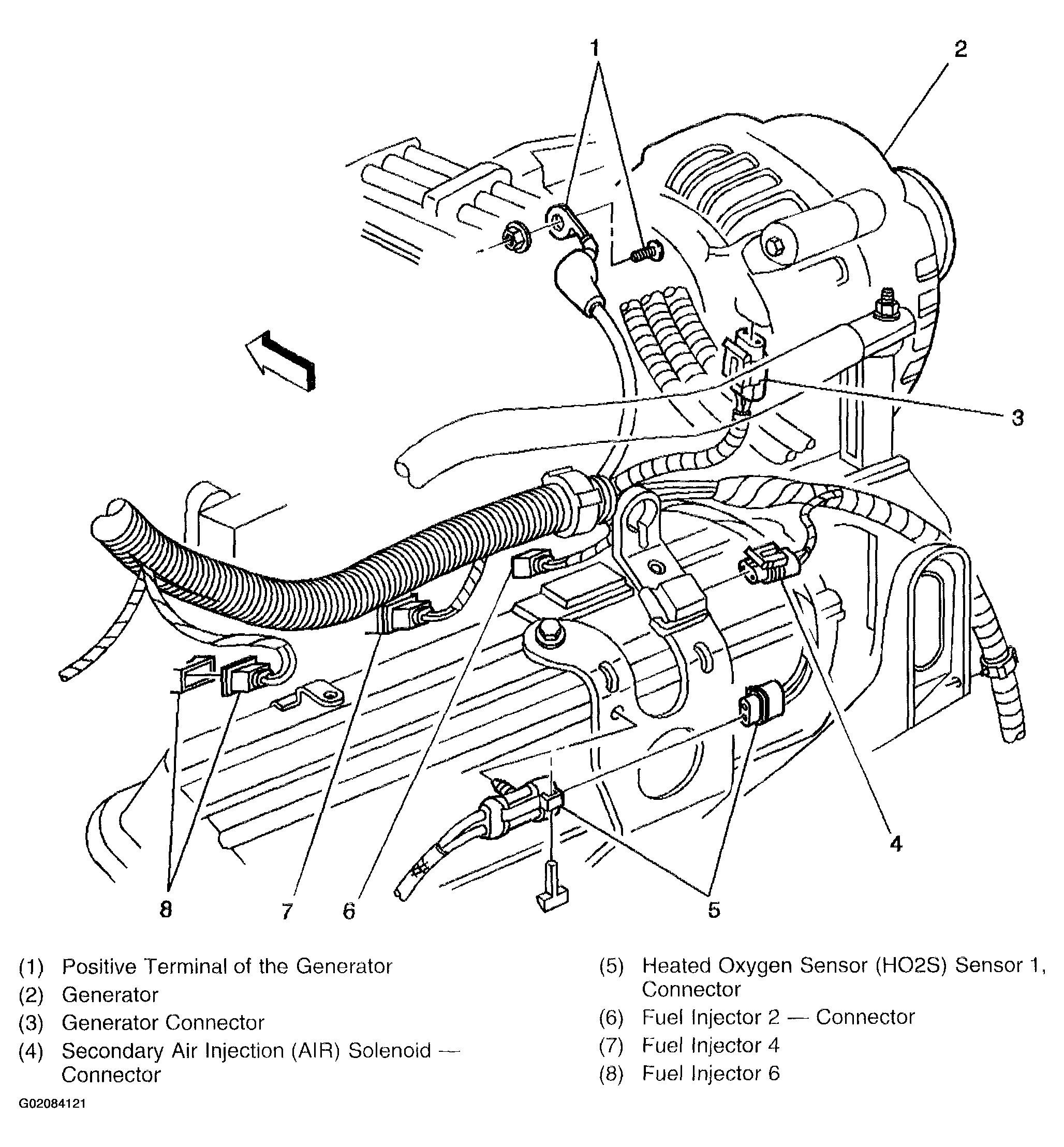

Fig 2: Top Rear of Engine (RPO L36) Component View
G02084121Courtesy of GENERAL MOTORS CORP.

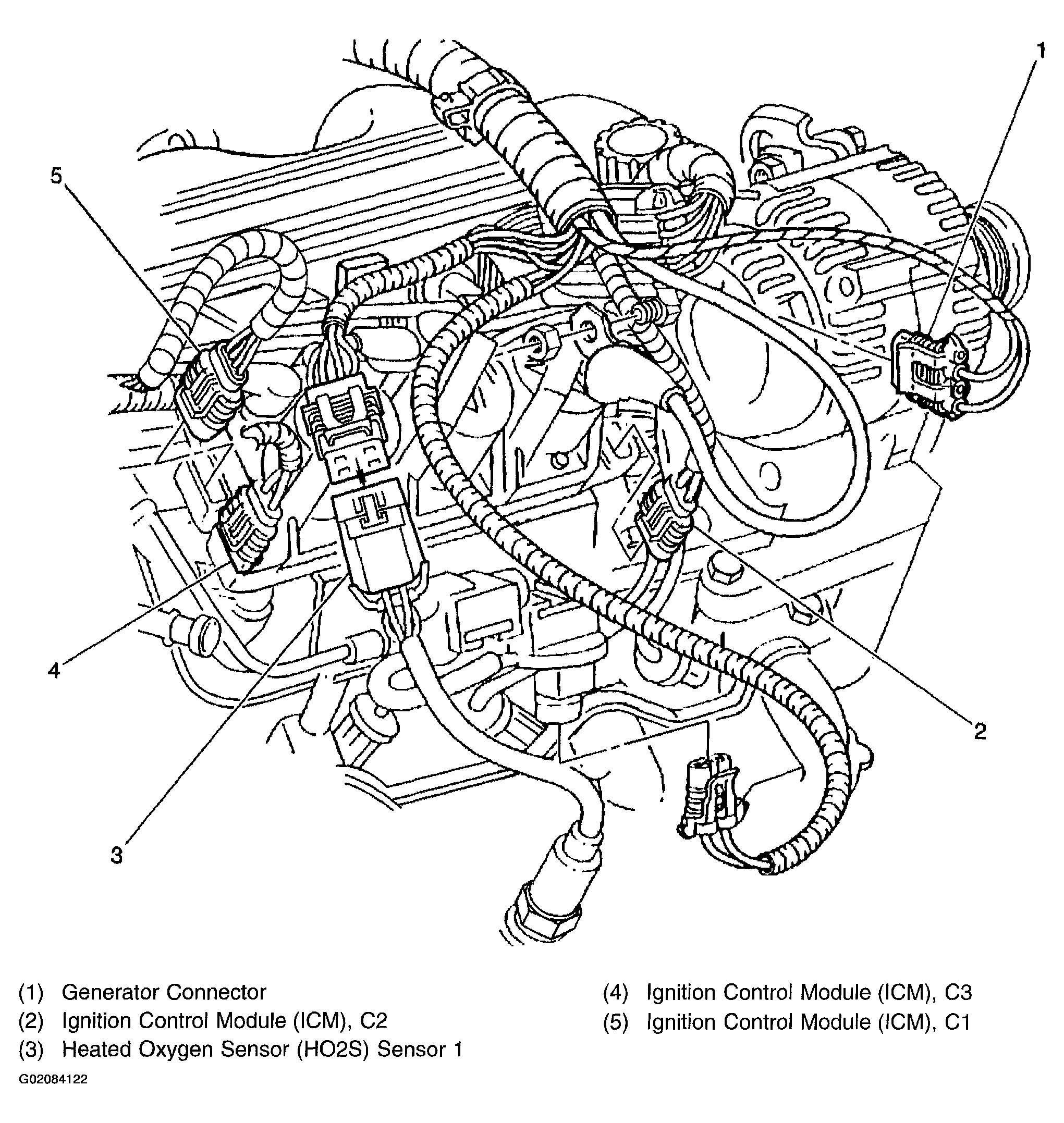

Fig 3: Top Rear of Engine (w/RPO LG8) Component View
G02084122Courtesy of GENERAL MOTORS CORP.

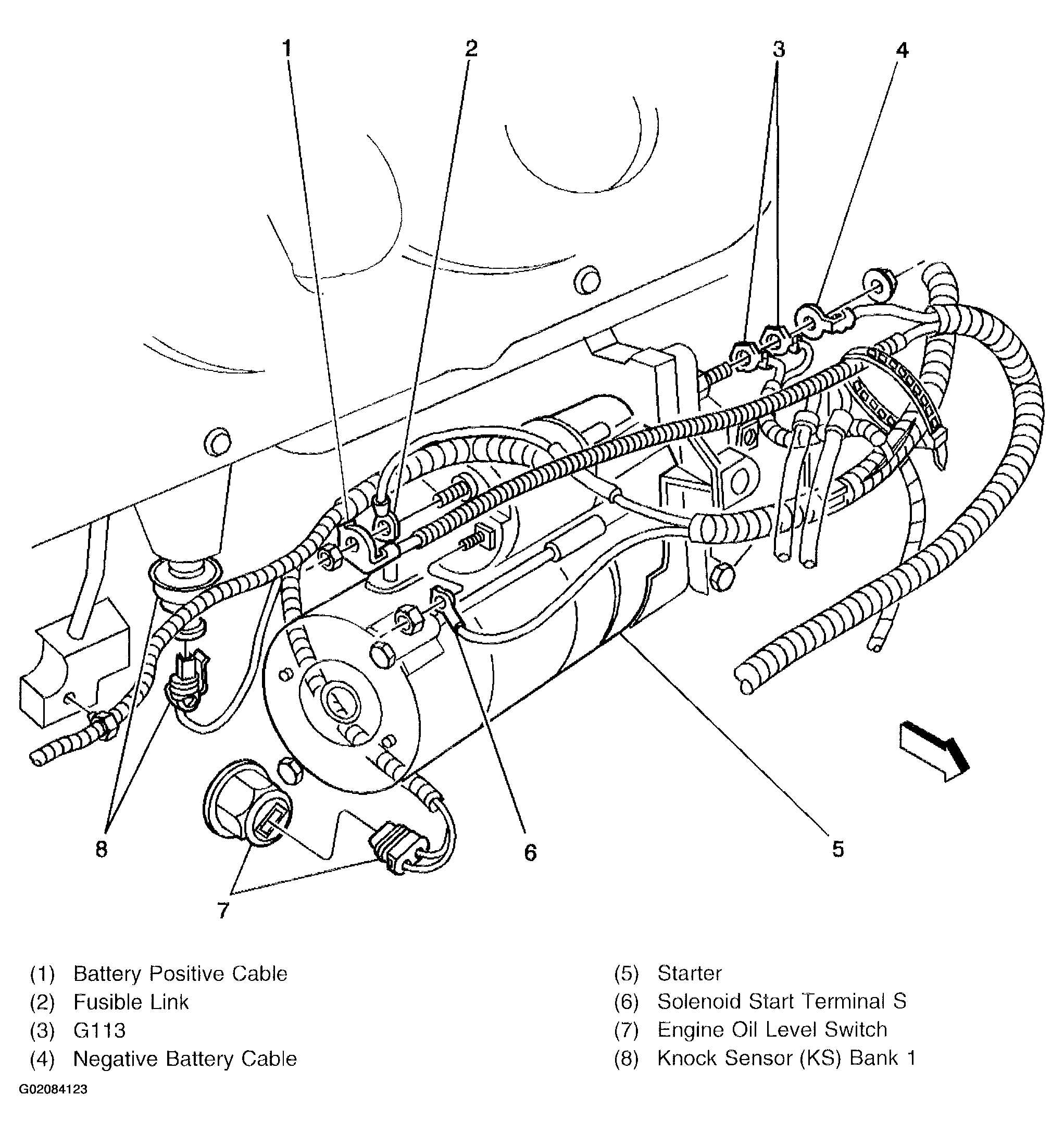

Fig 4: Lower Left Front of Engine - RPO L36, L67 Component View
G02084123Courtesy of GENERAL MOTORS CORP.
