Component Location Graphics

NOTE: Figures may show multI/Ple component locations. Refer to appropriate table for proper figure references.

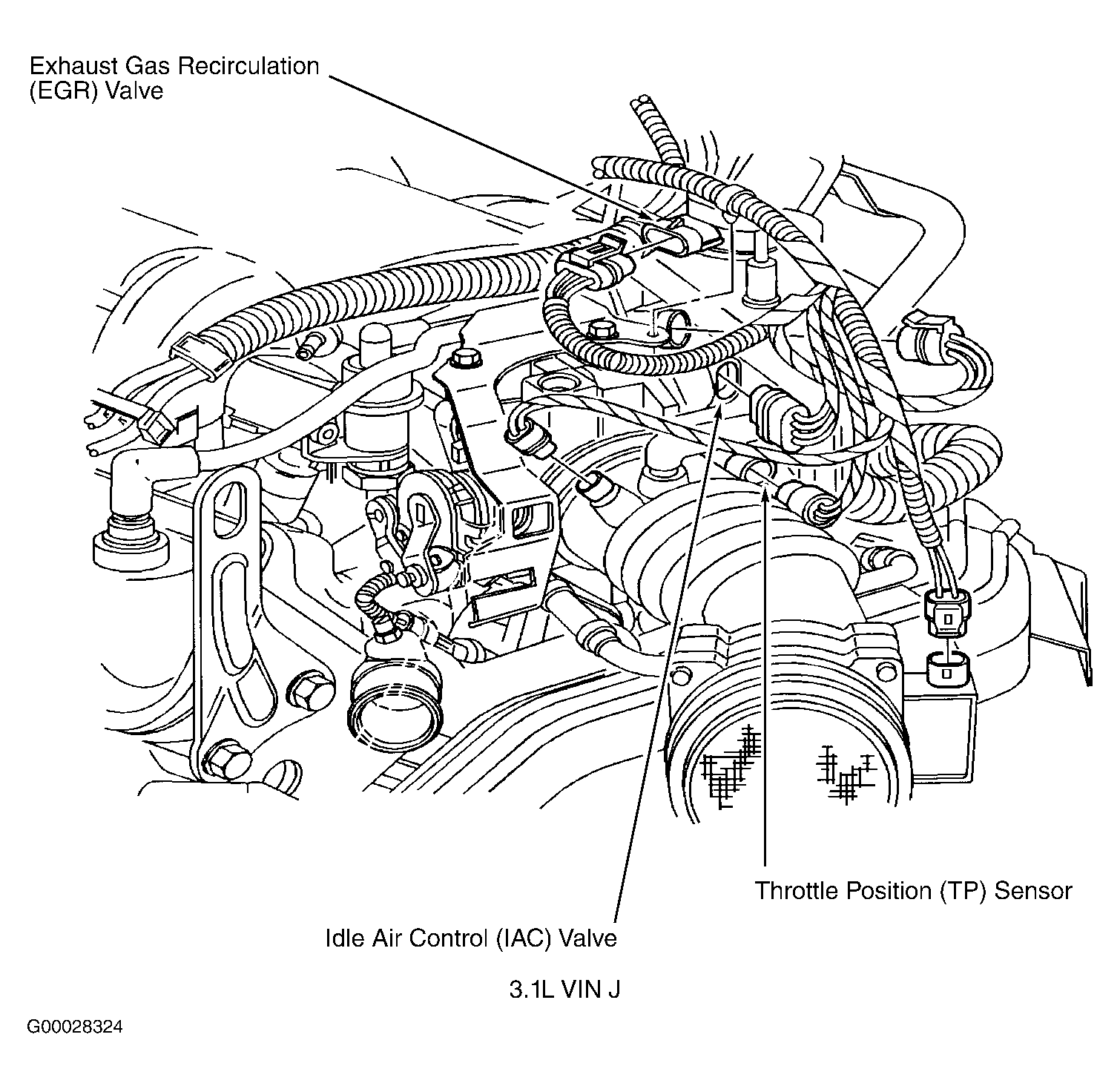

Fig 1: Left Side Of Engine (3.1L VIN J)

Courtesy of GENERAL MOTORS CORP.

Fig 2: Right Side Of Engine (3.1L VIN J)

Courtesy of GENERAL MOTORS CORP.

Fig 3: Rear Of Engine (3.1L VIN J)

Courtesy of GENERAL MOTORS CORP.

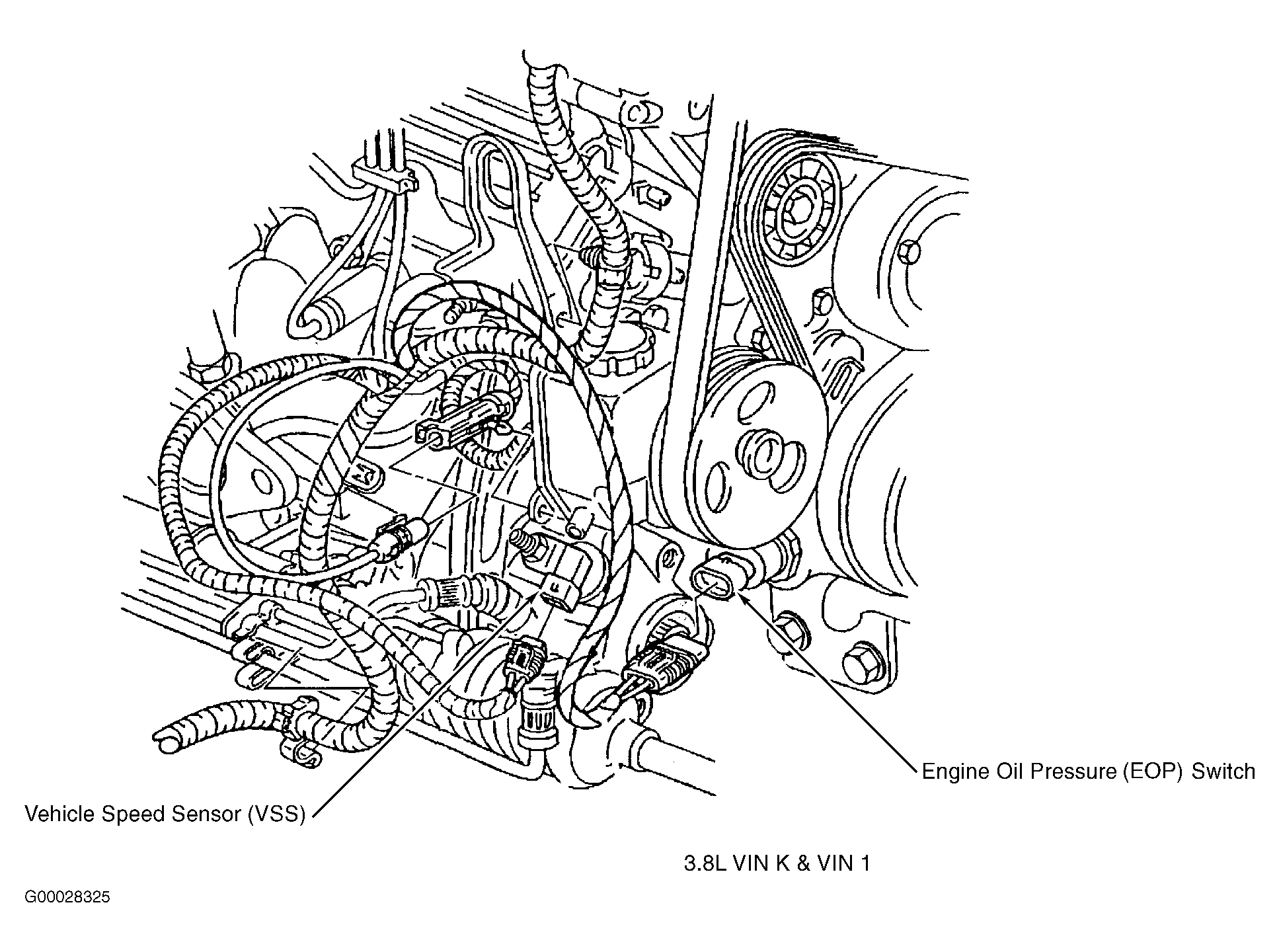

Fig 4: Lower Right Front Of Engine (3.8L VIN K & VIN 1)

Courtesy of GENERAL MOTORS CORP.

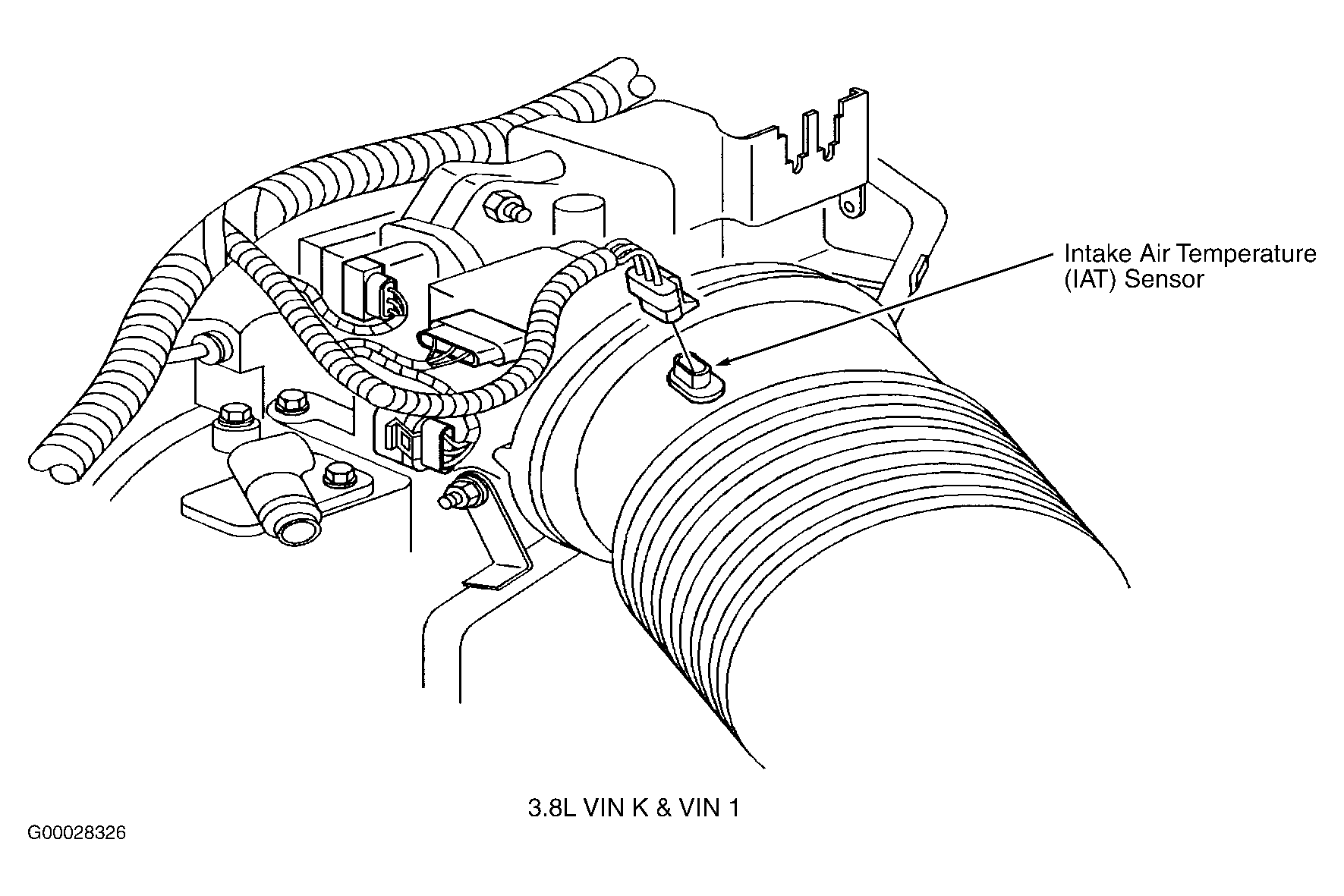

Fig 5: Top Rear Of Engine (3.8L VIN K & VIN 1)

Courtesy of GENERAL MOTORS CORP.

Fig 6: Top Left Rear Of Engine (3.8L VIN K & VIN 1)

Courtesy of GENERAL MOTORS CORP.

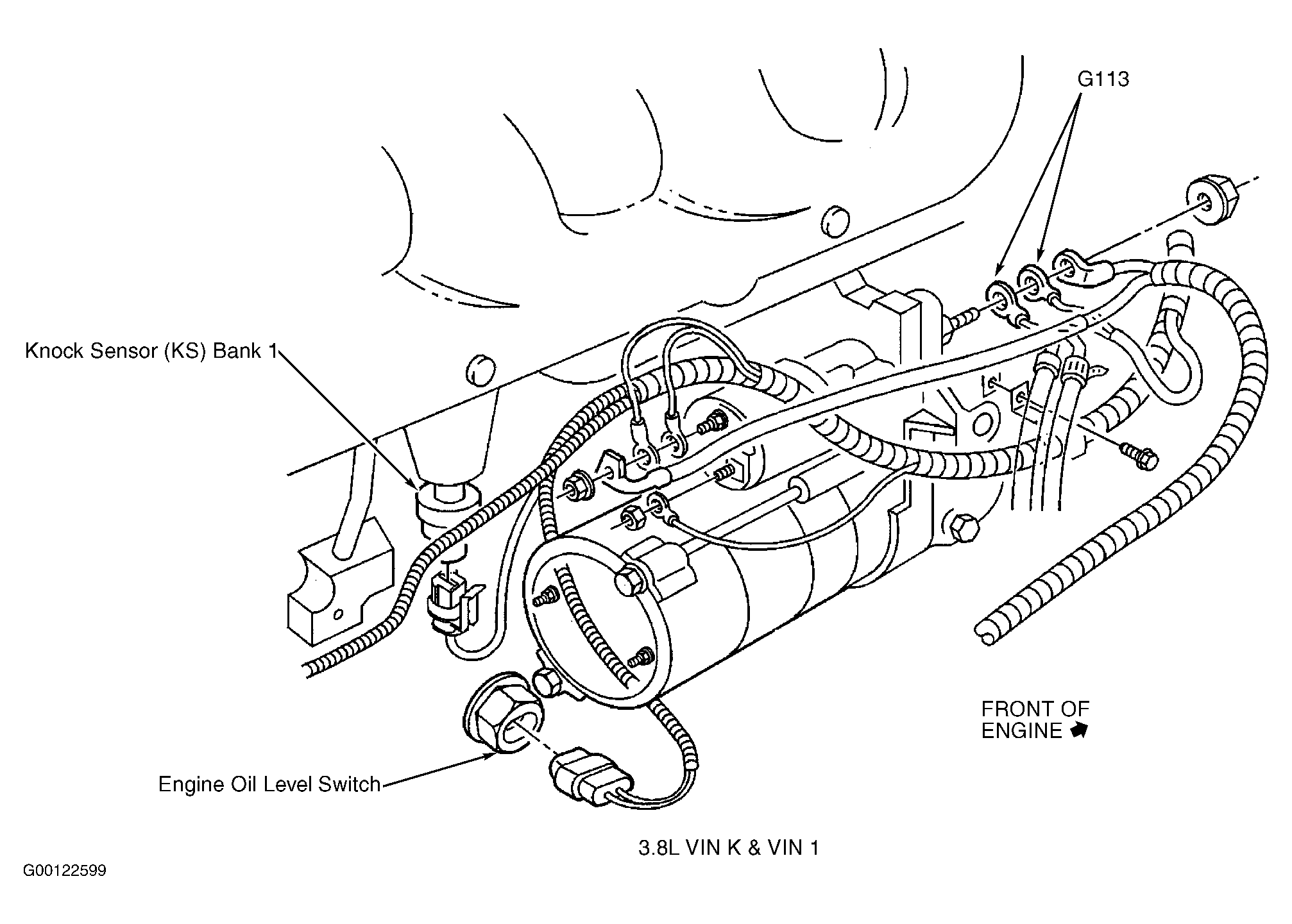

Fig 7: Lower Right Side Of Engine (3.8L VIN K & VIN 1)

Courtesy of GENERAL MOTORS CORP.

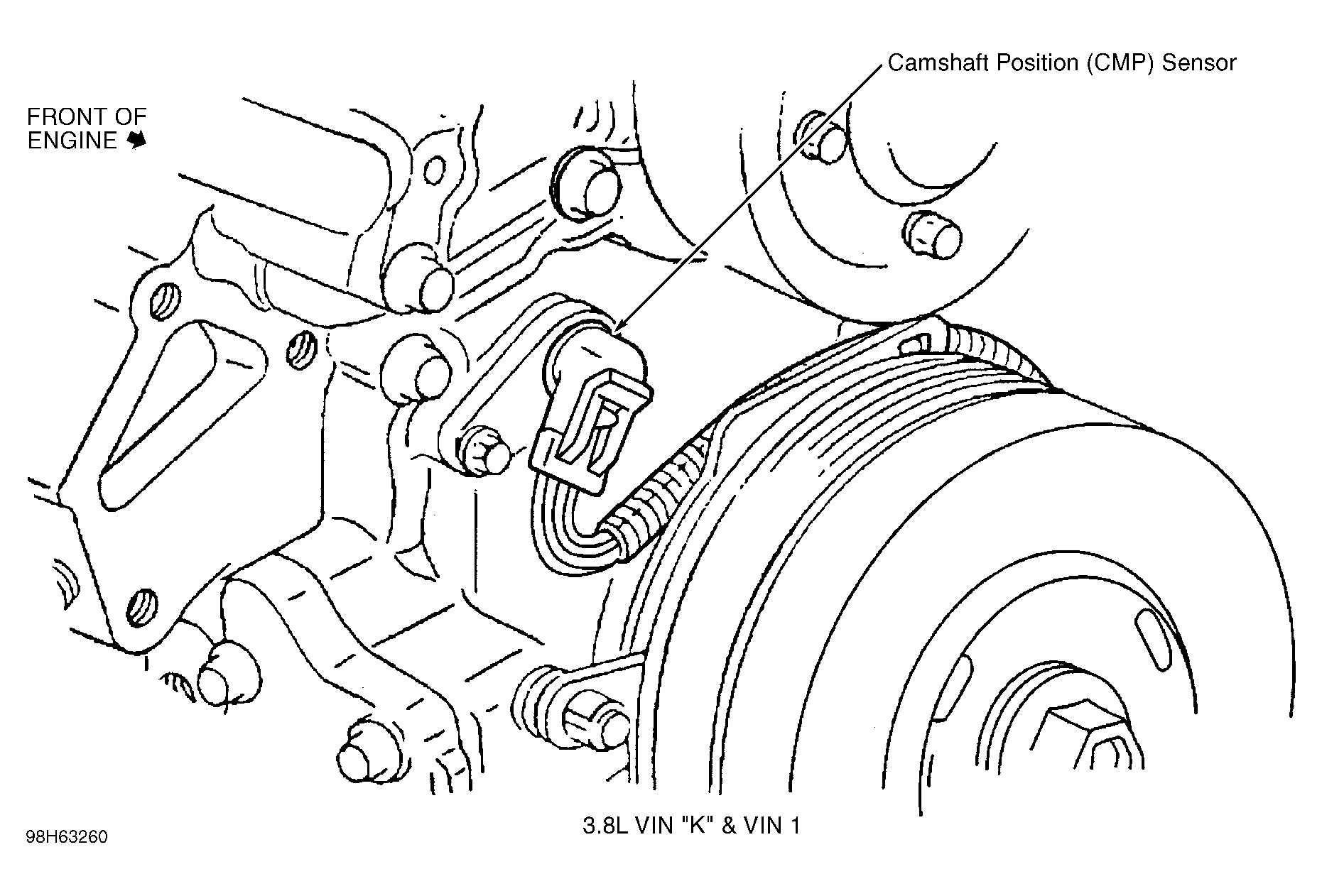

Fig 8: Front Of Engine (3.8L VIN K & VIN 1)

Courtesy of GENERAL MOTORS CORP.

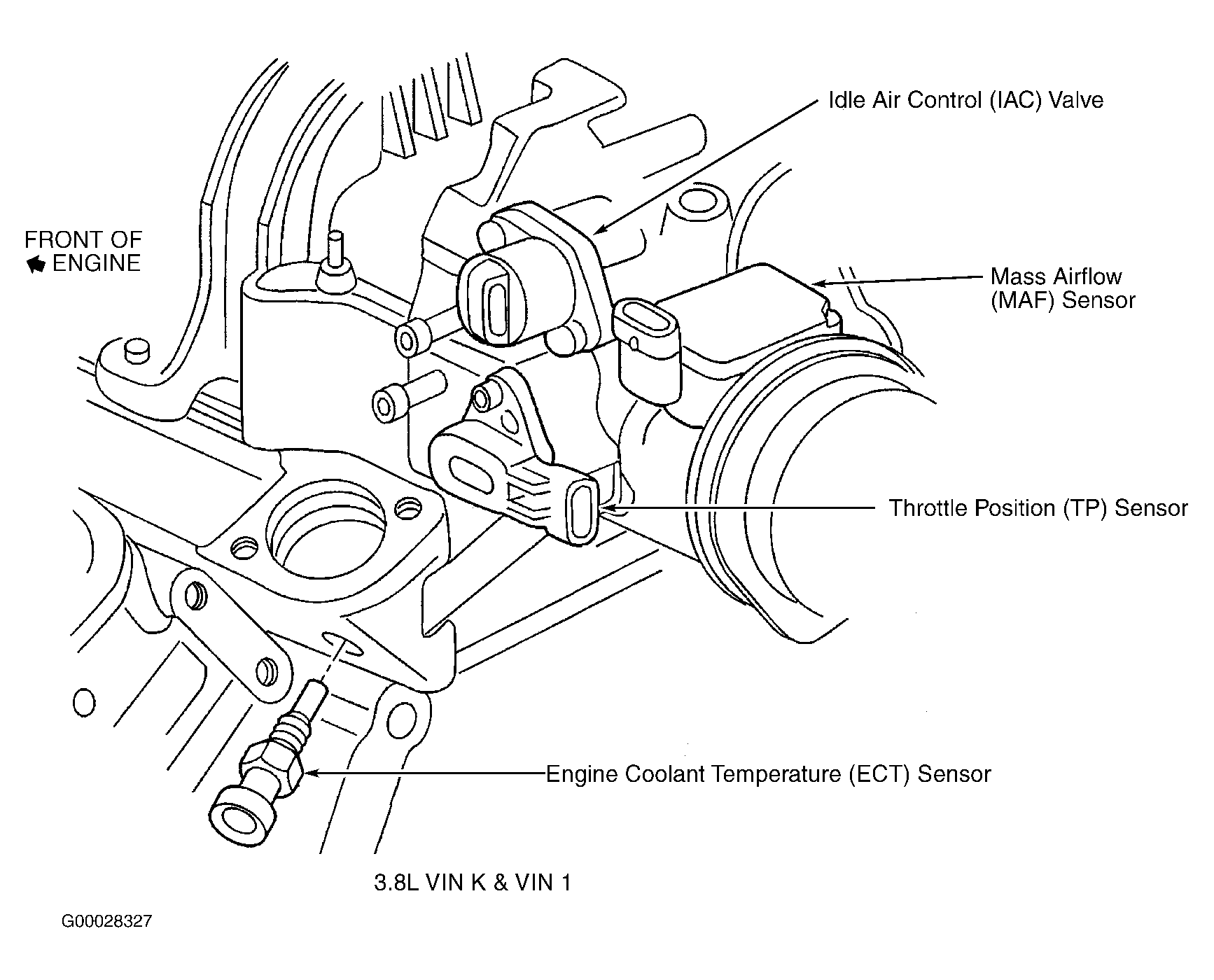

Fig 9: Front Of Engine (3.8L VIN K & VIN 1)

Courtesy of GENERAL MOTORS CORP.

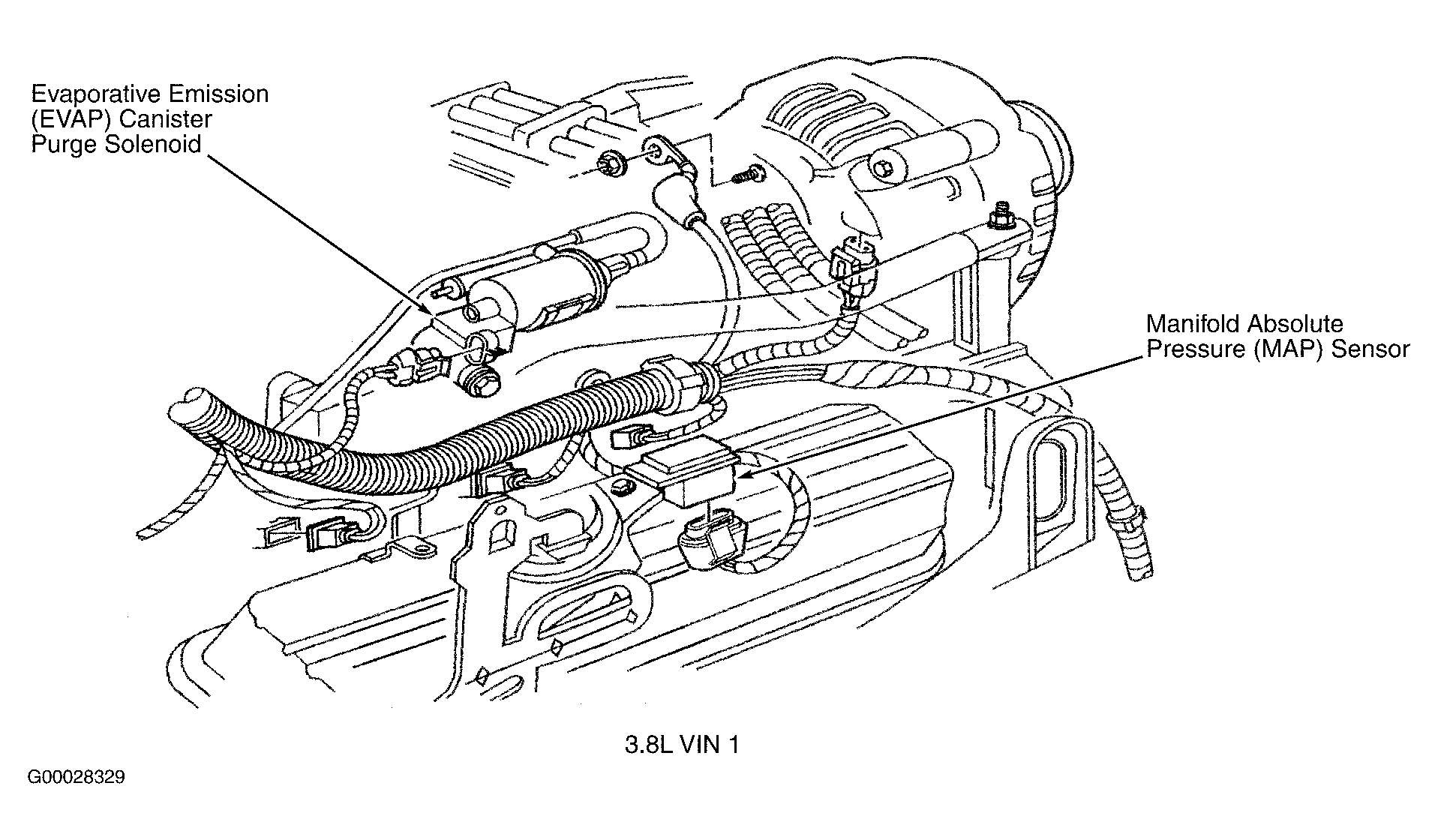

Fig 10: Top Right Side Of Engine (3.8L VIN 1)

Courtesy of GENERAL MOTORS CORP.

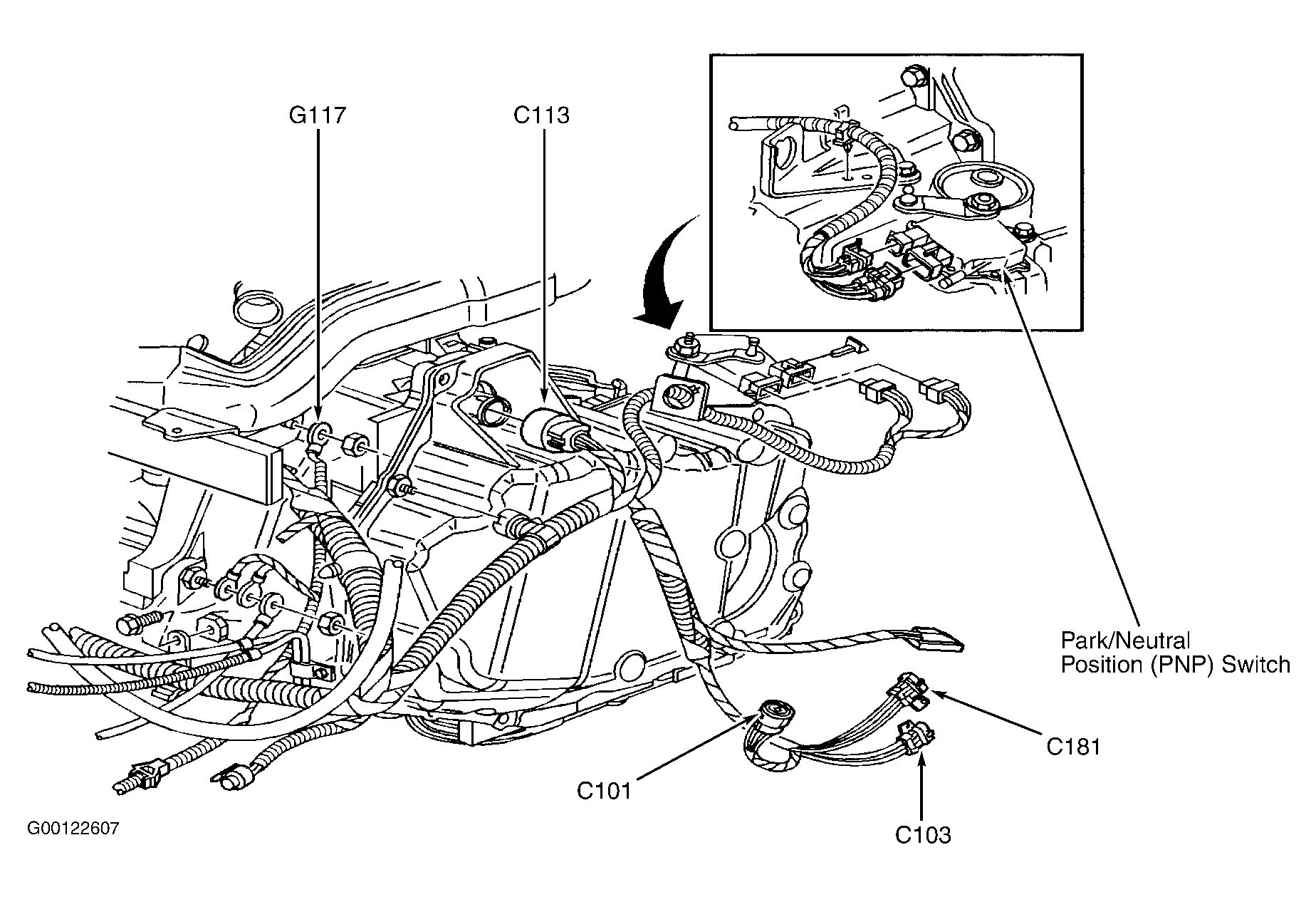

Fig 11: Transaxle

Courtesy of GENERAL MOTORS CORP.

Fig 12: Left Side Of Dash

Courtesy of GENERAL MOTORS CORP.

Fig 13: Right Side Of Dash

Courtesy of GENERAL MOTORS CORP.

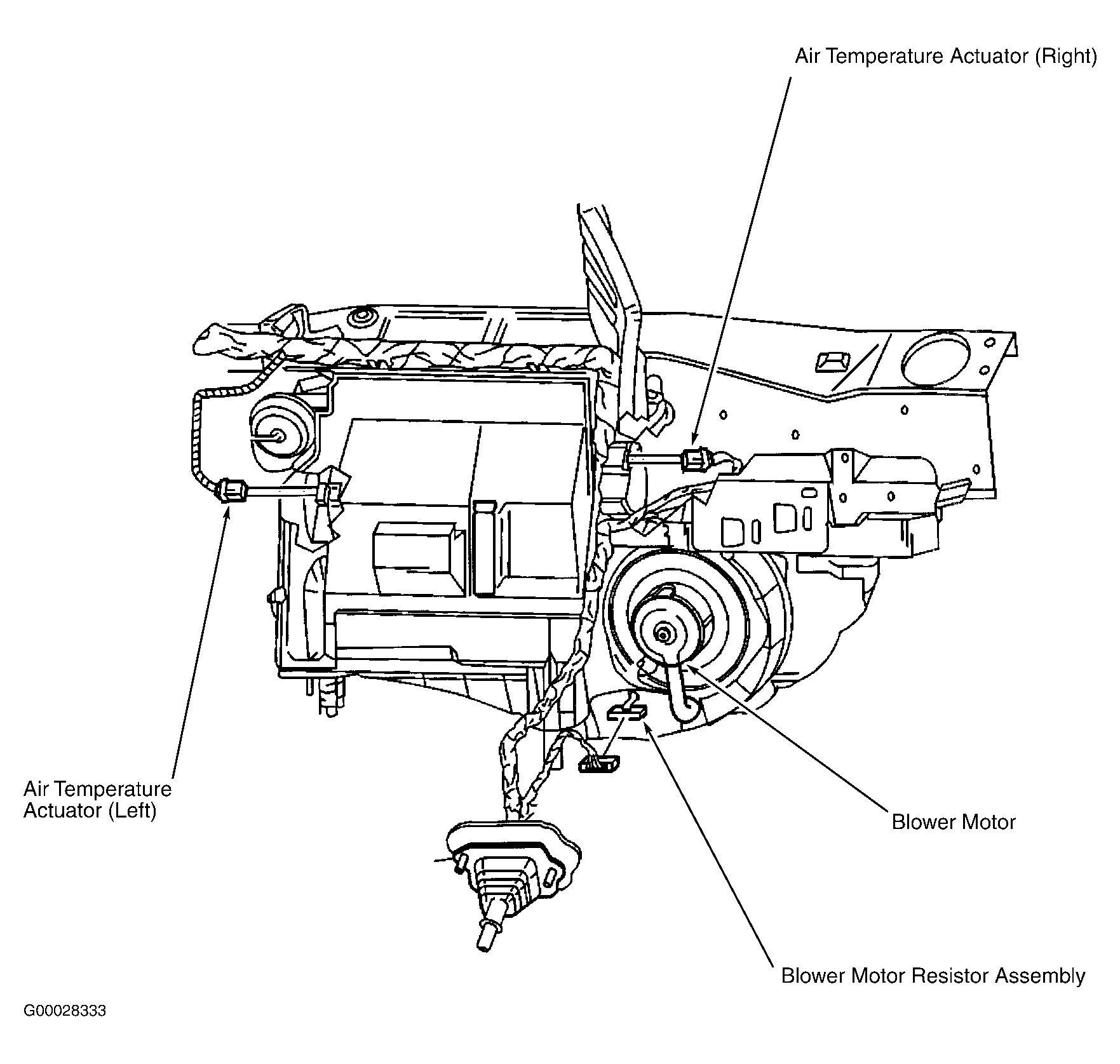

Fig 14: HVAC Module

Courtesy of GENERAL MOTORS CORP.
