Home >> Pontiac >> 2003 >> Grand Prix GTP >> Repair and Diagnosis >> Electrical >> Starter >> Starting System >> Component Locations

Component Locations

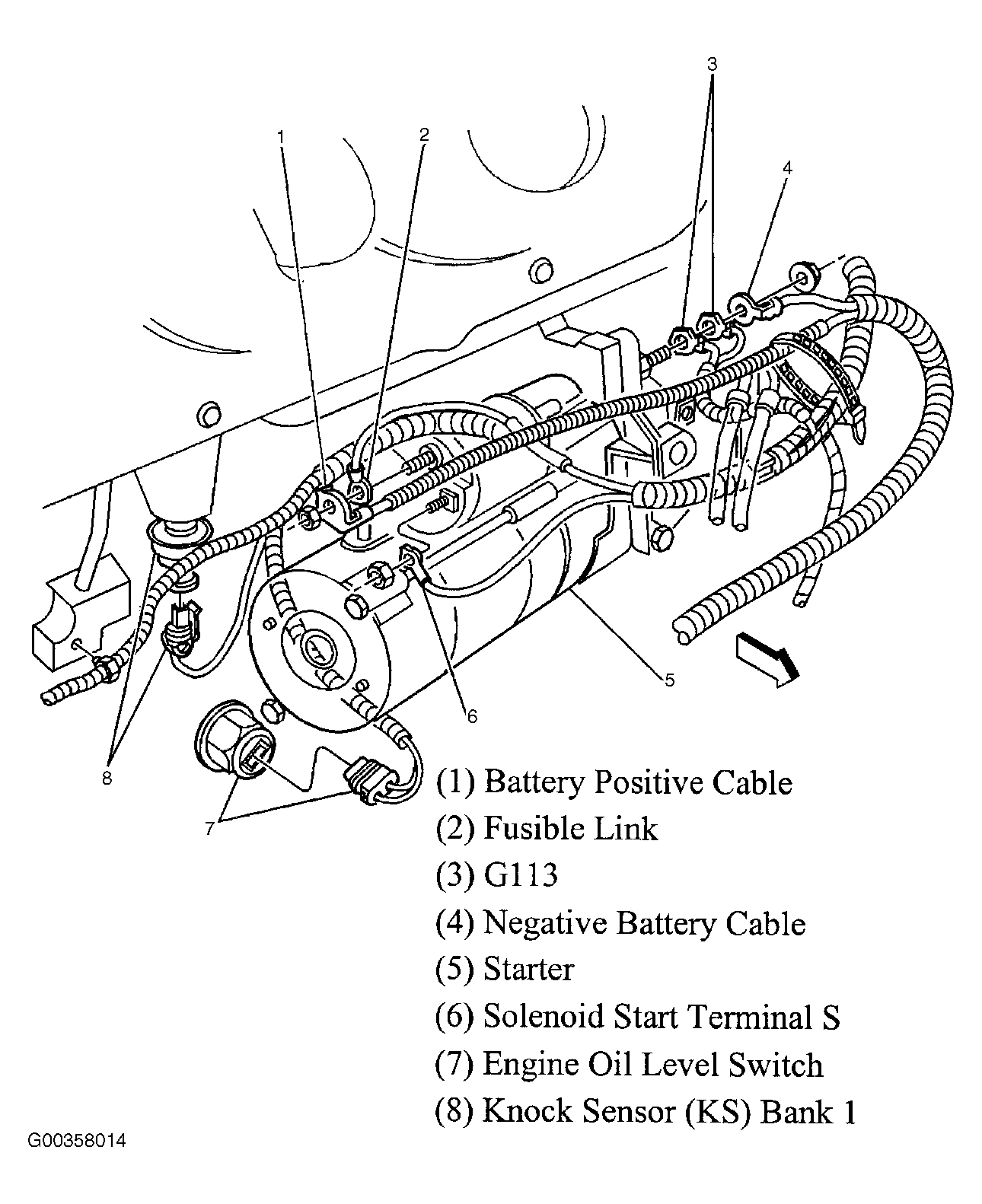

Fig 1: Identifying Starter Motor Electrical Connectors

G00358014

Courtesy of GENERAL MOTORS CORP.
