Body Control System Component Views

Fig 1: Identifying Under Left Side Of Instrument Panel
G01559166Courtesy of GENERAL MOTORS CORP.

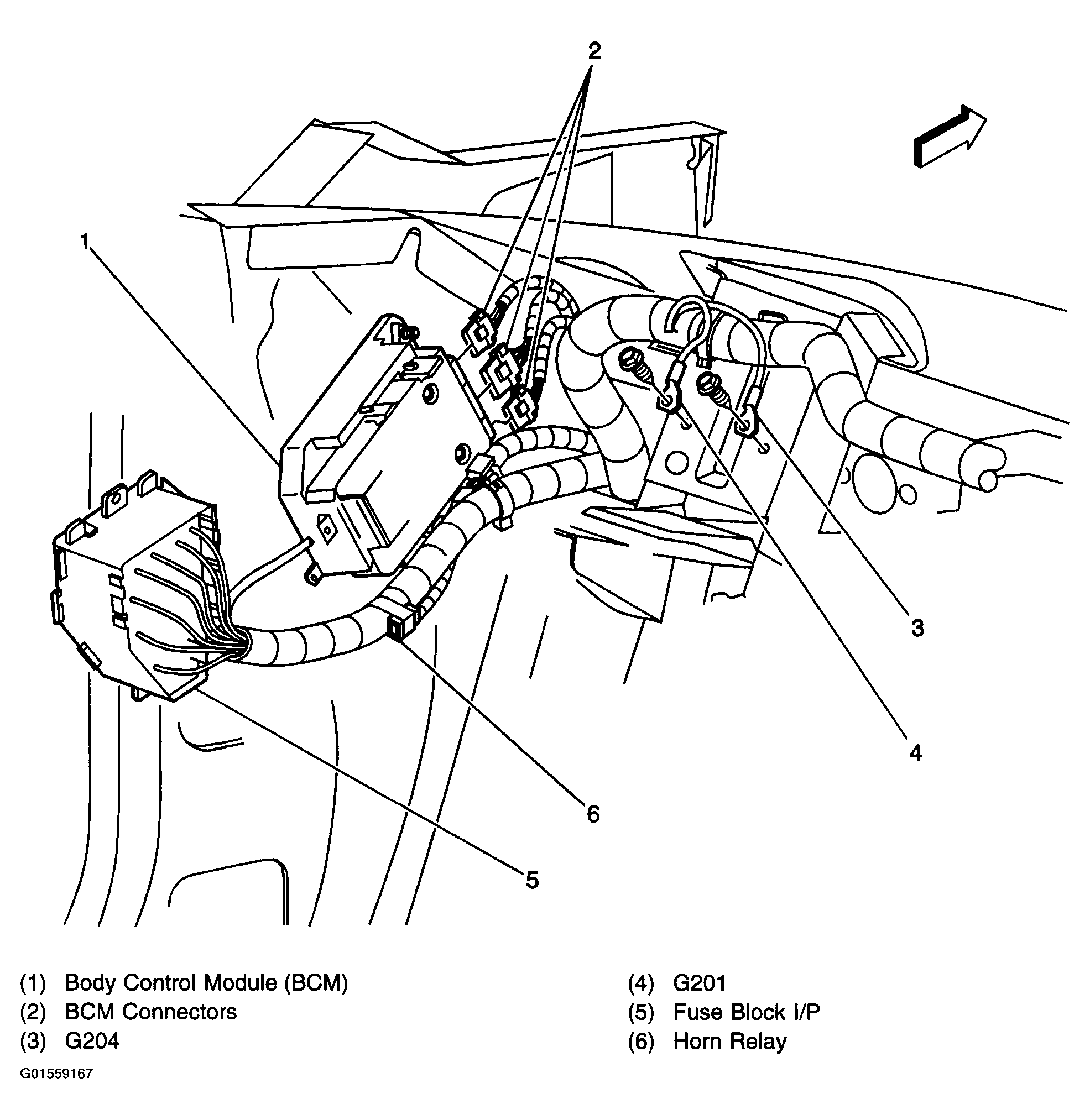

Fig 2: Identifying Behind Left Side Of Instrument Panel
G01559167Courtesy of GENERAL MOTORS CORP.

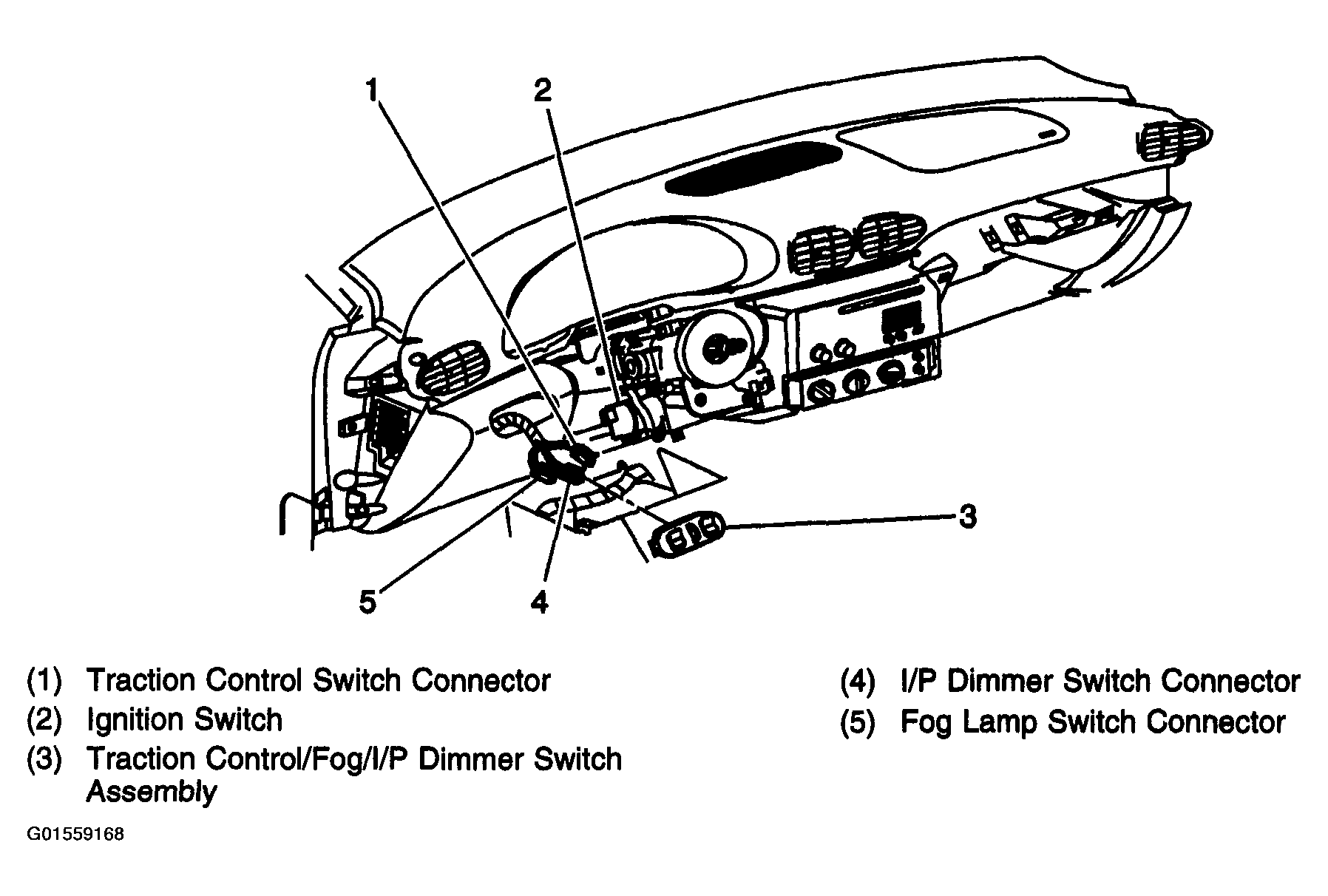

Fig 3: Identifying Left Side Of Instrument Panel
G01559168Courtesy of GENERAL MOTORS CORP.
