Removal Procedure

CAUTION: Refer to BATTERY DISCONNECT CAUTION in Cautions and Notices.
  1. Disconnect the negative battery cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE .
  2. Release the body control module (BCM) wire harness retainer from the BCM bracket.
  3. Disconnect the BCM electrical connectors from the BCM.
  4. Release the lock tabs and remove the BCM from the BCM bracket.

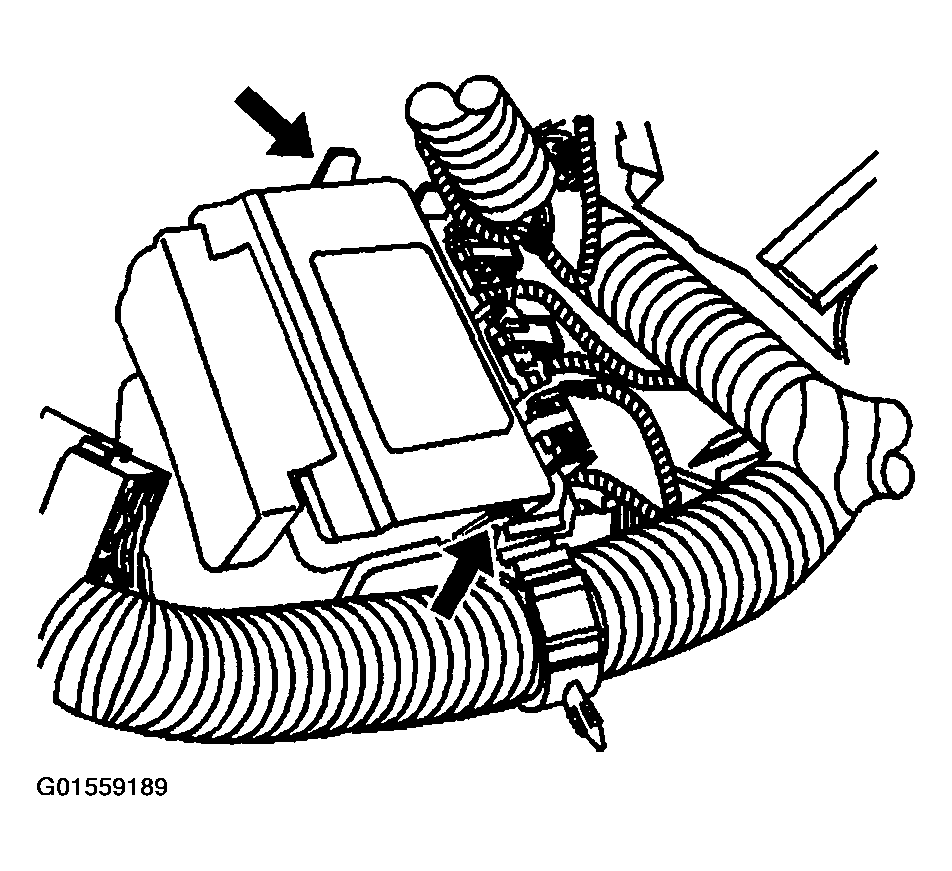

    Fig 1: Removing BCM From BCM Bracket
    G01559189Courtesy of GENERAL MOTORS CORP.
  5. Remove the BCM bracket nuts (2) if required.
  6. Remove the BCM bracket (1) as an assembly if required.

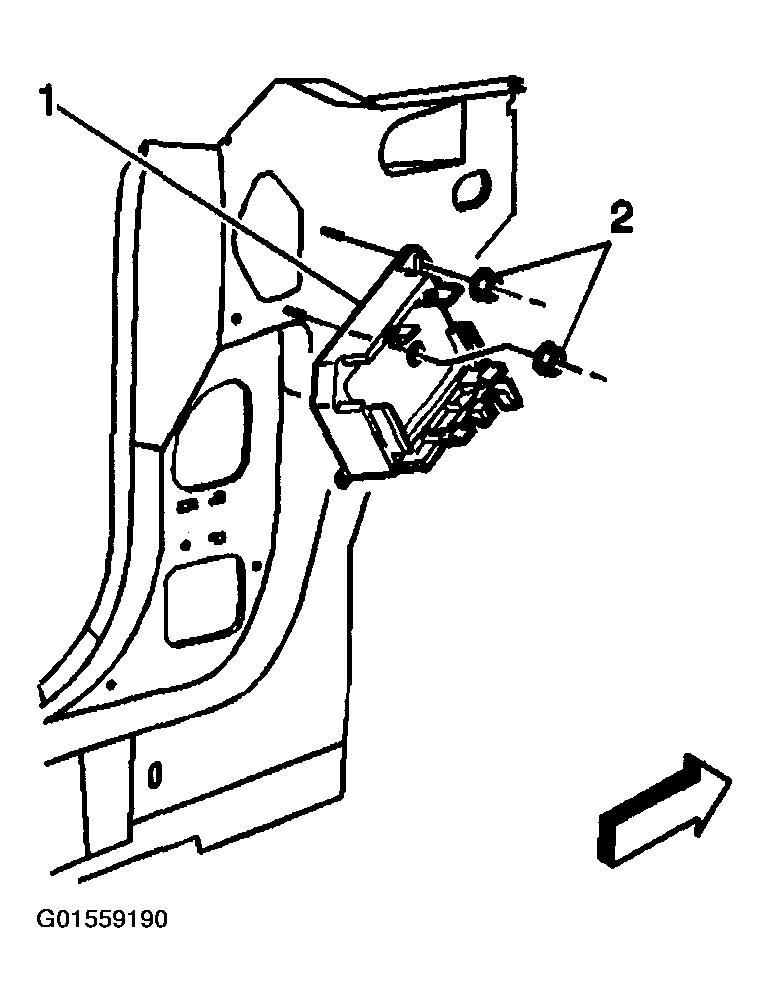

    Fig 2: Removing BCM Bracket
    G01559190Courtesy of GENERAL MOTORS CORP.
