Pontiac
>>
2003
>>
Sunfire Automatic
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Entertainment Systems
>>
Cellular Communication System
>>
Component Locator
>>
Cellular Communication Component Views
Cellular Communication Component Views

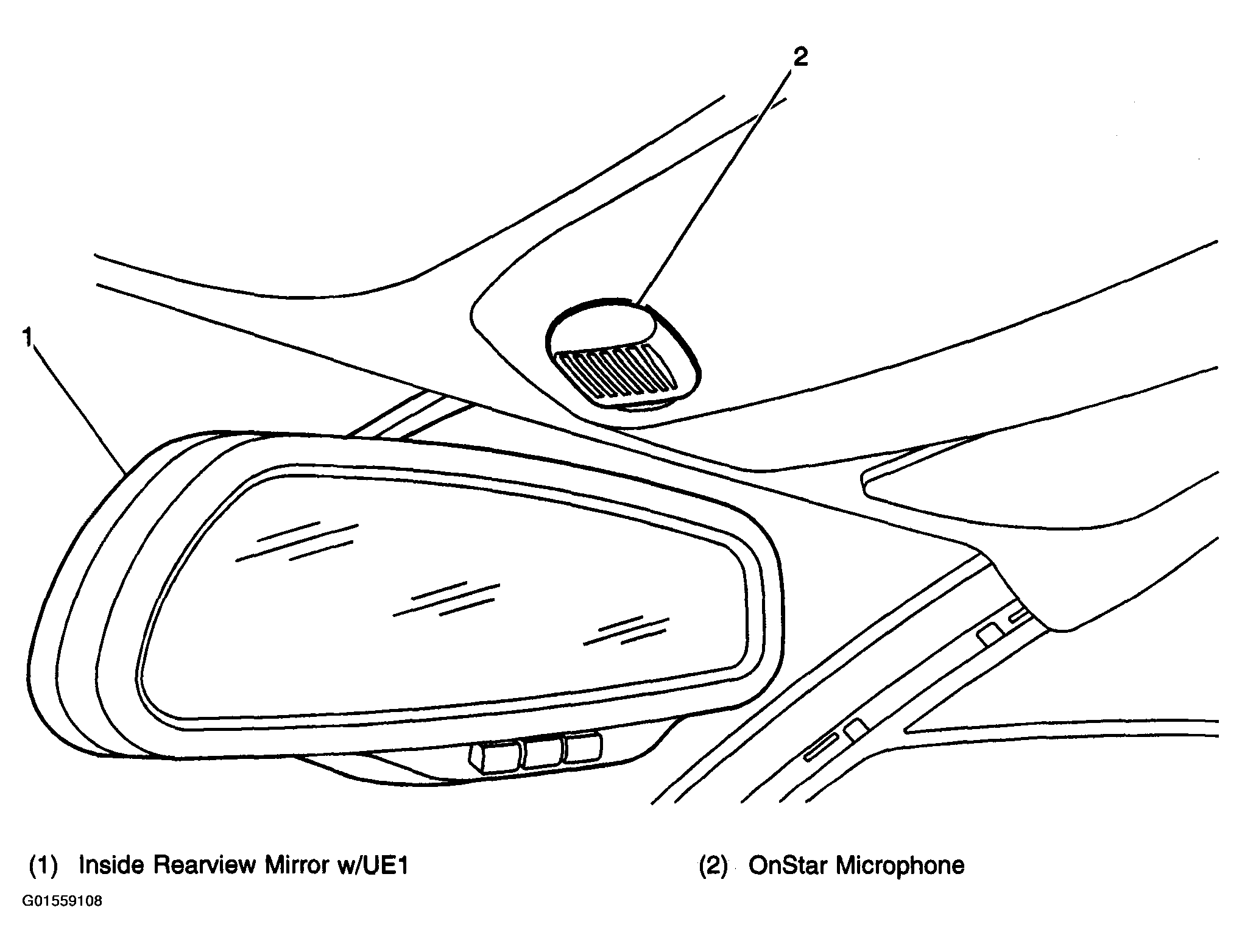

Fig 1: Locating Cellular Communication Components (Inside Rearview Mirror W/UE1)
Courtesy of GENERAL MOTORS CORP.

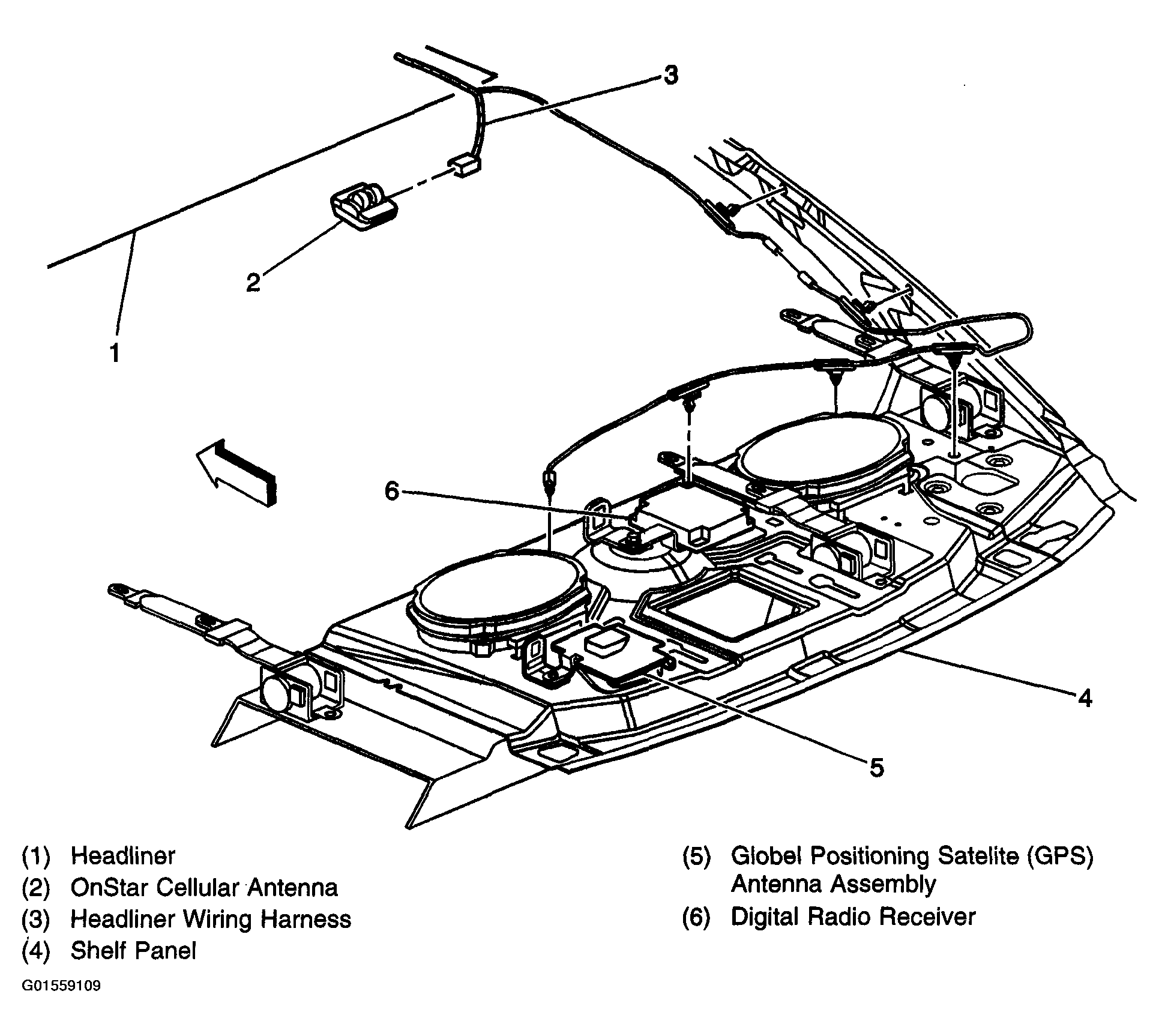

Fig 2: Locating Cellular Communication Components (OnStar Cellular Antenna)
Courtesy of GENERAL MOTORS CORP.

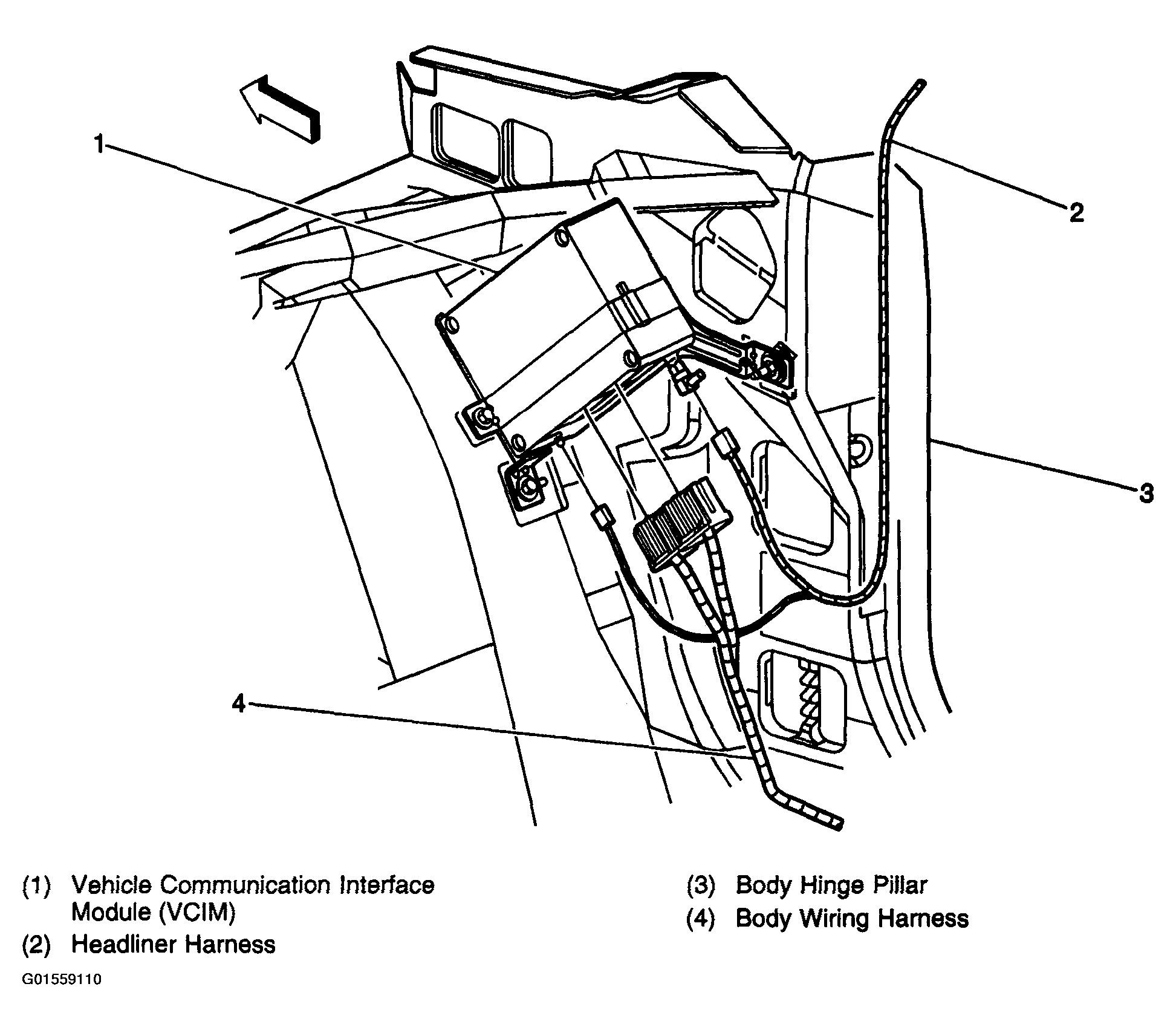

Fig 3: Locating Cellular Communication Components (VCIM Assembly)
Courtesy of GENERAL MOTORS CORP.
