Installation Procedure

  1. Install the bracket assembly (1) to the hinge pillar stud (3), and the dash pan stud (4).
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the retaining nut (2) to the hinge pillar stud (3).

    Tighten

    Tighten nut to 9.5 N.m (84 lb in).

  3. Install the retaining nut (2) to the dash pan stud (4).

    Tighten

    Tighten nut to 9.5 N.m (84 lb in).

  4. Install the OnStar® module to the bracket assembly. Refer to COMMUNICATION INTERFACE MODULE REPLACEMENT  .
  5. Reposition the carpet and the floor sound deadener to a desired appearance, if necessary. Refer to CARPET REPLACEMENT - FRONT in Interior Trim.

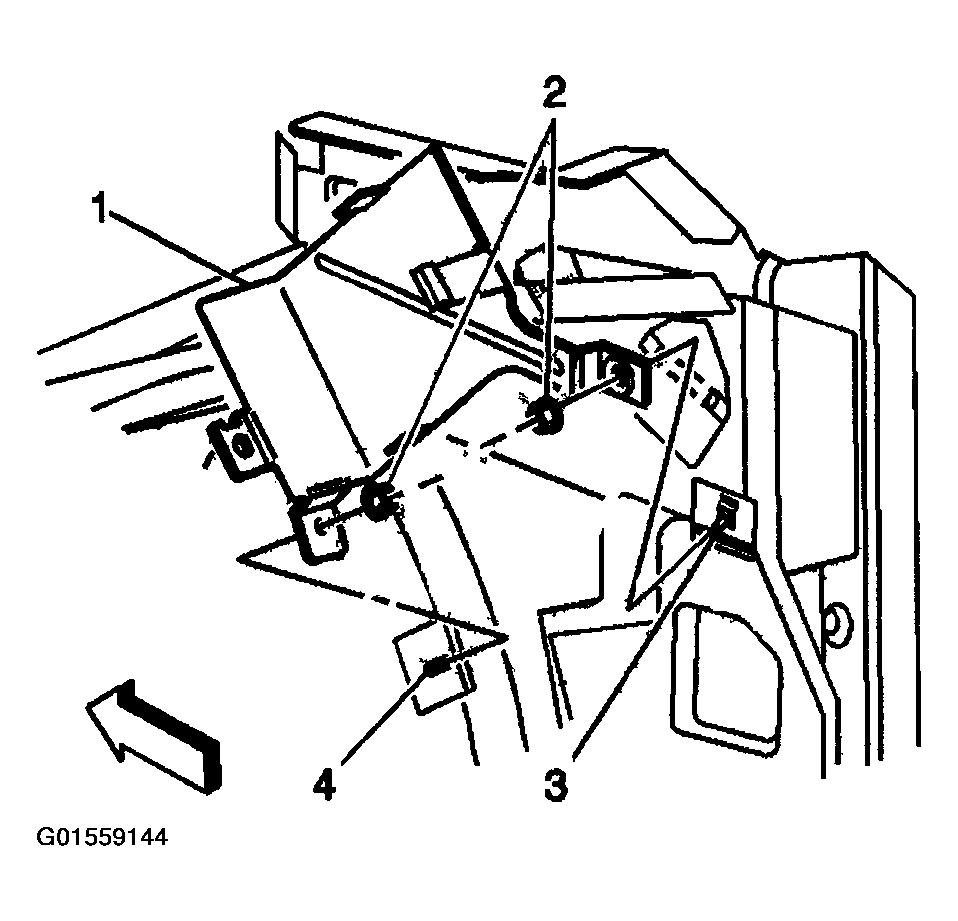

    Fig 1: Installing OnStar Module Bracket Assembly
    G01559144Courtesy of GENERAL MOTORS CORP.
