Home >> Pontiac >> 2003 >> Sunfire Automatic >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Keyless Entry System >> Repair Instructions >> Transmitter Battery Replacement >> Removal Procedure

Removal Procedure

  1. Insert a small flat-bladed tool between the 2 halves of the transmitter case (6,4) at the slot provided near the key ring (5) hole.
  2. Twist the tool in order to open the case.
  3. Remove the battery (2).

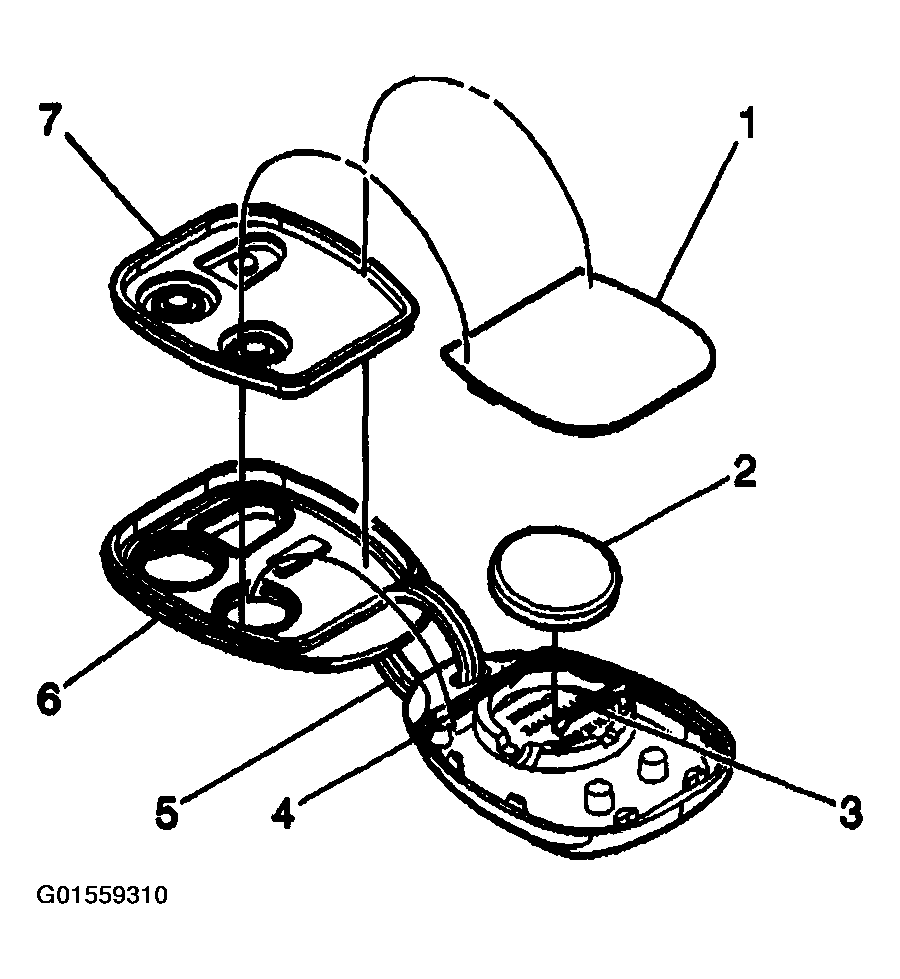

    Fig 1: Removing Battery
    G01559310Courtesy of GENERAL MOTORS CORP.
