Installation Procedure

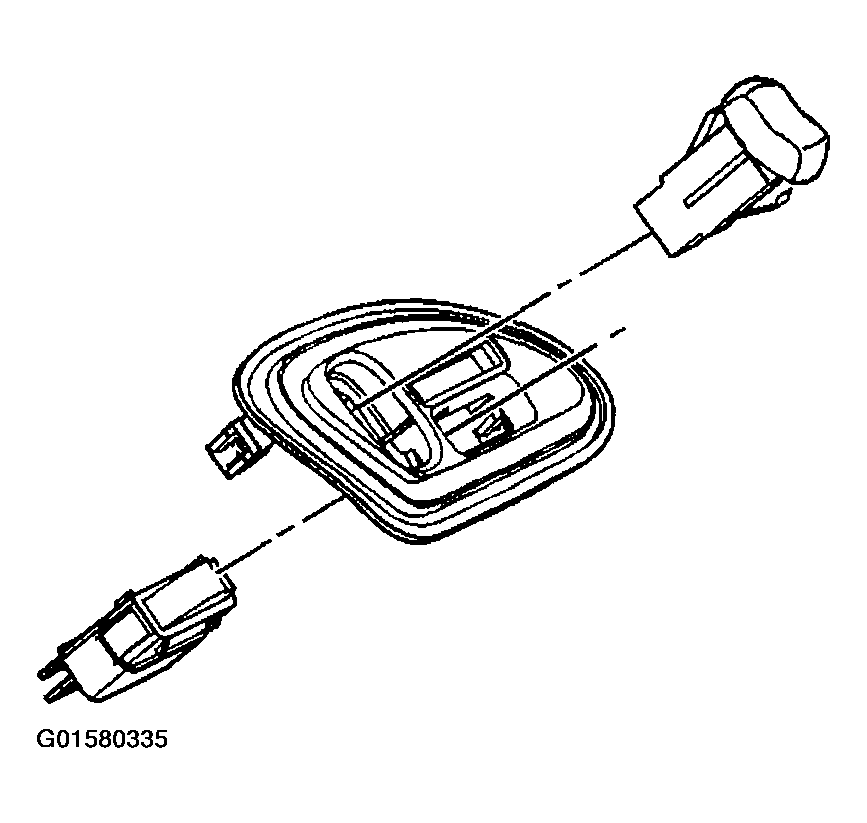

Fig 1: Installing Traction Control Switch
G01580335Courtesy of GENERAL MOTORS CORP.
  1. Install the traction control switch to the instrument panel dimmer switch bezel.
  2. Connect the electrical connector to the traction control switch.
  3. Align the instrument panel dimmer switch bezel to the dash and carefully press the retaining clips into the correct mounting areas on the dash.
  4. Verify the repair. Refer to DIAGNOSTIC SYSTEM CHECK - ABS  .
