Removal Procedure

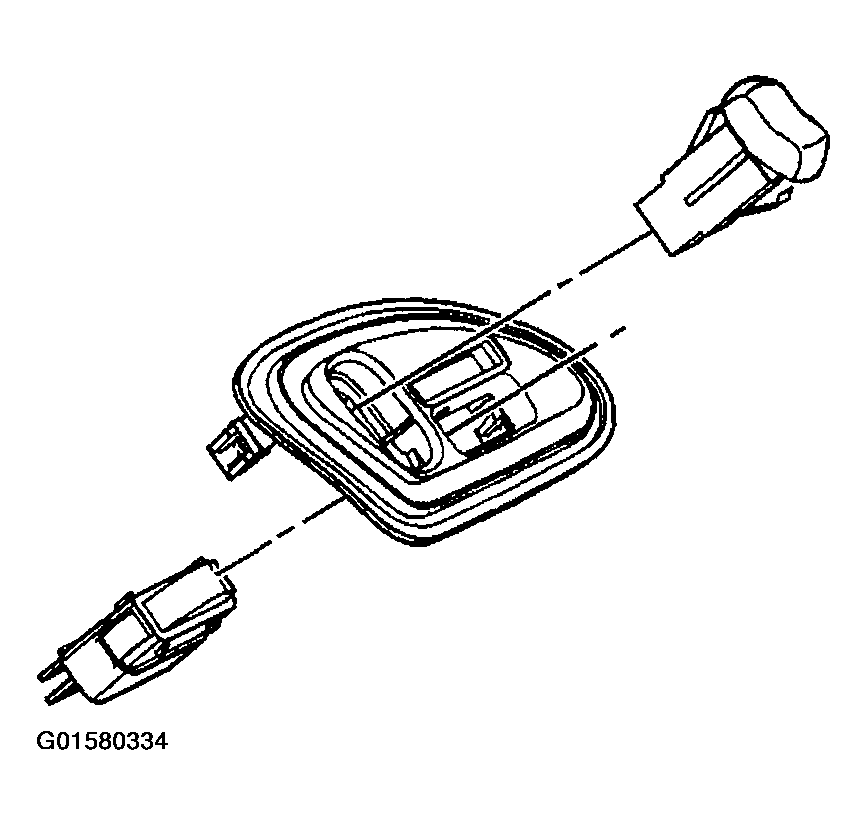

Fig 1: Removing Traction Control Switch
G01580334Courtesy of GENERAL MOTORS CORP.
  1. Carefully remove the instrument panel dimmer switch bezel from the dash.
  2. Disconnect the electrical connector from the traction control switch.
  3. Remove the traction control switch from the instrument panel dimmer switch bezel. To avoid damage to the instrument panel dimmer switch bezel, use a flat bladed tool on the back side of the traction control switch to release the retaining clips.
