Installation Procedure

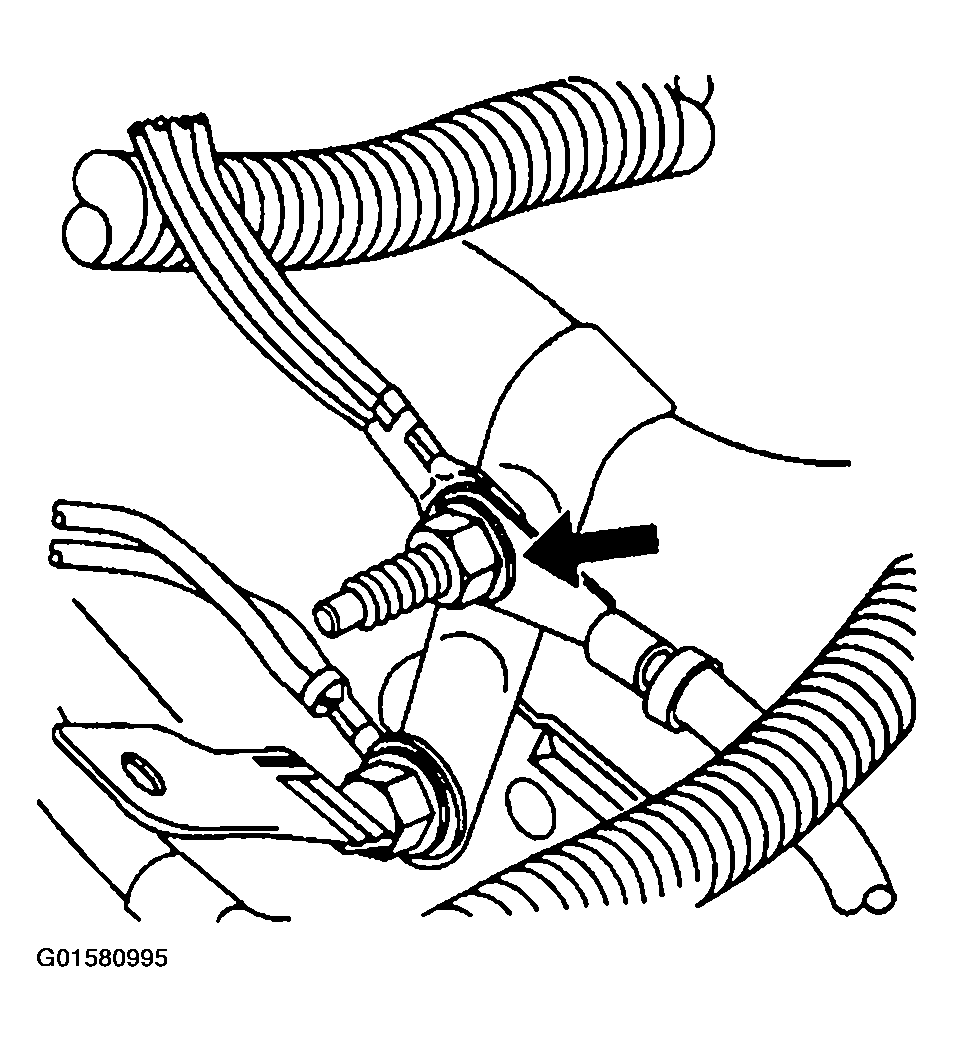

Fig 1: Installing Ground Stud

Courtesy of GENERAL MOTORS CORP.

Position the new cable in the vehicle.
NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
Install the ground stud through the negative cable and into the engine block.
Tighten

Tighten the negative battery cable ground stud to 25 N.m (18 lb ft).
Position the engine wire harness retainer onto the ground stud.

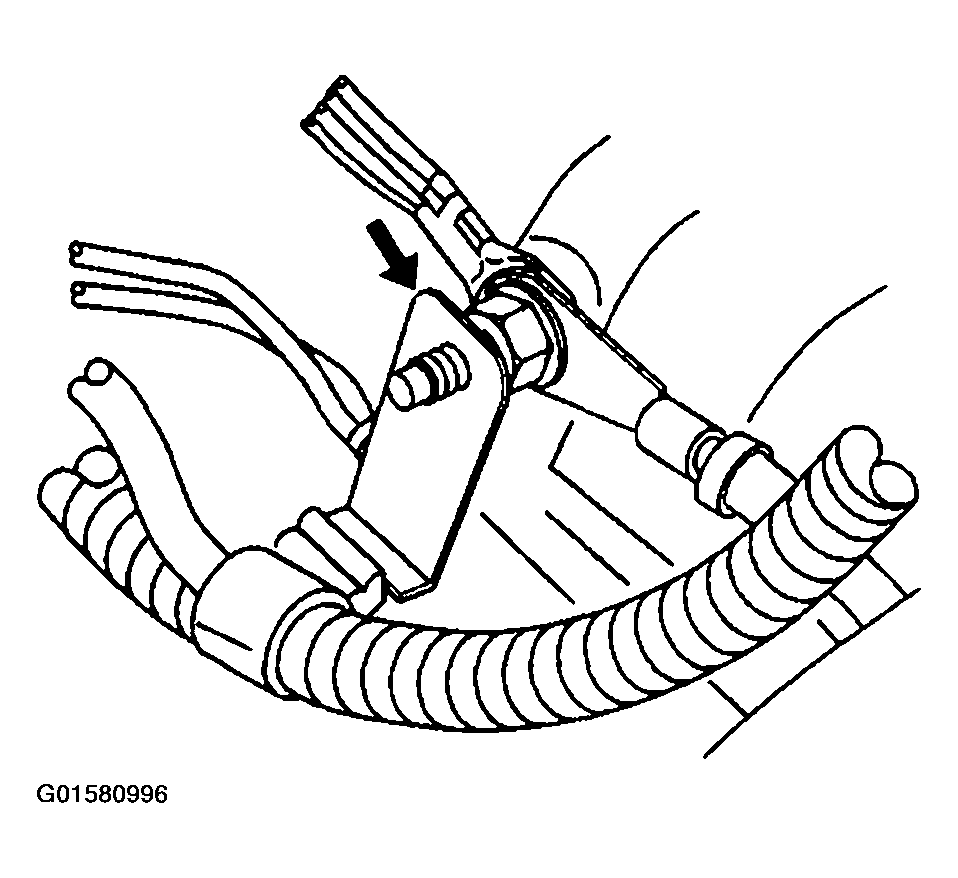

Fig 2: Positioning Engine Wire Harness Retainer
Courtesy of GENERAL MOTORS CORP.
Install the wire harness retainer onto the stud.

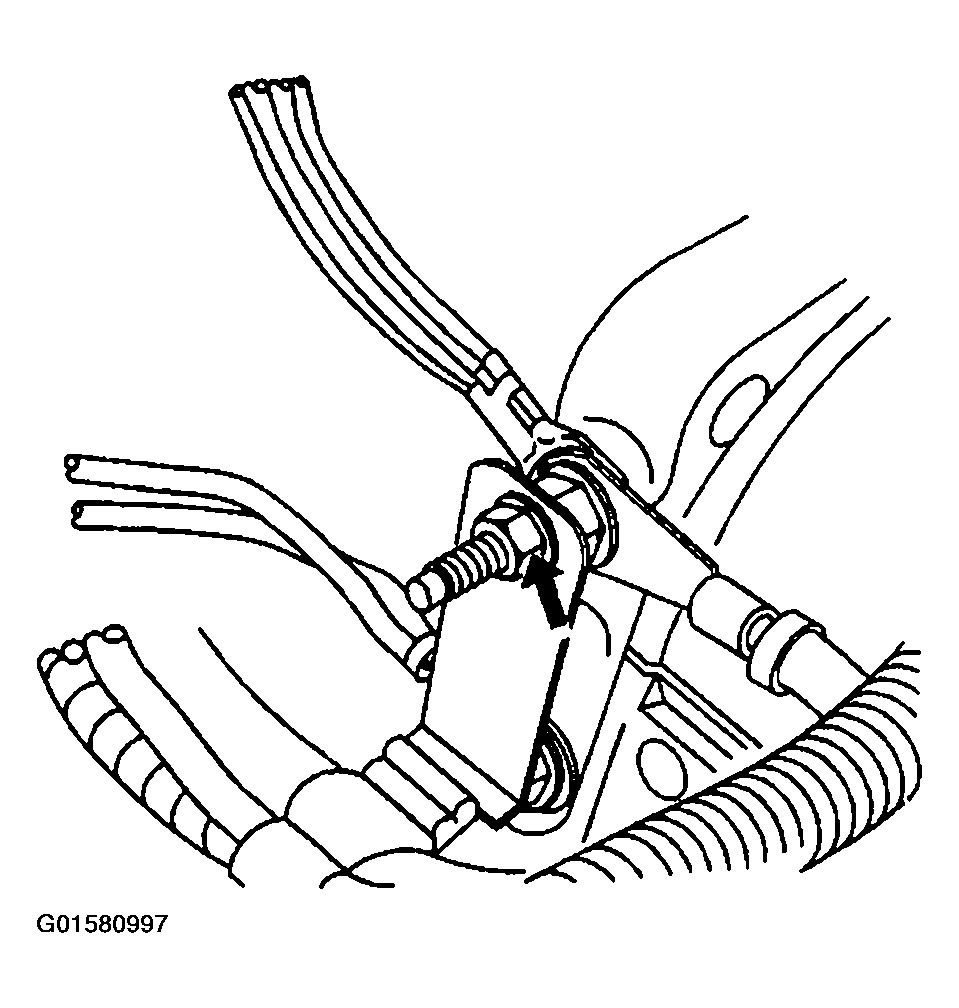

Fig 3: Installing Wire Harness Retainer Onto Stud
Courtesy of GENERAL MOTORS CORP.

Tighten

Tighten the wire harness retainer nut to 18 N.m (13 lb ft).
Install the bolt to retain negative battery cable to battery tray.

Fig 4: Identifying Holding Cables (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Tape the cables together at the battery tray.
Tape the cables together at the transmission electrical plug.

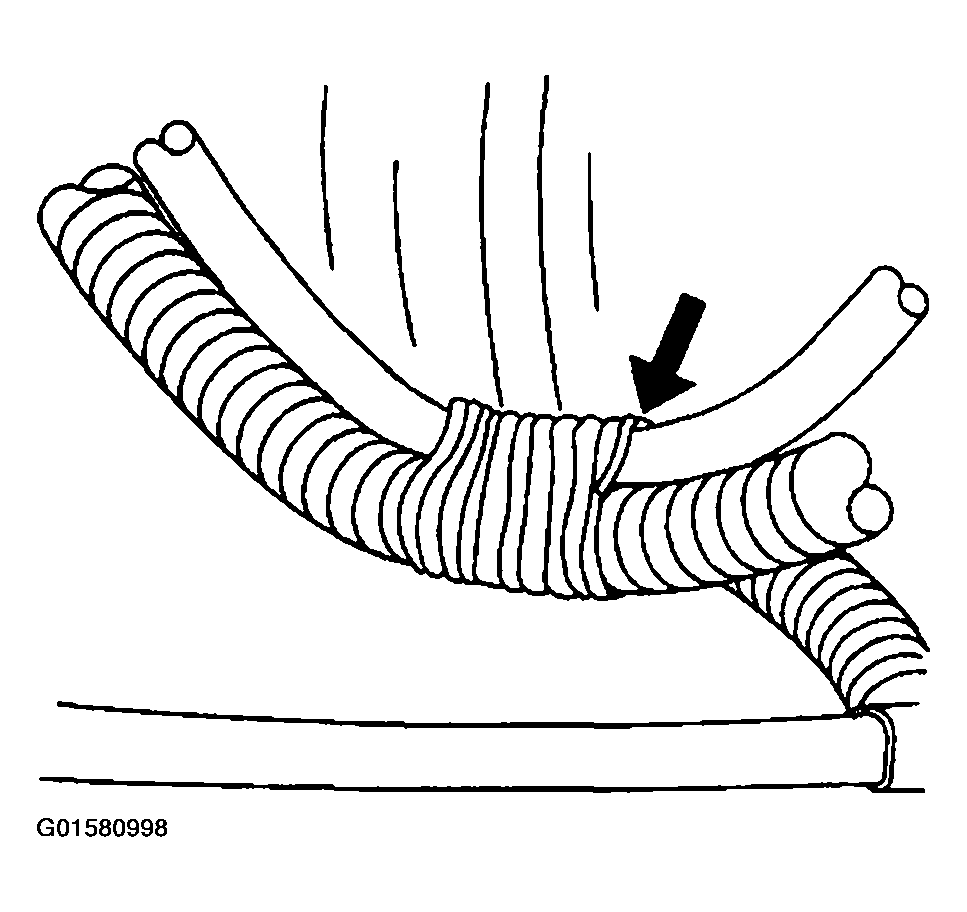

Fig 5: Identifying Holding Cables (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Install air cleaner resonator and outlet duct. Refer to AIR CLEANER ASSEMBLY REPLACEMENT in Engine Controls.
Connect the negative battery cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE .
