Horn System
>>
Component Locator
>>
Horns Component Views
Horns Component Views

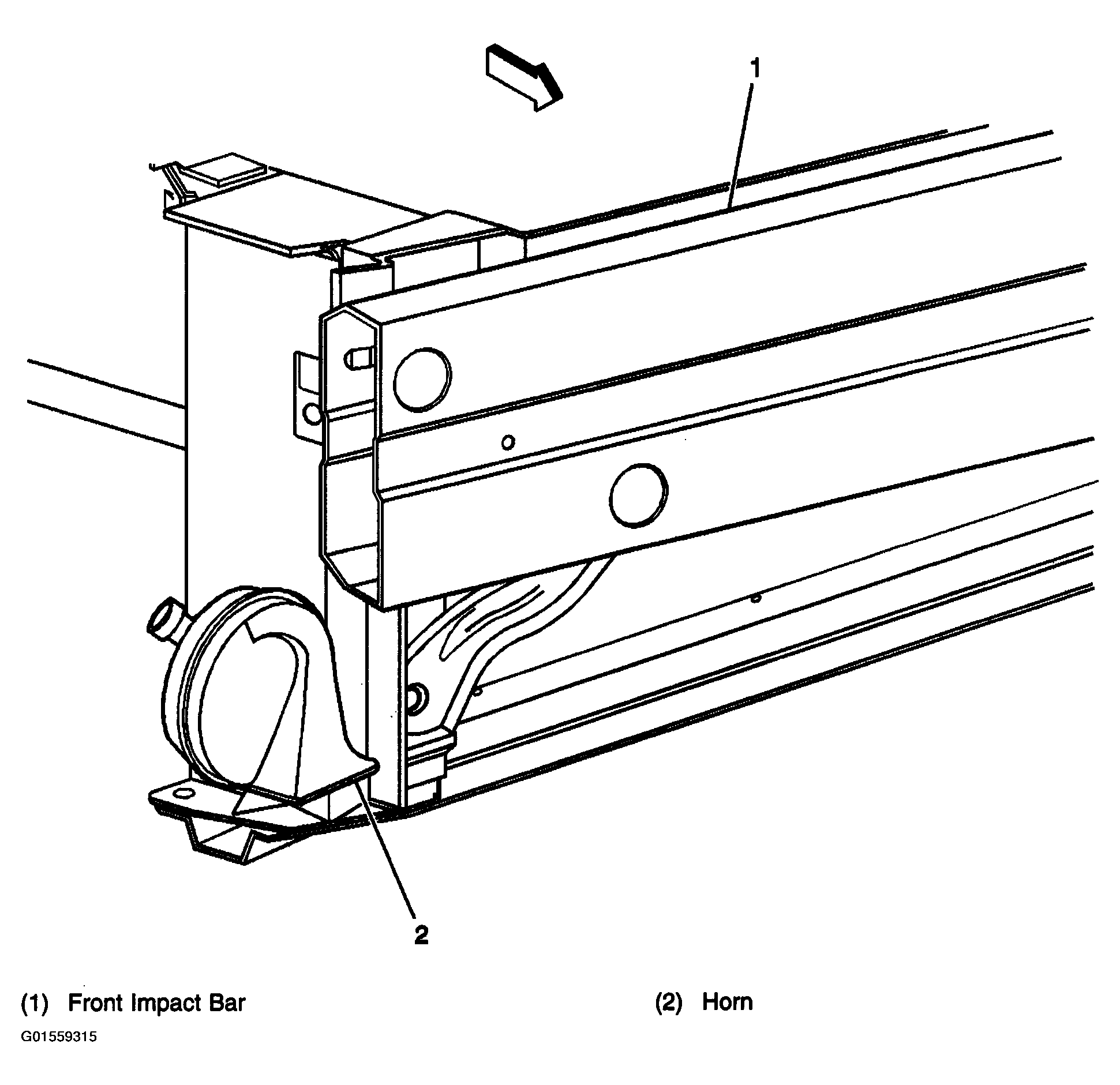

Fig 1: Identifying Horn
Courtesy of GENERAL MOTORS CORP.

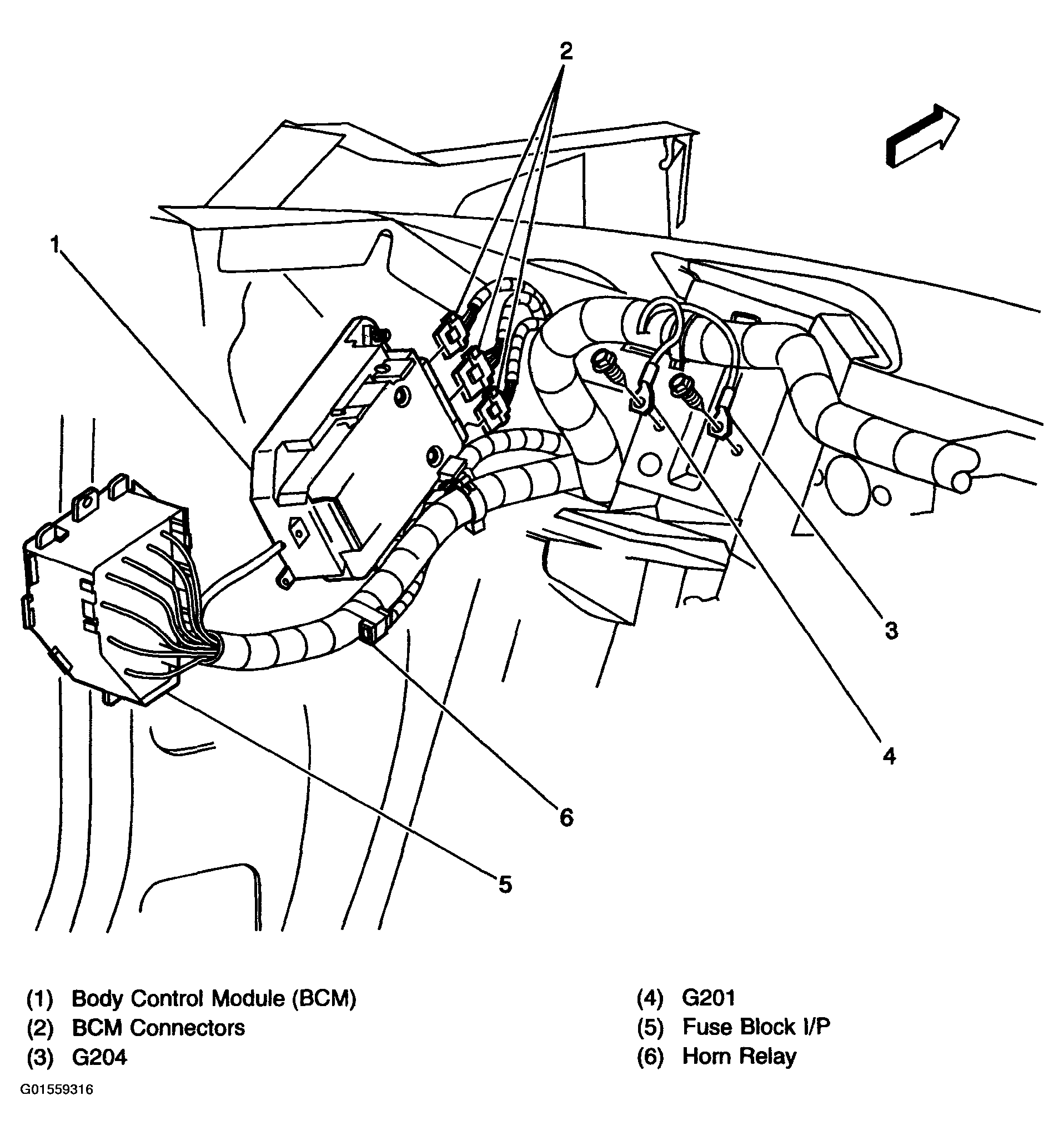

Fig 2: Identifying Behind Left Side Of Instrument Panel
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
