Disassembled Views

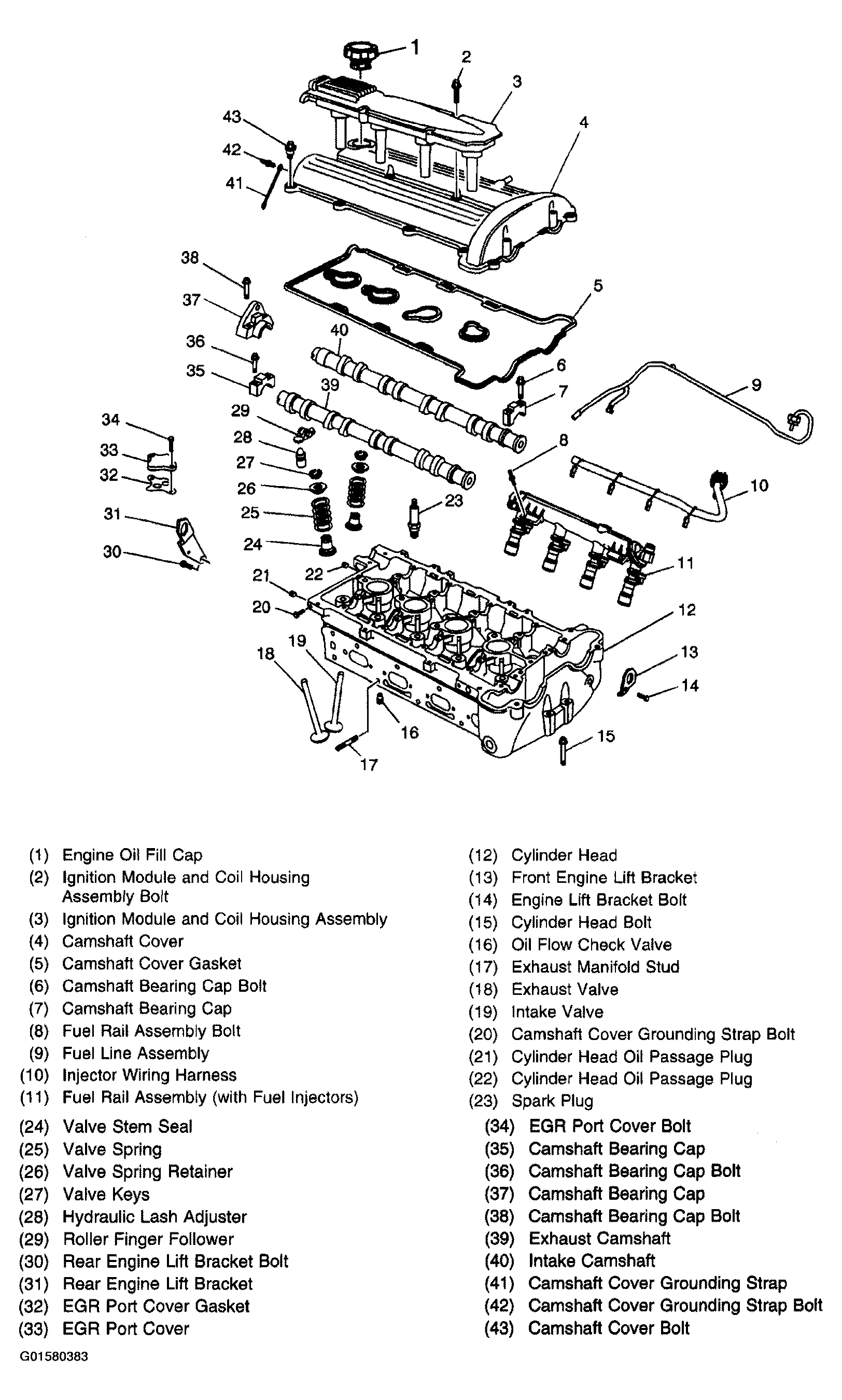

Fig 1: Cylinder Head and Components
G01580383Courtesy of GENERAL MOTORS CORP.

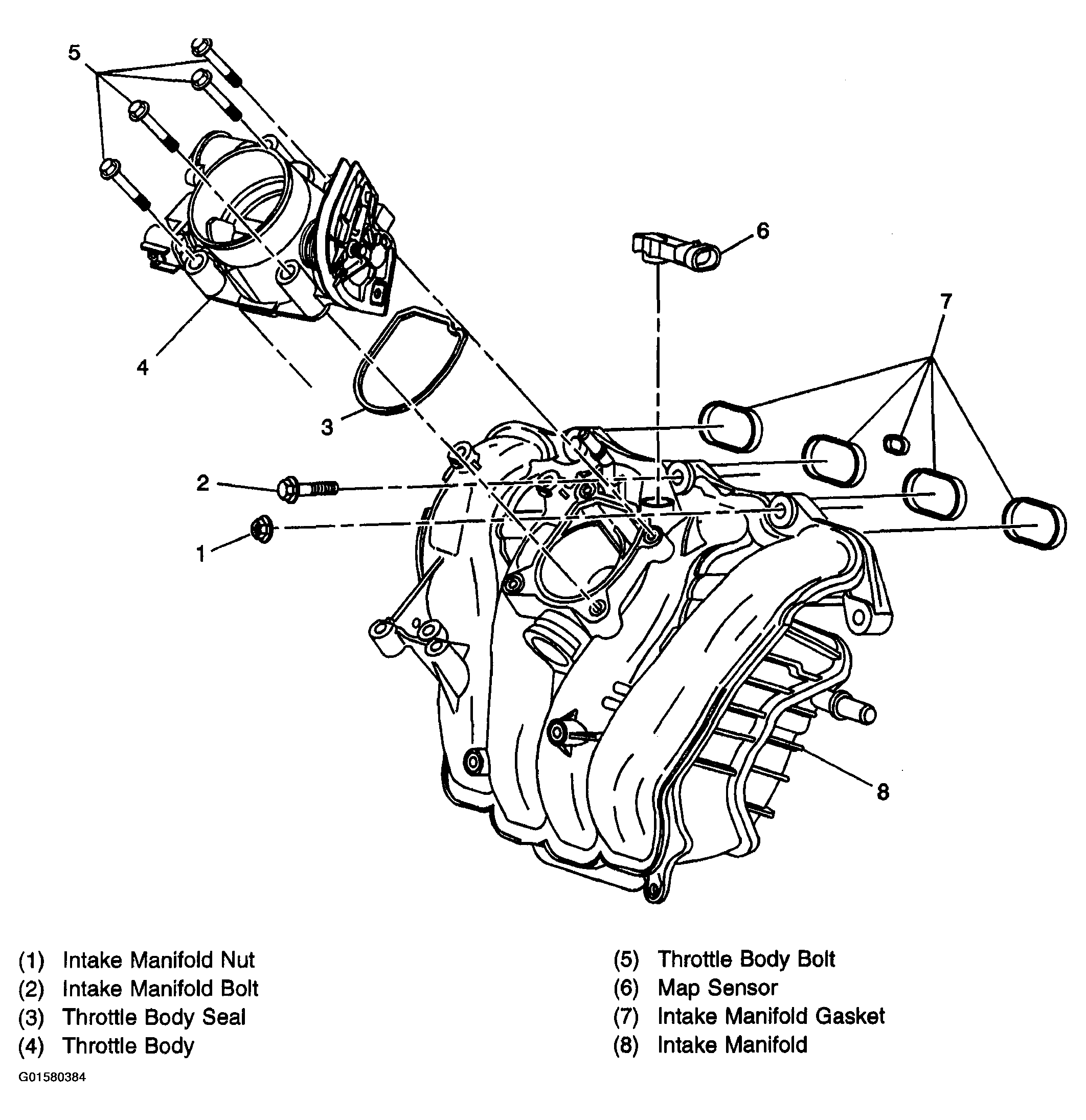

Fig 2: Intake Manifold and Components
G01580384Courtesy of GENERAL MOTORS CORP.

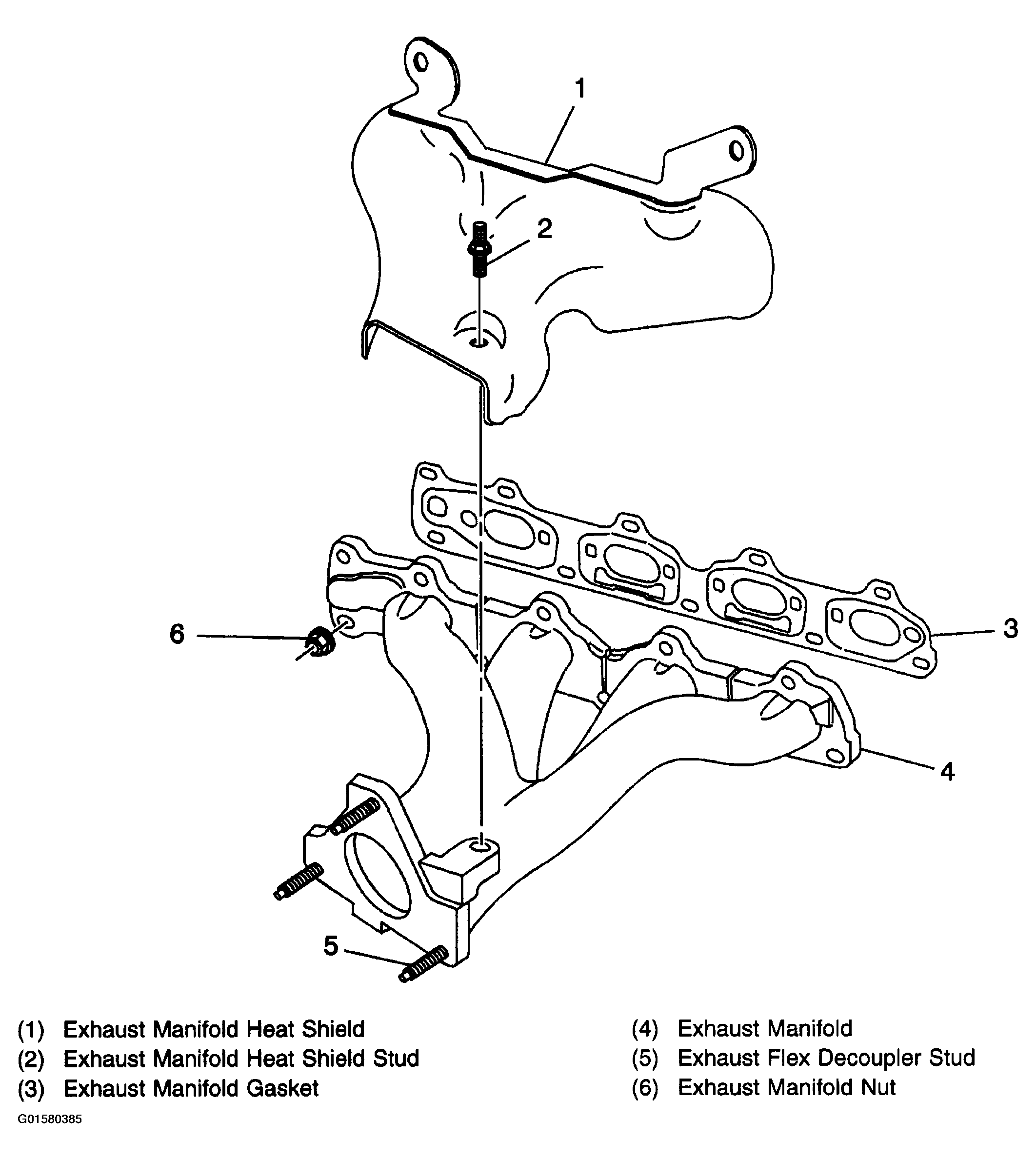

Fig 3: Exhaust Manifold and Components
G01580385Courtesy of GENERAL MOTORS CORP.

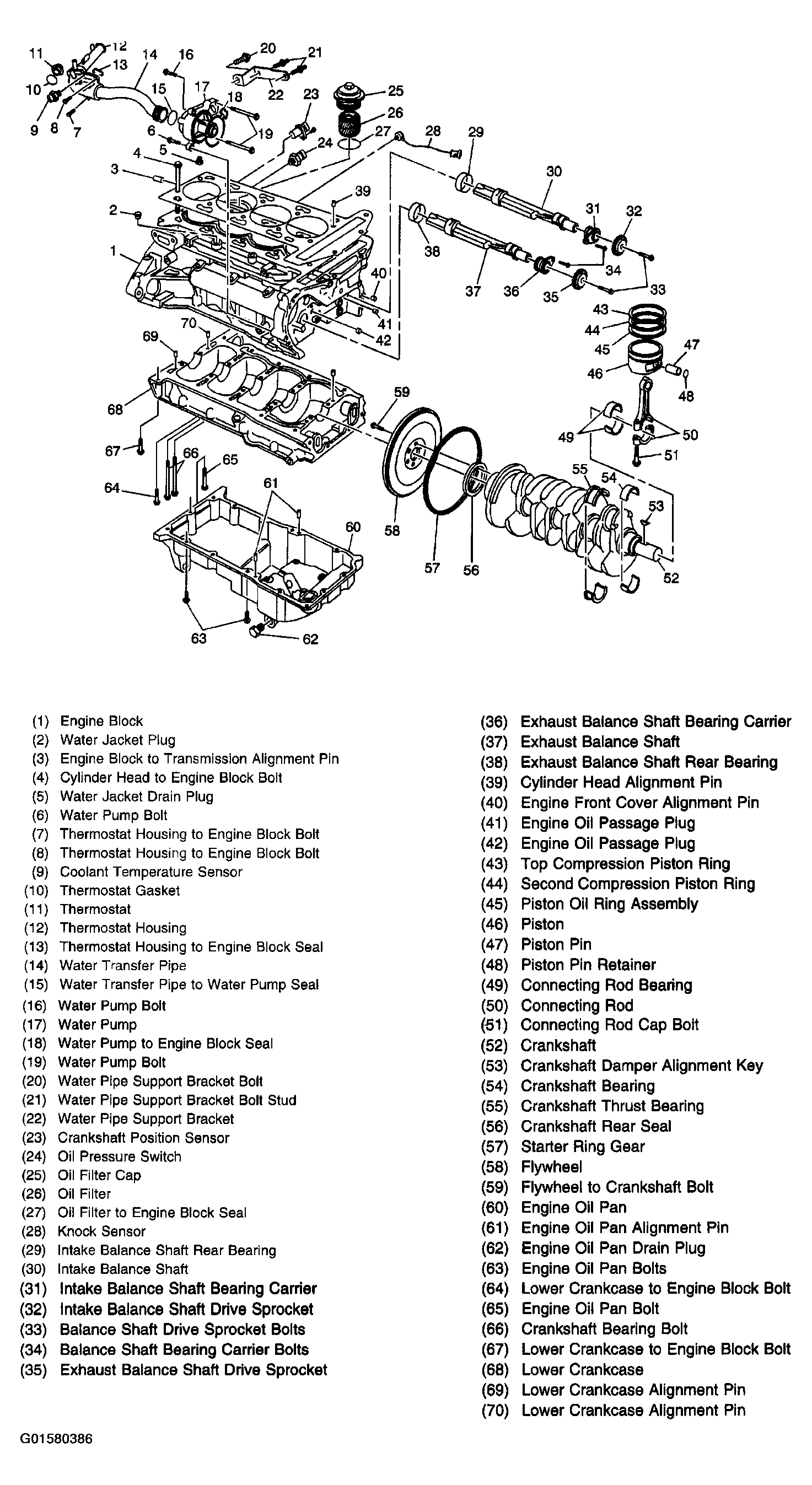

Fig 4: Engine Block and Components
G01580386Courtesy of GENERAL MOTORS CORP.

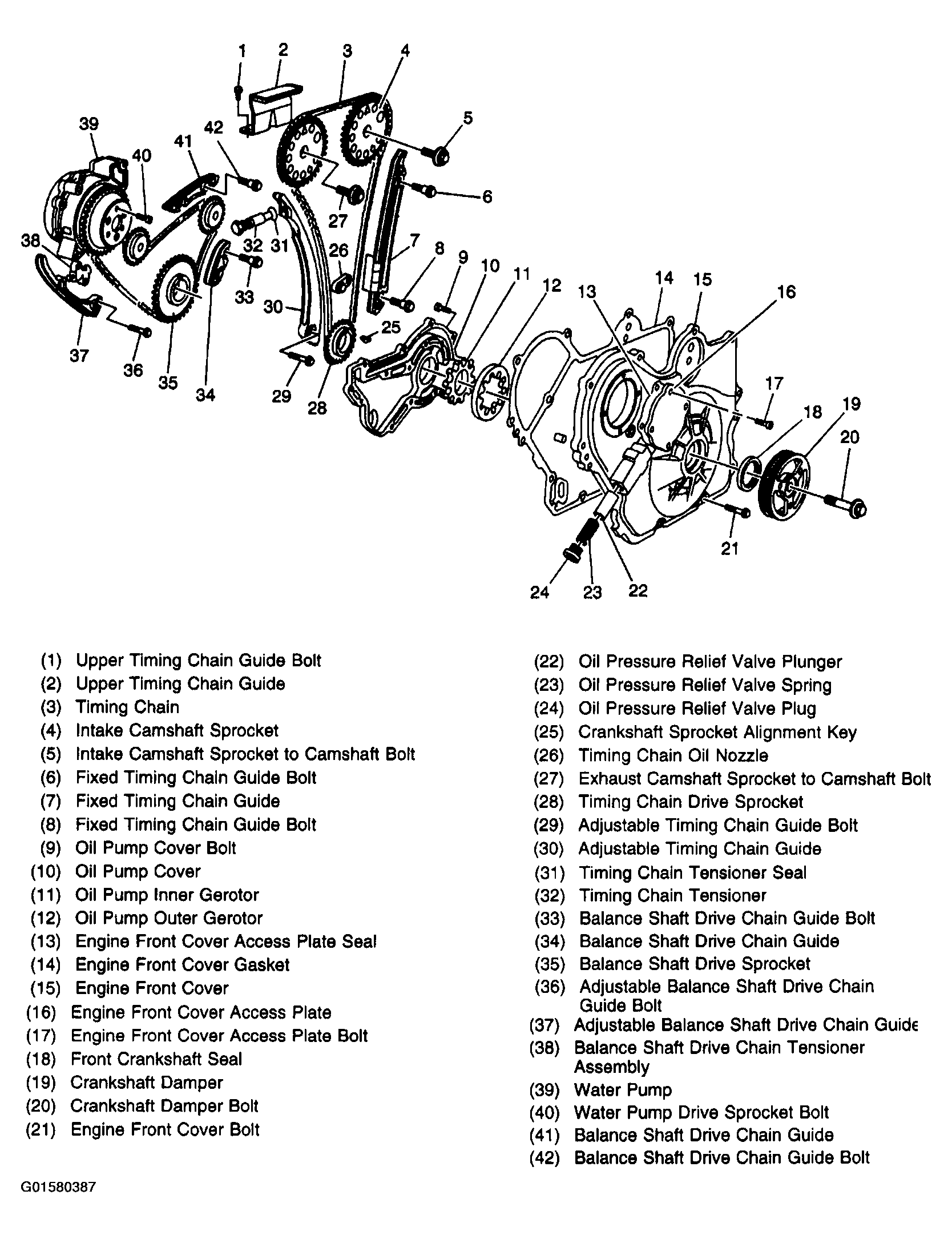

Fig 5: Timing Chain and Components
G01580387Courtesy of GENERAL MOTORS CORP.

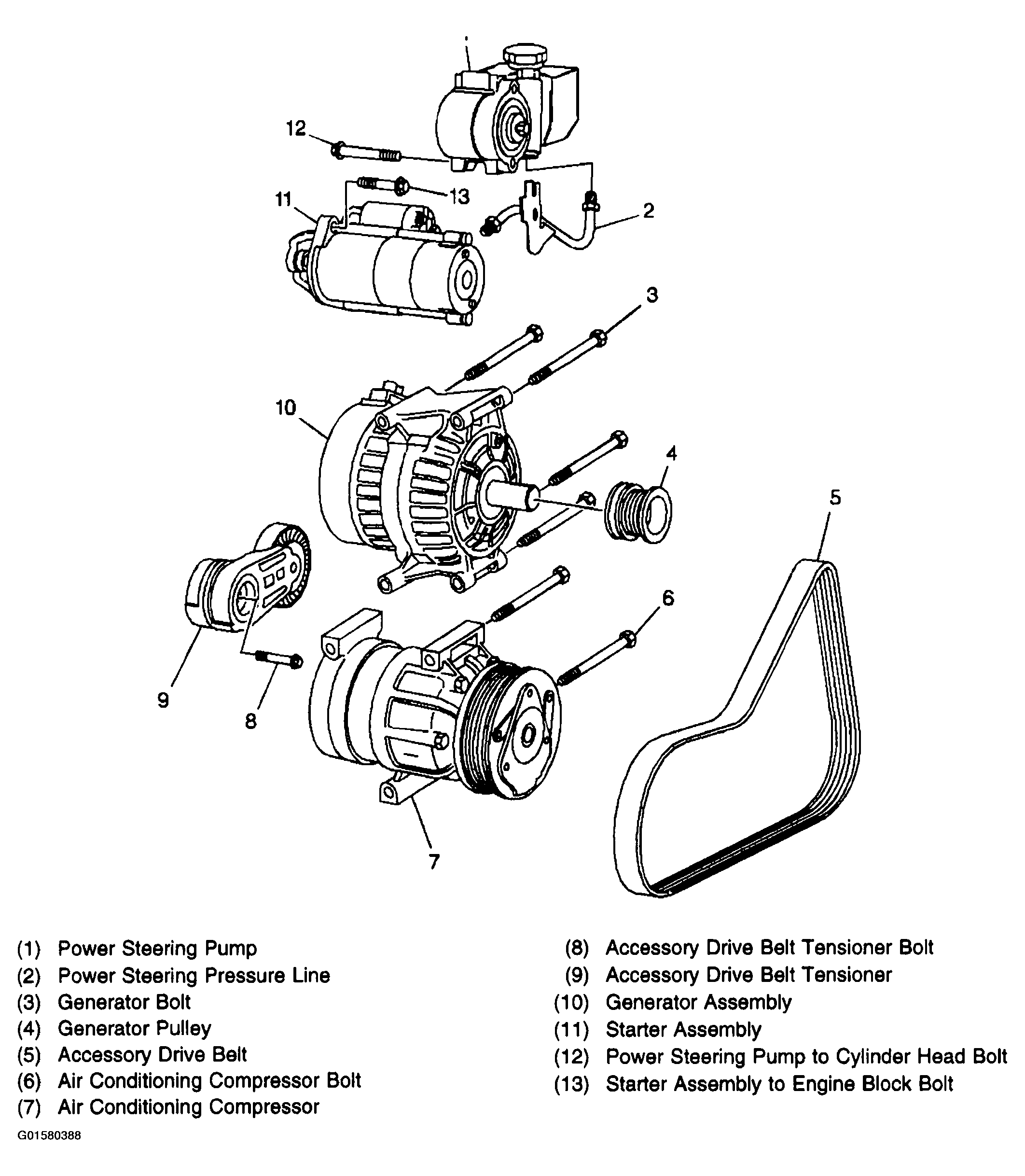

Fig 6: Accessory and Accessory Drive Components
G01580388Courtesy of GENERAL MOTORS CORP.
