Engine Mechanical - 2.2L
>>
Specifications
>>
Thread Repair Specifications
Thread Repair Specifications

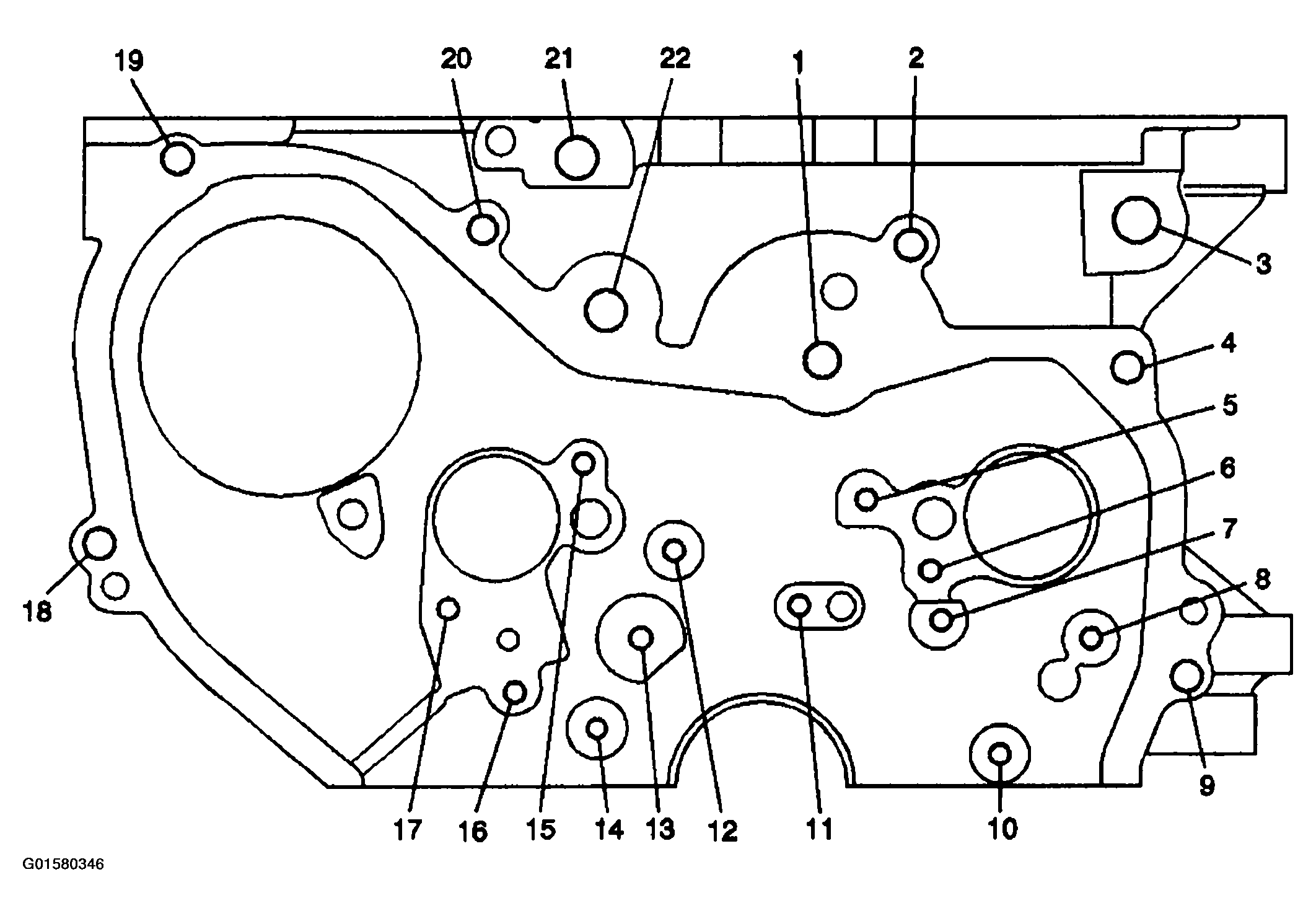

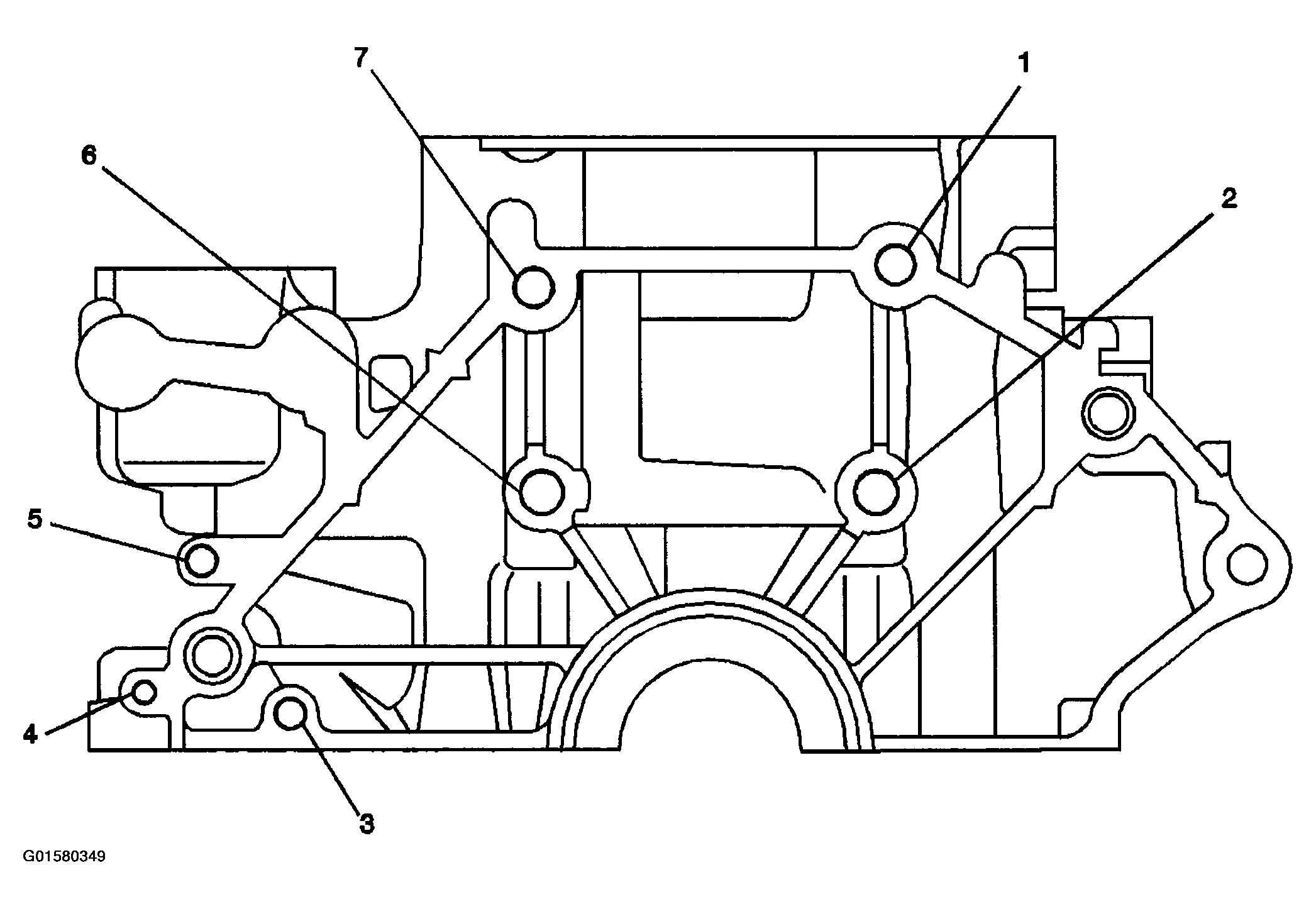

Fig 1: Engine Block - Front View
Courtesy of GENERAL MOTORS CORP.

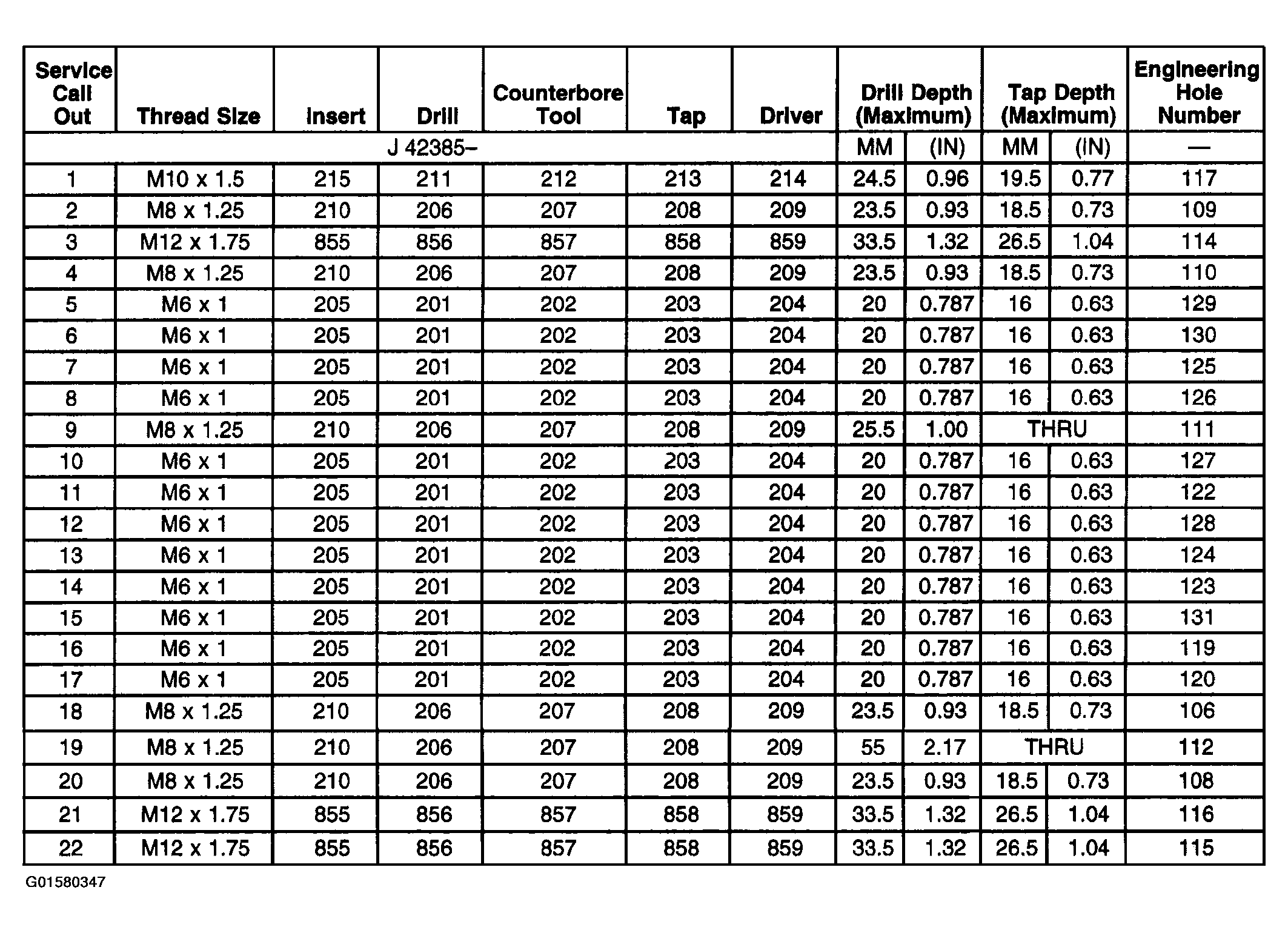

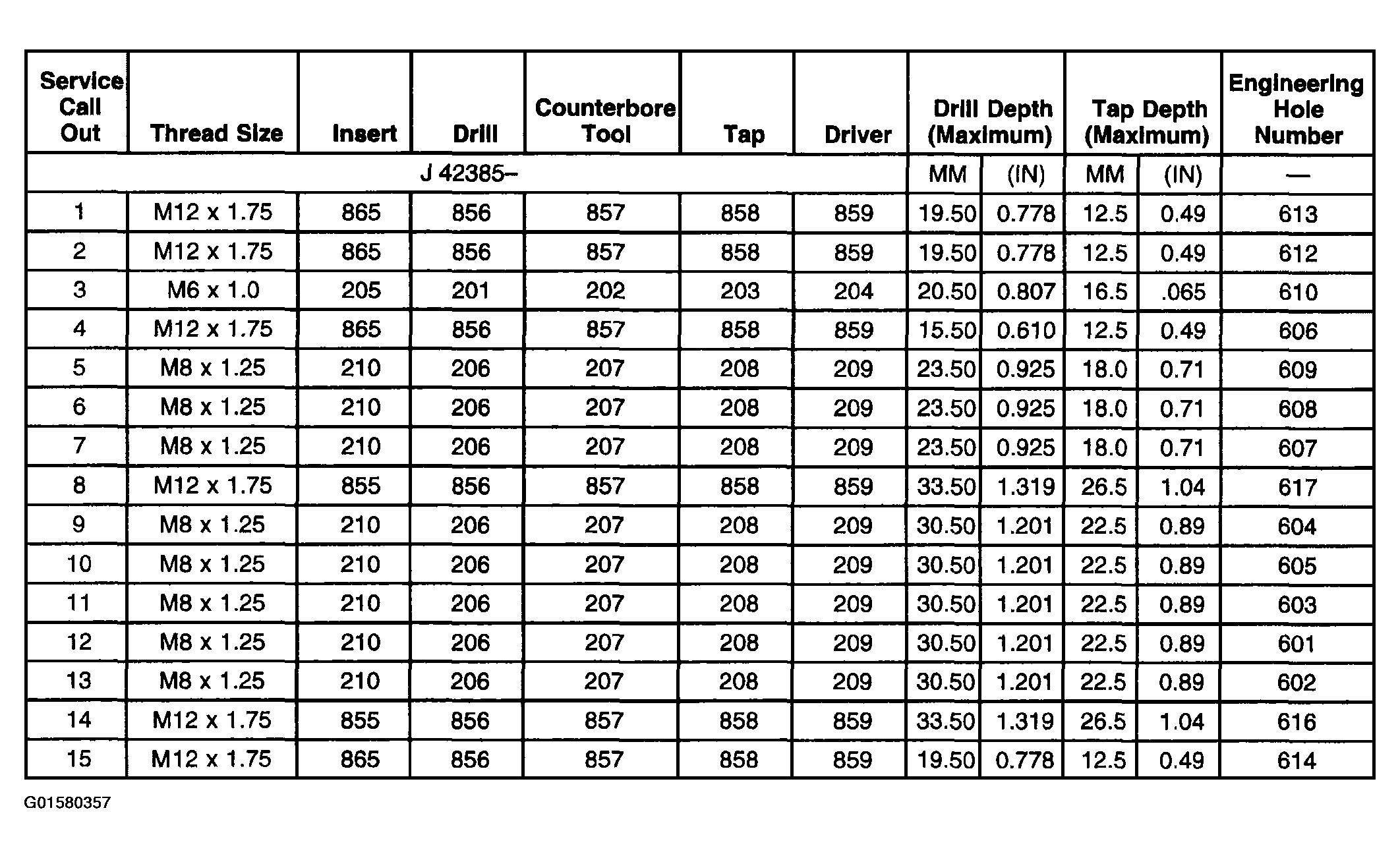

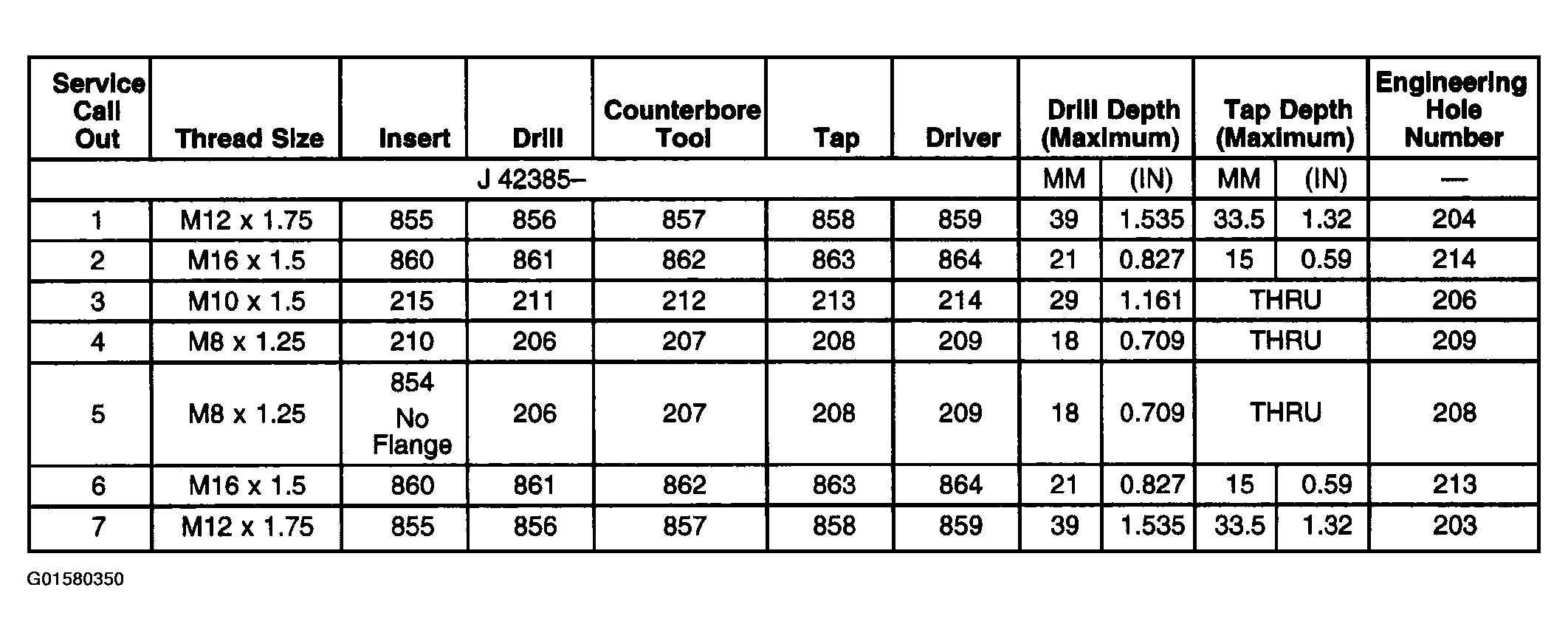

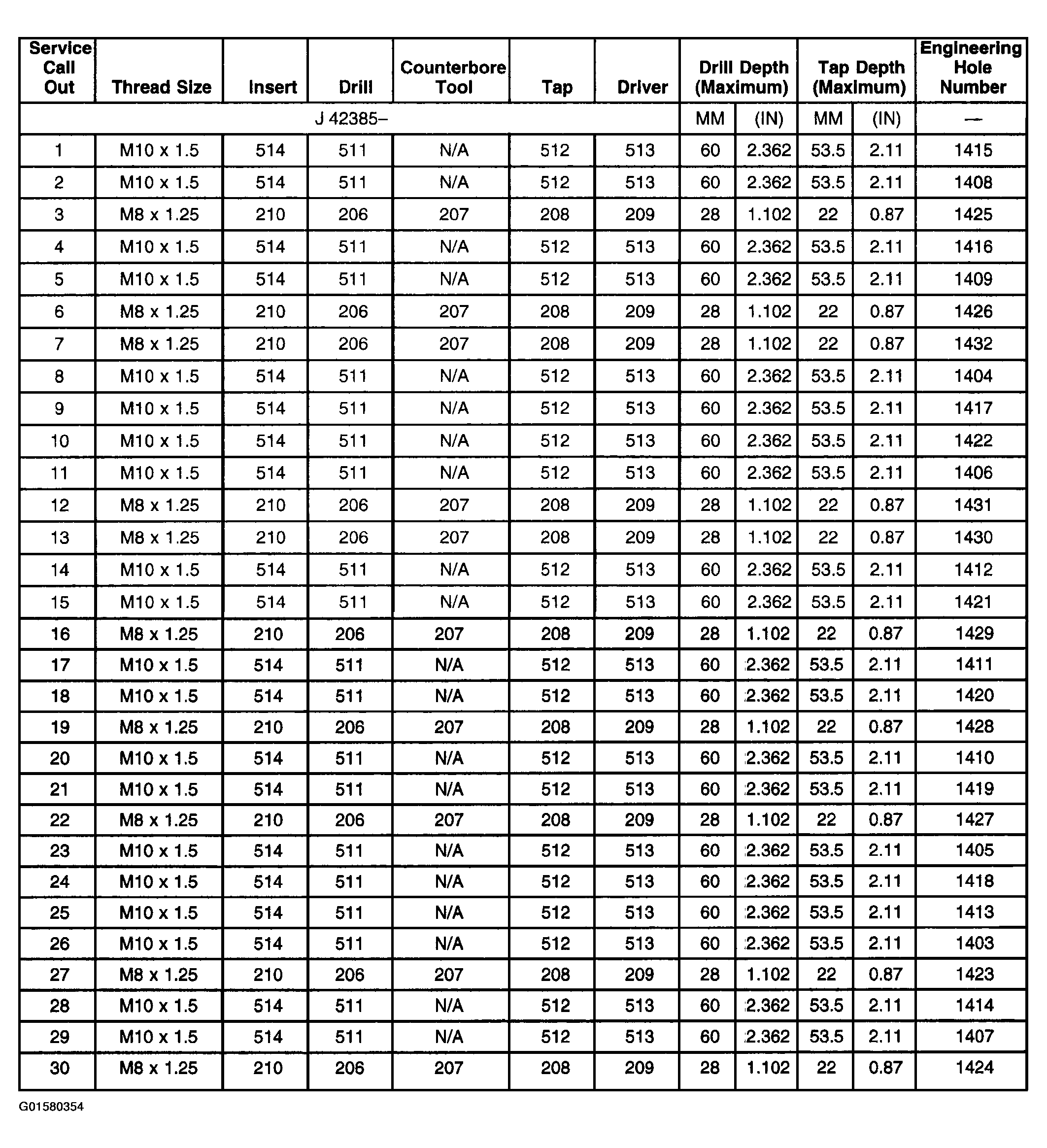

Fig 2: Engine Block - Front - Repair Specifications
Courtesy of GENERAL MOTORS CORP.

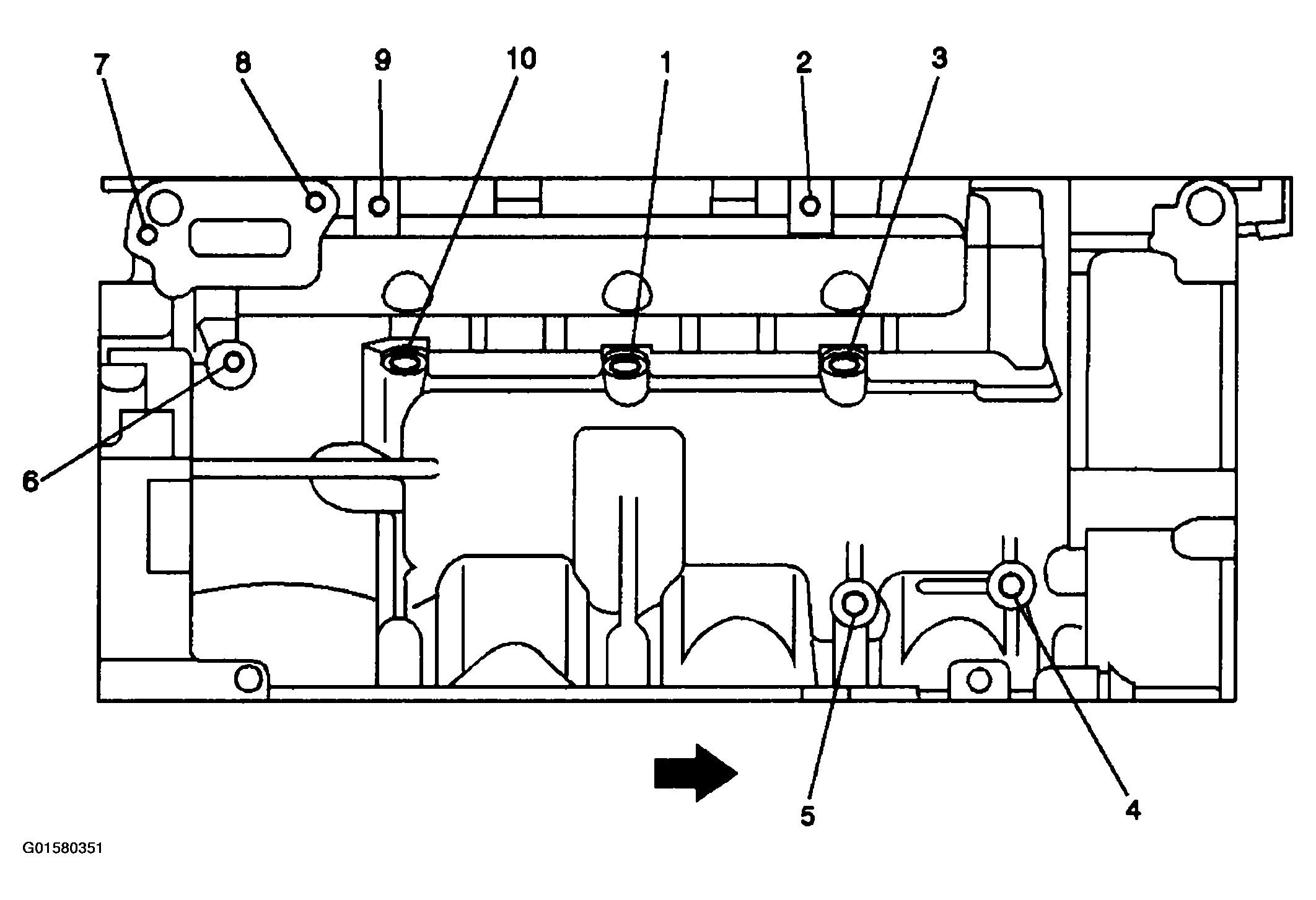

Fig 3: Engine Block - Back View
Courtesy of GENERAL MOTORS CORP.

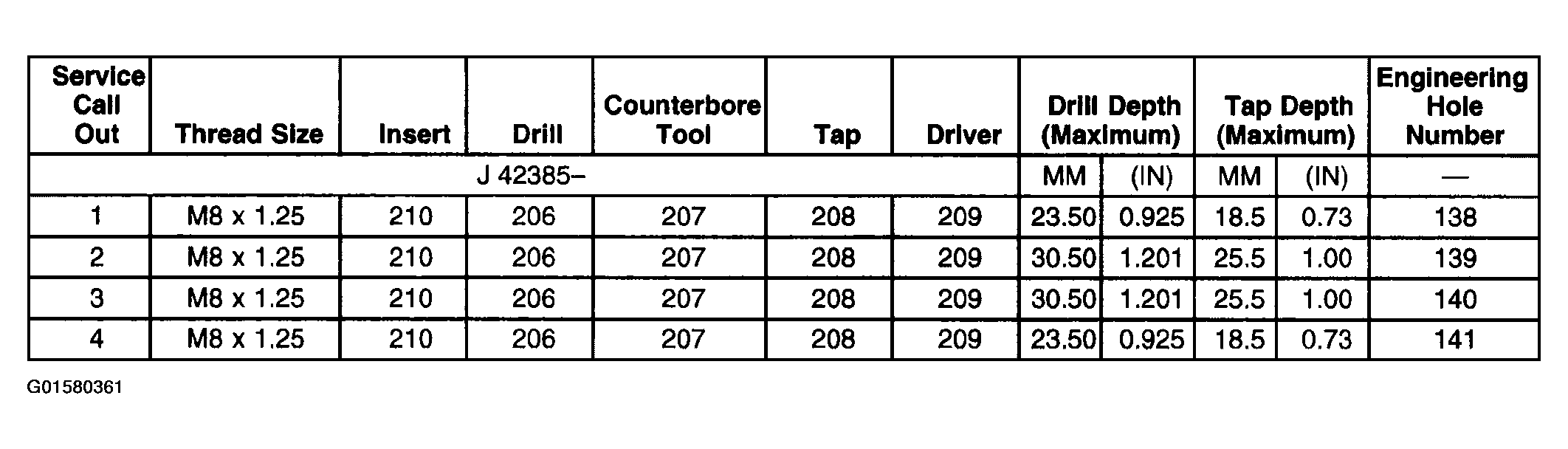

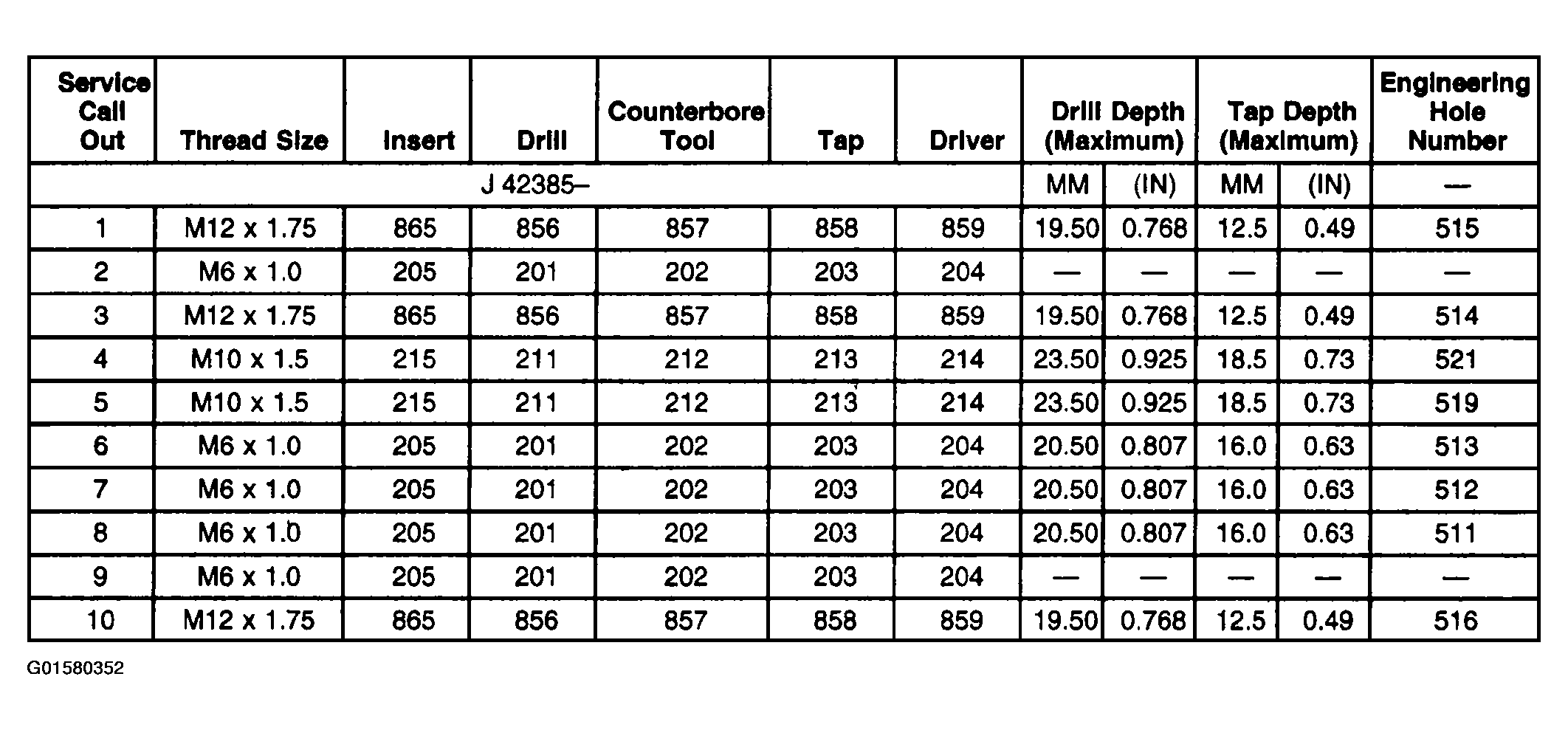

Fig 4: Engine Block - Back View - Repair Specifications
Courtesy of GENERAL MOTORS CORP.

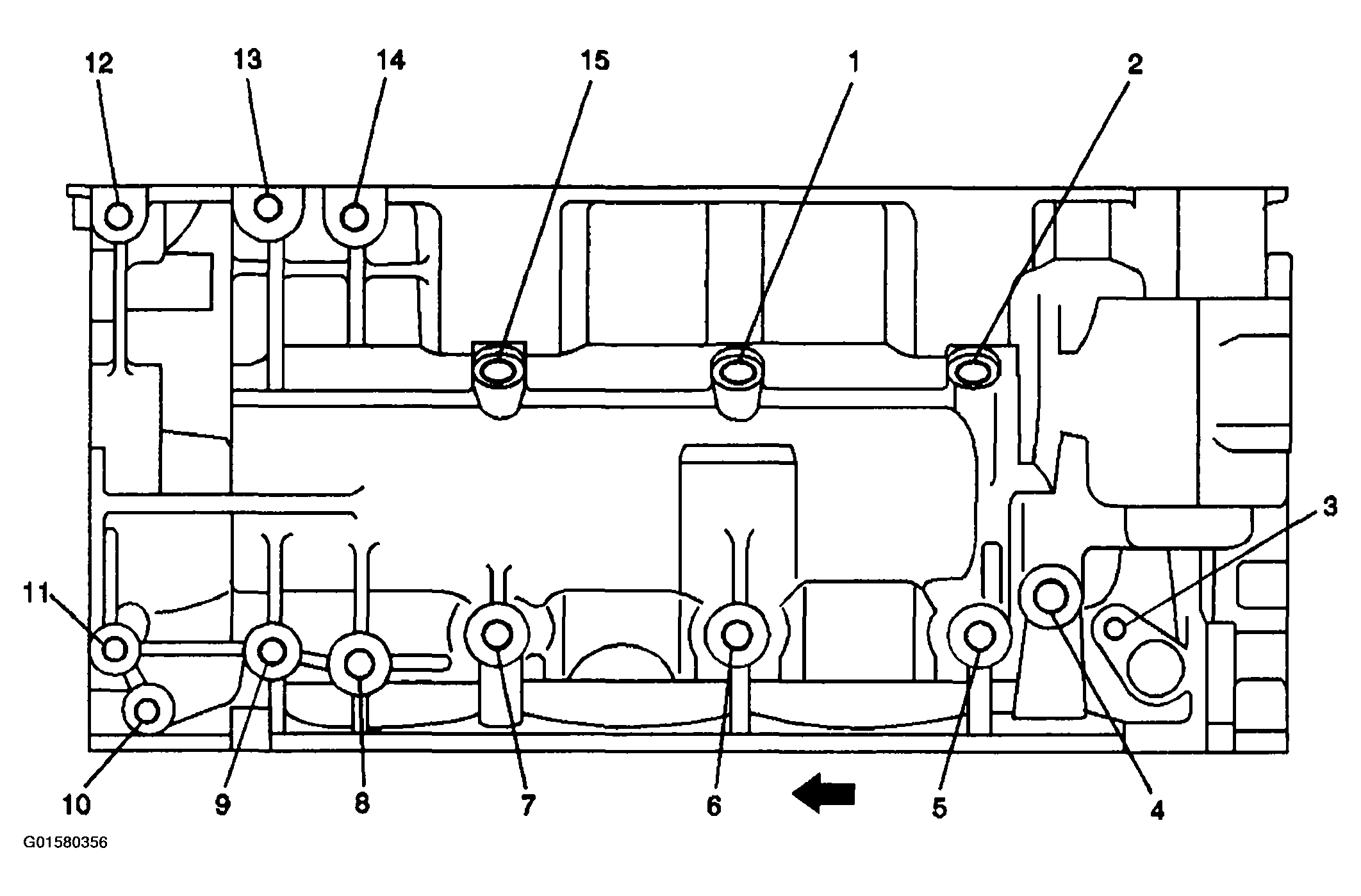

Fig 5: Engine Block - Left Side View
Courtesy of GENERAL MOTORS CORP.

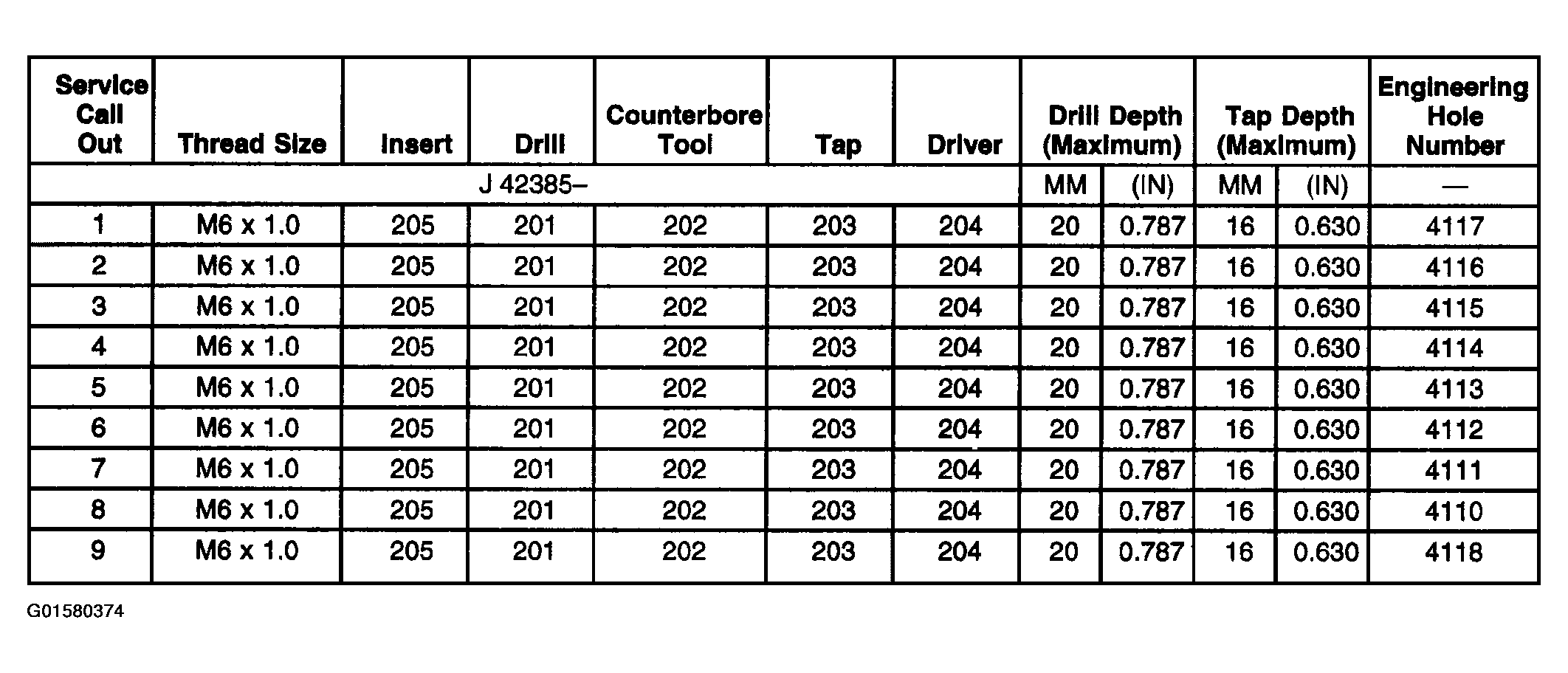

Fig 6: Engine Block - Left Side View - Repair Specifications
Courtesy of GENERAL MOTORS CORP.
Fig 7: Engine Block - Bottom View
Courtesy of GENERAL MOTORS CORP.

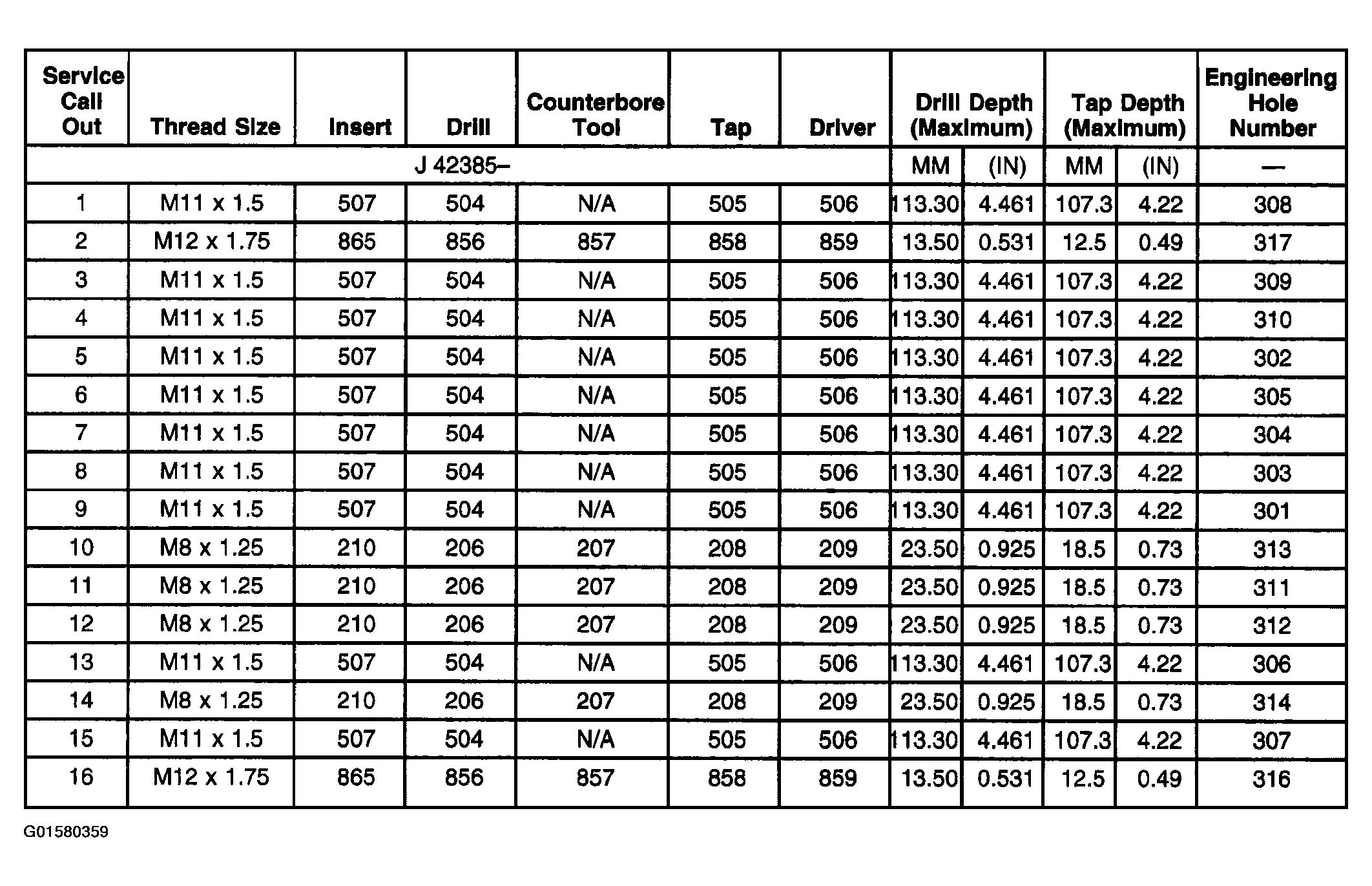

Fig 8: Engine Block - Bottom View - Repair Specifications
Courtesy of GENERAL MOTORS CORP.
Fig 9: Engine Block - Right Side View
Courtesy of GENERAL MOTORS CORP.
Fig 10: Engine Block - Right Side View - Repair Specifications
Courtesy of GENERAL MOTORS CORP.

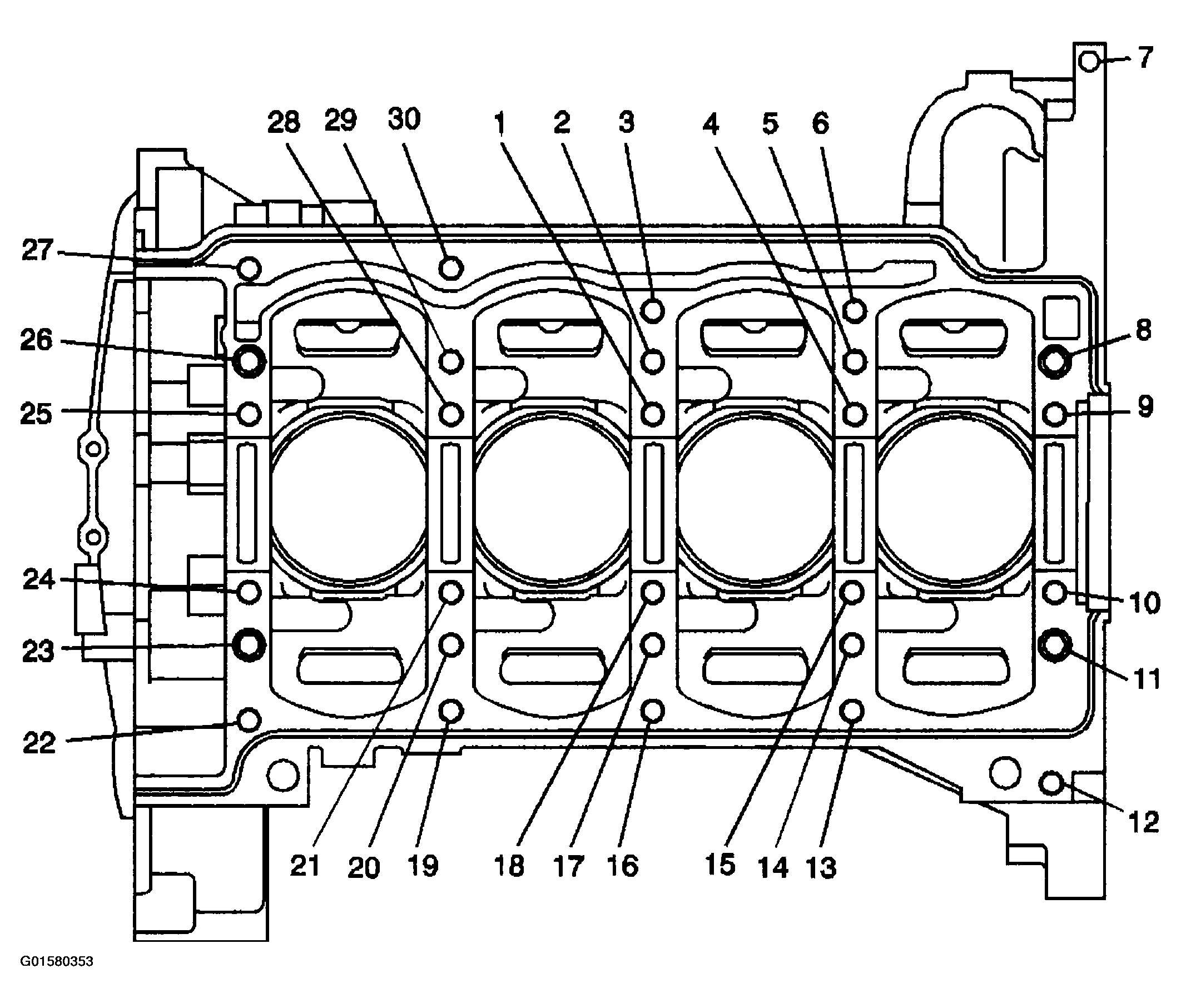

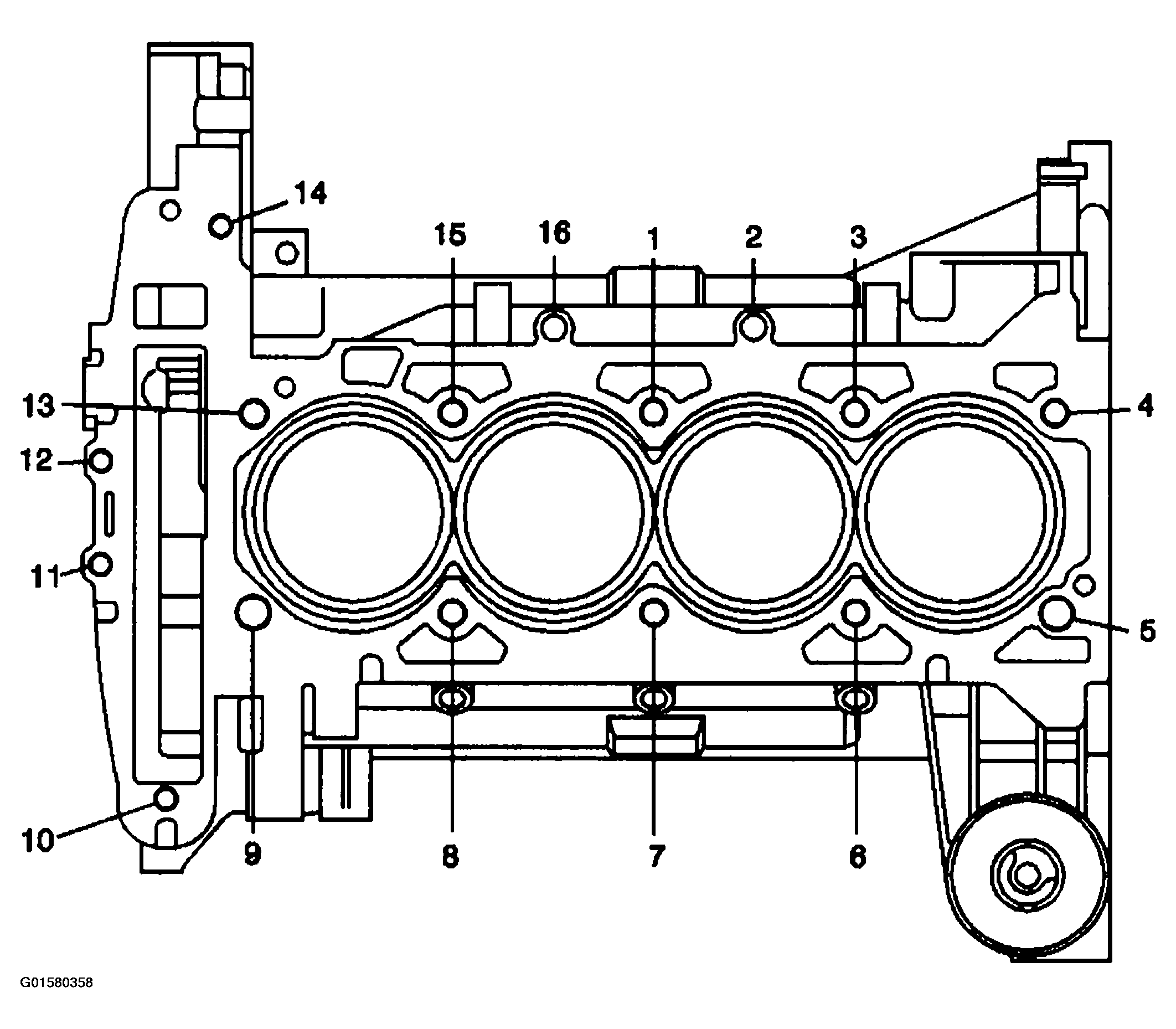

Fig 11: Engine Block - Top View
Courtesy of GENERAL MOTORS CORP.

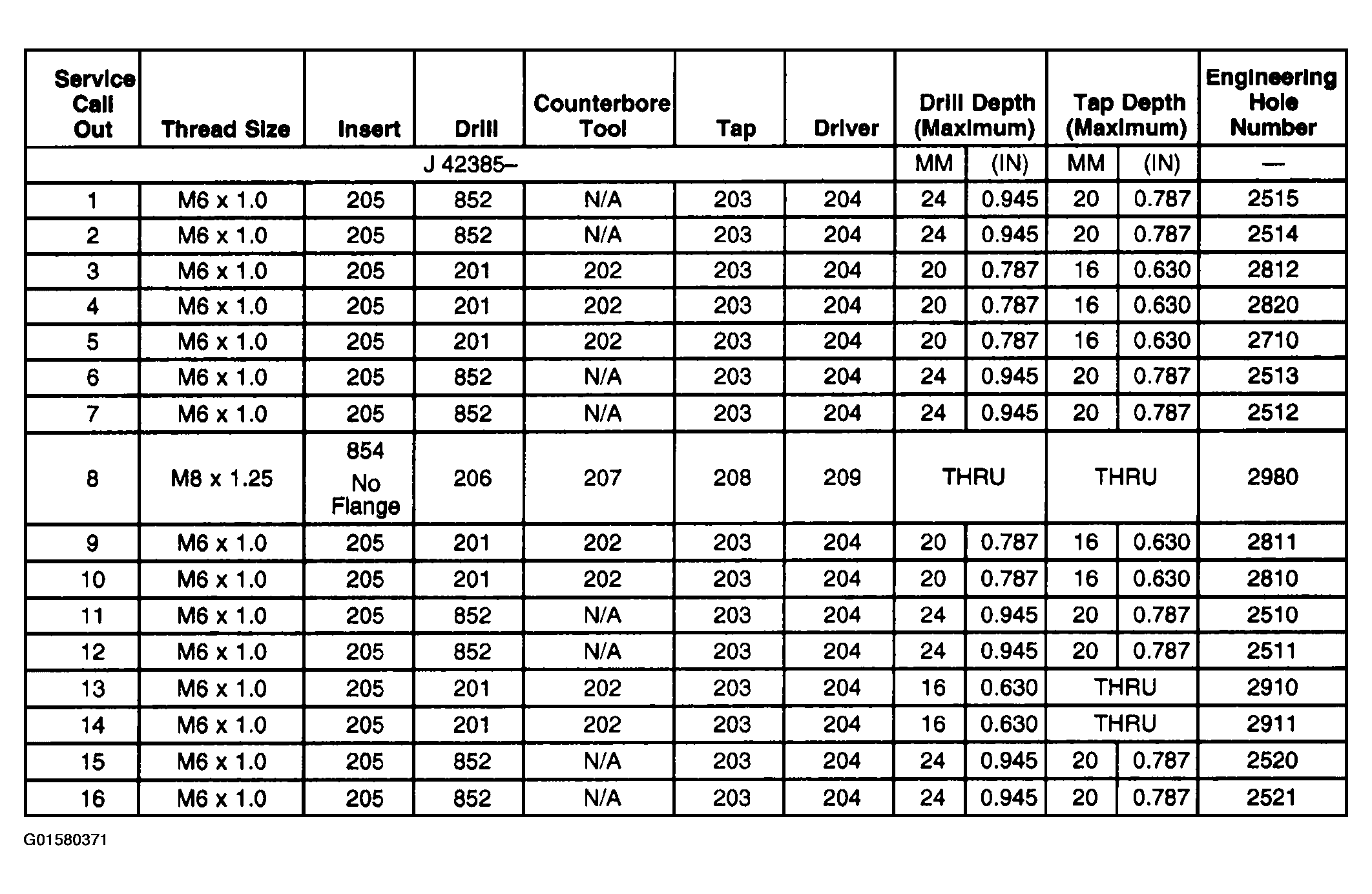

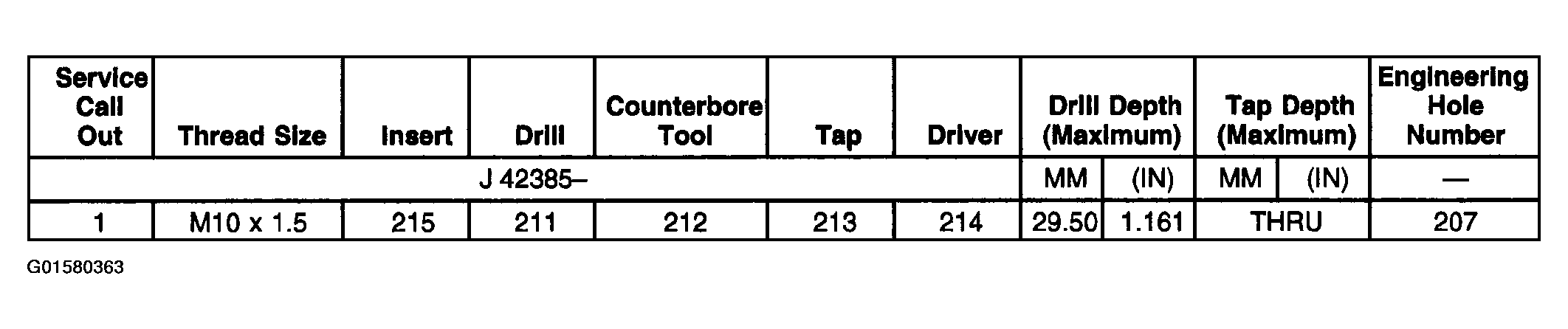

Fig 12: Engine Block - Top View - Repair Specifications
Courtesy of GENERAL MOTORS CORP.

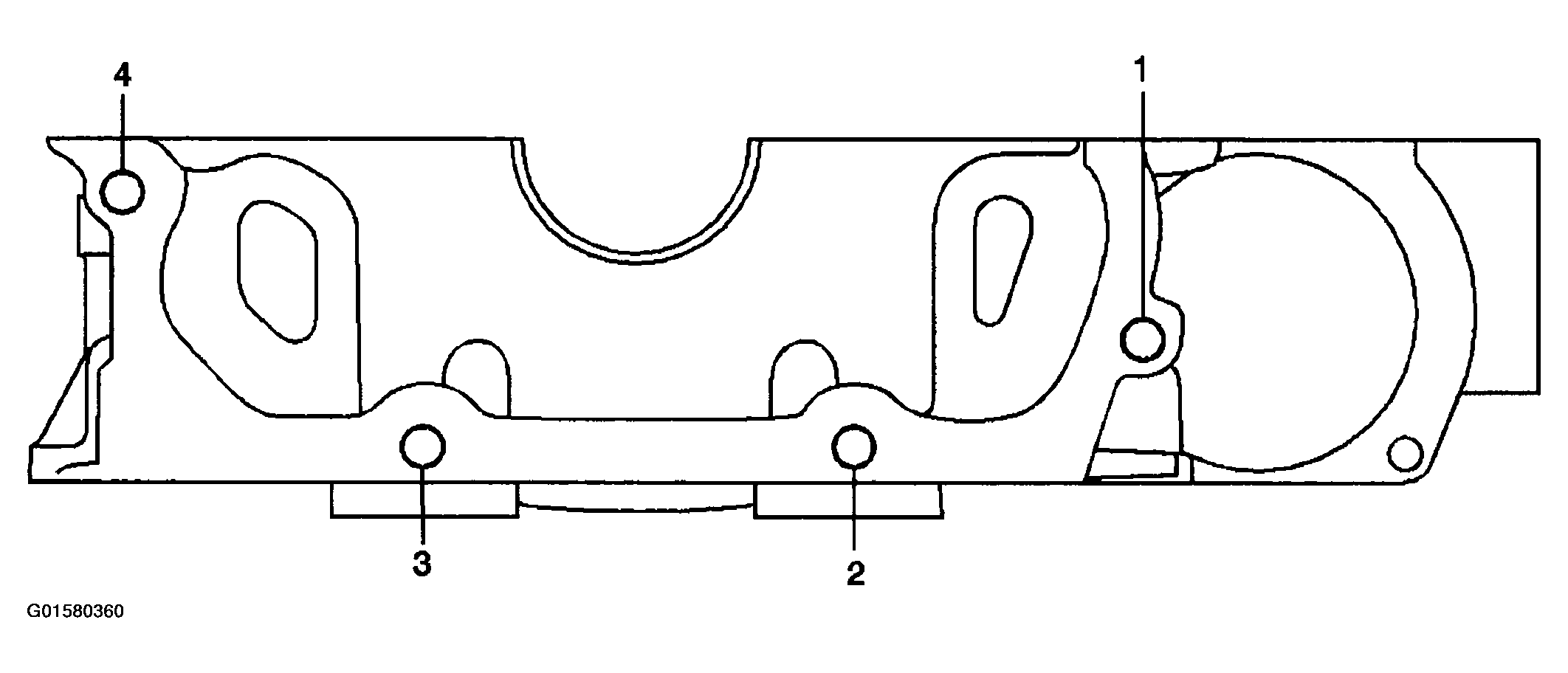

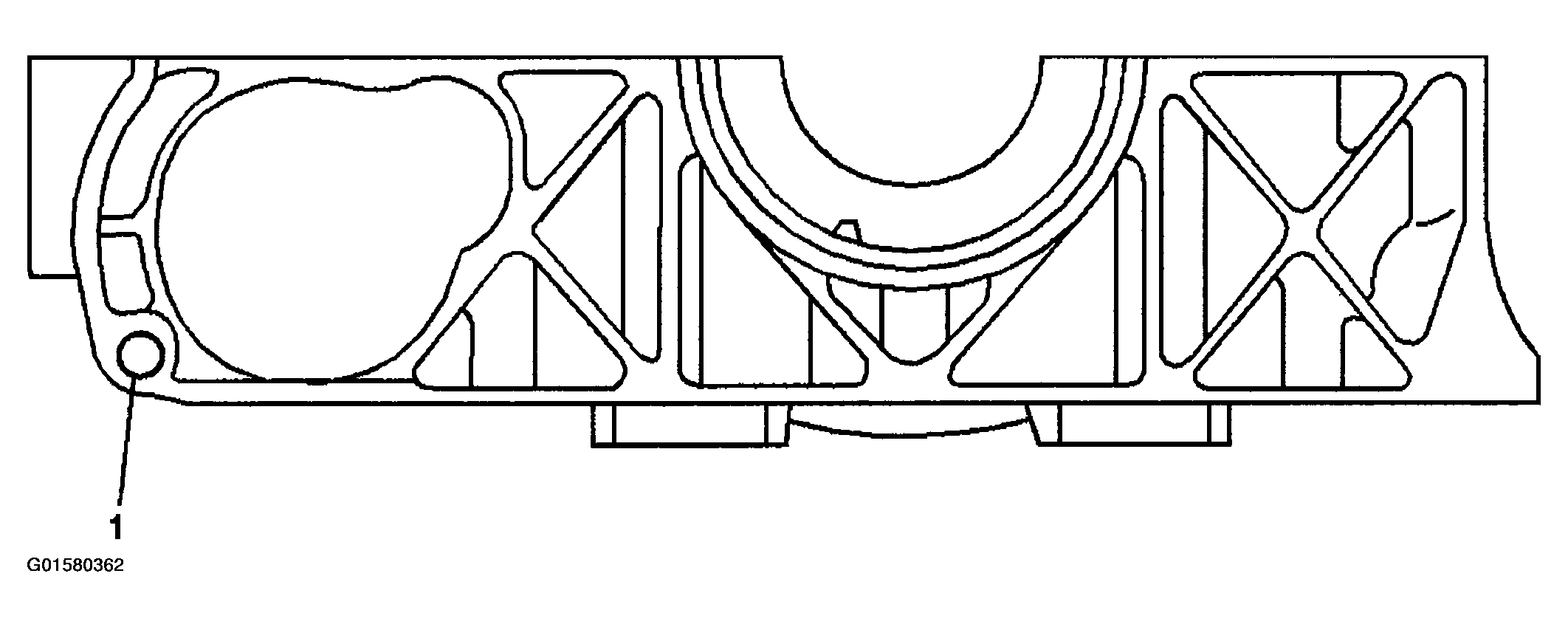

Fig 13: Lower Crankcase - Front View
Courtesy of GENERAL MOTORS CORP.
Fig 14: Lower Crankcase - Front View - Repair Specifications
Courtesy of GENERAL MOTORS CORP.
Fig 15: Lower Crankcase - Back View
Courtesy of GENERAL MOTORS CORP.
Fig 16: Lower Crankcase - Back View - Repair Specifications
Courtesy of GENERAL MOTORS CORP.

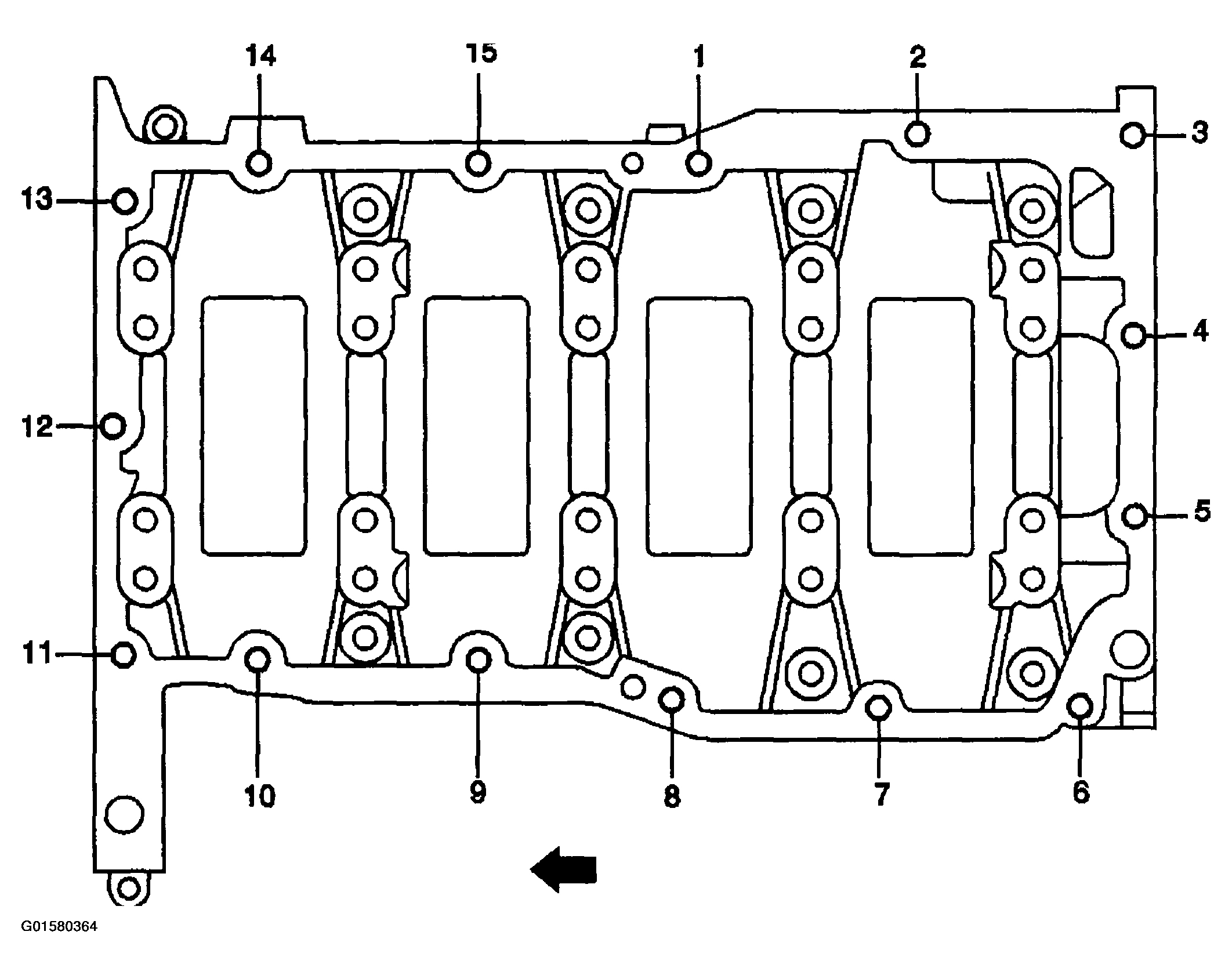

Fig 17: Lower Crankcase - Bottom View
Courtesy of GENERAL MOTORS CORP.

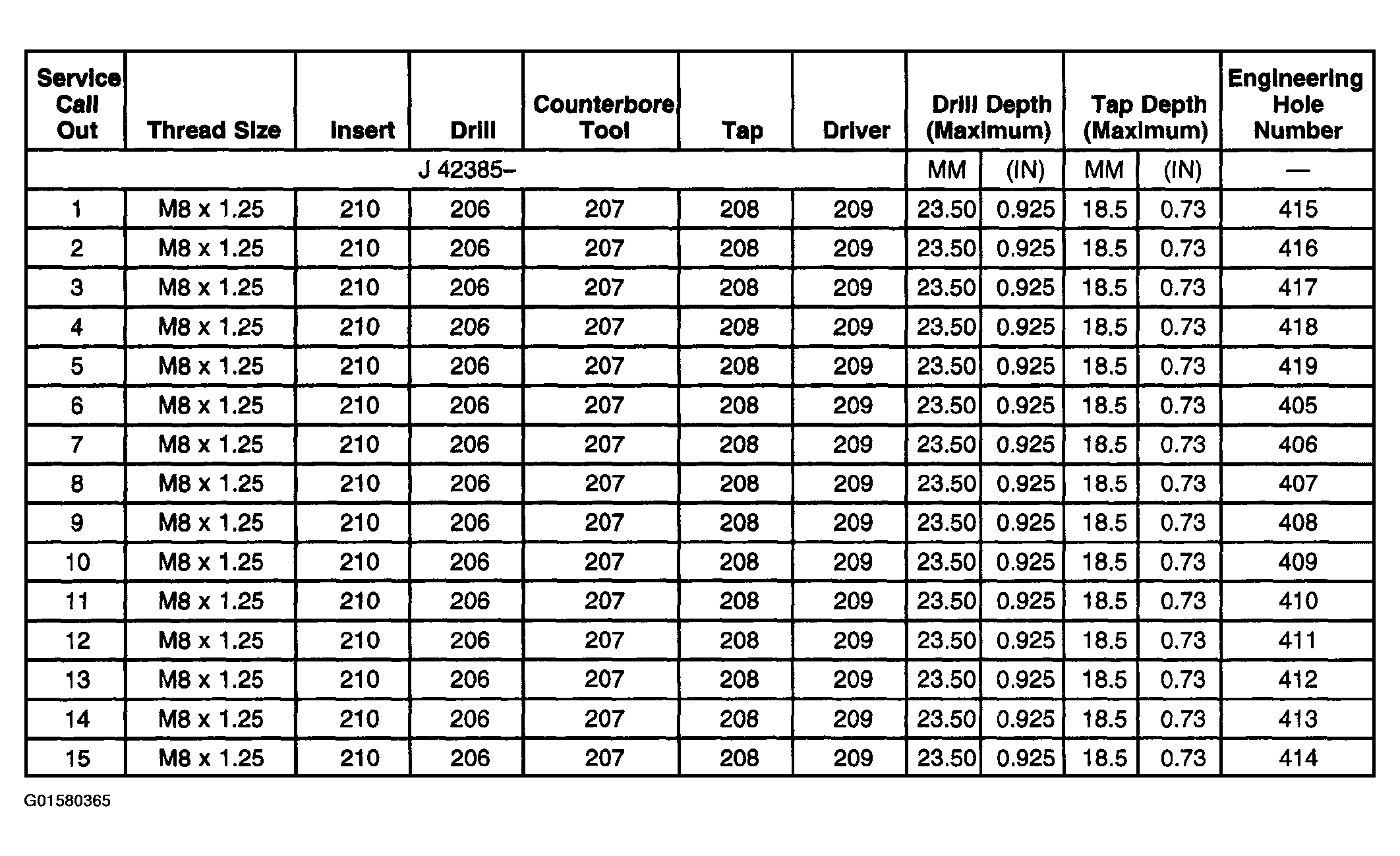

Fig 18: Lower Crankcase - Bottom View - Repair Specifications
Courtesy of GENERAL MOTORS CORP.

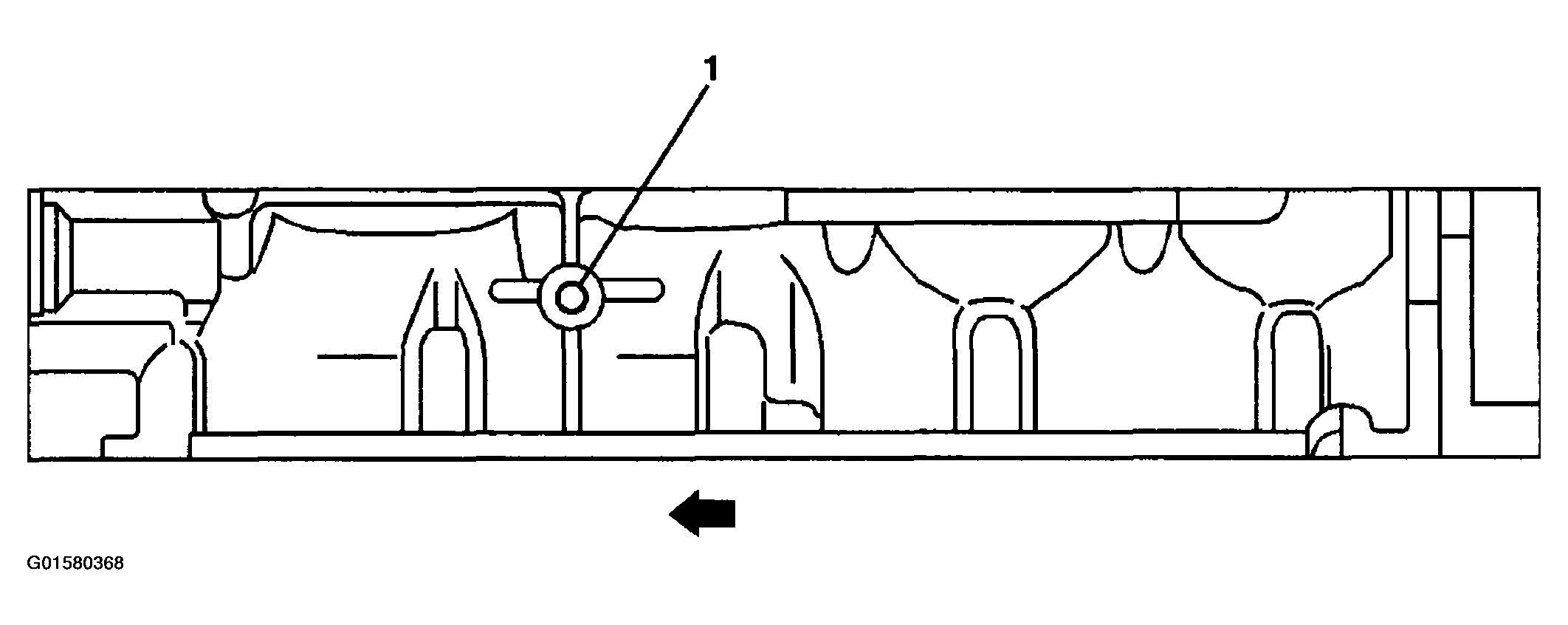

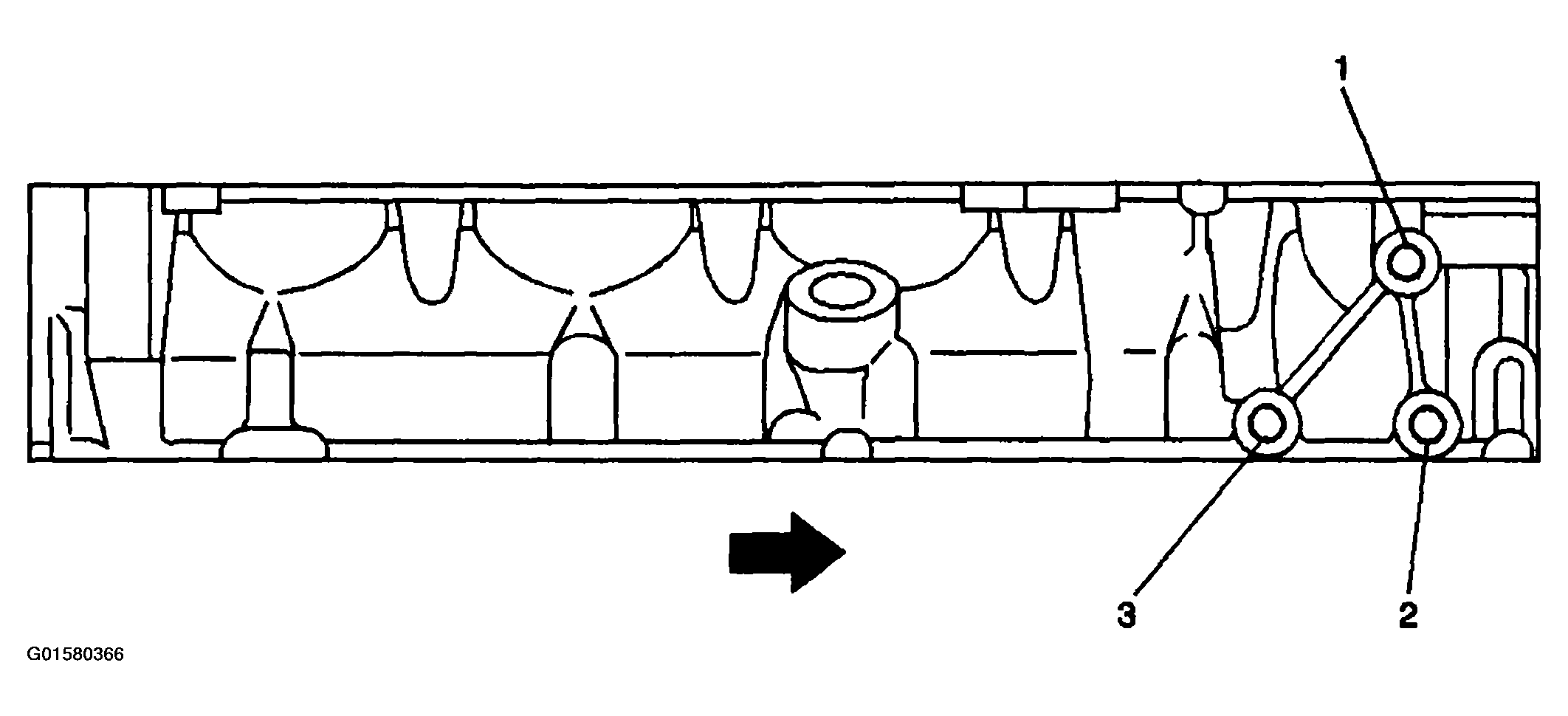

Fig 19: Lower Crankcase - Left View
Courtesy of GENERAL MOTORS CORP.

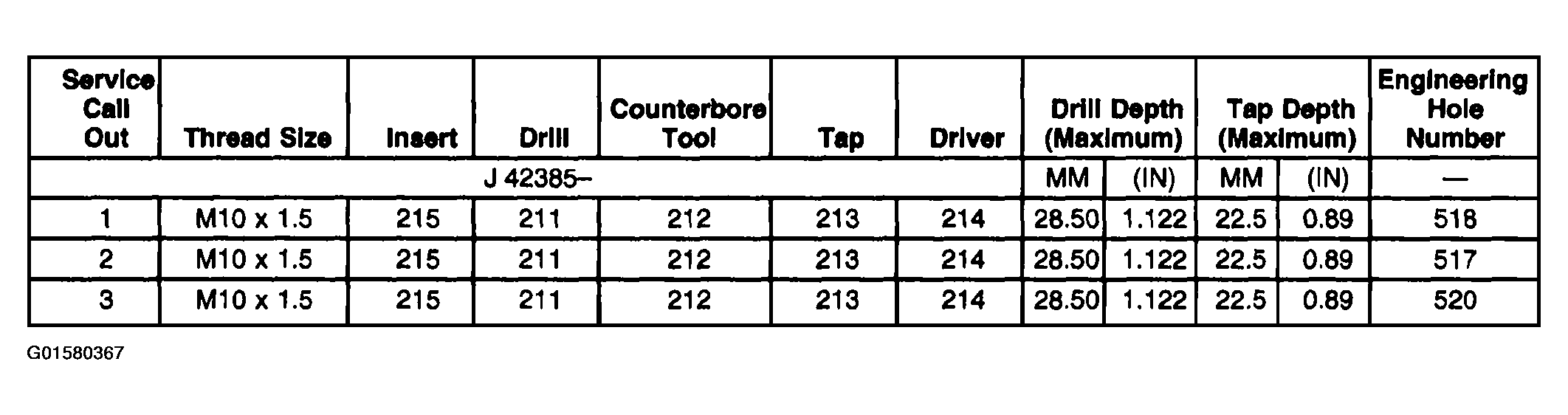

Fig 20: Lower Crankcase - Left View - Repair Specifications
Courtesy of GENERAL MOTORS CORP.
Fig 21: Lower Crankcase - Right View
Courtesy of GENERAL MOTORS CORP.

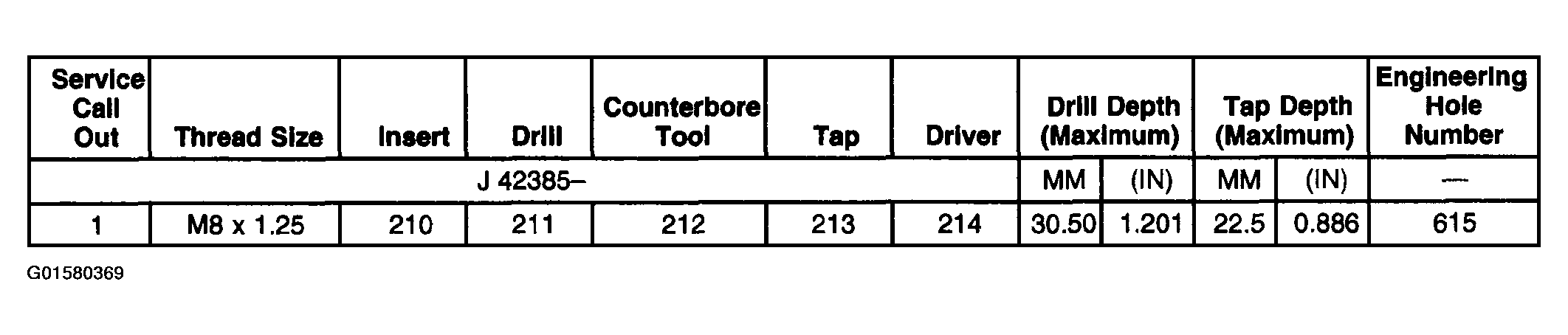

Fig 22: Lower Crankcase - Right View - Repair Specifications
Courtesy of GENERAL MOTORS CORP.

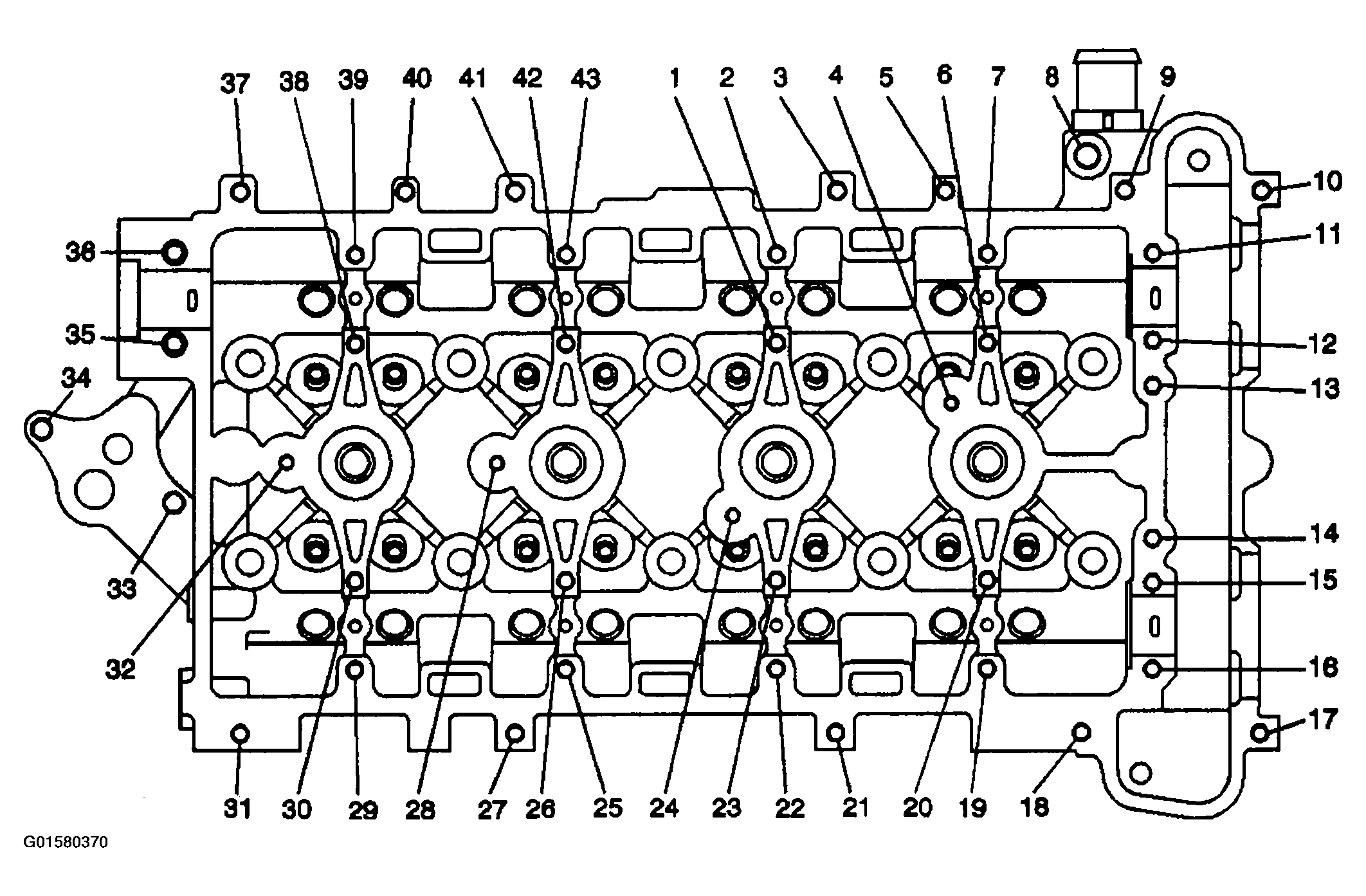

Fig 23: Cylinder Head - Top View
Courtesy of GENERAL MOTORS CORP.
Fig 24: Cylinder Head - Top View - Repair Specifications (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

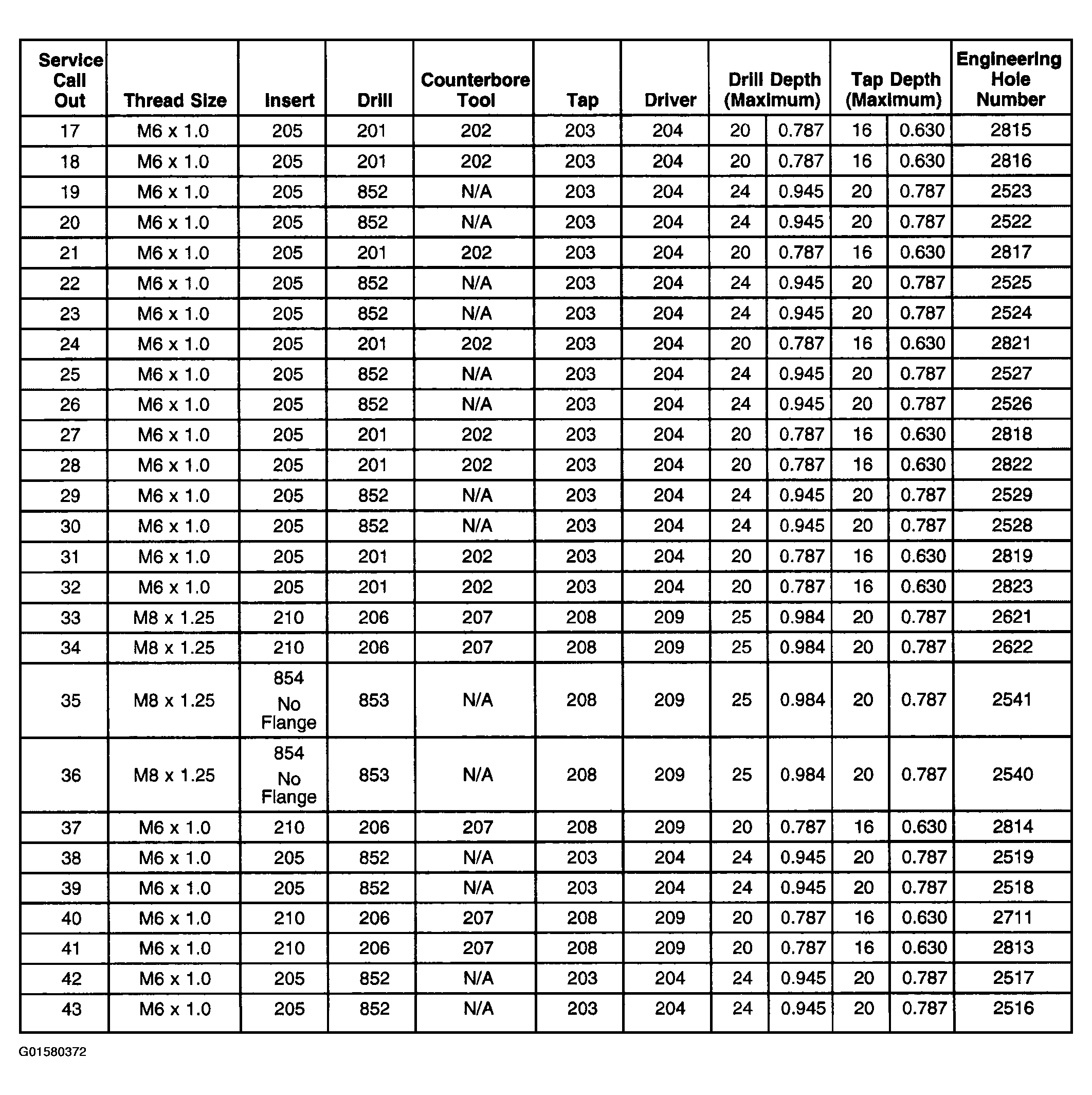

Fig 25: Cylinder Head - Top View - Repair Specifications (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 26: Cylinder Head - Intake Manifold Deck View
Courtesy of GENERAL MOTORS CORP.
Fig 27: Cylinder Head - Intake Manifold Deck View - Repair Specifications
Courtesy of GENERAL MOTORS CORP.

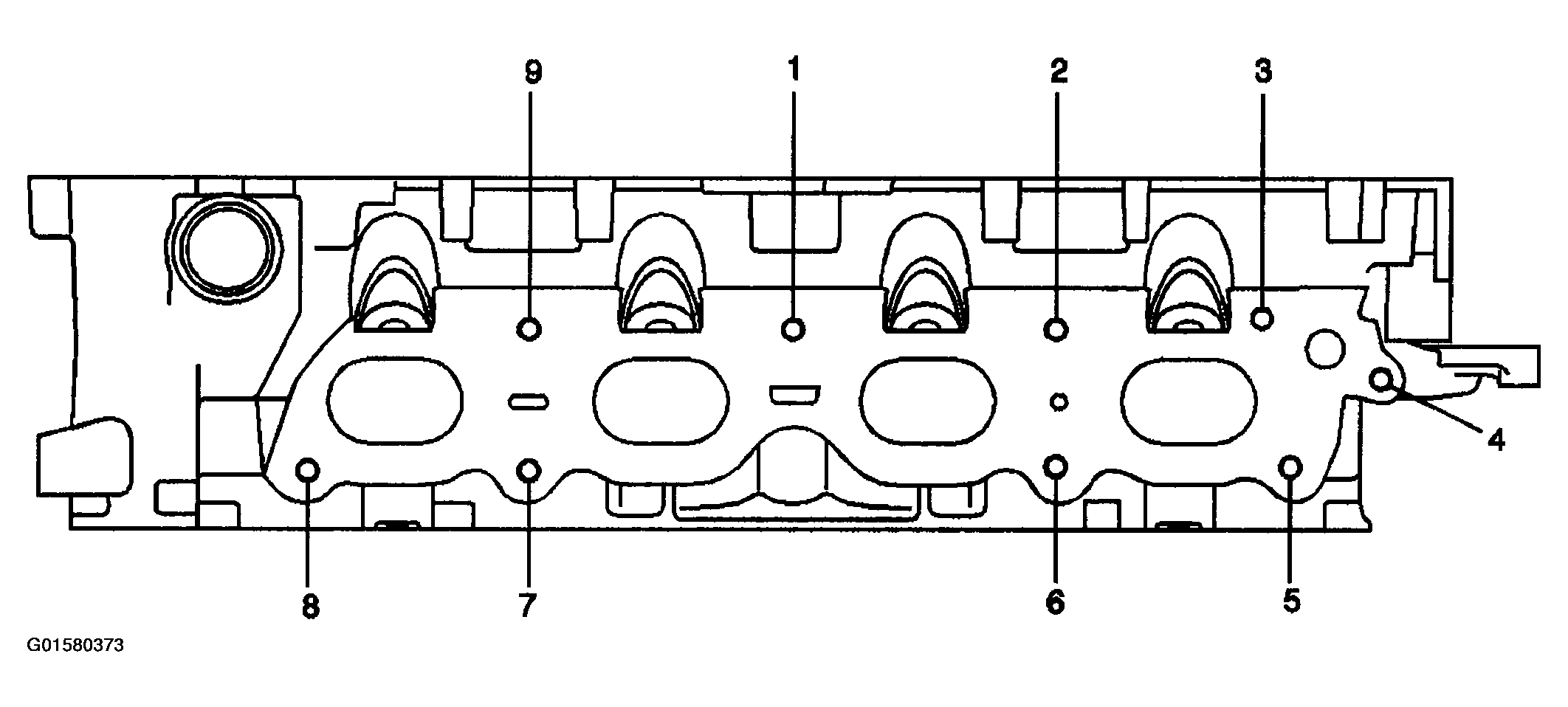

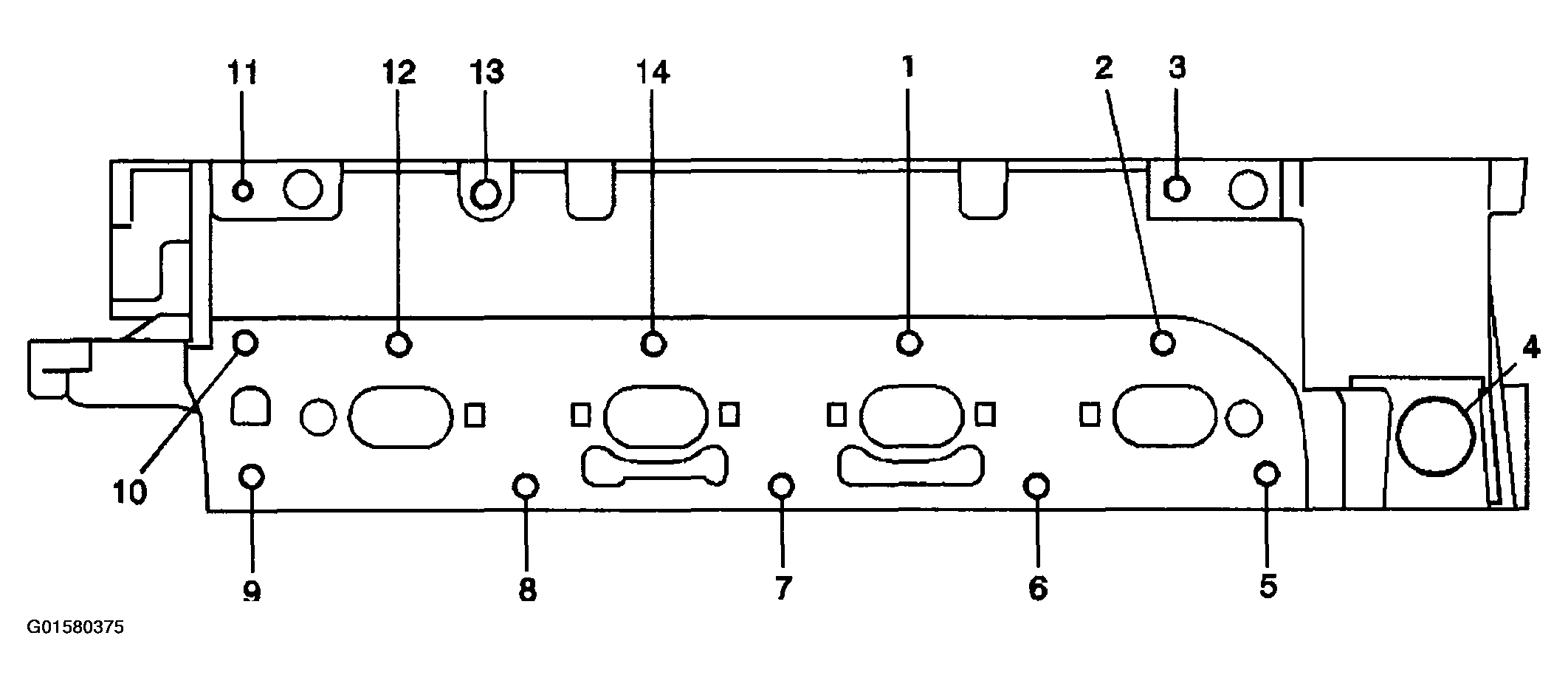

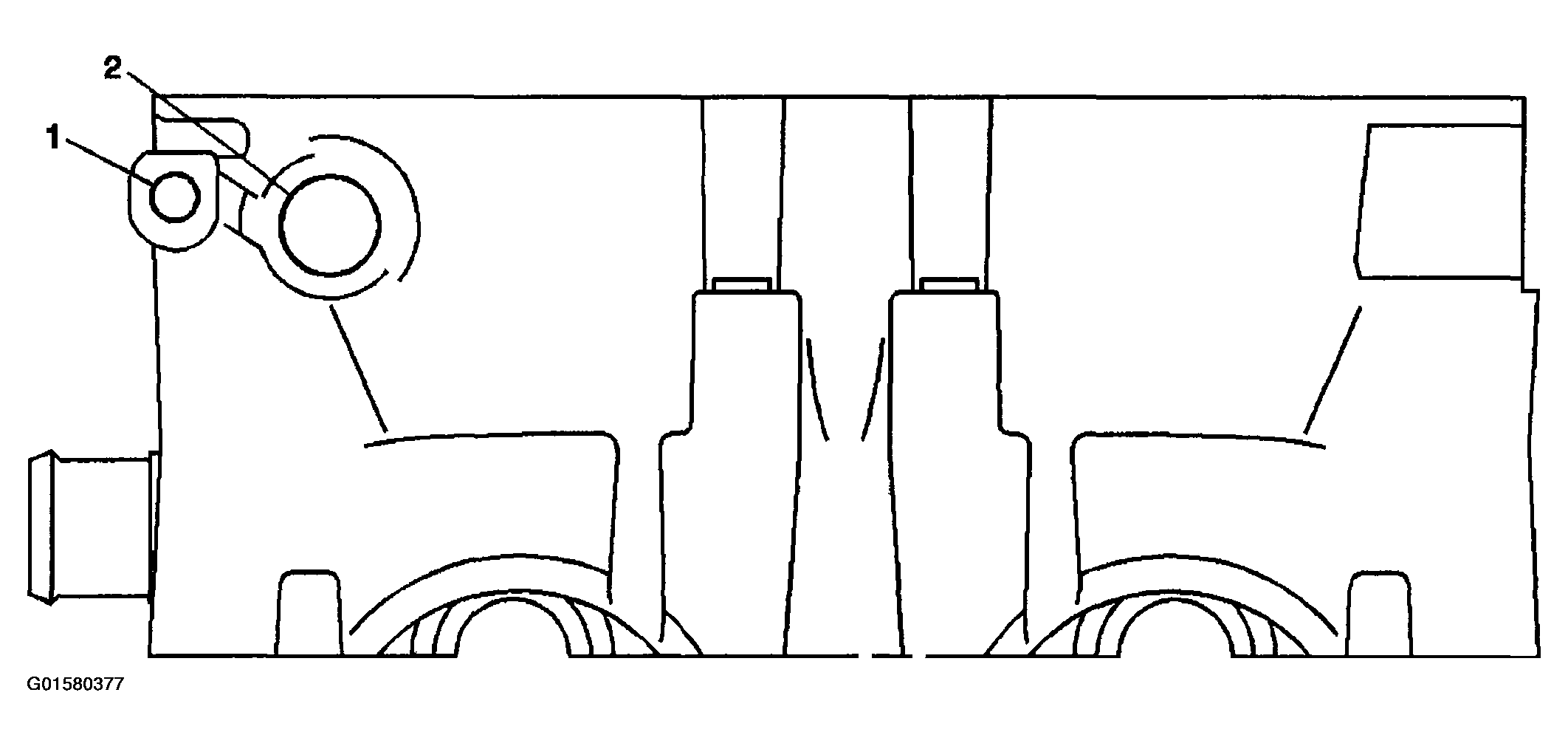

Fig 28: Cylinder Head - Exhaust Manifold Deck View
Courtesy of GENERAL MOTORS CORP.

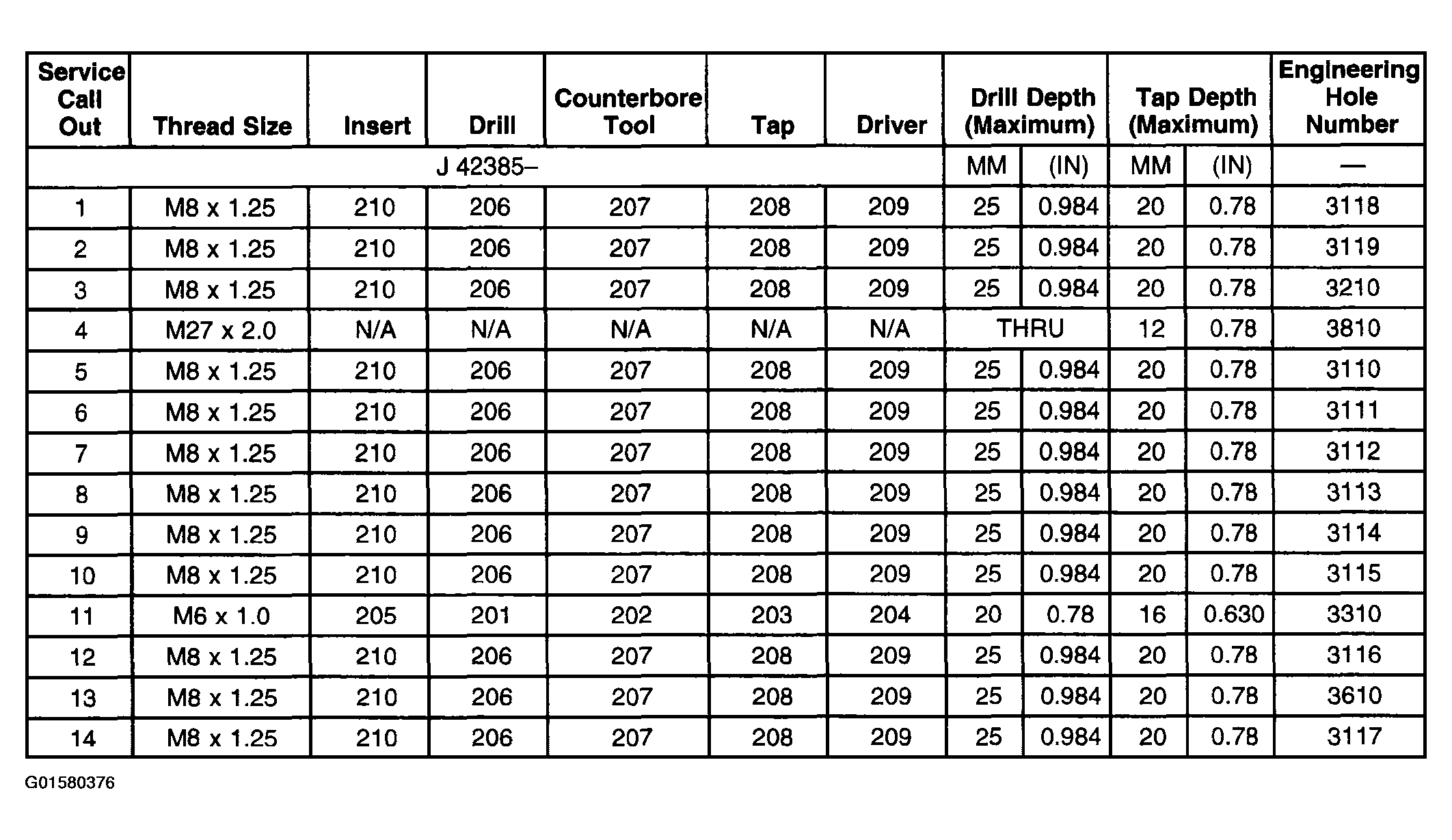

Fig 29: Cylinder Head - Exhaust Manifold Deck View - Repair Specifications
Courtesy of GENERAL MOTORS CORP.

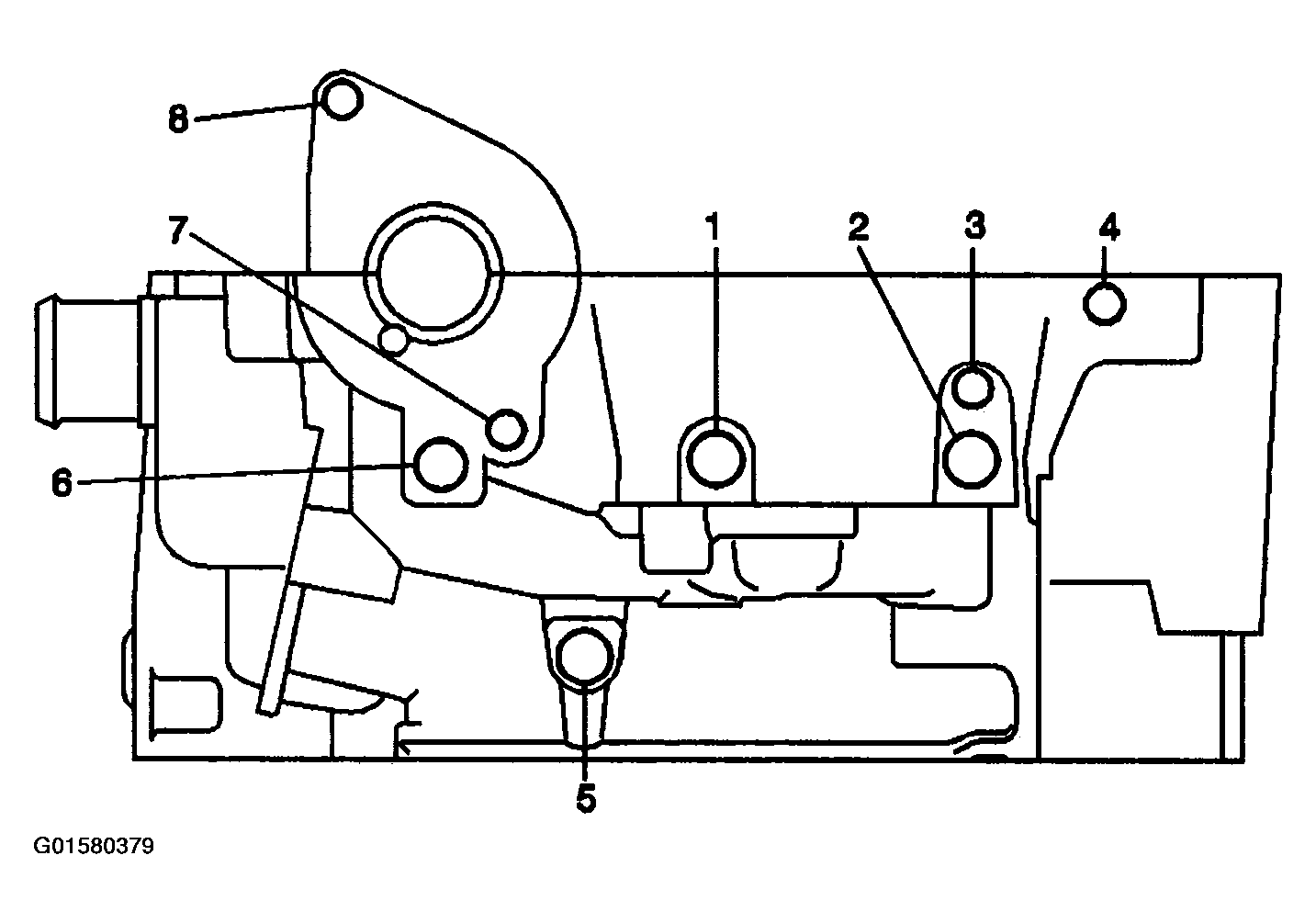

Fig 30: Cylinder Head - Front View
Courtesy of GENERAL MOTORS CORP.

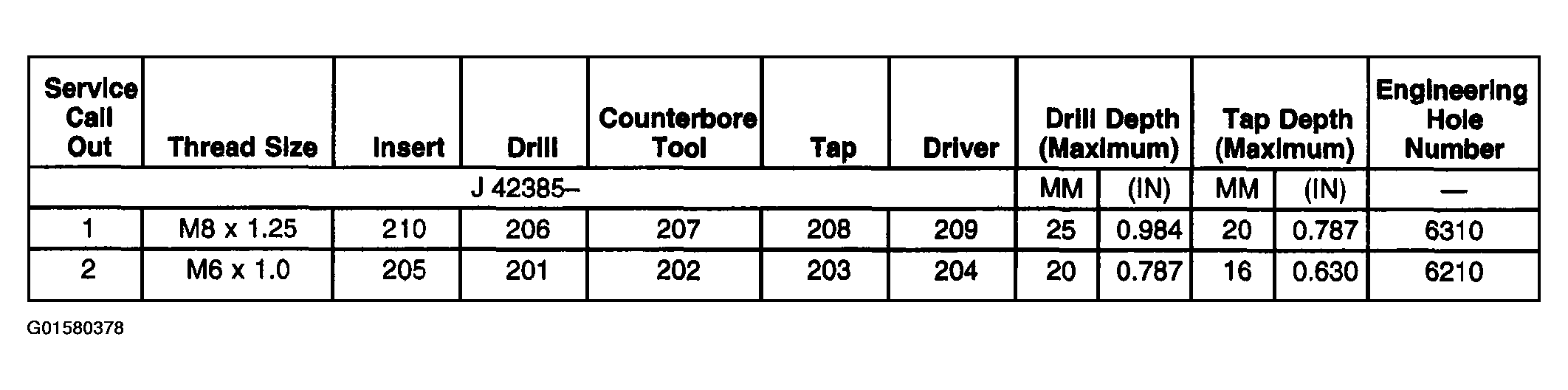

Fig 31: Cylinder Head - Front View - Repair Specifications
Courtesy of GENERAL MOTORS CORP.
Fig 32: Cylinder Head - Back View
Courtesy of GENERAL MOTORS CORP.

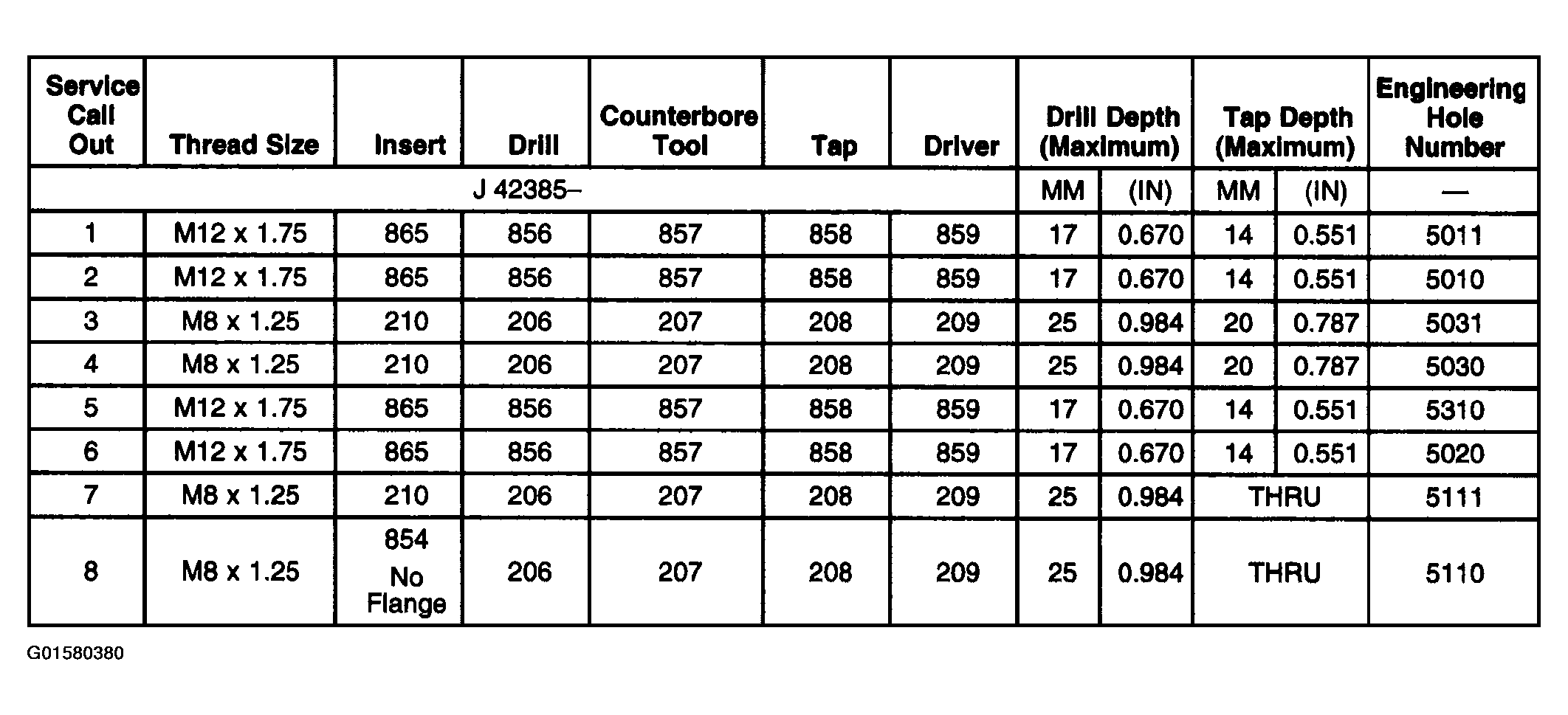

Fig 33: Cylinder Head - Back View - Repair Specifications
Courtesy of GENERAL MOTORS CORP.

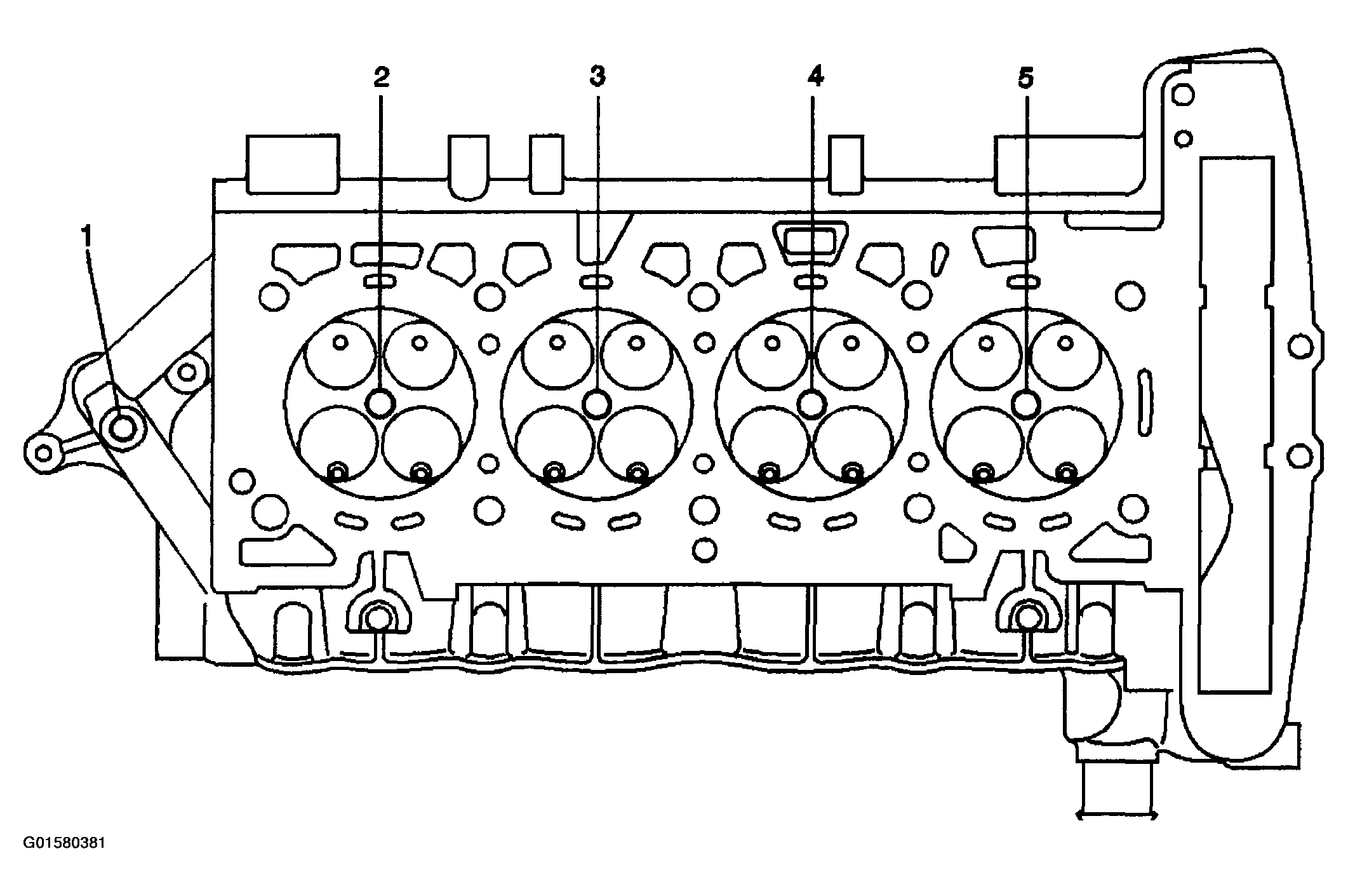

Fig 34: Cylinder Head - Bottom View
Courtesy of GENERAL MOTORS CORP.

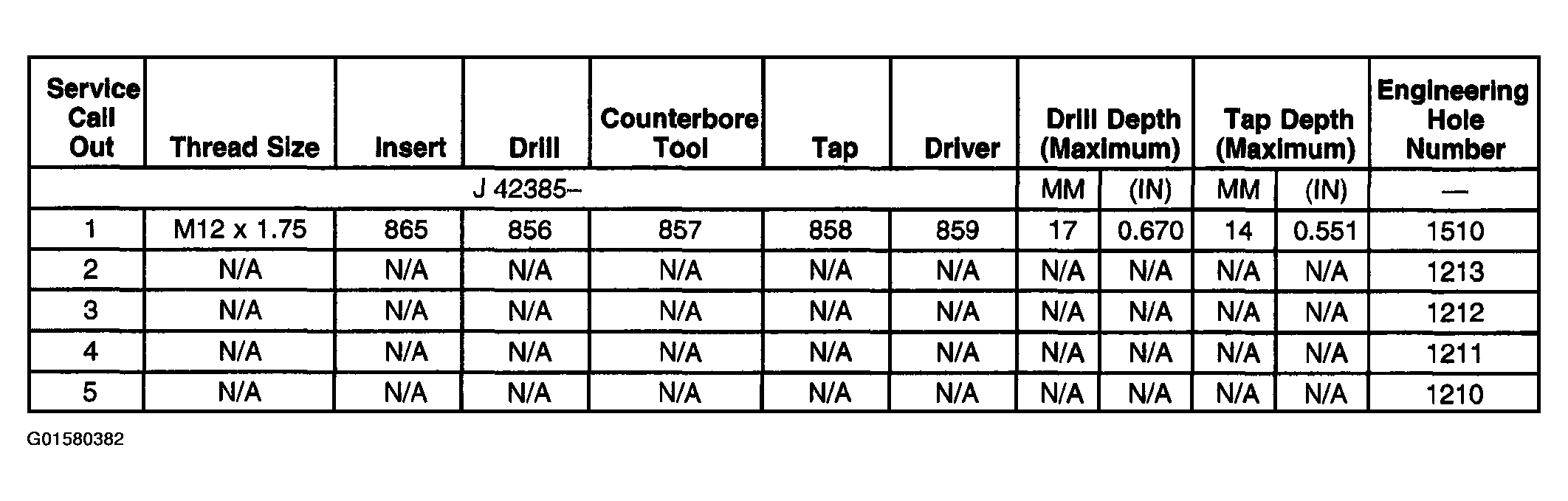

Fig 35: Cylinder Head - Bottom View - Repair Specifications
Courtesy of GENERAL MOTORS CORP.
