Cellular Communication Component Views
WARNING: This page is about a different car, the 2004 Pontiac Sunfire and 2004 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

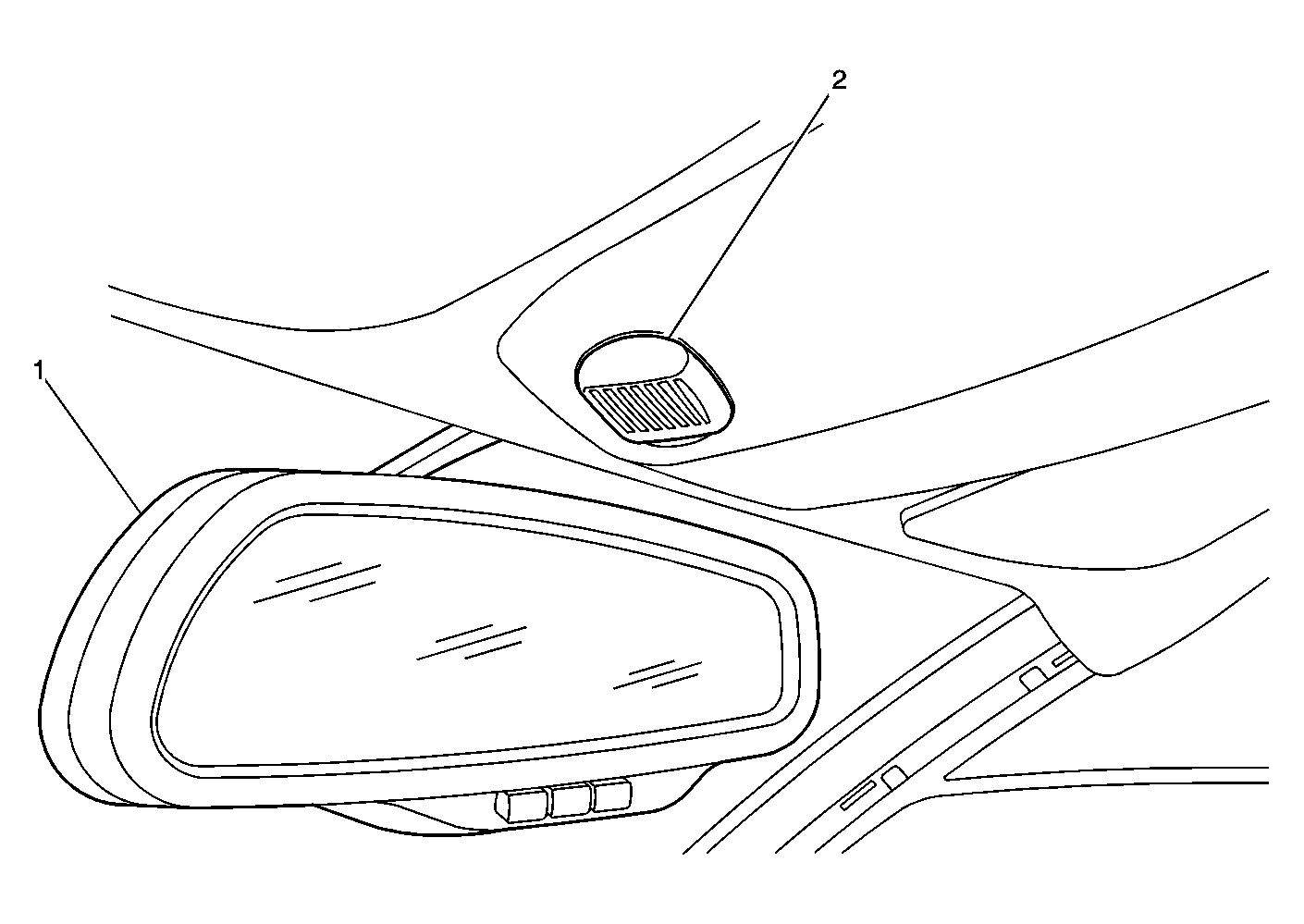

Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Inside Rearview Mirror w/UE1 |
| 2 |
OnStar Microphone |

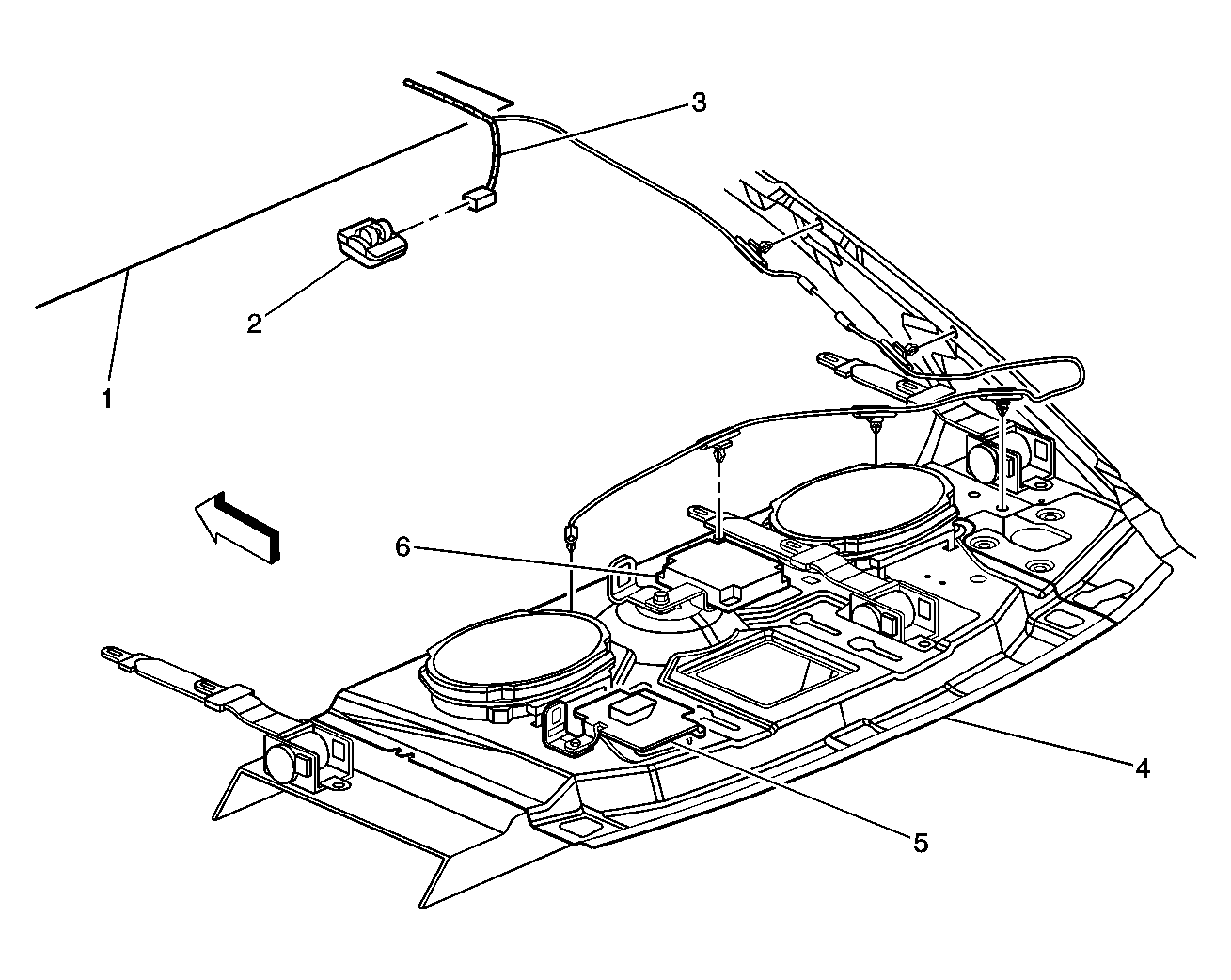

Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Headliner |
| 2 |
OnStar Cellular Antenna |
| 3 |
Headliner Wiring Harness |
| 4 |
Shelf Panel |
| 5 |
Navigation Antenna |
| 6 |
Digital Radio Receiver |

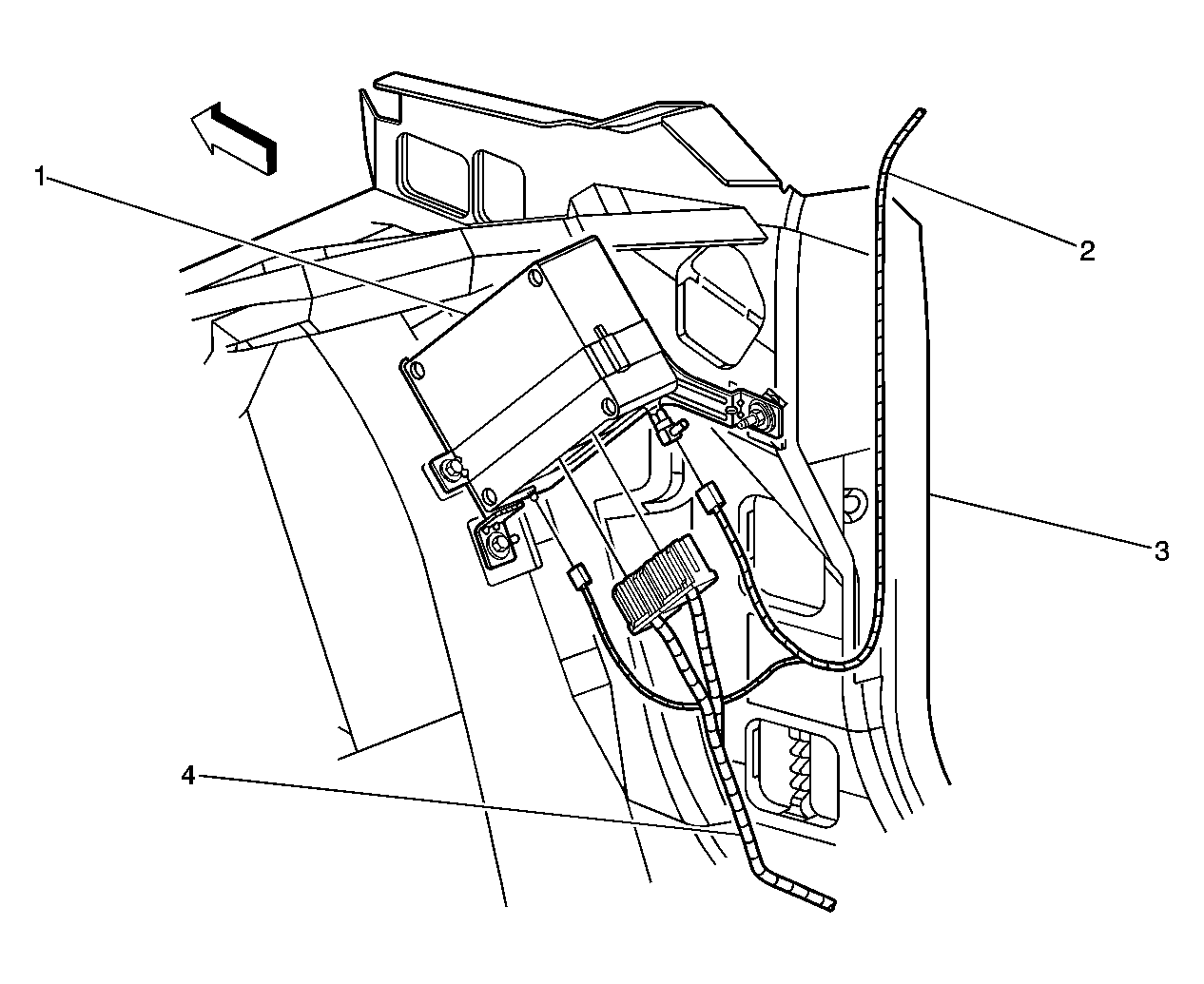

Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Vehicle Communication Interface Module (VCIM) |
| 2 |
Headliner Harness |
| 3 |
Body Hinge Pillar |
| 4 |
Body Wiring Harness |
