Cruise Control Component Views
WARNING: This page is about a different car, the 2004 Pontiac Sunfire and 2004 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Powertrain Control Module (PCM) |
| 2 |
Cruise Control Module (CCM) |
| 3 |
Powertrain Control Module (PCM) Electrical Connectors |
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |

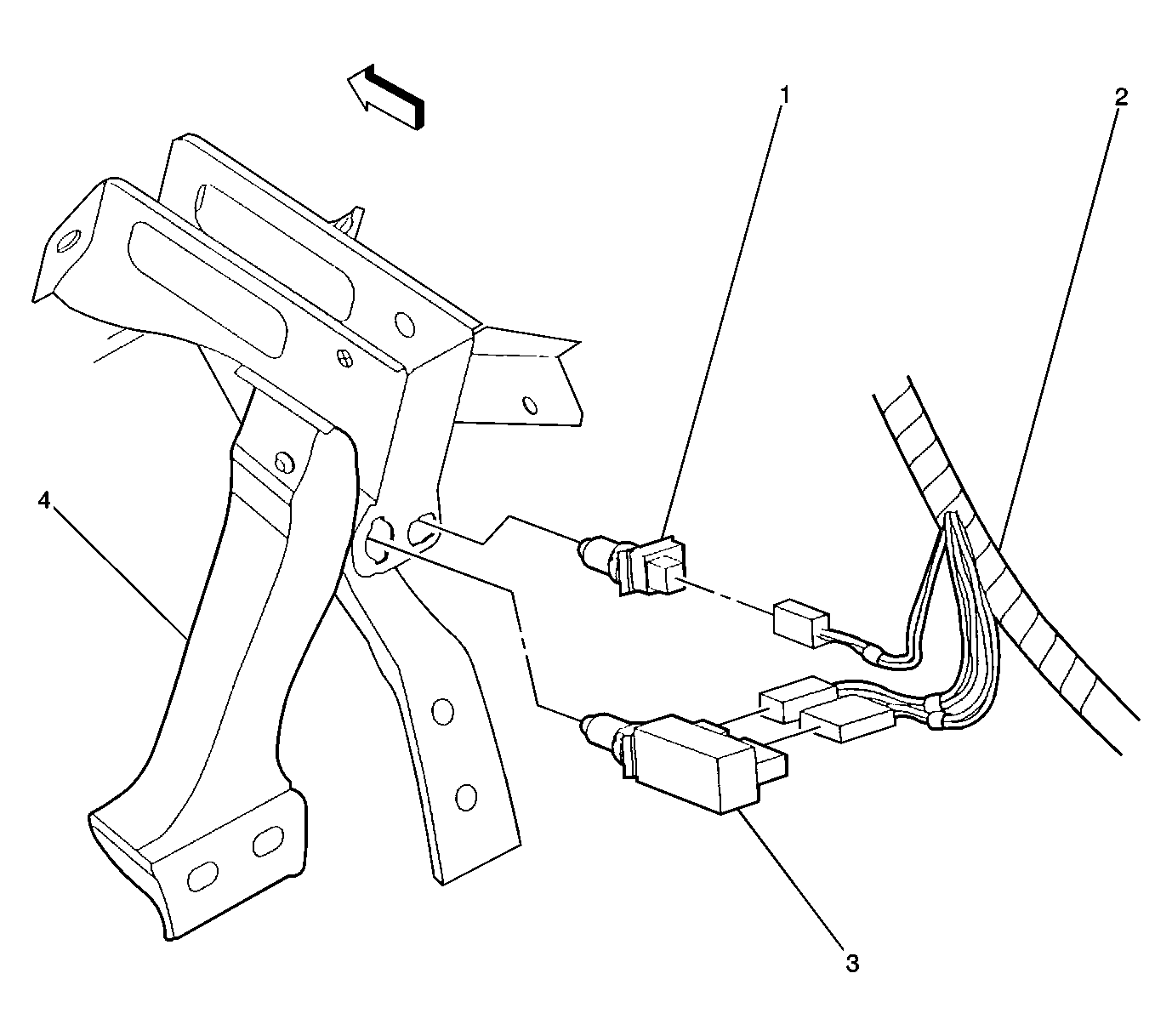

| 1 |
Cruise Control Brake Switch |
| 2 |
Dash Harness |
| 3 |
Stop Lamp Switch |
| 4 |
Brake Pedal |
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Wiper/Washer Switch Connector |
| 2 |
Passlock™ Sensor Connector |
| 3 |
Hazard Flasher Switch |
| 4 |
Wiper/Washer Switch |
| 5 |
Turn Signal/Multifunction Switch |
| 6 |
Turn Signal/Multifunction Switch Connectors |
| 7 |
Cruise Control ON/OFF Switch Connector |
