Installation Procedure

WARNING: This page is about a different car, the 2004 Pontiac Sunfire and 2004 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

Position the cruise control module to the mounting bracket.

NOTE: Refer to Fastener Notice in Cautions and Notices.

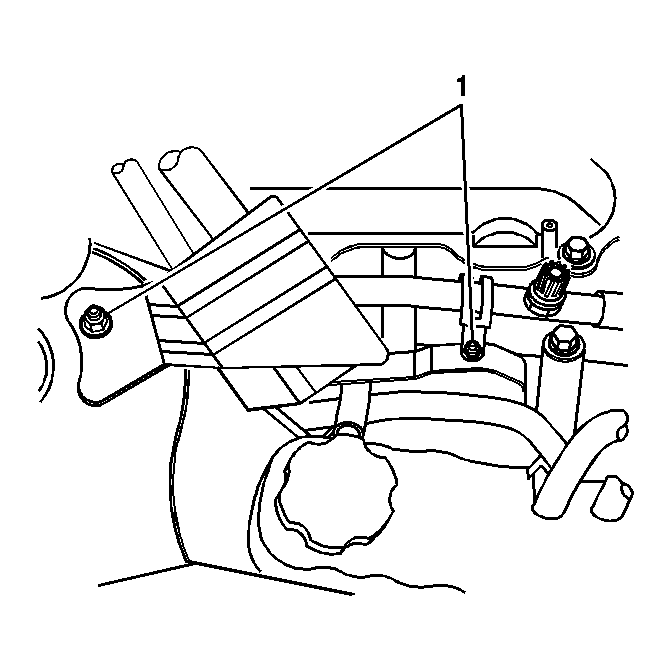

Fig 1: Identifying Cruise Control Module Bolts

Courtesy of GENERAL MOTORS CORP.

Install the bolts (1) to the cruise control module.
Tighten: Tighten the bolts to the cruise control module to 10 N.m (89 lb in).
Position the cruise control module to the engine compartment.
Install the bolt and nut (1) to the cruise control module mounting bracket.
Tighten: Tighten the nuts to the cruise control module to 10 N.m (89 lb in).

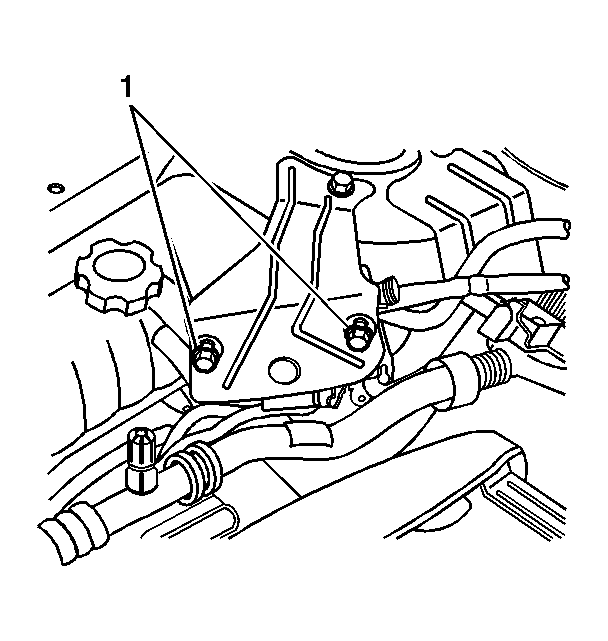

Fig 2: Installing Cruise Control Module Bolts
Courtesy of GENERAL MOTORS CORP.

IMPORTANT: The ribbon must not be twisted.

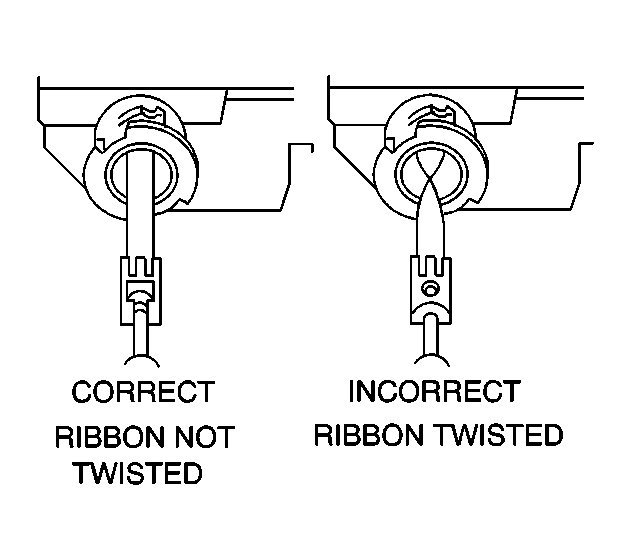

Fig 3: Identifying Ribbon

Courtesy of GENERAL MOTORS CORP.

Connect the cruise control cable slug to the ribbon buckle.
Insert the cruise control cable into the cruise control module until the seal touches the module.
Position the narrow cable tab into the narrow slot and the wide tab into the wide slot.

IMPORTANT: The adjuster tab must be pointing toward the front of the car after installation.

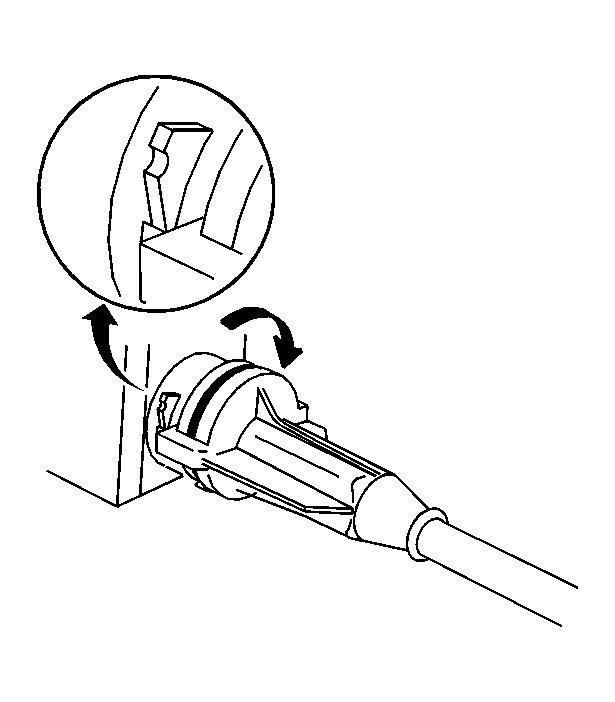

Fig 4: Aligning Cruise Control Cable

Courtesy of GENERAL MOTORS CORP.

Connect the cruise control cable to the cruise control module by turning the cable clockwise.
Connect the electrical connector to the cruise control module.

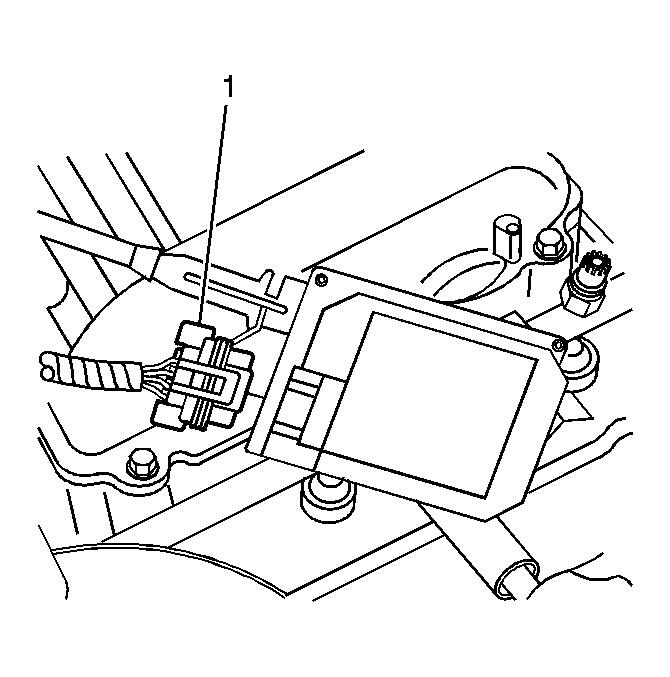

Fig 5: Connecting Cruise Control Module Electrical Connector
Courtesy of GENERAL MOTORS CORP.
Install the cruise control cable to the throttle body bracket pressing into place until fully seated.
Open the throttle body cam slightly.
Connect the cruise control cable to the throttle body cam lever.

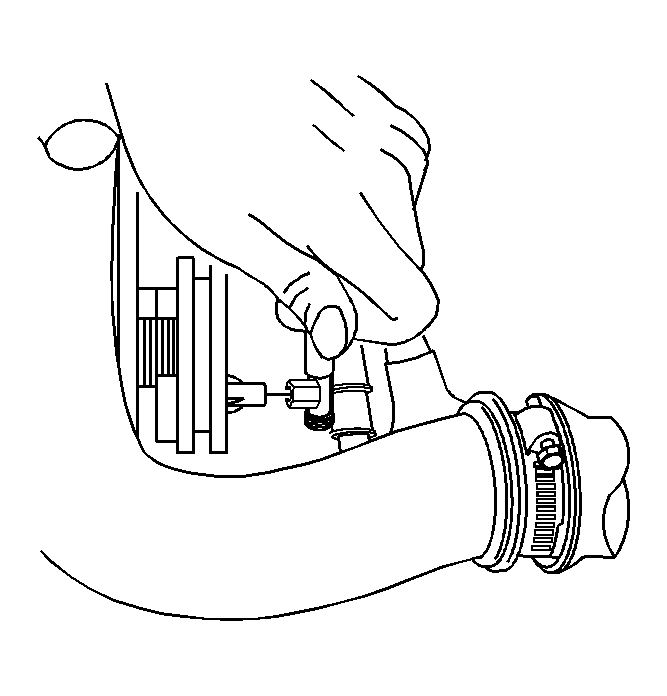

Fig 6: View Of Cruise Control Cable At Throttle Body Cam Lever
Courtesy of GENERAL MOTORS CORP.
Connect the negative battery cable. Refer to Battery Negative Cable Disconnect/Connect Procedure in Engine Electrical.
