Removal Procedure

WARNING: This page is about a different car, the 2004 Pontiac Sunfire and 2004 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnect/Connect Procedure in Engine Electrical.
Disconnect the electrical connector (1) from the cruise control module.

Fig 1: Disconnecting Cruise Control Module Electrical Connector
Courtesy of GENERAL MOTORS CORP.
Open the throttle body cam slightly.
Disconnect the cruise control cable from the throttle body cam lever.
Remove the cruise control cable from the throttle body bracket.
Remove the cruise control cable from the retainer clip on the engine.

Fig 2: View Of Cruise Control Cable At Throttle Body Cam Lever
Courtesy of GENERAL MOTORS CORP.
Disconnect the cruise control cable from the cruise control module by turning the cable 1/4 turn counterclockwise.

Fig 3: Aligning Cruise Control Cable
Courtesy of GENERAL MOTORS CORP.

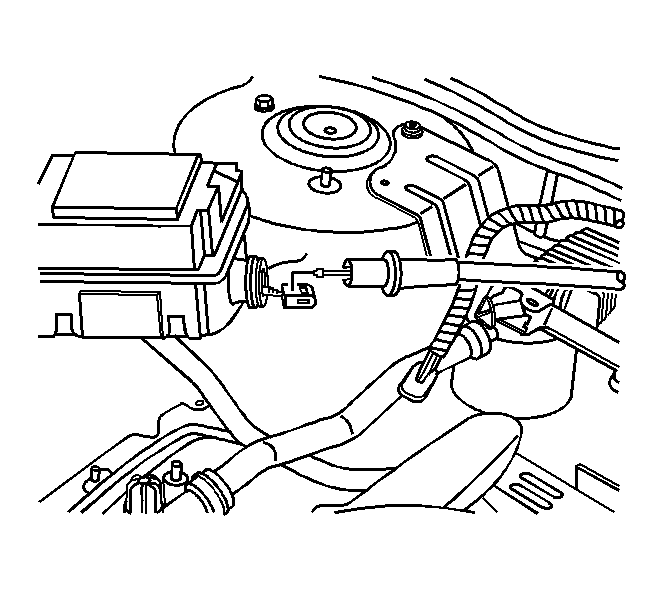

Disconnect the cruise control cable slug from the ribbon buckle.

Fig 4: Disconnecting Cruise Control Cable
Courtesy of GENERAL MOTORS CORP.
Remove the bolts (1) from the cruise control module.

Fig 5: Identifying Cruise Control Module Bolts
Courtesy of GENERAL MOTORS CORP.
Remove the bolt and nut (1) from the cruise control module mounting bracket.
Remove the cruise control module from the engine compartment.

Fig 6: Removing Cruise Control Module Mounting Bracket Bolt
Courtesy of GENERAL MOTORS CORP.
