Installation Procedure

Feed the cable assembly through the passenger floor pan opening.

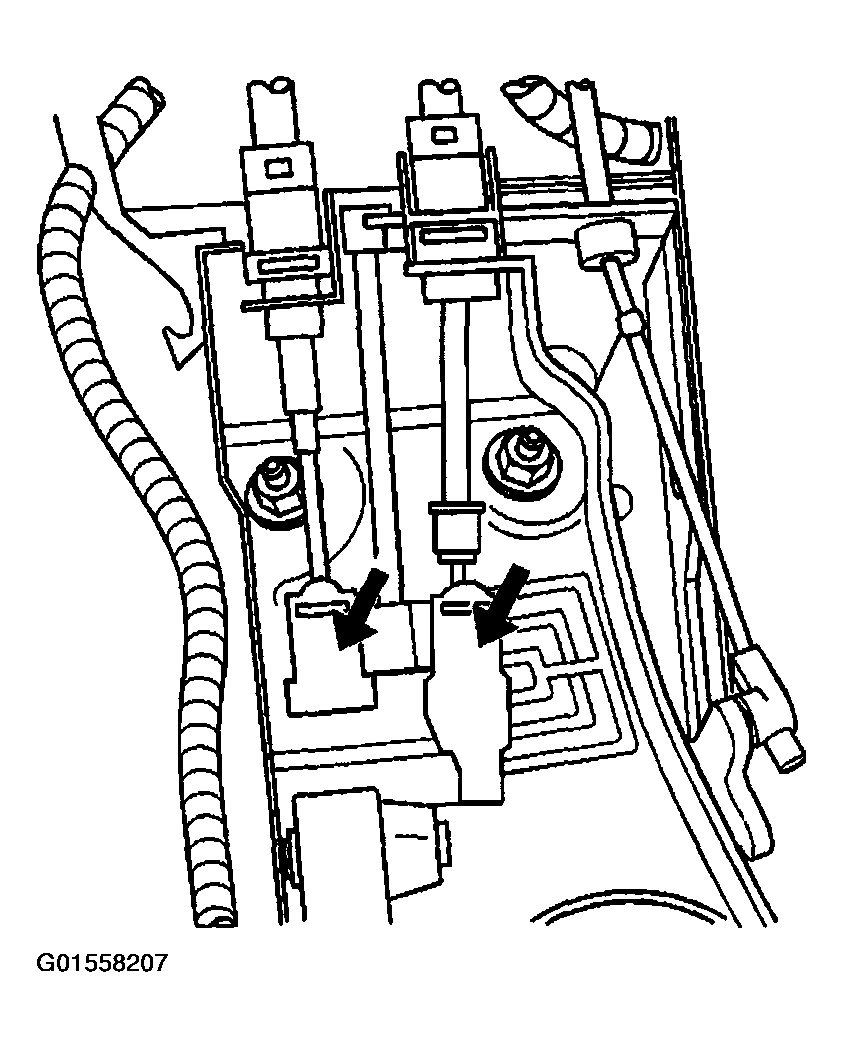

Fig 1: Feeding Cable Assembly Through Passenger Floor Pan Opening
Courtesy of GENERAL MOTORS CORP.
Install the grommet flush with the floor opening.

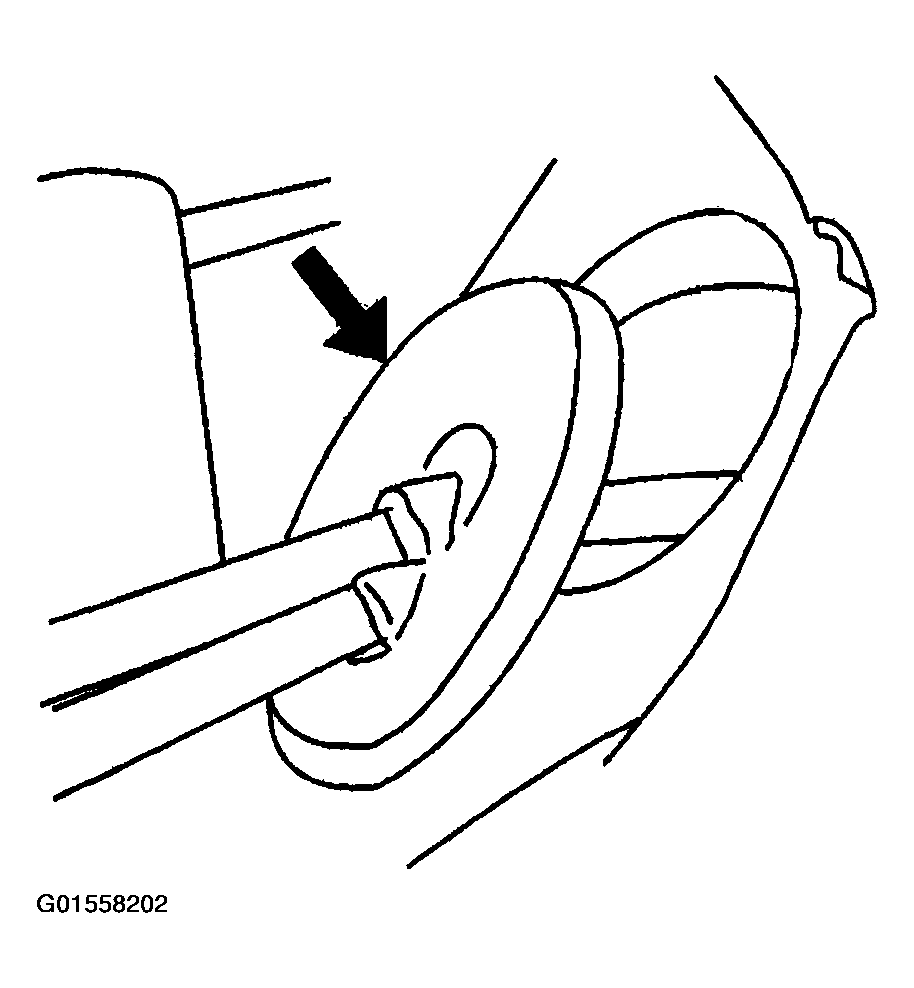

Fig 2: Installing Grommet Flush With Floor Opening
Courtesy of GENERAL MOTORS CORP.
Install the right rear floor right side elbow duct.

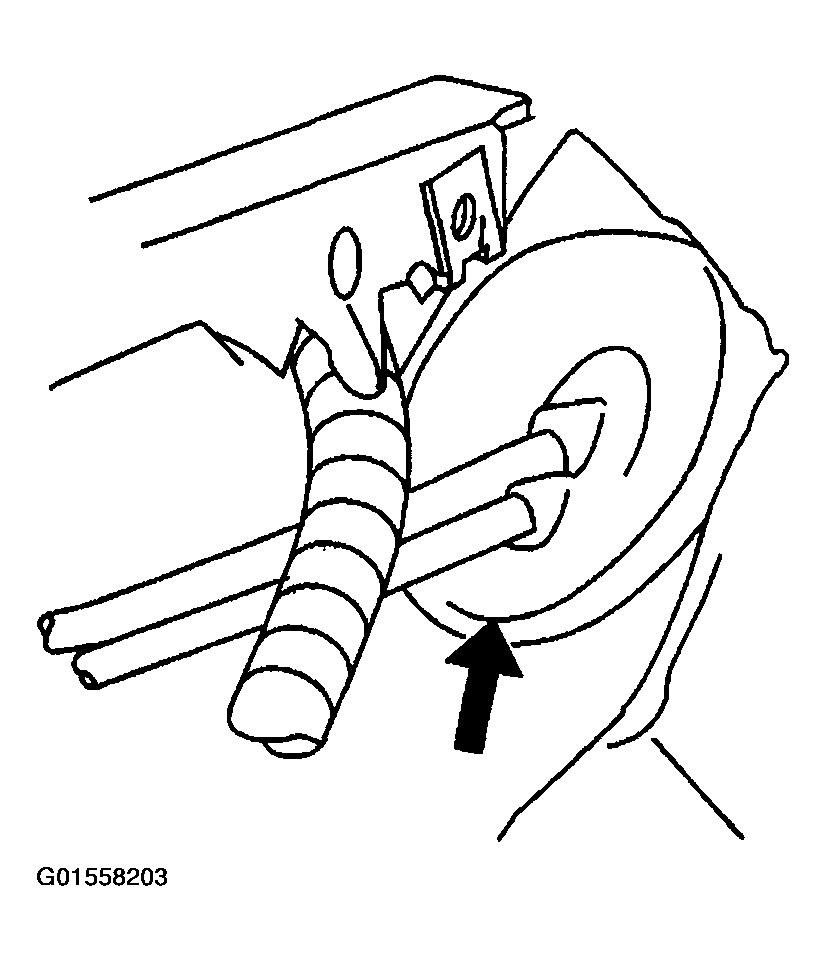

Fig 3: Installing Right Rear Floor Right Side Elbow Duct
Courtesy of GENERAL MOTORS CORP.
Position and install the passenger side carpet.
Install the cables into the underhood bracket.

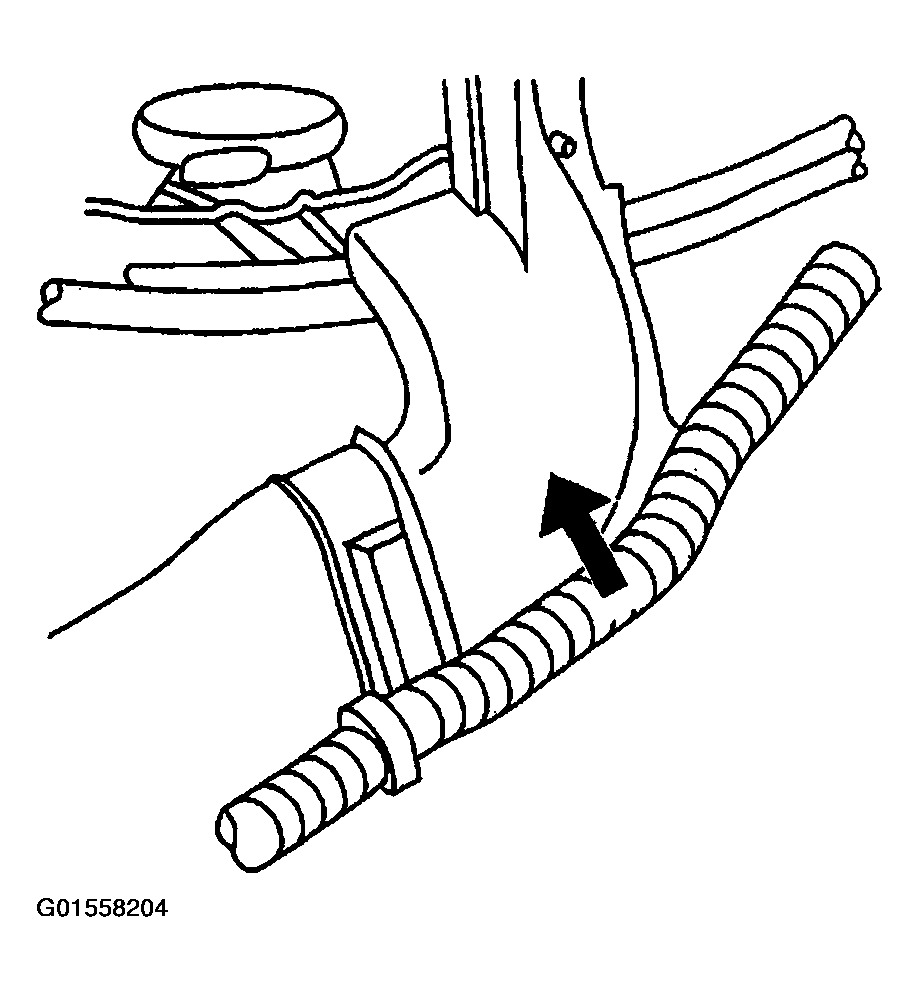

Fig 4: Installing Cables Into Underhood Bracket
Courtesy of GENERAL MOTORS CORP.
Connect the shift cable to the shift actuator.
Connect the cables to the shifter.

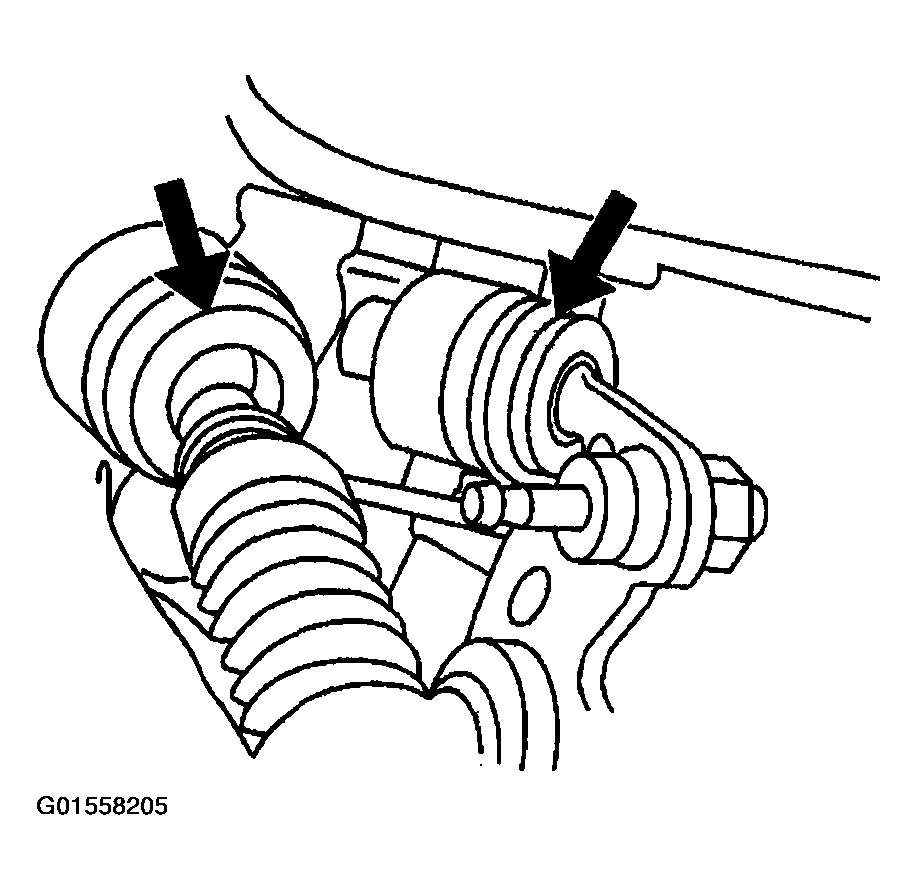

Fig 5: Connecting Cables To Shifter
Courtesy of GENERAL MOTORS CORP.
Press down on the locking tabs.

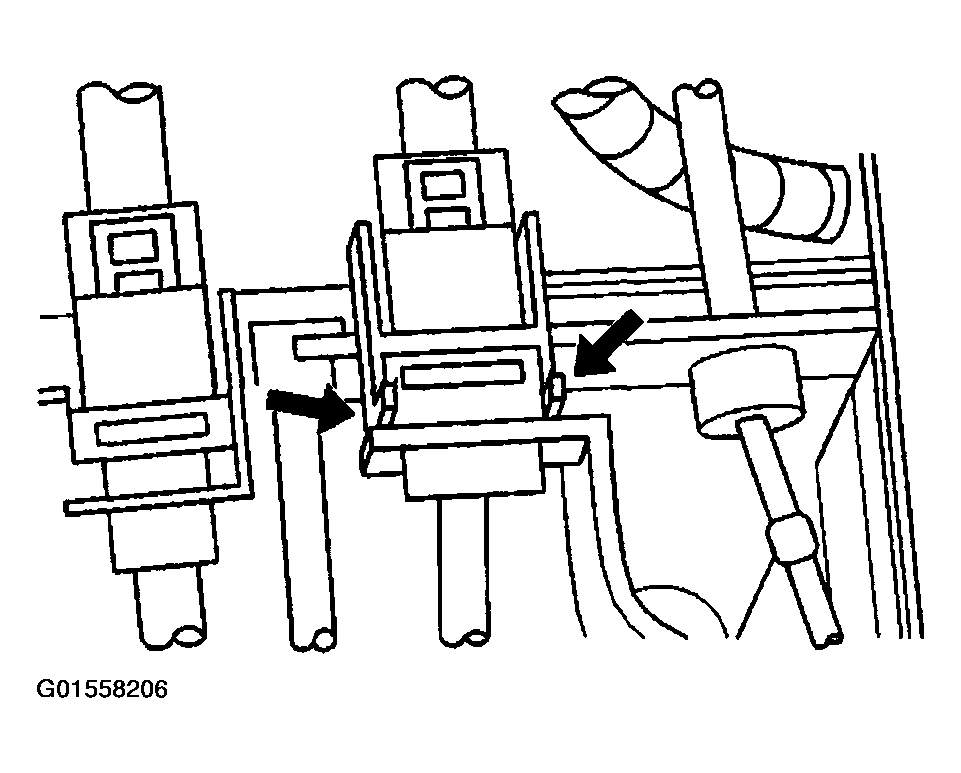

Fig 6: Pressing Down On Locking Tabs
Courtesy of GENERAL MOTORS CORP.
Install the console.
Install the Air Cleaner Inlet Duct.
Connect the battery.
