Installation Procedure

  1. Position the shifter on the studs and install the front 2 nuts.

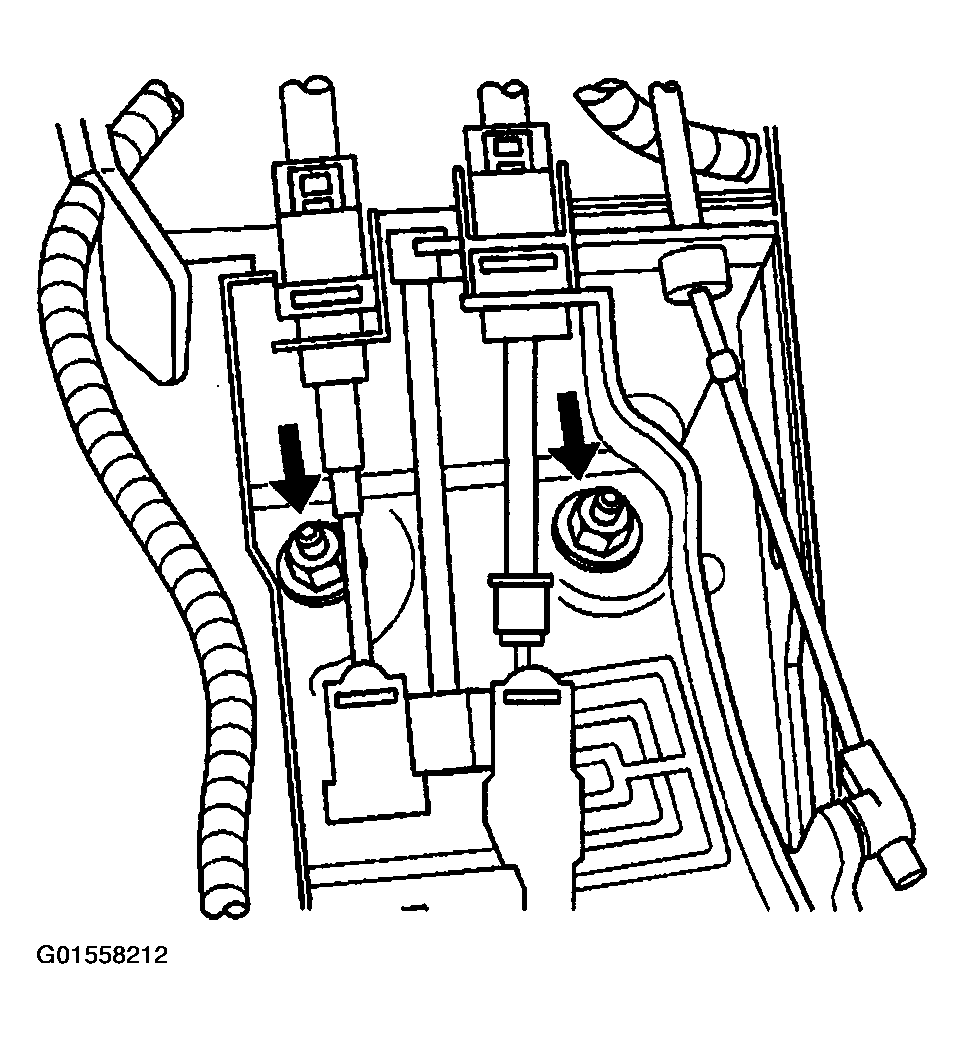

    Fig 1: Installing Front 2 Nuts
    G01558212Courtesy of GENERAL MOTORS CORP.
  2. Install the 2 rear bolts.

    Tighten

    Tighten the nuts and bolts to 25 N.m (18 lb. ft).

  3. Install the shift cables. Refer to Shift Control Cable Replacement .
  4. Install the console.
