Keyless Entry System
>>
Component Locator
>>
Keyless Entry Component Views
Keyless Entry Component Views

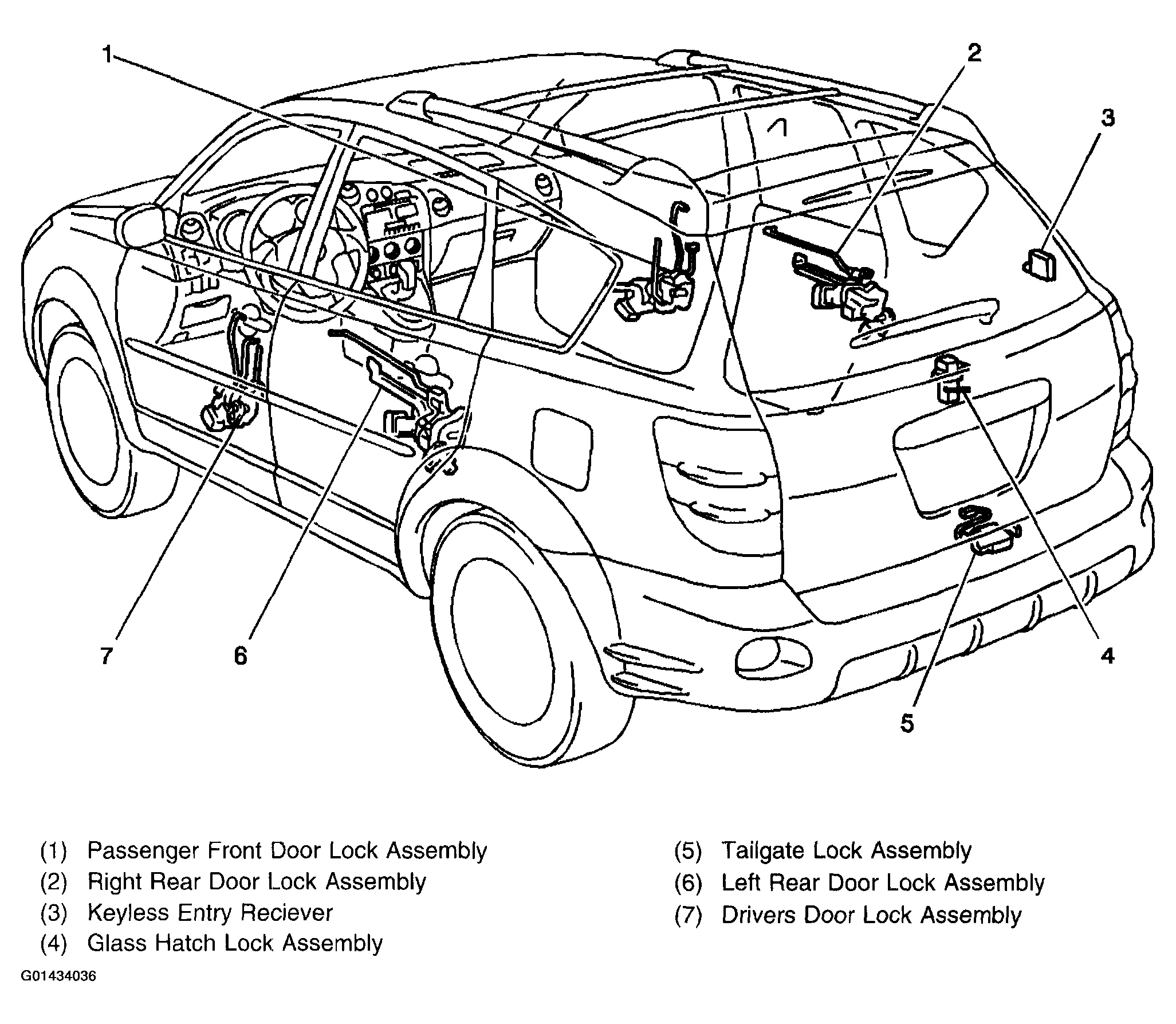

Fig 1: Locating Keyless Entry System Component
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
