Installation Procedure

  1. Instal the remote control door lock receiver (2) to the mounting bracket (1), if removed.

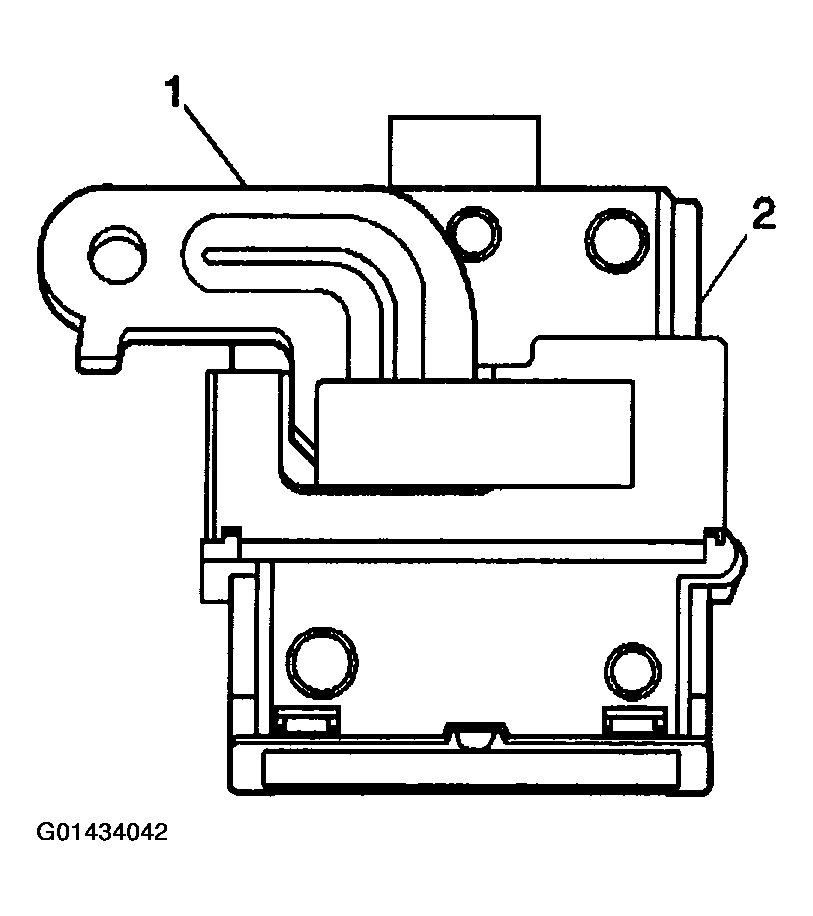

    Fig 1: Installing Mounting Bracket To Receiver
    G01434042Courtesy of GENERAL MOTORS CORP.
  2. Install the remote control door lock receiver (1) to the vehicle.
    NOTE: Refer to FASTENER NOTICE .
  3. Install the bolt (3) to the door lock receiver (1).

    Tighten

    Tighten the remote control door lock receiver bolt to 10 N.m (89 lb in).

  4. Connect the remote control door lock receiver electrical connector (2).
  5. Install the right upper quarter panel trim. Refer to TRIM PANEL REPLACEMENT - REAR QUARTER UPPER in Interior Trim.
  6. Connect the negative battery cable.
  7. Reprogram the remote control door lock receiver, if necessary. Refer to TRANSMITTER PROGRAMMING  in Keyless Entry.

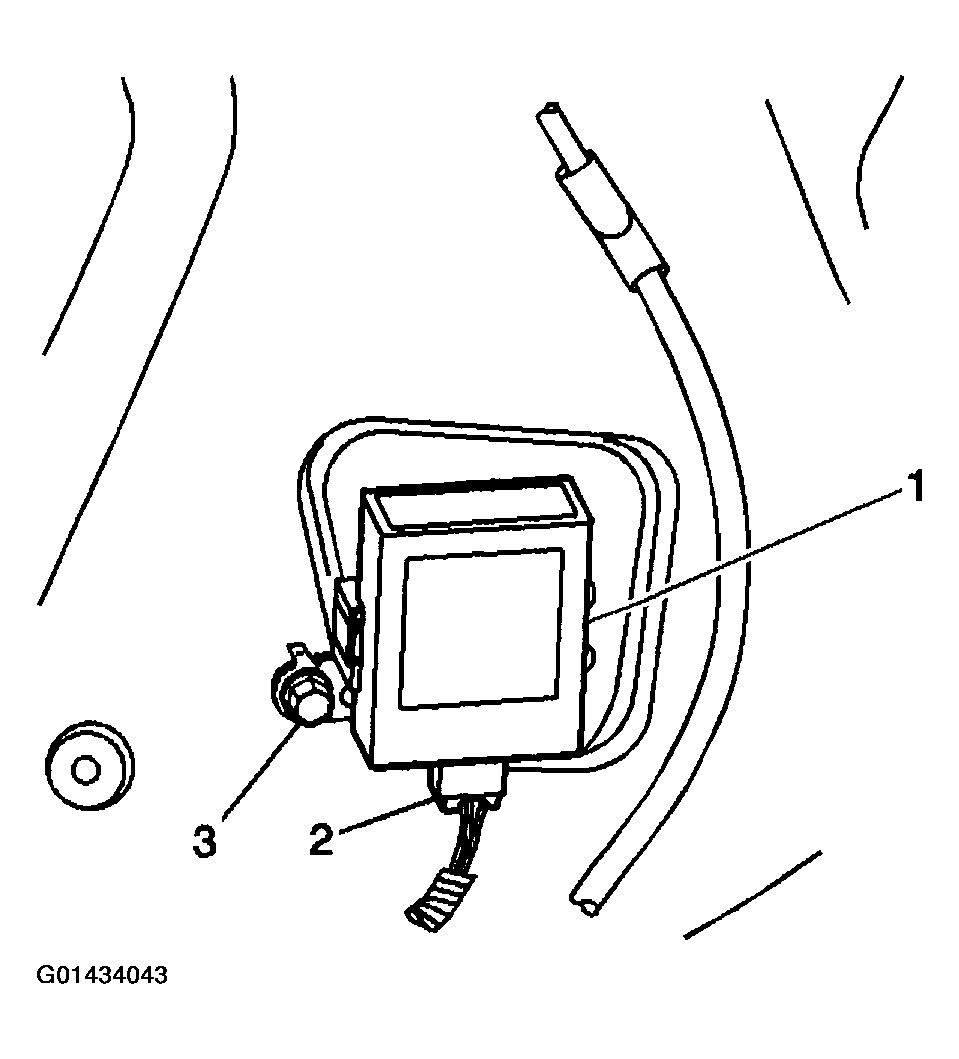

    Fig 2: Installing Remote Control Door Lock Receiver To Vehicle
    G01434043Courtesy of GENERAL MOTORS CORP.
