Installation Procedure

Install the deceleration sensor (2) to the vehicle.

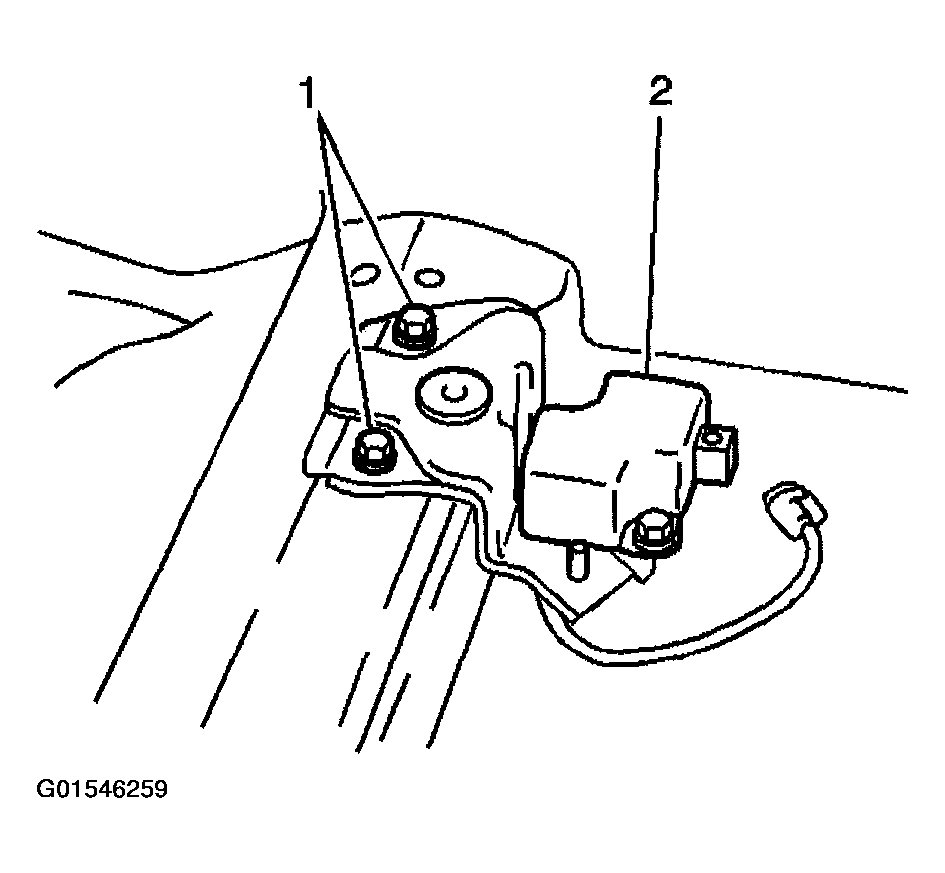

Fig 1: Installing Deceleration Sensor
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE .
Install the two bolts (1) that retain the deceleration sensor.
Tighten

Tighten the two deceleration sensor bolts to 21 N.m (15 lb ft).
Connect the deceleration sensor electrical connector.
Install the upper deceleration sensor bracket (2) and the bolt (1).

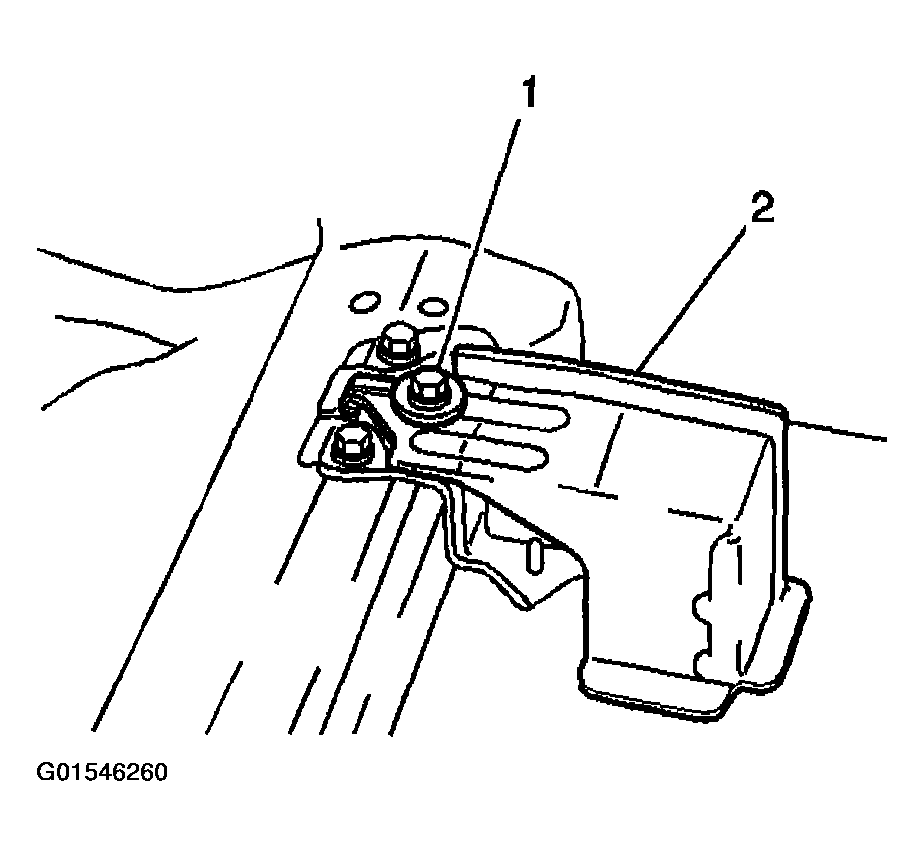

Fig 2: Installing Upper Deceleration Sensor Bracket And Bolt
Courtesy of GENERAL MOTORS CORP.

Tighten

Tighten the upper deceleration sensor bolt to 21 N.m (15 lb ft).
Install the LH front seat. Refer to SEAT REPLACEMENT - FRONT BUCKET in Seats.
