Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

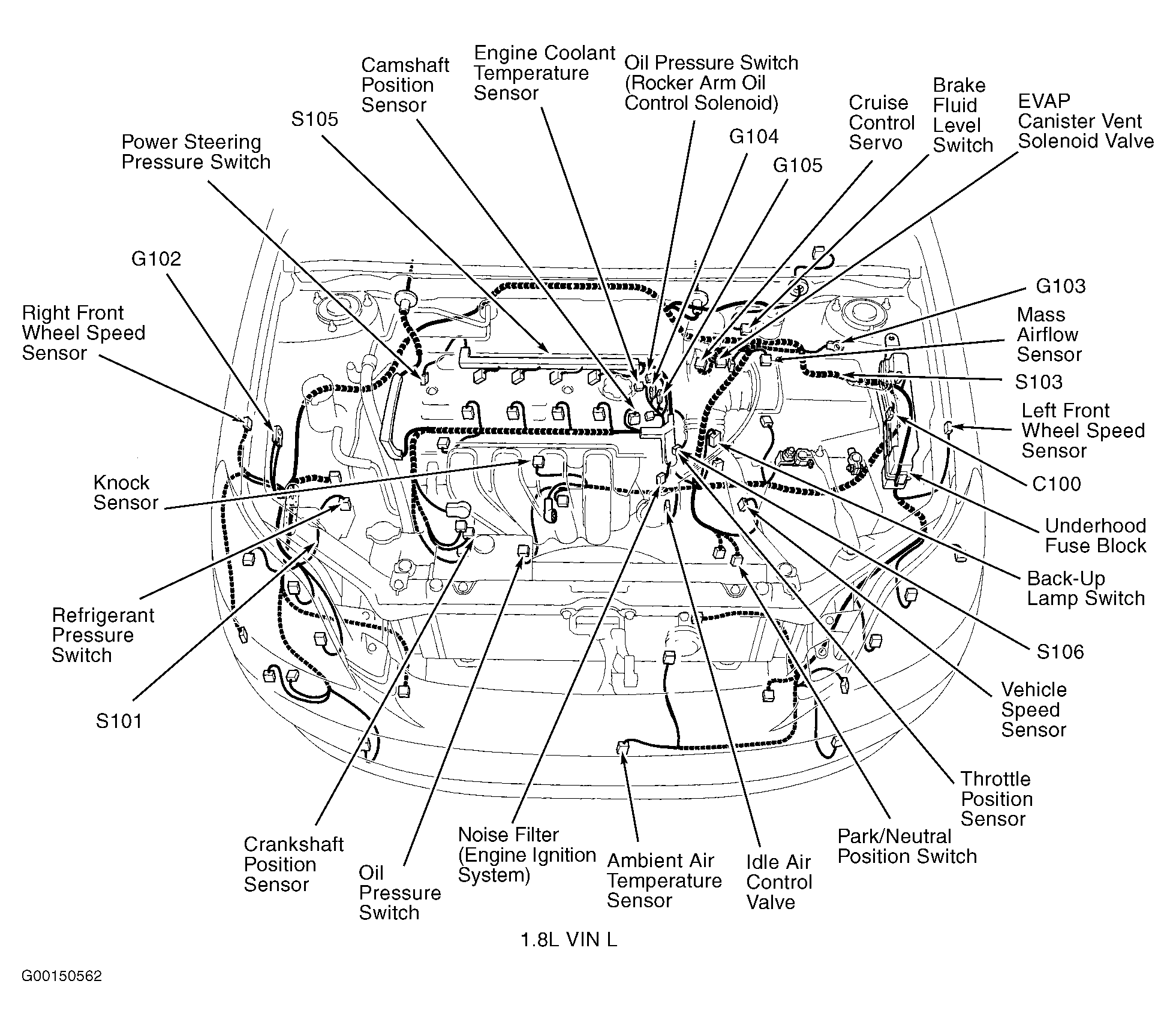

Fig 1: Engine Compartment (1.8L VIN L)
G00150562Courtesy of GENERAL MOTORS CORP.

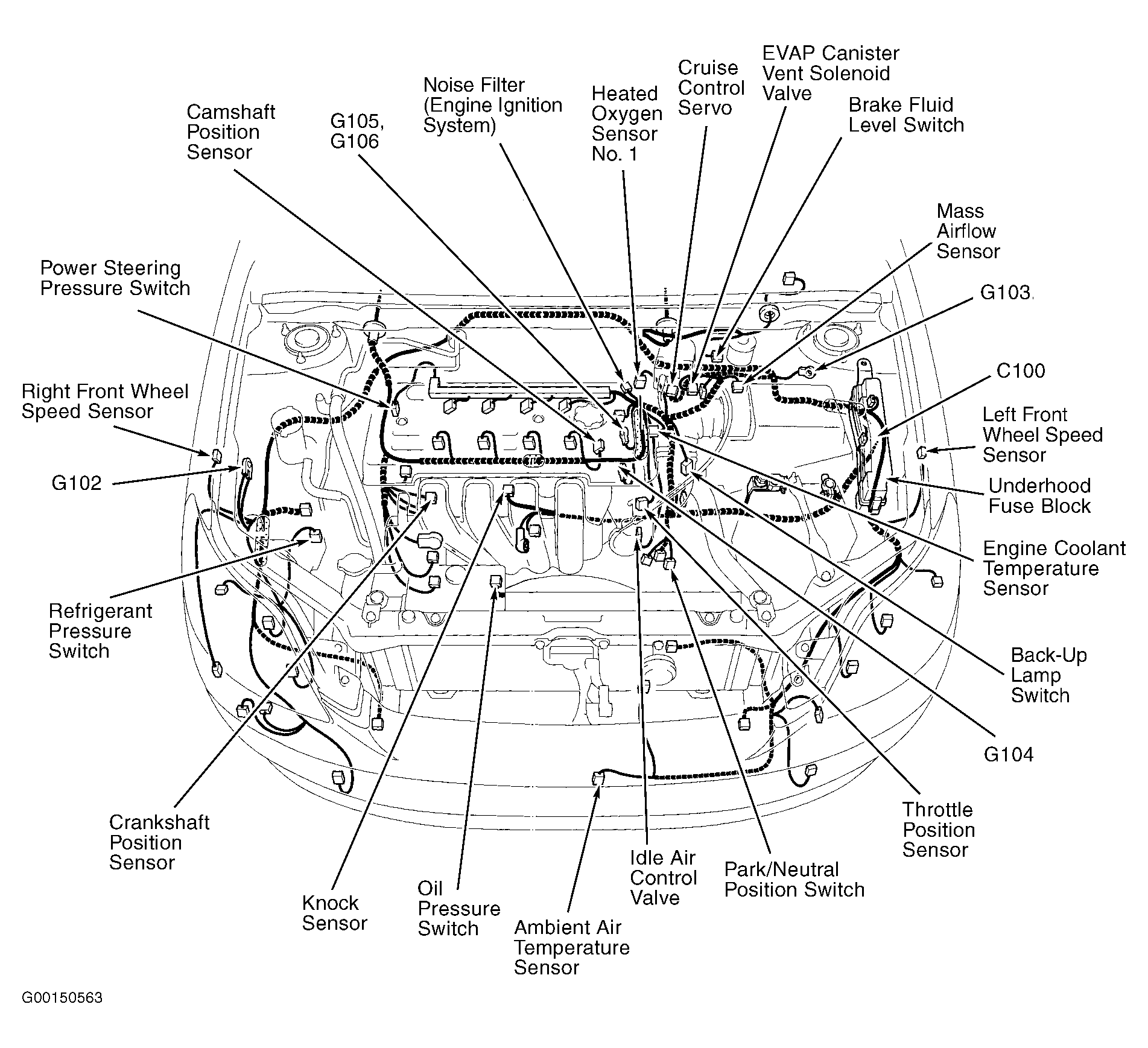

Fig 2: Engine Compartment (1.8L VIN 8)
G00150563Courtesy of GENERAL MOTORS CORP.
Fig 3: Dash
G00150564Courtesy of GENERAL MOTORS CORP.

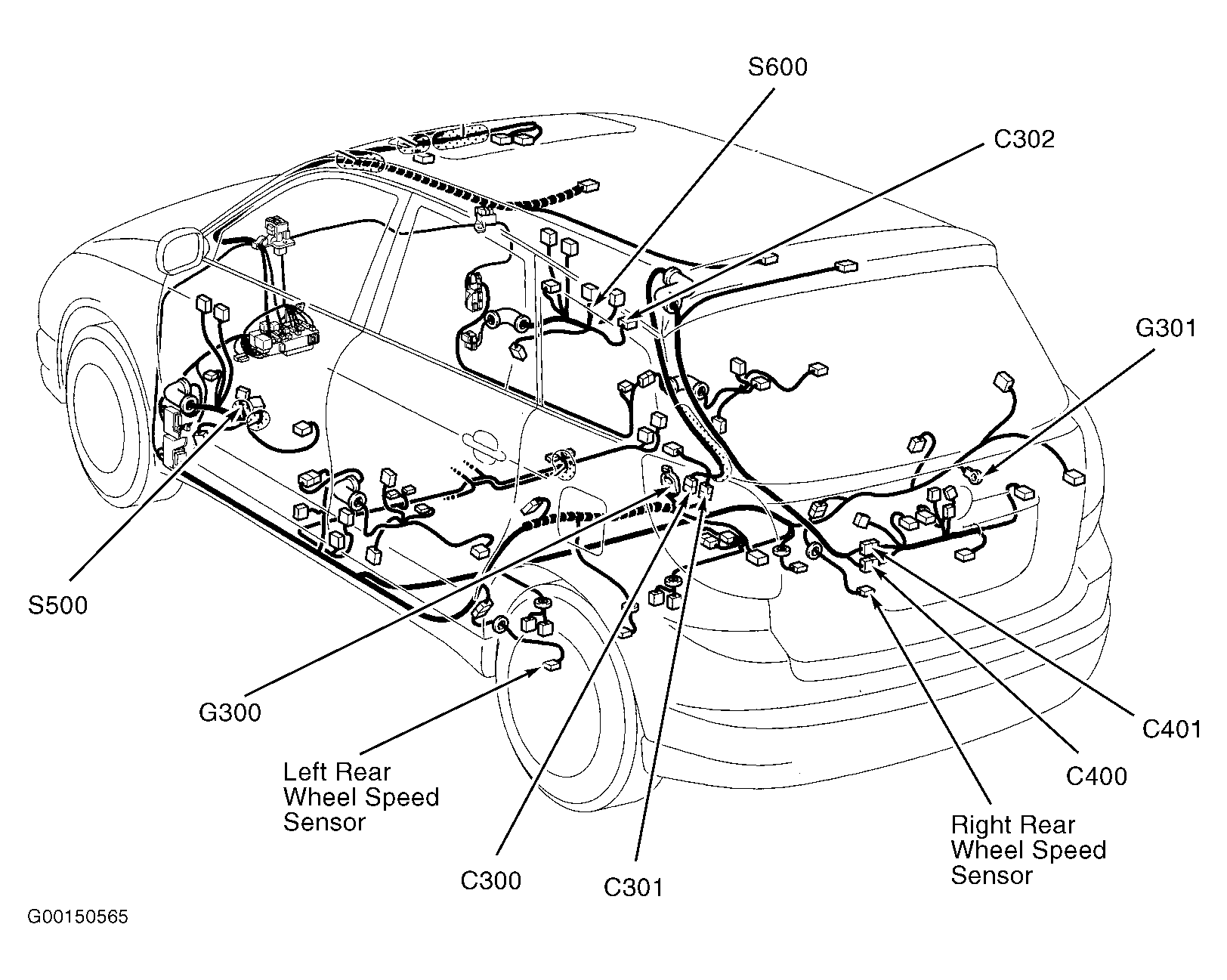

Fig 4: Left Side Of Vehicle
G00150565Courtesy of GENERAL MOTORS CORP.
