Wheel Alignment (AWD)

Use illustration for wheel alignment specifications. See Fig 1 .

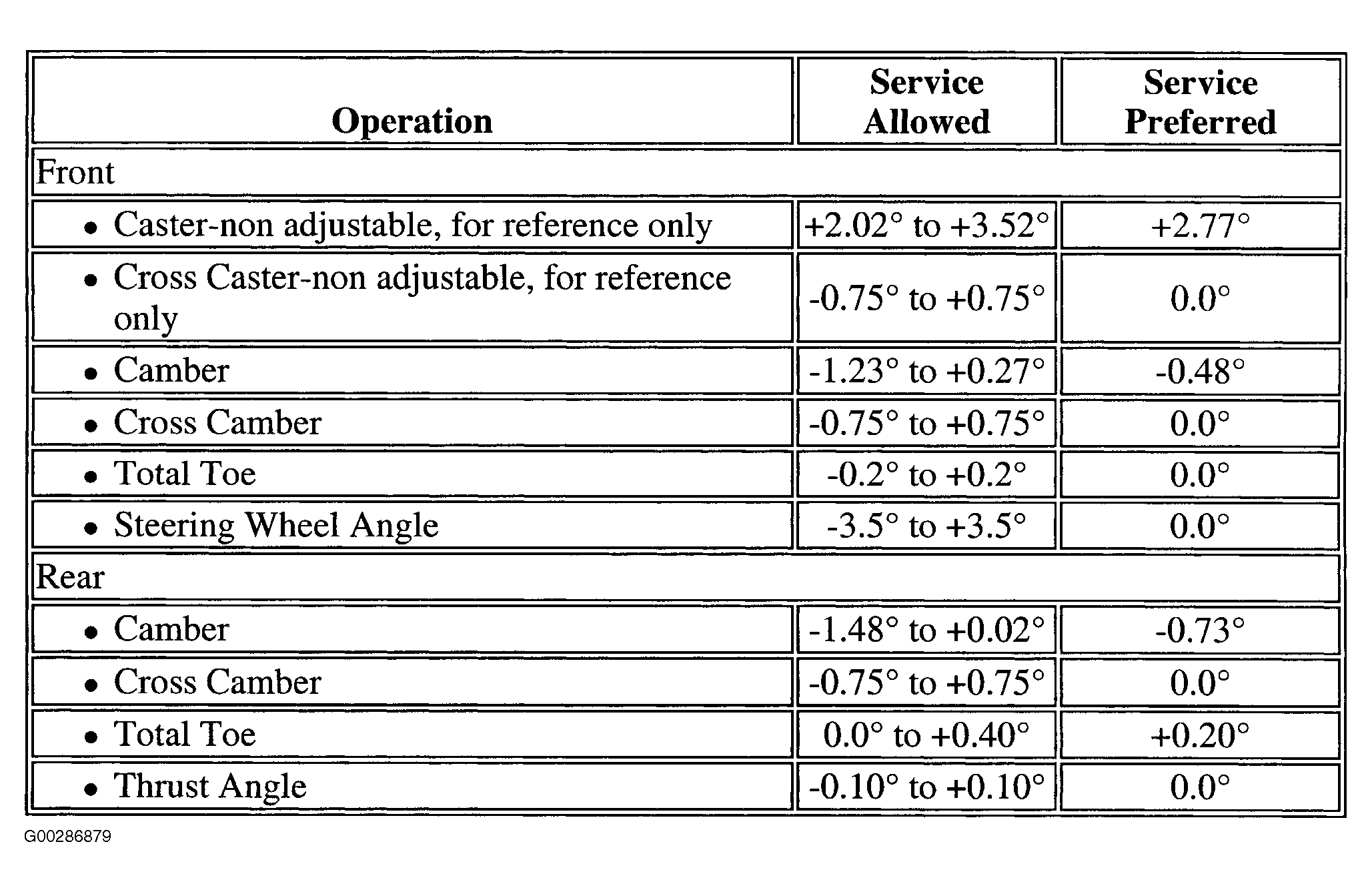

Fig 1: Wheel Alignment Specifications (AWD)

G00286879

Courtesy of GENERAL MOTORS CORP.
