Installation Procedure

Turn the ignition switch to the ACC or RUN position.
Connect the cable to the upper bracket.

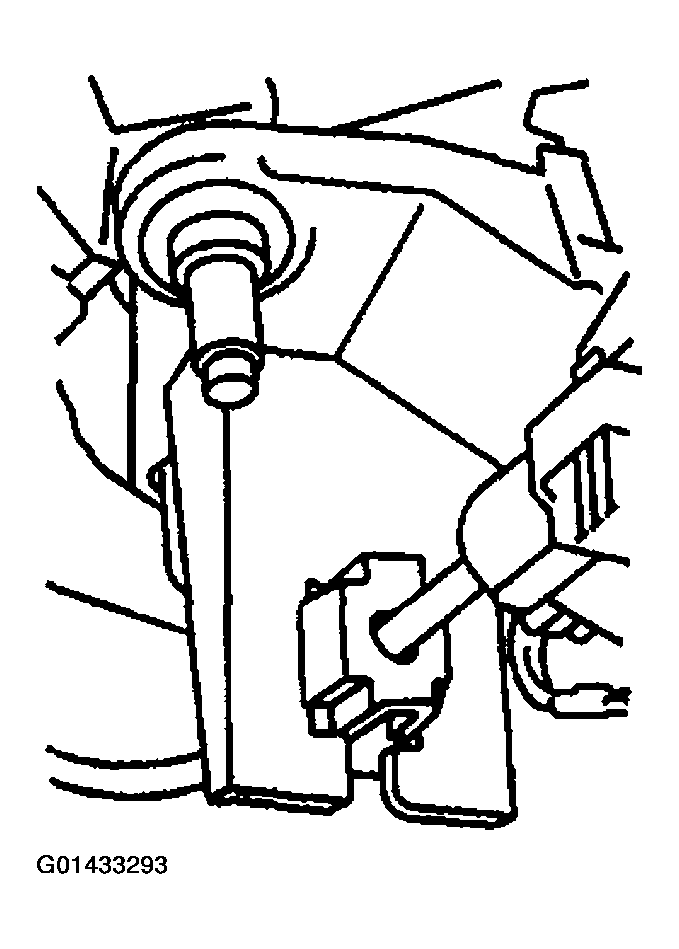

Fig 1: Connecting Cable To Upper Bracket
Courtesy of GENERAL MOTORS CORP.
Connect the cable clamp.
Shift the manual selector to Neutral.

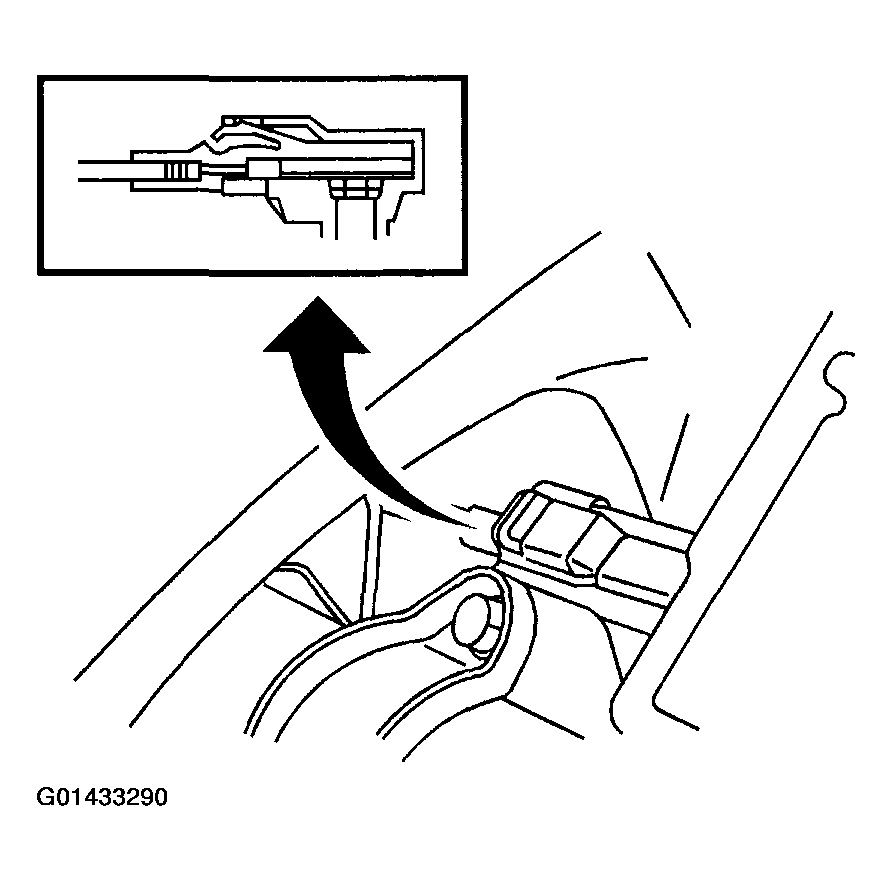

Fig 2: Connecting Cable Clamp
Courtesy of GENERAL MOTORS CORP.
Using a small screwdriver, unlock the lock tab on the cable adjustment assembly (1).

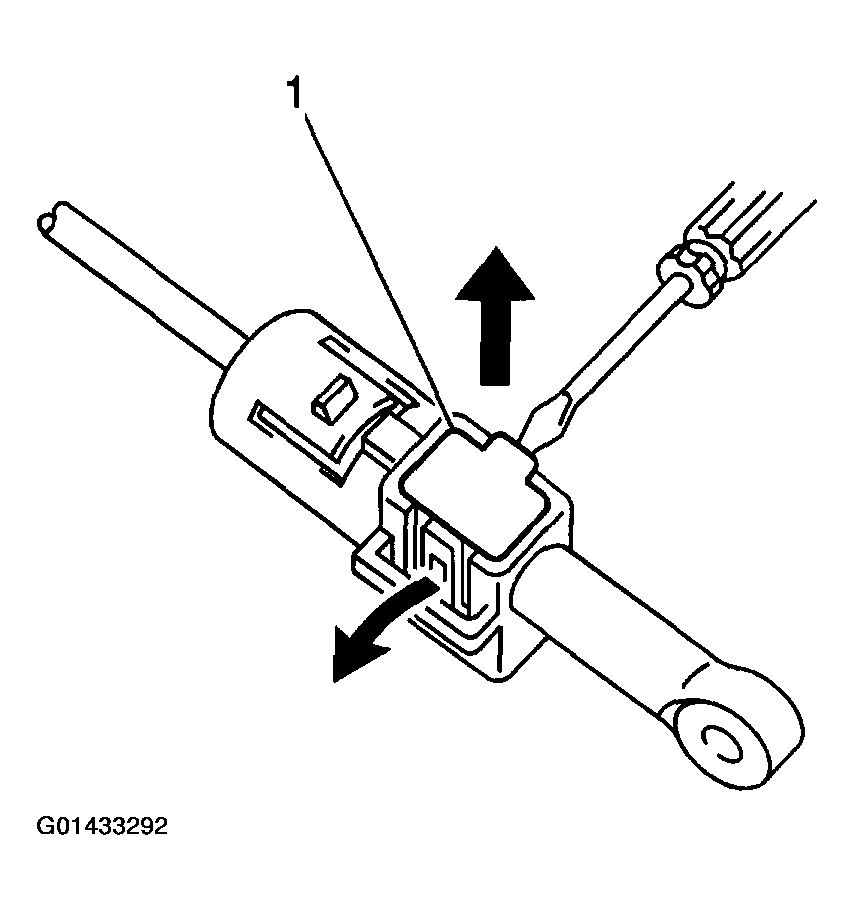

Fig 3: Unlocking Lock Tab On Cable Adjustment Assembly
Courtesy of GENERAL MOTORS CORP.
Install the park lock cable through the hole of the shift lever plate, then press the retainer into the shift lever plate.

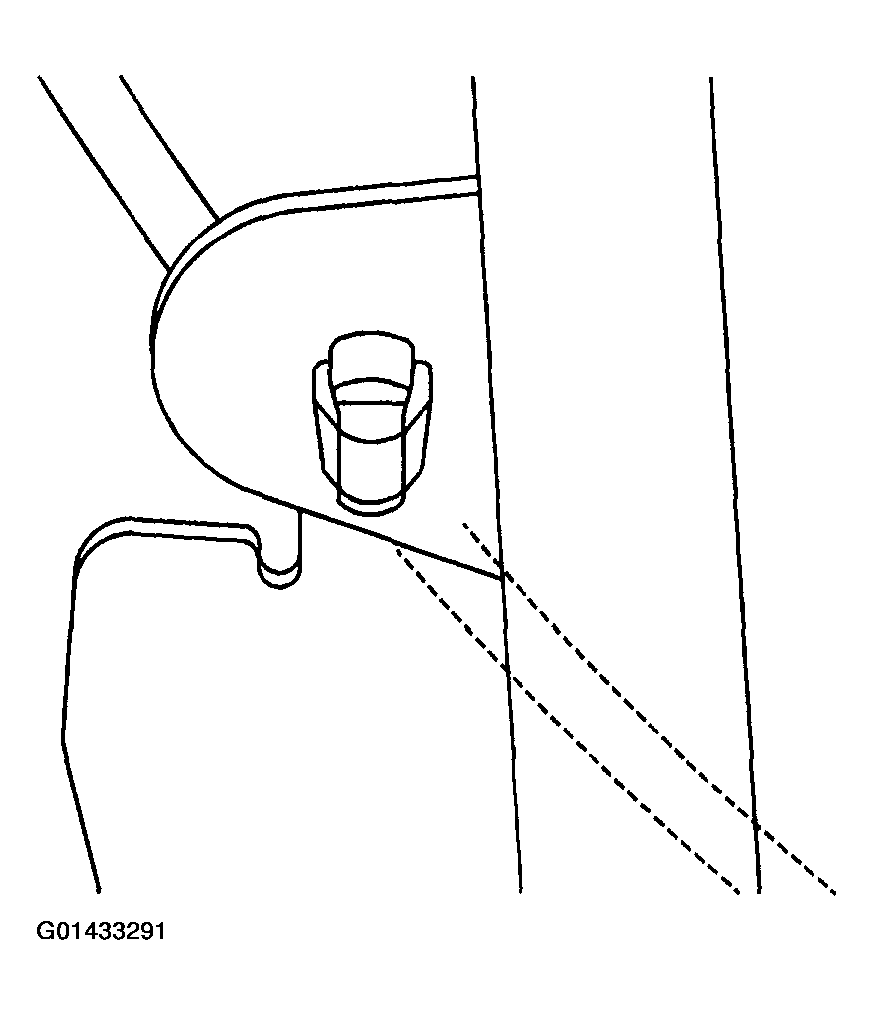

Fig 4: Installing Park Lock Cable Through Hole Of Shift Lever Plate
Courtesy of GENERAL MOTORS CORP.
Connect the park lock cable to the shift lock lever.

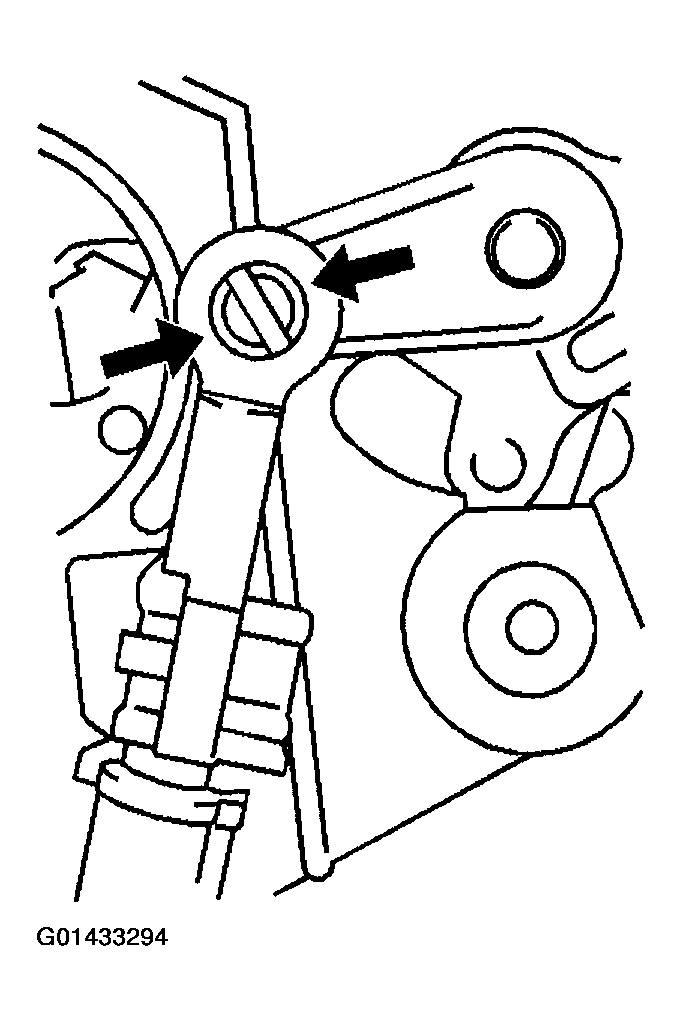

Fig 5: Connecting Park Lock Cable To Shift Lock Lever
Courtesy of GENERAL MOTORS CORP.
Ensure that the ignition switch is in the ACC or RUN position and the manual lever is in the Neutral position.
Press the lock tab on the cable adjustment assembly.
Check park lock cable for proper operation.
Install the front floor console cover. Refer to CONSOLE REPLACEMENT - FRONT FLOOR in Instrument Panel, Gages, and Console.
Install the front floor trim plate. Refer to TRIM PLATE REPLACEMENT - FRONT FLOOR CONSOLE in Instrument Panel, Gages, and Console.
Install the instrument panel trim panel. Refer to TRIM PANEL REPLACEMENT - INSTRUMENT PANEL (I/P) CENTER in Instrument Panel, Gages, and Console.
Install the steering column trim covers. Refer to STEERING COLUMN TRIM COVERS REPLACEMENT in Steering Wheel and Column.
Install the bezel. Refer to BEZEL REPLACEMENT - INSTRUMENT PANEL (I/P) CLUSTER in Instrument Panel, Gages, and Console.
