Installation Procedure

  1. Push the theft deterrent module (2), onto the lock cylinder housing (1).

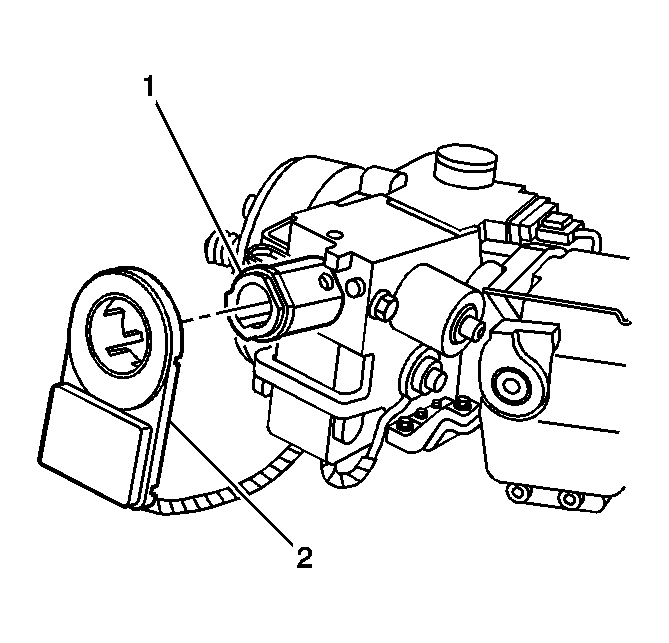

    Fig 1: View Of Theft Deterrent Control Module
    GM860152Courtesy of GENERAL MOTORS CORP.
  2. Install the theft deterrent wiring harness to the steering column harness.
  3. Connect the electrical connector.
  4. Replace the steering column trim covers. Refer to Steering Column Trim Covers Replacement in Steering Wheel and Column.
  5. Enable the SIR system. Refer to SIR Disabling and Enabling Zone 3 in SIR.
  6. Program the new theft control module. Refer to Programming Theft Deterrent System Components
