Installation Procedure

  1. Install the strut to the vehicle.

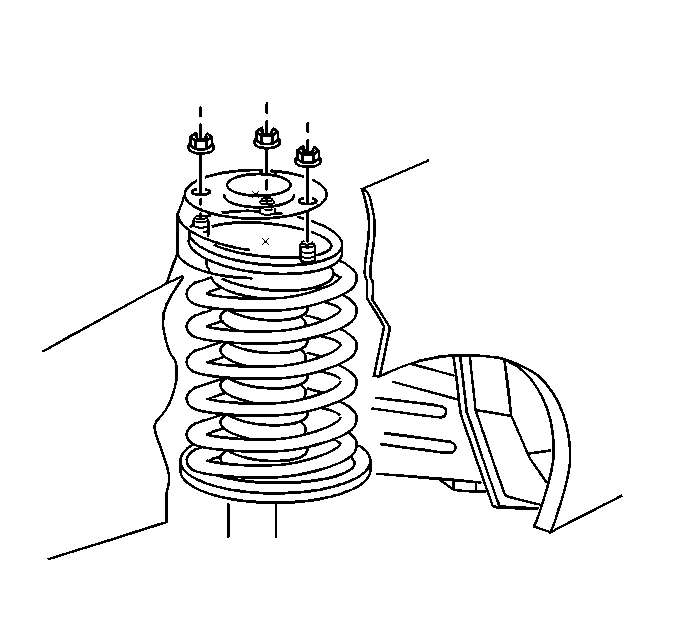

    2. Fig 1: Identifying Upper Strut Mounting Nuts
    GM385559Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the strut upper nuts.

    Tighten:  Tighten the strut upper nuts to 41 N.m (30 lb ft).

  3. Install the wiper module refer to Wiper Motor Module Replacement

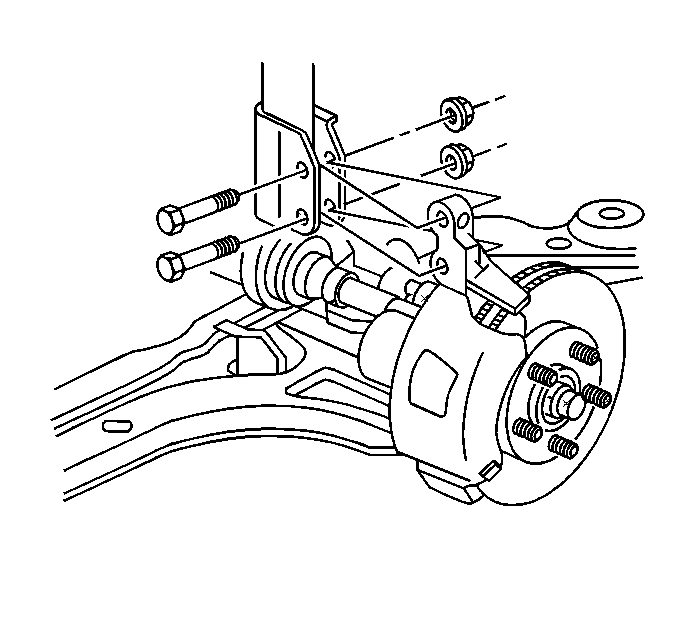

    4. Fig 2: View Of Steering Knuckle To Strut Bolts
    GM385564Courtesy of GENERAL MOTORS CORP.
  4. Install the strut lower bolts and nuts. Hand tighten only.

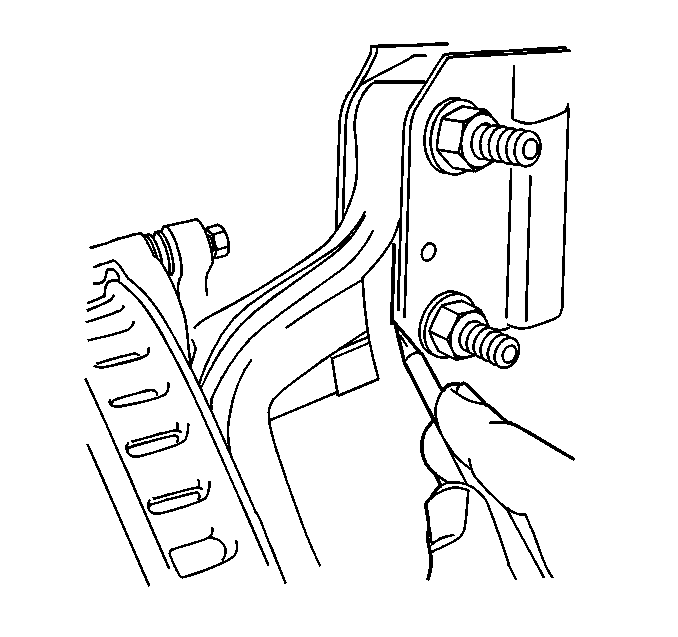

    5. Fig 3: Scribing Strut To Knuckle
    GM385558Courtesy of GENERAL MOTORS CORP.
  5. Install the tire and wheel. Refer to Tire and Wheel Removal and Installation in Tires and Wheels.
  6. Inspect and adjust the camber as necessary. Refer to Front Camber Adjustment in Wheel Alignment.
  7. Lower the vehicle.
